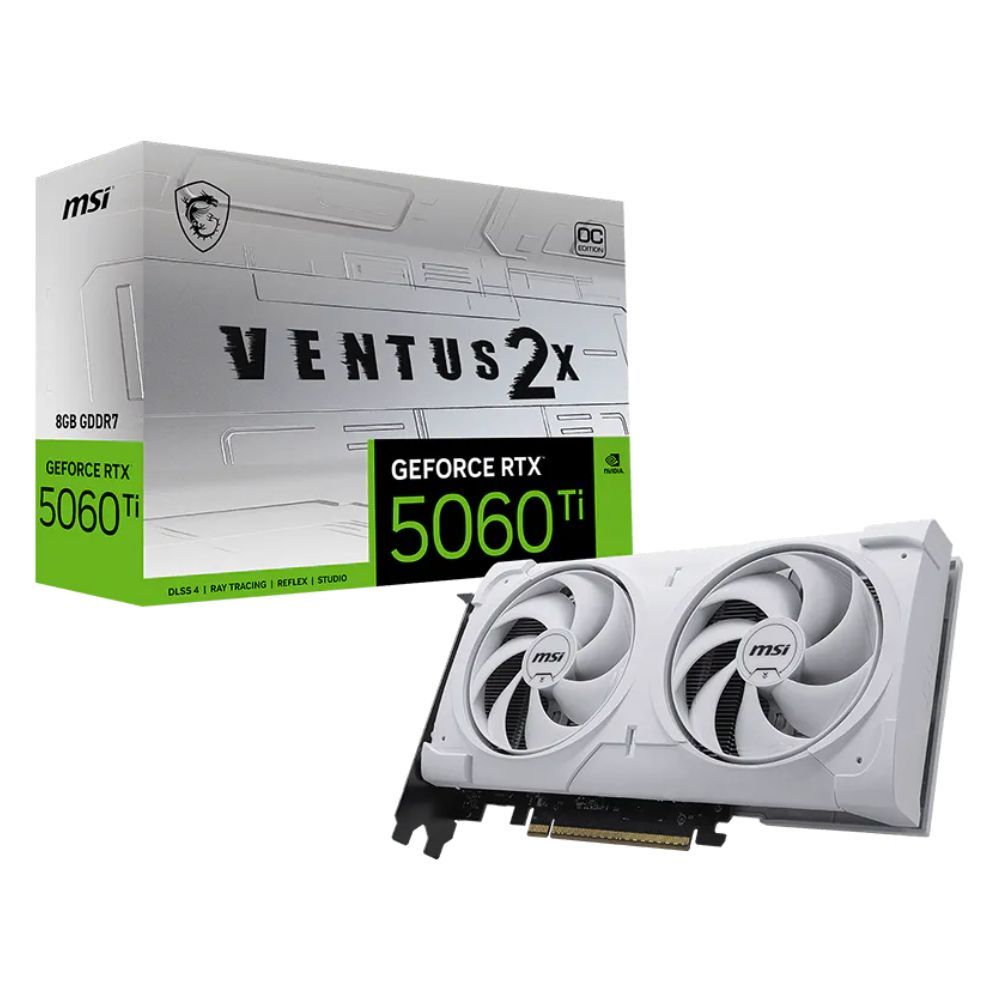

The MSI GeForce RTX™ 5060 Ti 8G VENTUS 2X OC WHITE PLUS is a high-performance graphics card built with a clean white aesthetic. Powered by NVIDIA’s GeForce RTX™ 5060 Ti graphics processing unit, it is designed for demanding modern gaming and content creation, balancing efficient power consumption with robust cooling capabilities using a dual-fan Ventus design.
Features

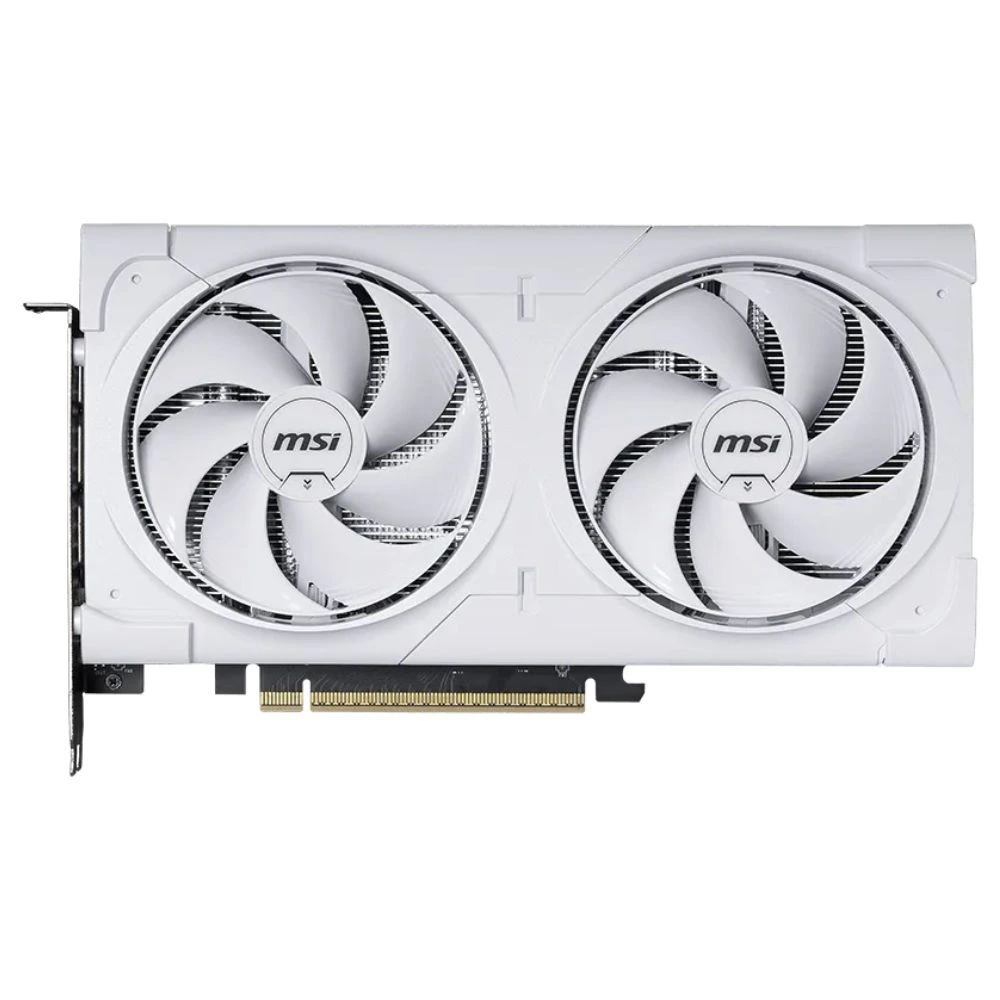

Dual-Fan Thermal Design: Focuses on cooling performance with dual fans for stable temperatures during heavy workloads.
Core Clock Boost: Offers an Extreme Performance mode reaching up to 2617 MHz (via MSI Center) and a standard Boost clock of 2602 MHz.
Next-Gen Memory: Equipped with lightning-fast 8GB of GDDR7 memory operating across a 128-bit memory bus at 28 Gbps.
Advanced Connectivity: Features DisplayPort v2.1b x3 and HDMI™ v2.1b x1 outputs, supporting resolutions up to 4K at 480Hz or 8K at 120Hz with DSC, Gaming VRR, and HDR.
NVIDIA Ecosystem Support: Fully compatible with NVIDIA G-SYNC® technology, DirectX 12 Ultimate, and OpenGL 4.6.
Specification
Model Name: G506T8V2CWP
Graphics Processing Unit: NVIDIA® GeForce RTX™ 5060 Ti
Interface: PCI Express® Gen 5 x16 (uses x8)
Core Clocks: Extreme Performance: 2617 MHz (MSI Center)
Boost: 2602 MHz
CUDA® Cores: 4608 Units
Memory Speed: 28 Gbps
Memory: 8GB GDDR7
Memory Bus: 128-bit

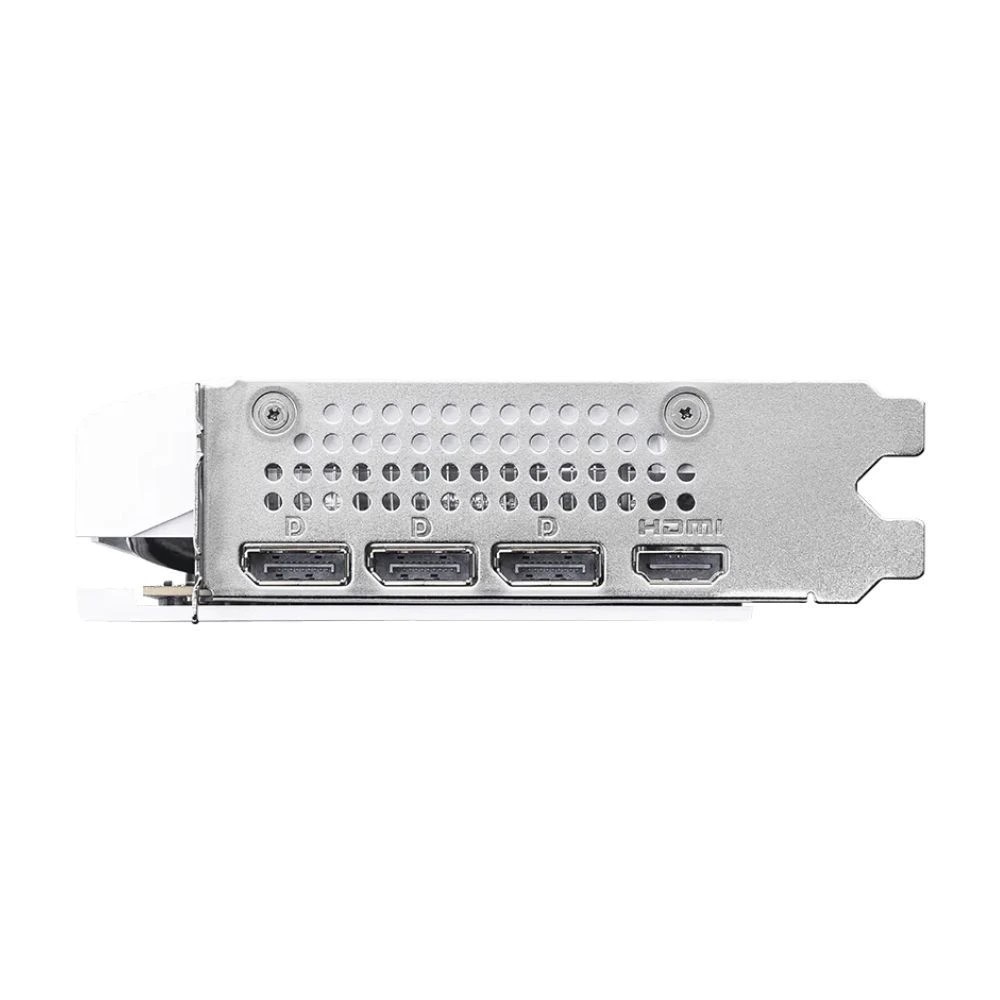

Output Ports: DisplayPort x 3 (v2.1b) & HDMI™ x 1 (Supports 4K 480Hz / 8K 120Hz with DSC, VRR, HDR)
HDCP Support: Yes
Power Consumption: 180 W
Power Connectors: 8-pin x 1
Recommended PSU: 600 W
Card Dimensions: 227 x 126 x 41 mm
Weight: 600 g (Card) / 862 g (Package)
DirectX Version Support: 12 Ultimate
OpenGL Version Support: 4.6
Maximum Displays: 4
G-SYNC® Technology: Yes
Digital Maximum Resolution: 7680 x 4320
