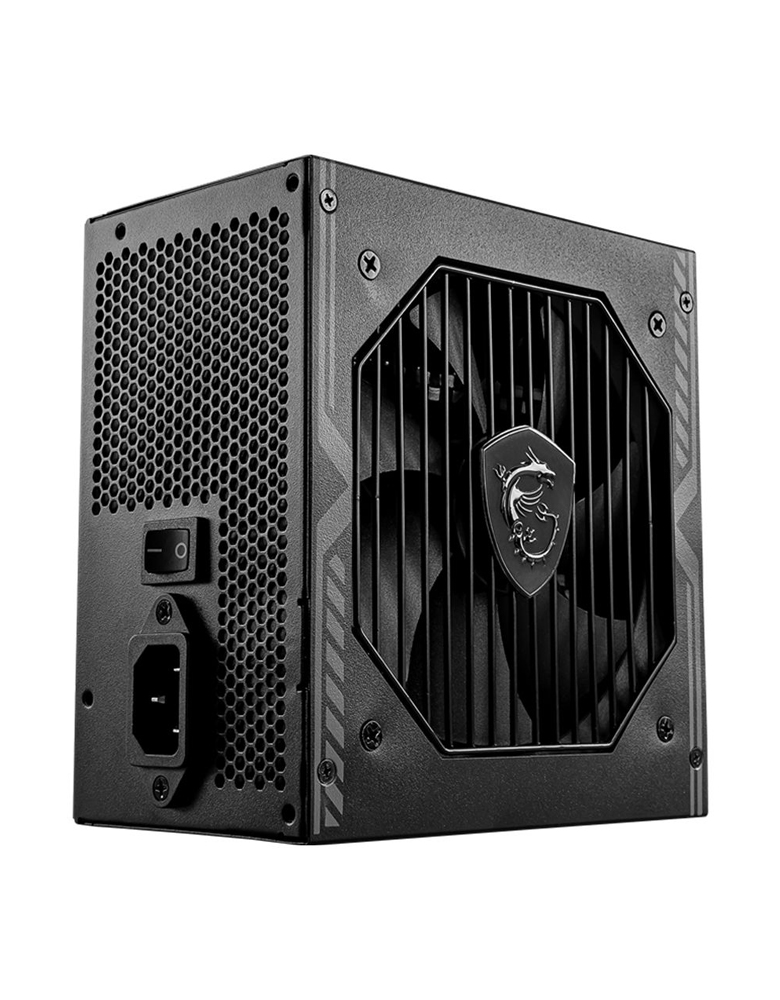

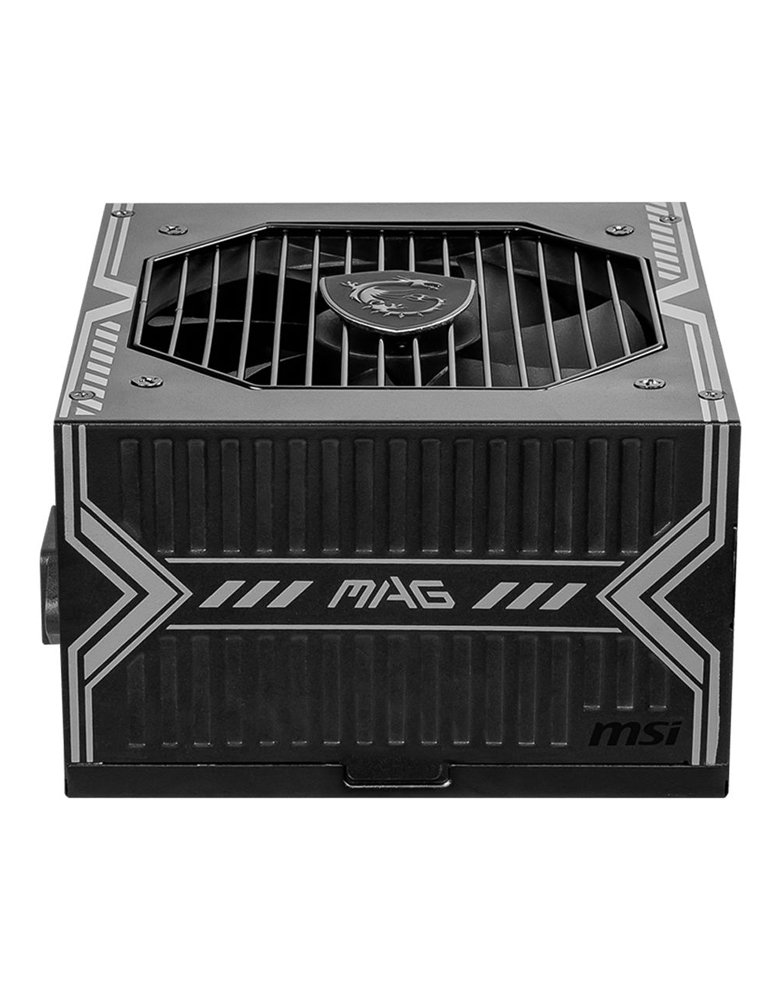

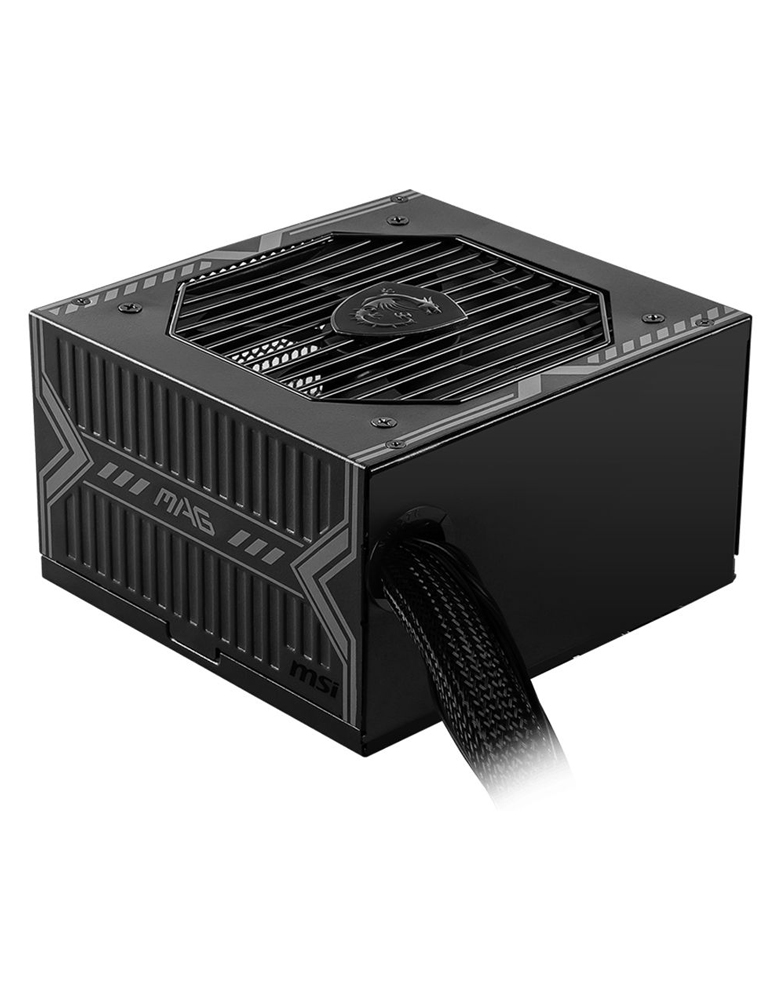

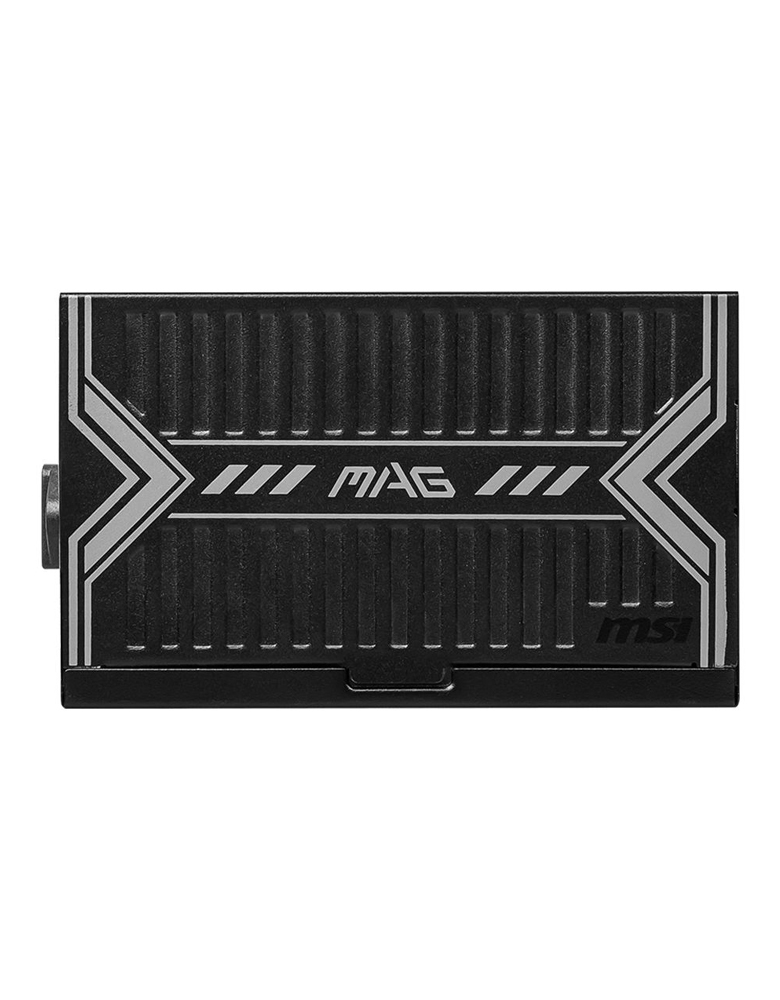

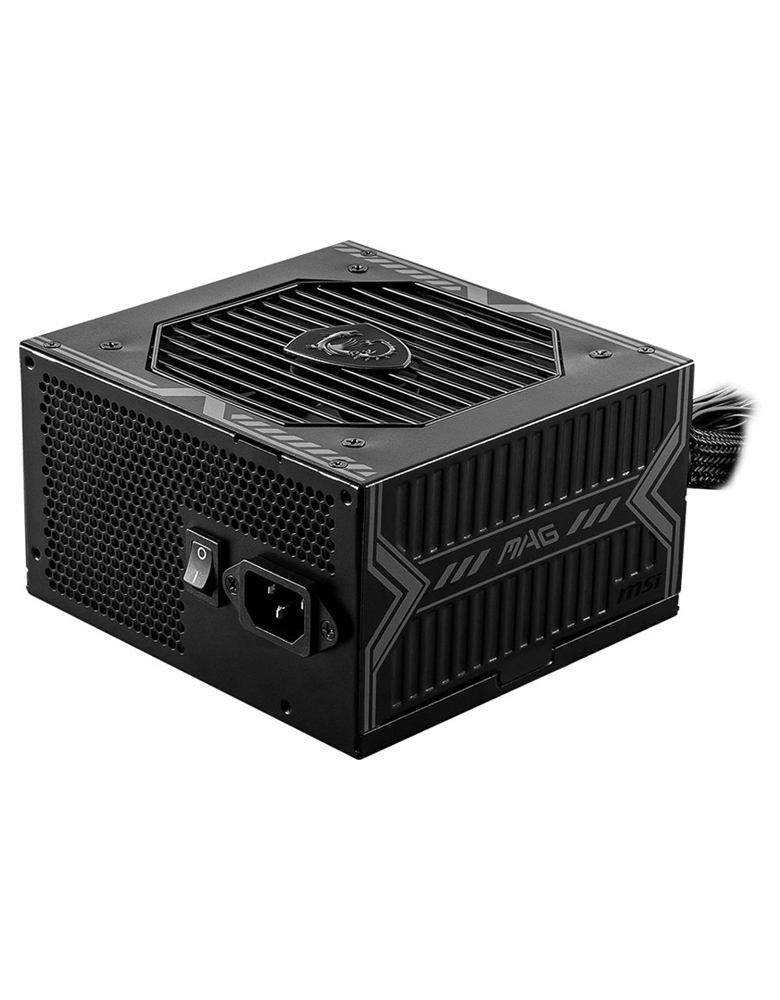

MSI MAG A550BN 550W 80 Plus Bronze Certified Gaming Power Supply

MAG A550BN

• 80 Plus Bronze certified for high efficiency
• 120mm Low Noise Fan
• Industrial level protection with OVP,OCP,OPP,OTP, SCP
• DC-DC Circuit Design
• Active PFC design

80 PLUS BRONZE CERTIFIED
The efficiency of your power supply directly influences your system’s performance and your power consumption. The 80 PLUS BRONZE certification promises lower energy consumption and higher efficiency.

120mm LOW NOISE FAN
The fan’s sleeve bearing reduces the noise generated while maintaining excellent heat dissipation.

DC TO DC CIRCUIT DESIGN
Adopted DC-DC circuit design reduces the instability of output voltage, and ads stability to the supply of power.

Specifications

Efficiency Rating: 80 PLUS Bronze (up to 85%)
Modular:  No
Fan Size: 120 mm
Fan Bearing: Sleeve Bearing
Dimensions (DxWxH): 140 x 150 x 86 mm
PFC Type:
Active PFC
Input Voltage Range:  100~240 VAC
Power Watt: 550W
Input Frequency Range:  50~60 Hz
Protection:
OCP / OVP / OPP / OTP / SCP
ATX (24 pin): 1
EPS (4+4 pin): 1
PCI-E (6+2 pin): 2
SATA (15 pin): 5
PERIPHERAL (4 pin): 2
FDD (4 pin): 1
