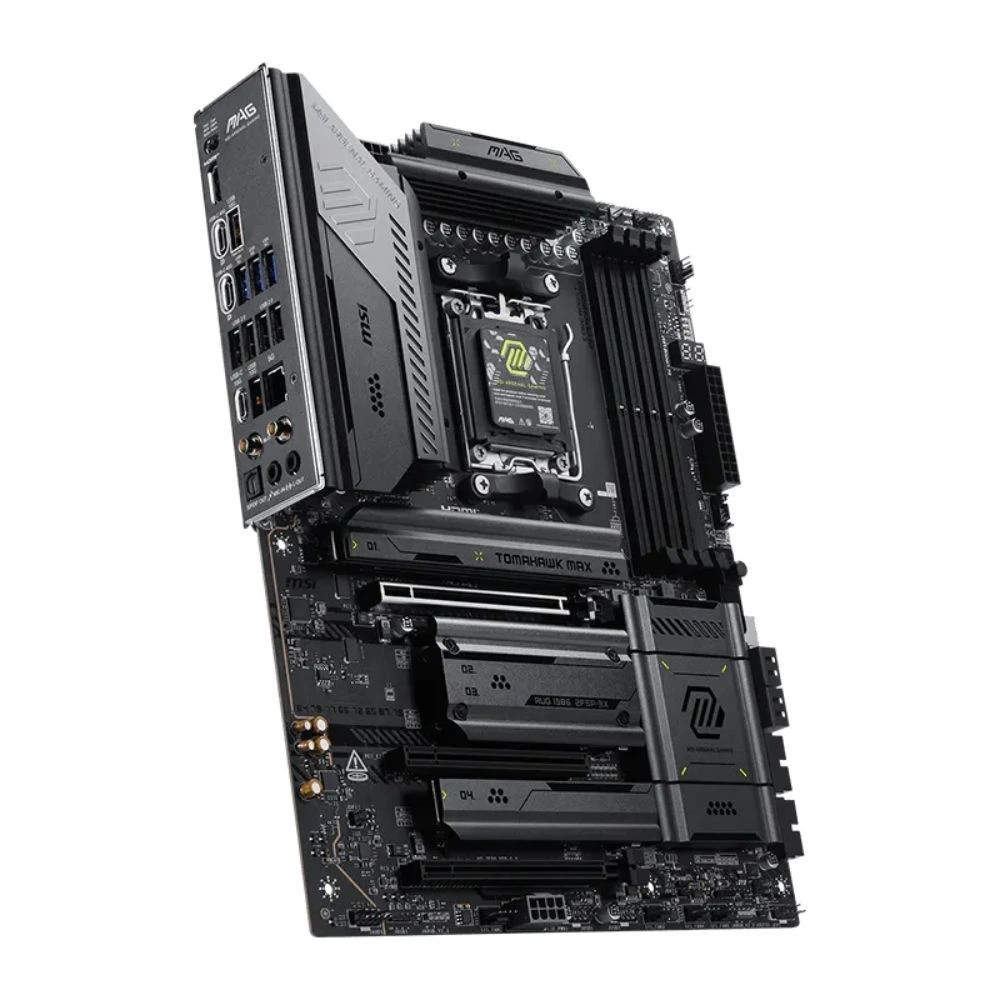

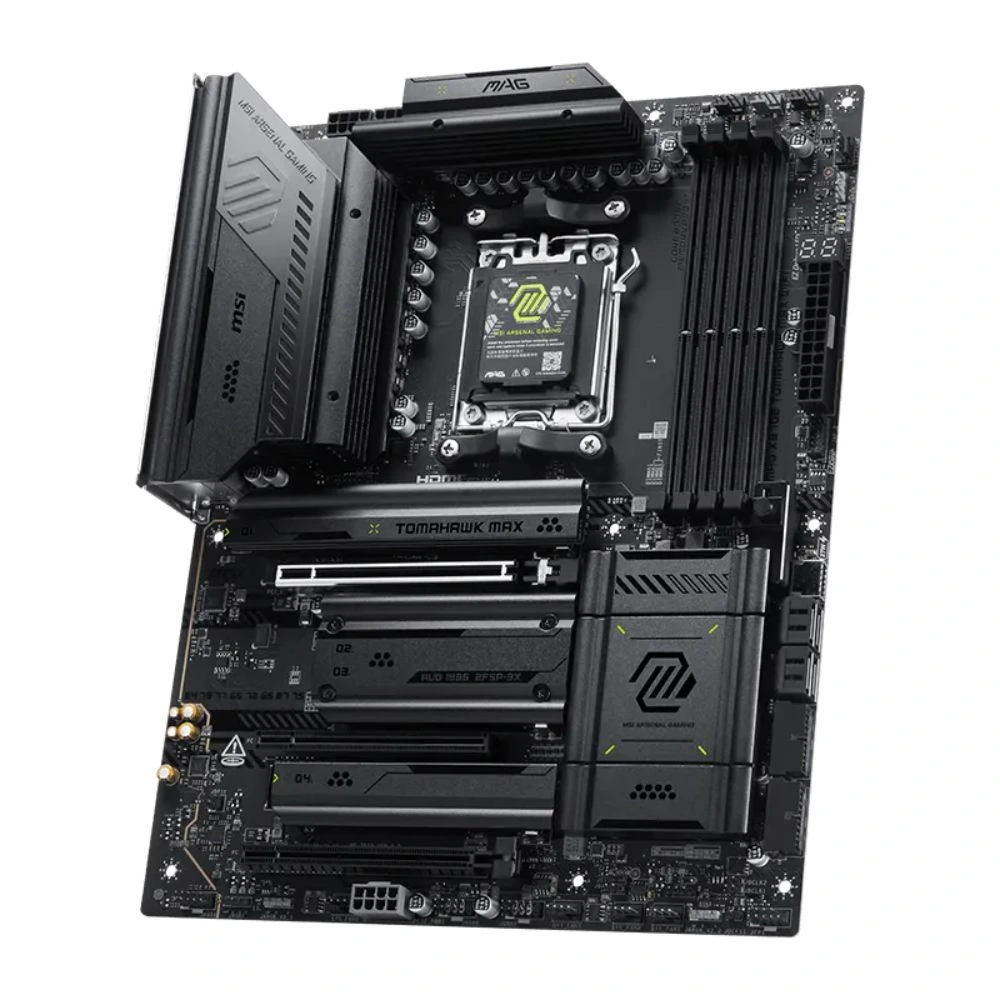

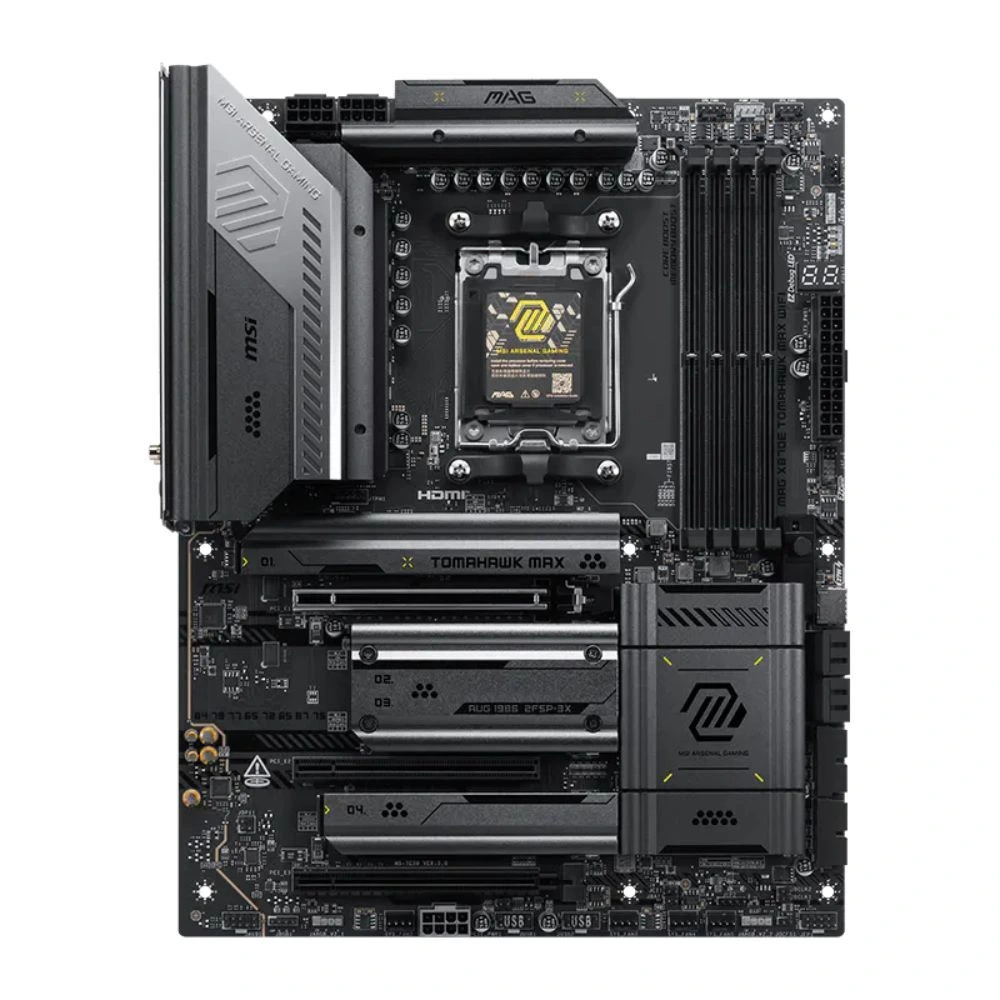

- MAG X870E TOMAHAWK MAX WIFI
– Supports AMD Ryzen™ 9000 / 8000 / 7000 Series Desktop Processors
– Supports DDR5 Memory, Dual Channel DDR5 8400+ MT/s (OC)
– Ultra Performance: 14+2+1 Duet Rail Power System 80A SPS, dual 8-pin CPU power connectors, Core Boost, Memory Boost, 8-layer PCB made by 2oz thickened copper and server-grade level material
– Frozr Guard: Extended Heatsink, MOSFET thermal pads rated for 7W/mK, additional choke thermal pads, and EZ- M.2 Shield Frozr II are built for high high-performance system and non-stop experience
– EZ DIY: EZ M.2 Shield Frozr II, EZ M.2 Clip II, EZ PCIe Release and EZ Antenna
– Lightning Fast Game experience: PCIe 5.0 slot, Lightning Gen 5 x4 M.2
– Ultra Connect: USB4 and 5G LAN with Wi-Fi 7 Solution – the latest solution for professional and multimedia use, delivering secure, stable, and high-speed networking and data transmission
– Audio Boost 5: Reward your ears with studio-grade sound quality for the most immersive gaming experience - Specification
- CPU & Chipset
CPU Support: Supports AMD Ryzen™ 9000, 8000, and 7000 Series Desktop Processors
Socket: AMD Socket AM5
Chipset: AMD X870E - Memory (RAM)
Slots: 4x DDR5 UDIMM slots (Dual-Channel)
Max Capacity: Up to 256GB
Supported Speeds: Up to 8400+ MT/s (OC) / 5600–4800 MT/s (JEDEC)
Profiles Supported: AMD EXPO™, A-XMP, and CUDIMM (Clock Driver bypass mode) - Expansion Slots
PCI_E1 (GPU): PCIe 5.0 x16 (from CPU; runs at x8 on select Ryzen 8000 processors)
PCI_E2: PCIe 3.0 x1 (from Chipset)
PCI_E3: PCIe 4.0 x4 (from Chipset) - Storage & M.2 Slots
M.2_1 (CPU): PCIe 5.0 x4, supports 22110/2280 devices
M.2_2 (CPU): PCIe 5.0 x4, supports 2280/2260 devices (Note: Shares bandwidth with rear USB4 ports)
M.2_3 (Chipset): PCIe 4.0 x4, supports 2280/2260 devices
M.2_4 (Chipset): PCIe 4.0 x4, supports 2280/2260 devices
SATA Ports: 4x SATA 6Gb/s ports
RAID Support: RAID 0, 1, 10 for SATA; RAID 0, 1, 5, 10 for M.2 NVMe storage - Networking & Connectivity
Wired LAN: 1x Realtek® 8126 5G LAN controller
Wireless LAN: Wi-Fi 7 (802.11be), supporting tri-band 2.4GHz / 5GHz / 6GHz (up to 5.8Gbps)
Bluetooth: Bluetooth® 5.4 - Audio
Audio Codec: Realtek® ALC4080 Codec
Channels: 7.1-Channel USB High Performance Audio
Outputs: Front panel high-res audio playback (up to 32-bit/384kHz) and Optical S/PDIF output - Power & VRM
VRM Design: 14+2+1 Duet Rail Power System with 80A Smart Power Stage (SPS)
Power Connectors:
1x 24-pin ATX main power
2x 8-pin CPU power connectors

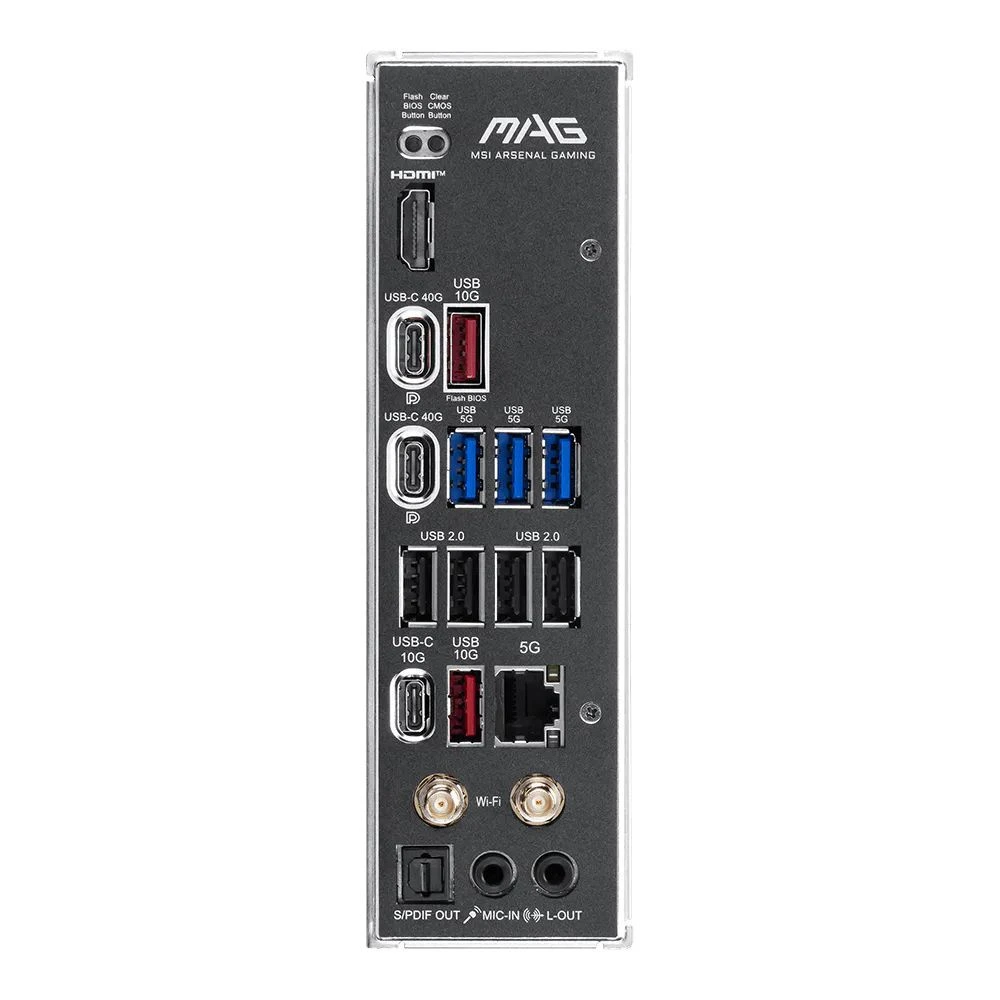

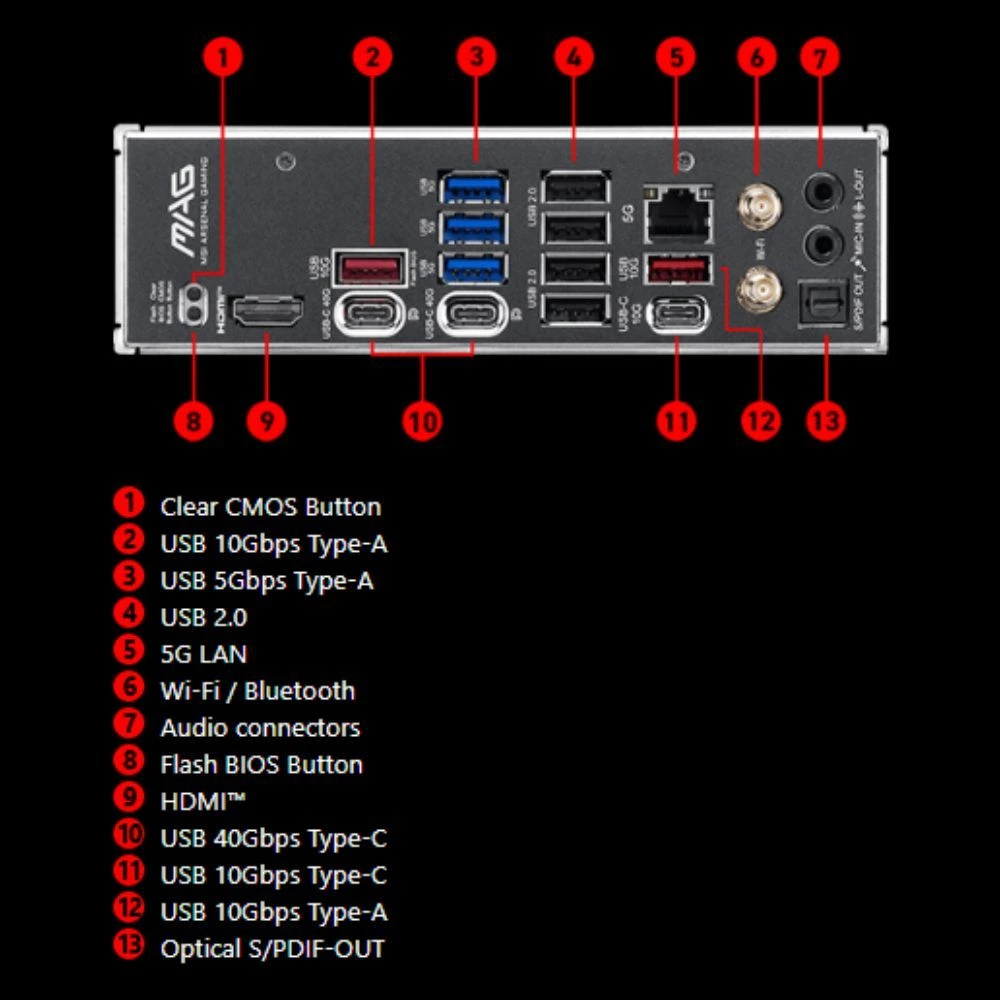

1x Supplemental 8-pin PCIe power connector (for added GPU slot stability) - Rear I/O Ports
2x USB 40Gbps Type-C ports (with DisplayPort 1.4 alt-mode)
1x USB 10Gbps Type-C port
2x USB 10Gbps Type-A ports
3x USB 5Gbps Type-A ports
4x USB 2.0 ports
1x HDMI™ 2.1 port (supporting up to 8K 60Hz)
1x 5G LAN port
Wi-Fi/Bluetooth antenna connectors
Audio jacks & Optical S/PDIF Out
Clear CMOS Button & Flash BIOS Button - Internal Headers & I/O
Fans & Pumps: 1x CPU Fan header, 1x Combo Pump/Sys Fan header, 6x System Fan headers
Lighting: 3x Addressable V2 RGB LED headers (JARGB_V2), 1x standard RGB LED header (JRGB)
Front USB Headers: 1x USB 20Gbps Type-C port, 2x USB 5Gbps headers (supporting 4x ports), 2x USB 2.0 headers (supporting 4x ports)
Other: 1x EZ Conn header (JAF_2), Direct OC Jumper, TPM 2.0 header, Chassis Intrusion header - Form Factor
Dimensions: ATX Form Factor (12 inches x 9.6 inches / 305 mm x 244 mm)
Sold OutNew

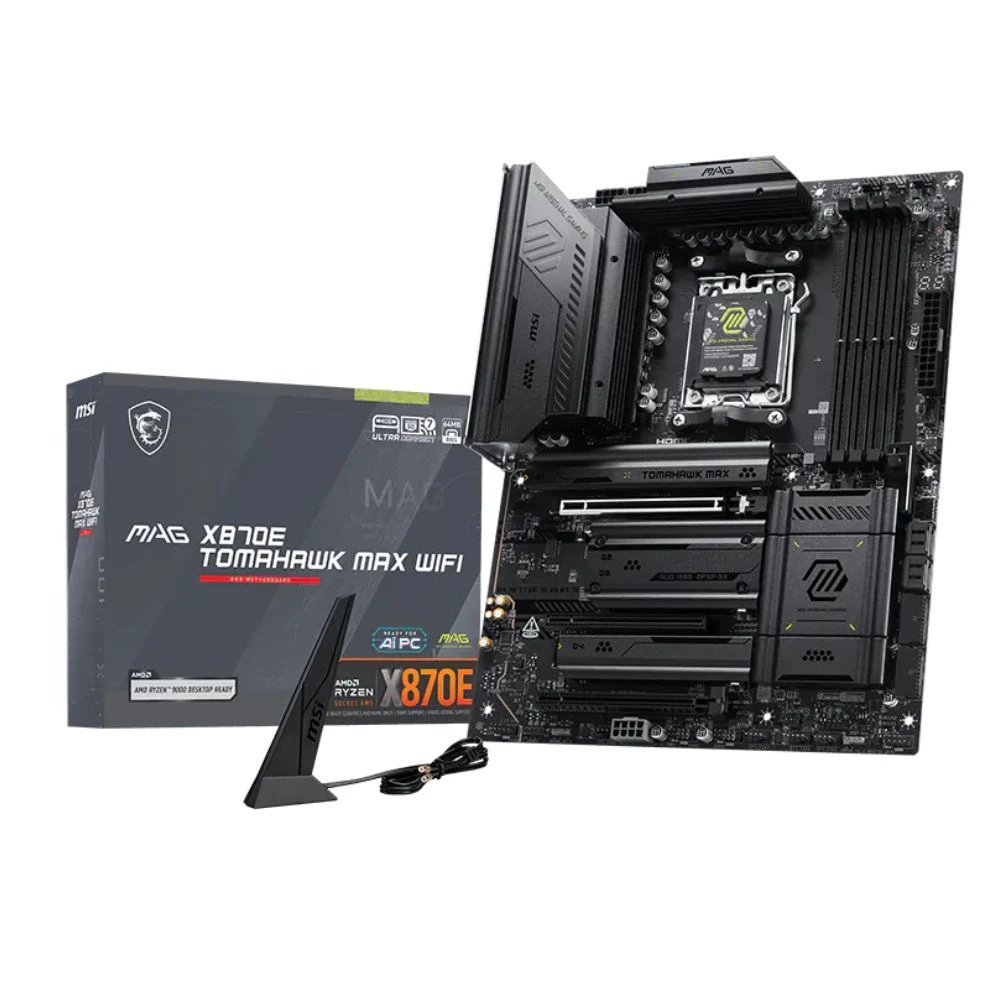

MSI MAG X870E Tomahawk Max WiFi 7/5G LAN DDR5 AMD AM5 Socket ATX Gaming Motherboard
₱22,195.00
Out of stock
Notify me when stock is available
