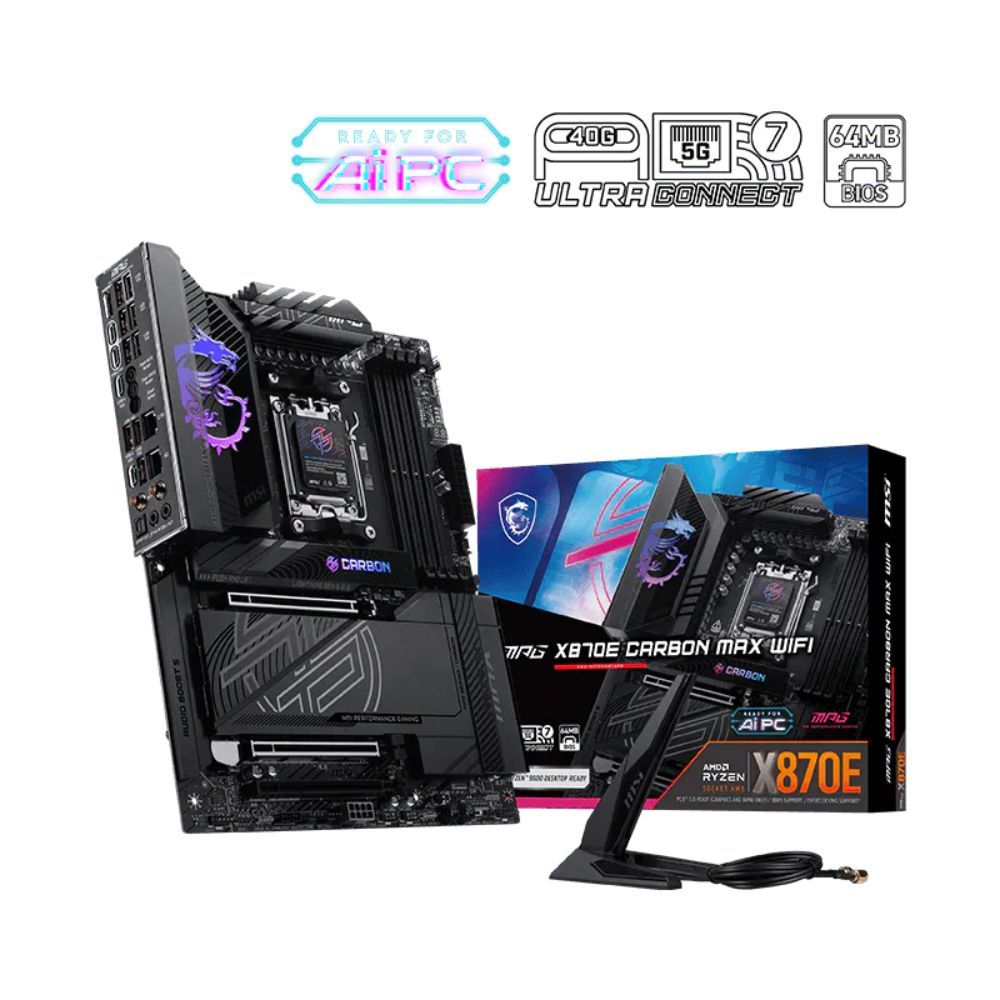

MPG X870E CARBON MAX WIFI
– Supports AMD Ryzen™ 9000 / 8000 / 7000 Series Desktop Processors
– Supports DDR5 Memory, Dual Channel DDR5 9000+ MT/s (OC)
– Ultra Performance: 18+2+1 Duet Rail Power System, OC Engine, dual 8-pin CPU power connectors, Core Boost, Memory Boost, 8-layer PCB made by 2oz thickened copper and server-grade level material
– Frozr Guard: Enlarged heatsink with heat-pipe, MOSFET thermal pads rated for 7W/mk, additional choke thermal pads and M.2 Shield Frozr are built for high performance system and non-stop gaming experience
– EZ DIY: 64MB BIOS ROM, EZ PCIe Release, EZ M.2 Shield Frozr II, EZ M.2 Clip II and EZ Antenna
– Lightning Fast Game experience: PCIe 5.0 slot, Lightning Gen 5 M.2
– Ultra Connect: USB4 and 5G LAN + 2.5G LAN with Wi-Fi 7 Solution – The latest solution for professional and multimedia use, delivering secure, stable, and high-speed networking and data transmission
– Audio Boost 5: Reward your ears with studio grade sound quality for the most immersive gaming experience

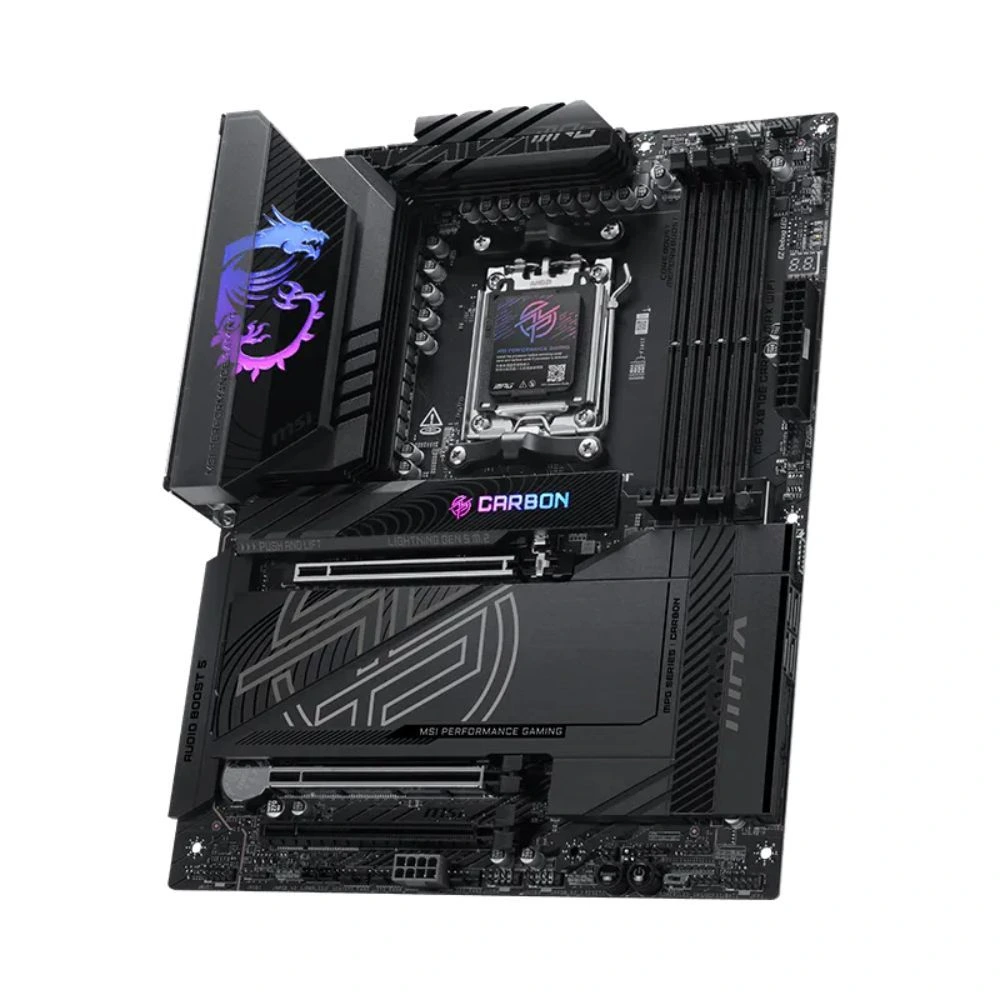

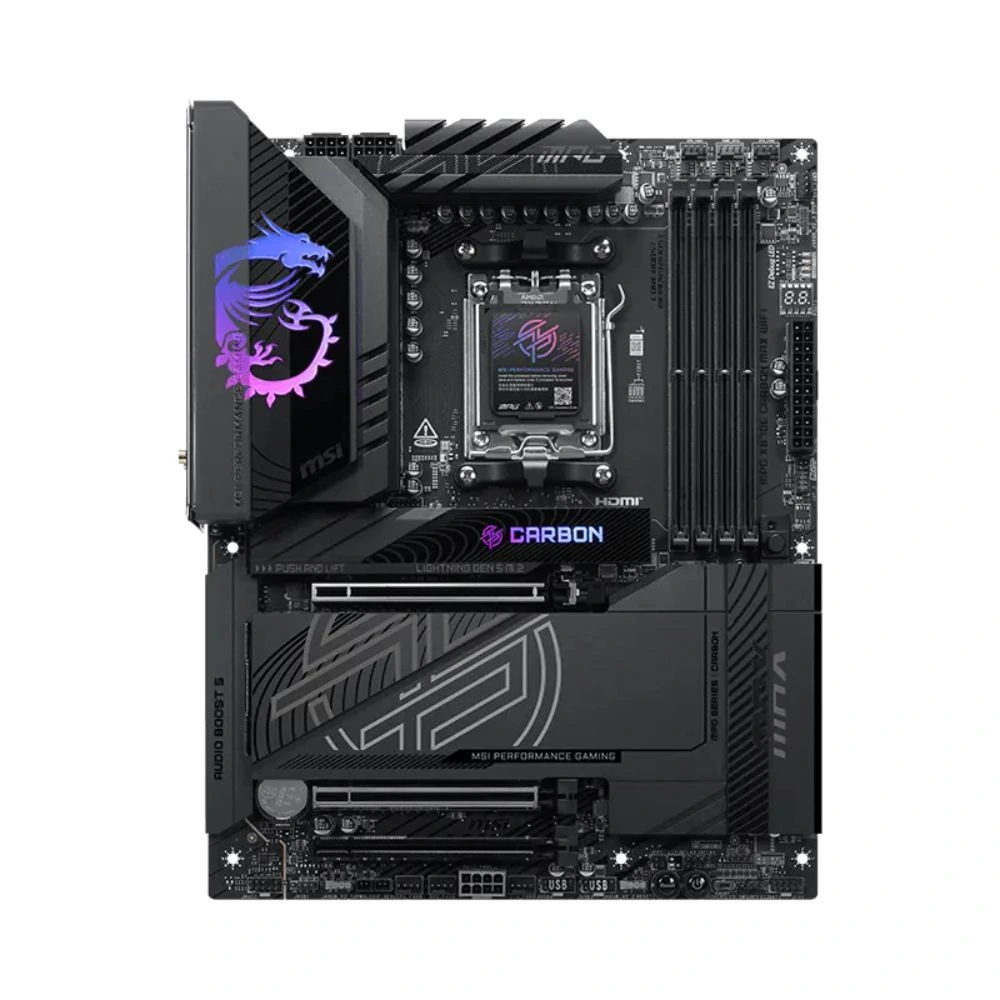

The MPG X870E CARBON MAX WIFI employs a carbon black color scheme and reflection decoration over Mystic Light RGB lighting to show a distinct identity. Designed for gamers who demand strong performance and sleek aesthetics, it features an 18+2+1 Duet Rail Power System, OC Engine, Wi-Fi 7, 5G + 2.5G LAN, and the latest PCIe 5.0 M.2 slots with EZ M.2 Shield Frozr II. It is engineered as one of the best X870 ATX motherboards for AMD Ryzen 9000, 8000, and 7000 series processors, supporting demanding computing, gaming, and AI usage.
Technical Specification
Chipset: AMD X870E
CPU Support: Supports AMD Ryzen™ 9000 / 8000 / 7000 Series Desktop Processors (Socket AM5)
Memory
– 4x DDR5 UDIMM (Maximum Capacity: 256GB)
– Supports DDR5 9000 – 5600 (OC) MT/s / 5600 – 4800 (JEDEC) MT/s
– Ryzen™ 9000 Series max overclocking frequency: 1DPC 1R up to 8400+ MT/s; 1DPC 2R / 2DPC 1R / 2DPC 2R up to 6400+ MT/s
– Supports AMD EXPO™, Dual-Channel mode, Non-ECC Un-buffered memory, and CUDIMM (Clock Driver bypass mode only)
Onboard Graphics
– 1x HDMI™ (Supports HDMI™ 2.1 with FRL, max resolution 8K 60Hz)
– 2x Type-C DisplayPort (USB4® port supporting DP 1.4 with HBR3, max resolution 4K 60Hz)
(Available only on processors featuring integrated graphics)
Expansion Slots3x PCI-E x16 slots:
– PCI_E1: Gen PCIe 5.0 supports up to x16 (From CPU)
– PCI_E2: Gen PCIe 5.0 supports up to x8 (From CPU)
– PCI_E3: Gen PCIe 4.0 supports up to x4
(Supports varying lane splits depending on the installed Ryzen™ processor series)
Audio: Realtek® ALC4080 Codec (7.1-Channel USB High-Performance Audio, up to 32-Bit/384 kHz playback on front panel, S/PDIF output)
Storage
– 4x M.2 slots:
– M.2_1: Up to PCIe 5.0 x4, supports 2280/2260 devices (From CPU)
– M.2_2: Up to PCIe 5.0 x4, supports 2280/2260 devices (From CPU)
– M.2_3 & M.2_4: Up to PCIe 4.0 x4, supports 2280/2260 devices (From Chipset)
– 4x SATA 6Gb/s ports
RAID
– SATA: RAID 0, RAID 1, and RAID 10
– M.2 NVMe: RAID 0, RAID 1, RAID 5 (Ryzen™ 9000 only), and RAID 10 (Ryzen™ 9000/7000 only)
USB Ports
– Front: 4x USB 2.0, 4x USB 5Gbps Type-A, 1x USB 20Gbps Type-C
– Rear: 9x USB 10Gbps Type-A, 2x USB 10Gbps Type-C, 2x USB 40Gbps Type-C
LAN
– 1x Realtek® 8126 5G LAN
– 1x Realtek® 8125 2.5G LAN
Wireless LAN & Bluetooth
– Wi-Fi 7 Solution (Pre-installed M.2 Key-E module):
– Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz (320MHz) up to 5.8Gbps
– Supports 802.11 a/b/g/n/ac/ax/be
– Supports Bluetooth® 5.4, MLO, 4KQAM
Internal I/O
– Power Connectors: 1x ATX_PWR, 2x CPU_PWR, 1x PCIE_PWR (8-pin)
– Fans & Cooling: 1x CPU Fan, 1x Combo Fan (Pump/Sys Fan), 5x System Fan
– Headers: 1x EZ Conn-header (JAF_2), 2x Front Panel (JFP), 1x Chassis Intrusion, 1x Front Audio, 1x Thermal Sensor
– RGB & Control: 3x Addressable V2 RGB LED connectors (JARGB_V2), 1x RGB LED connector (JRGB), 1x TPM pin header

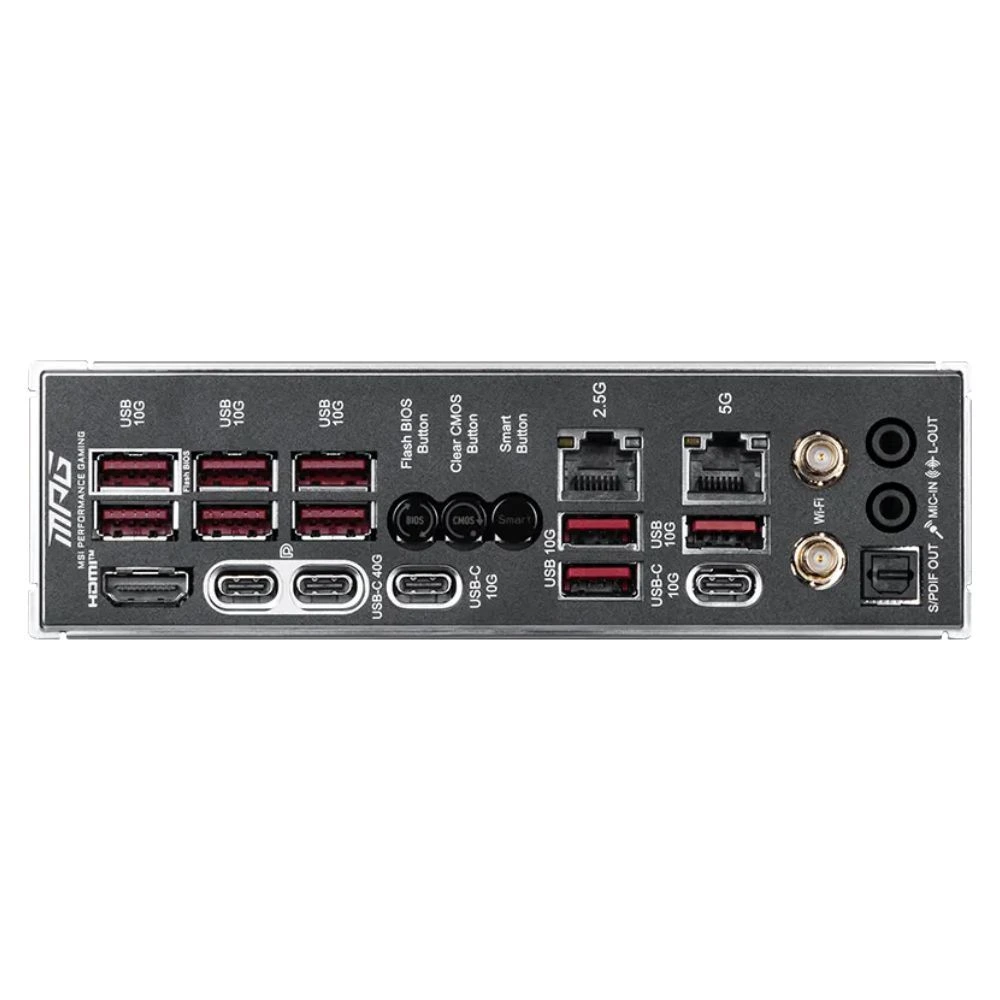

LED Features – 4x EZ Debug LED, 1x EZ Digit Debug LEDBack Panel Buttons & PortsFlash BIOS Button, Clear CMOS Button, Smart Button, 2.5G LAN, 5G LAN, Audio Connectors, HDMI™, USB 40Gbps Type-C, USB 10Gbps Type-C, USB 10Gbps Type-A, Wi-Fi / Bluetooth antenna connectors, and Optical S/PDIF Out
Operating System – Support for Windows® 11 64-bit
PCB Form Factor – ATX (243.84 mm x 304.8 mm)
