Technical Specification
Chipset: AMD B850
CPU Support: Supports AMD Ryzen™ 9000 / 8000 / 7000 Series Desktop Processors (Socket AM5)
Memory:
4x DDR5 UDIMM, maximum capacity 256GB
Supports DDR5 8200 – 5600 (OC) MT/s / 5600 – 4800 (JEDEC) MT/s
Ryzen™ 9000 Series Max Overclocking: 1DPC 1R up to 8200+ MT/s | 1DPC 2R up to 6400+ MT/s | 2DPC 1R up to 6400+ MT/s | 2DPC 2R up to 6000+ MT/s
Supports AMD POR & JEDEC speeds, AMD EXPO™, Dual-Channel mode, Non-ECC Un-buffered memory, and CUDIMM (Clock Driver bypass mode only)
Onboard Graphics:
1x HDMI™ 2.1 (Up to 4K 60Hz)
1x DisplayPort 1.4 (Up to 4K 60Hz)
(Requires processor with integrated graphics)
Expansion Slots:
4x PCI-E x16 slots
PCI_E1 (From CPU): PCIe 5.0 x16 (Ryzen 9000/7000), PCIe 4.0 x8 (Ryzen 8700/8600/8400), PCIe 4.0 x4 (Ryzen 8500/8300)
PCI_E2, PCI_E3, PCI_E4 (From Chipset): PCIe 3.0 x1
Audio: Realtek® ALC897 7.1-Channel High Definition Audio
Storage:
3x M.2 Slots:
M.2_1 (CPU): Up to PCIe 5.0 x4 (Ryzen 9000/7000) / PCIe 4.0 x4 (Ryzen 8000), supports 2280/2260
M.2_2 (CPU): Up to PCIe 4.0 x4 (PCIe 4.0 x2 for Ryzen 8500/8300), supports 2280/2260
M.2_3 (Chipset): Up to PCIe 4.0 x2, supports 2280
4x SATA 6G ports
RAID Support:
SATA: RAID 0, RAID 1, RAID 10
M.2 NVMe: RAID 0, RAID 1, RAID 5 (RAID 5 requires Ryzen™ 9000 series)
USB Ports:
8x USB 2.0 (4 Rear, 4 Front)
6x USB 5Gbps Type-A (2 Rear, 4 Front)
1x USB 10Gbps Type-A (Rear)
2x USB 10Gbps Type-C (1 Rear, 1 Front)
LAN: Realtek® 8126VB 5G LAN
Internal I/O Connectors:
Power: 1x ATX_PWR, 1x CPU_PWR, 1x PCIE_PWR 8-pin
Fans: 1x CPU Fan, 1x Combo Fan (Pump_Sys Fan), 3x System Fan
Headers: 2x Front Panel (JFP), 1x Chassis Intrusion (JCI), 1x Front Audio (JAUD), 1x COM Port (JCOM), 1x Tuning Controller (JDASH), 1x TPM pin header (TPM 2.0)
RGB: 3x Addressable V2 RGB LED (JARGB_V2), 1x RGB LED (JRGB)
USB: 4x USB 2.0 ports, 4x USB 5Gbps Type-A ports, 1x USB 10Gbps Type-C port
Wireless LAN & Bluetooth:
Wi-Fi 7 (Pre-installed in M.2 Key-E slot), MU-MIMO TX/RX, 2.4/5/6GHz up to 2.9Gbps (802.11 a/b/g/n/ac/ax/be)
Bluetooth® 5.4, MLO, 4KQAM
LED Features: 4x EZ Debug LED, 1x EZ Memory Detection LED

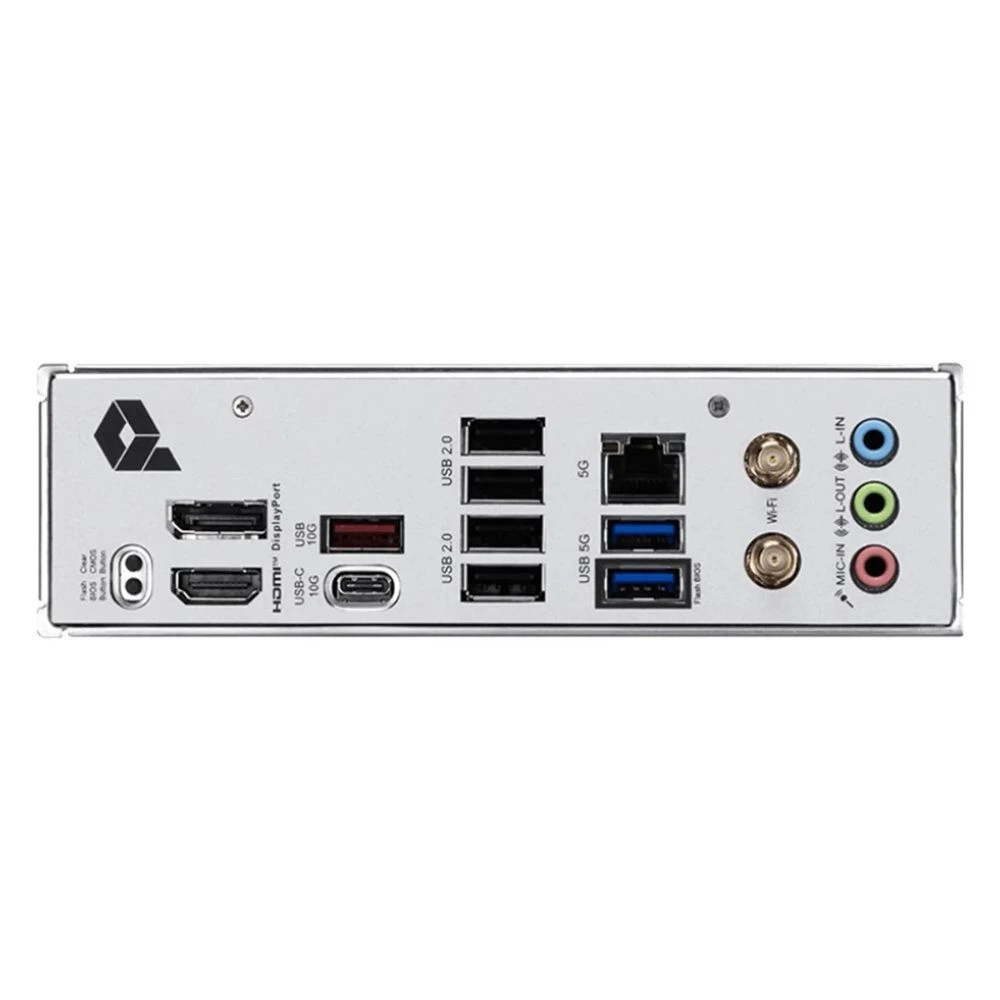

Back Panel Ports:
Clear CMOS Button
DisplayPort
USB 10Gbps Type-A
USB 2.0
5G LAN
Wi-Fi / Bluetooth
Audio connectors
Flash BIOS Button
HDMI™
USB 10Gbps Type-C
USB 5Gbps Type-A
Operating System: Supports Windows® 11 64-bit
PCB Form Factor: Micro-ATX (mATX) 243.84 mm x 243.84 mm
