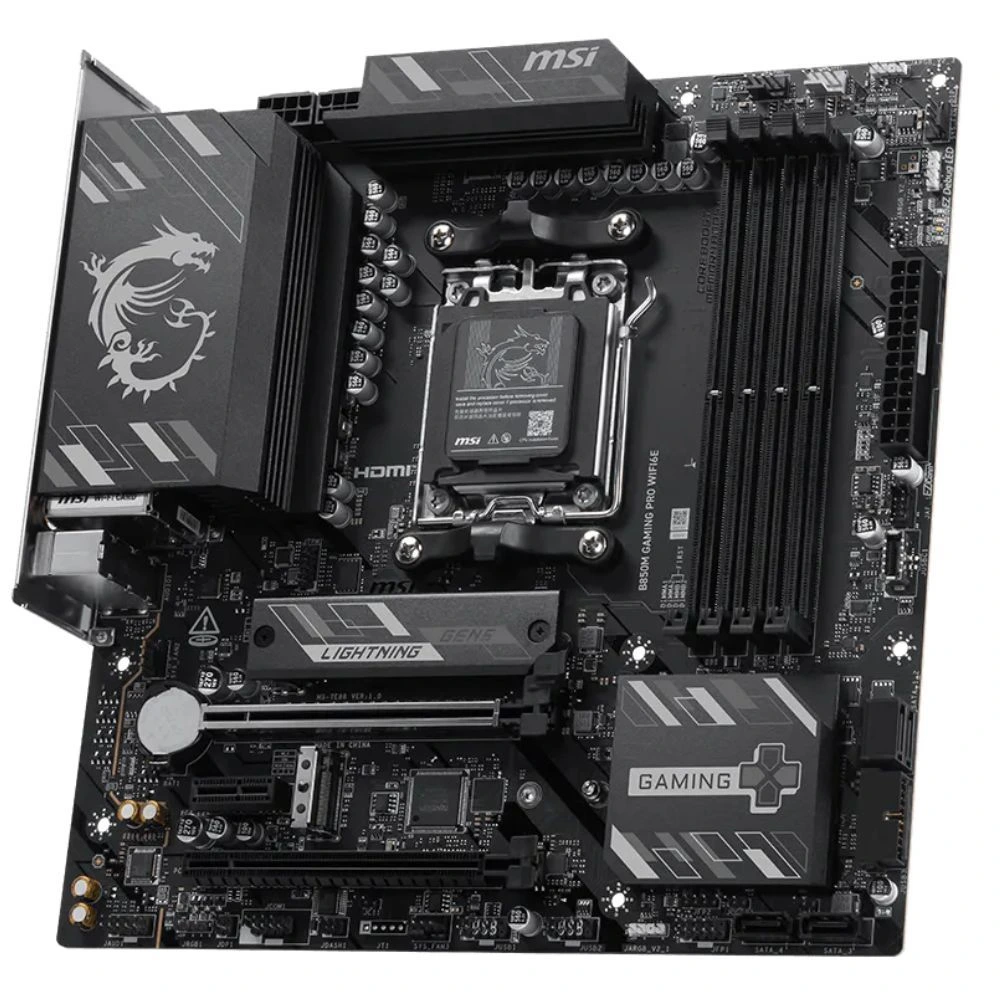

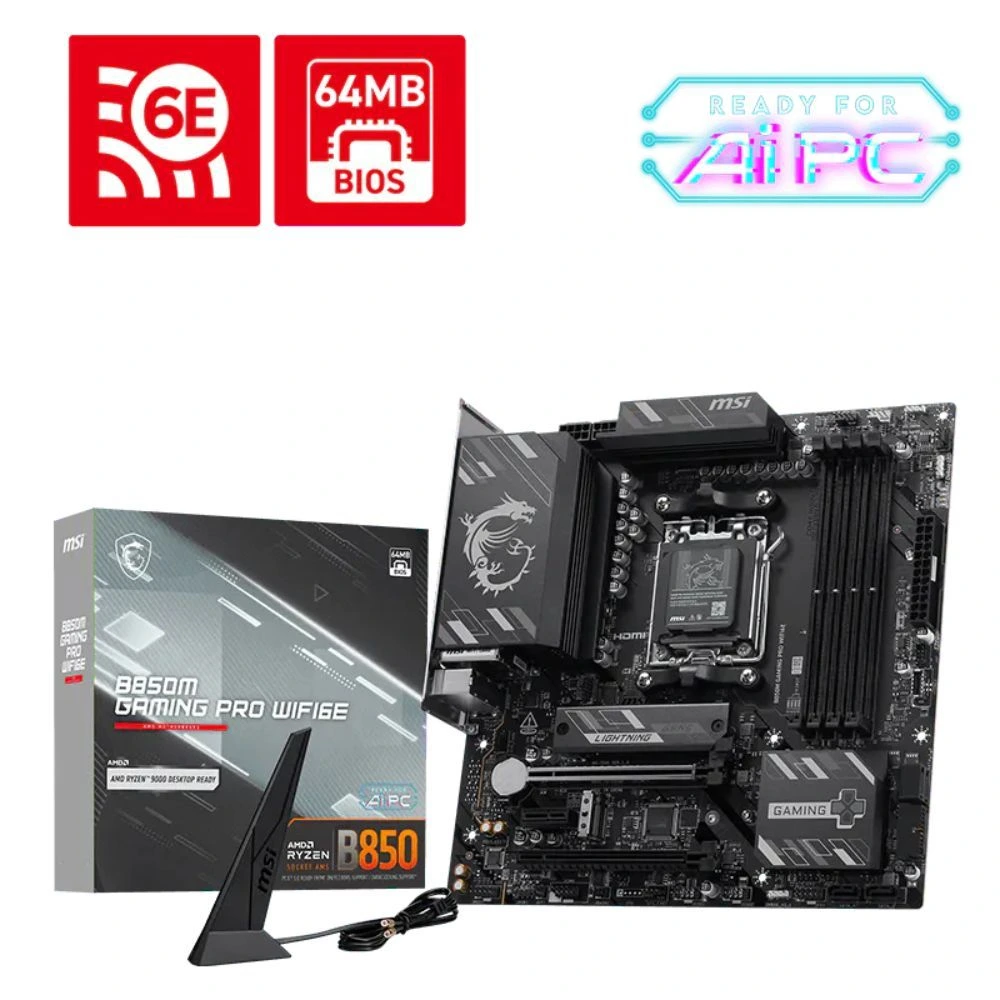

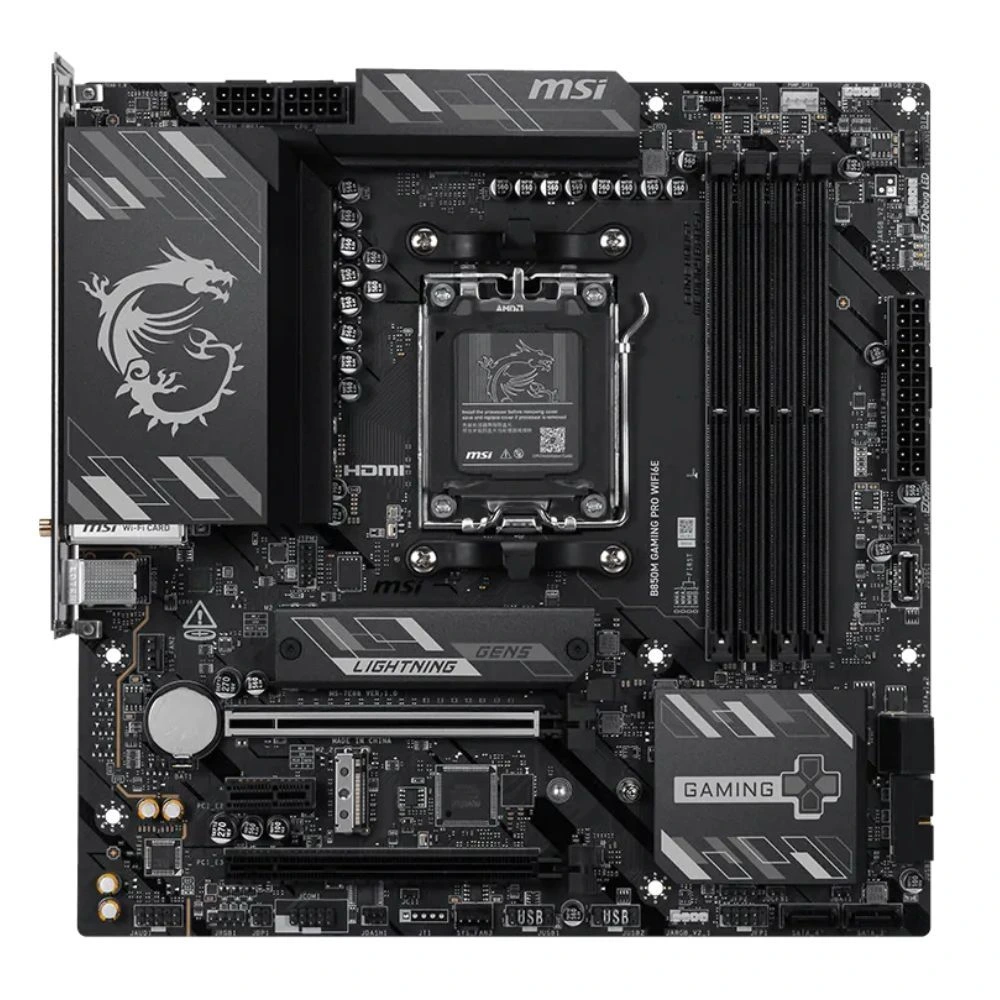

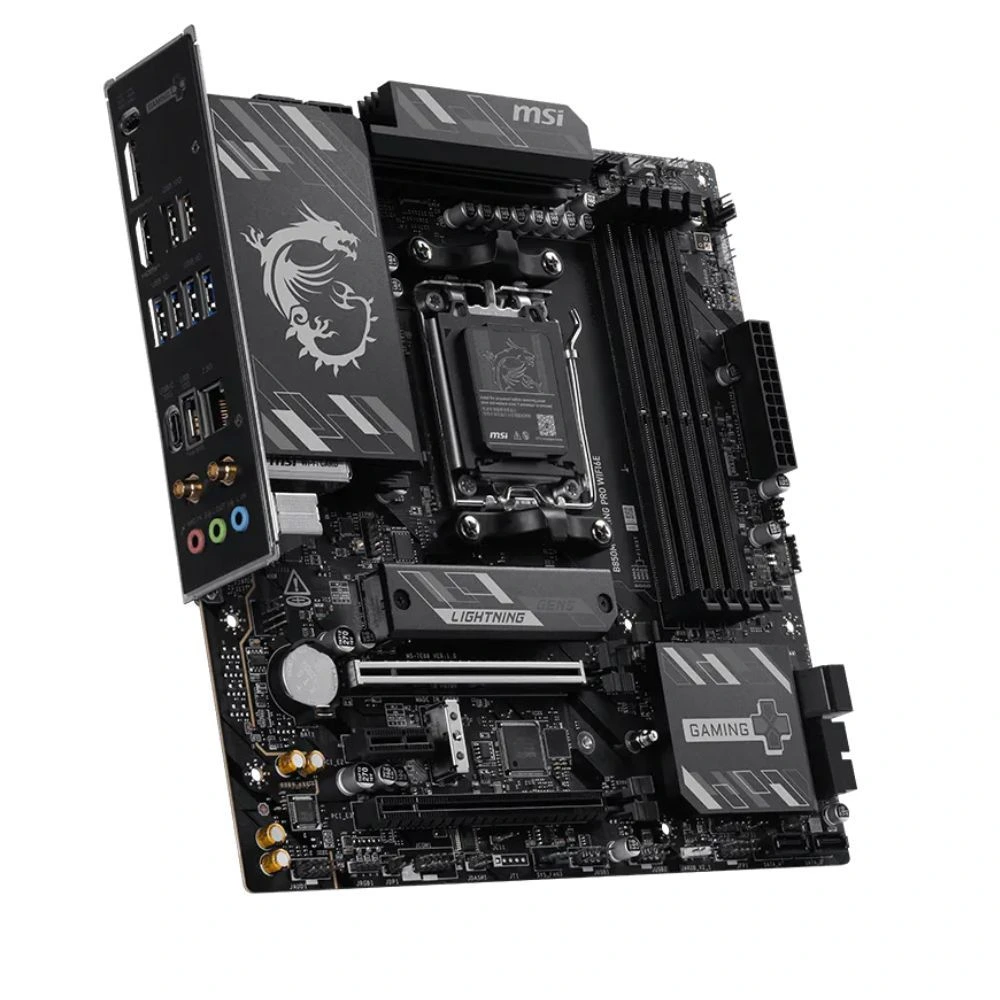

MSI B850M GAMING PRO WIFI6E AM5 Micro-ATX DDR5 PCIe 5.0 2.5G LAN Gaming Motherboard

The B850M GAMING PRO WIFI6E is crafted to offer extensive connectivity, versatile tools, and a premium Wi-Fi solution for gamers seeking a comprehensive experience. Featuring advanced Wi-Fi 6E, 2.5G LAN, PCIe 5.0 M.2 solution, and exclusive EZ DIY features, it is ready for 24/7 non-stop gaming optimized for AMD Ryzen 9000 series processors.

Processor & Memory Support
CPU Support: Supports AMD Ryzen™ 9000 / 8000 / 7000 Series Desktop Processors.
Memory Support: Supports DDR5 Memory, Dual Channel DDR5 8200+ MT/s (OC).
Memory Optimization: Includes Memory Boost, EXPO / A-XMP profiles, High-Efficiency Mode, and Latency Killer (up to 12% latency reduction).
Ultra Performance & Power System
Power Design: Direct 8+2+1 Power System with 55A DrMOS, dual 8-pin CPU power connectors, and Digital Power.
Core Boost: Sustains heavy gaming loads with advanced digital power routing.
PCB Construction: 6-layer PCB made by 2oz thickened copper for higher bandwidth and reliable circuit transmission.
Overclocking Features: Game Boost, AI Boost (NPU overclocking), and performance presets (PBO Auto / Enable, Performance Switch, and PBO Thermal Profiles).
Frozr Design & Cooling
Extended Heatsink: Enlarges the surface area for heat dissipation.
Thermal Pads: 7W/mK MOSFET thermal pads and additional choke thermal pads.
M.2 Shield Frozr: Strengthened M.2 thermal solution to keep SSDs cool and running at peak performance.
System Cooling & AI Control: Combo fan headers (automatic DC/PWM detection and pump support) and Frozr AI Cooling to dynamically adjust fan speeds.
High-Speed Connectivity & Networking
2.5G LAN: Premium networking solution for stable, high-speed data transmission.
Wi-Fi 6E Solution: High-speed wireless connectivity with an EZ Antenna featuring a magnetic stand.
AI LAN Manager: Automatically classifies and prioritizes latency-sensitive applications like online games.
Storage & Expansion
Storage Slots: Features 1x Lightning Gen 5 x4 M.2 (128 Gbps) and 1x Lightning Gen 4 M.2 (64 Gbps) slots.
Expansion: Lightning PCIe slot equipped with Steel Armor to support heavy graphics cards.
Front Panel: Front USB Type-C connectivity.
EZ DIY & Assembly Features
EZ M.2 Installation: EZ M.2 Clip II and EZ M.2 CLIP II Remover for toolless M.2 SSD mounting.
EZ GPU Installation: EZ PCIe Clip II rebounding force mechanism for effortless graphics card removal with one finger.
BIOS & Maintenance: Flash BIOS Button, Clear CMOS Button, 64MB BIOS ROM, and Pre-Installed I/O Shield.
Diagnostics: EZ Debug LED and EZ Memory Detection LED.
EZ-Conn Design: JAF_1 header for streamlined single-cable ARGB and fan connections.
Audio & Customization
Audio Boost: Studio-grade sound quality featuring high-definition audio processors, isolated audio signals, and de-pop protection alongside an Isolated Analogy Structure.
Mystic Light: Built-in RGB lighting support with multi-effect options and A-RAINBOW V2 headers for addressable Gen2/Gen1 devices.

Specifications
Chipset: AMD B850
CPU Socket: Socket AM5 (Supports AMD Ryzen™ 9000 / 8000 / 7000 Series)
Memory Slots: 4x DDR5 UDIMM (Maximum Capacity: 256GB)
Memory Speeds: Supports DDR5 8200 – 5600 (OC) MT/s / 5600 – 4800 (JEDEC) MT/s; supports AMD EXPO™
Onboard Graphics: 1x HDMI™ (Supports 4K 60Hz), 1x DisplayPort 1.4 (Supports 4K 60Hz) (Available on CPUs with integrated graphics)
Expansion Slots: 1x PCIe x16 slot, 2x PCIe x1 slots
Storage (M.2)
– M.2_1 (From CPU): Up to PCIe 5.0 x4, supports 2280/2260 devices
– M.2_2 (From CPU): Up to PCIe 4.0 x4, supports 2280/2260 devices
Storage (SATA): 4x SATA 6Gb/s ports
Networking (LAN): Realtek® 2.5G LAN
Wireless LAN & Bluetooth: Wi-Fi 6E Solution (Pre-installed M.2 Key-E module), Wi-Fi 802.11 a/b/g/n/ac/ax, Bluetooth® 5.3
Audio: Realtek® 7.1-Channel High Definition Audio with Audio Boost
USB Ports
Rear: 3x USB 10Gbps Type-A, 1x USB 10Gbps Type-C, 4x USB 5Gbps Type-A
Front: 1x USB 10Gbps Type-C, 2x USB 5Gbps Type-A, 4x USB 2.0 ports
Form Factor: Micro-ATX (mATX): 243.84 mm x 243.84 mm
