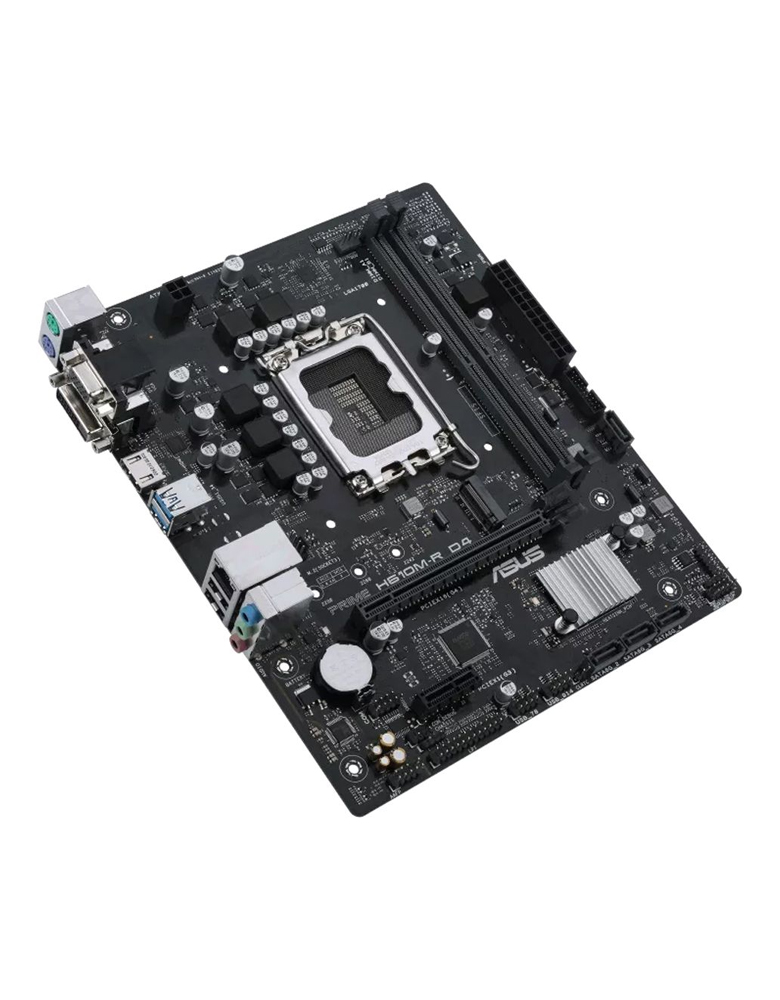

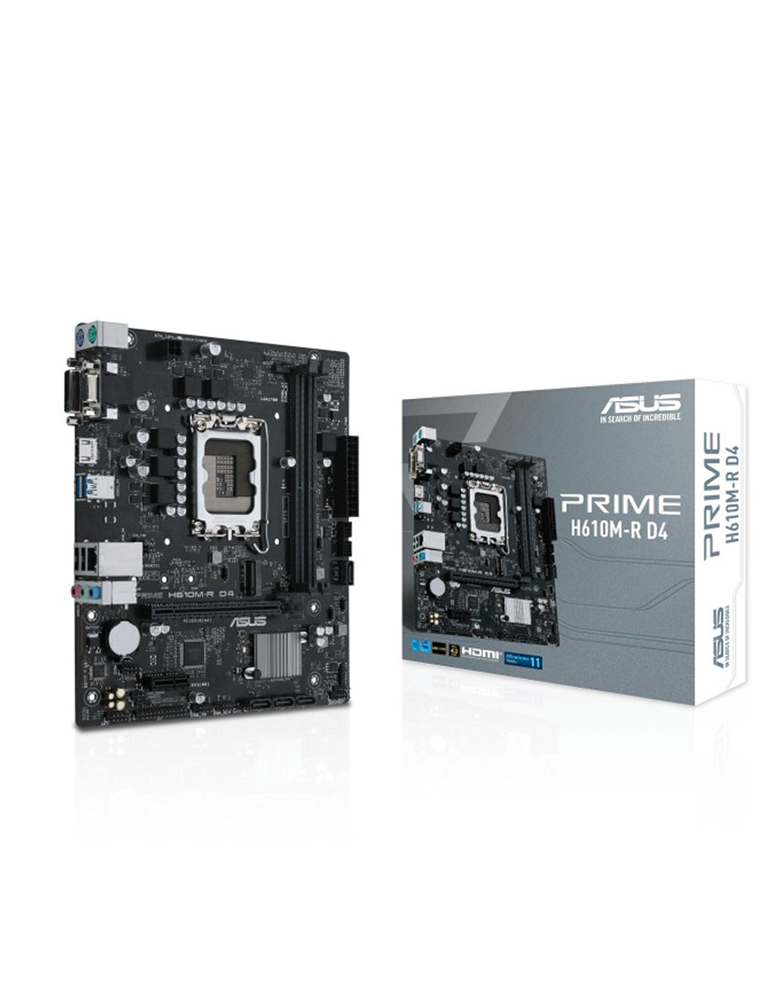

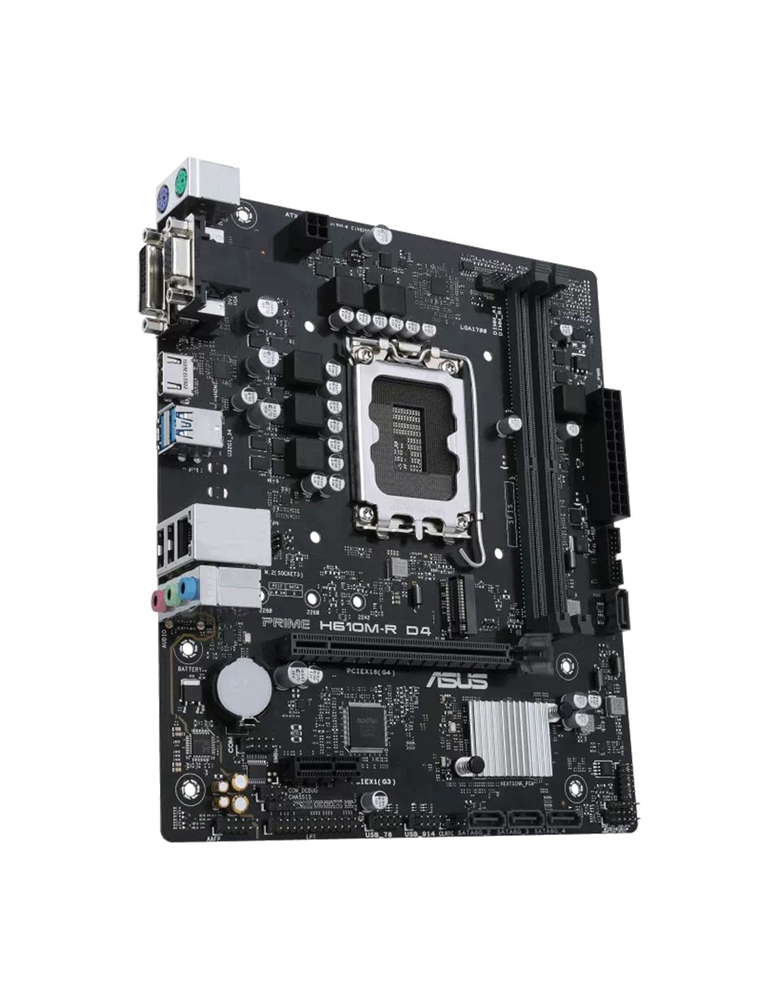

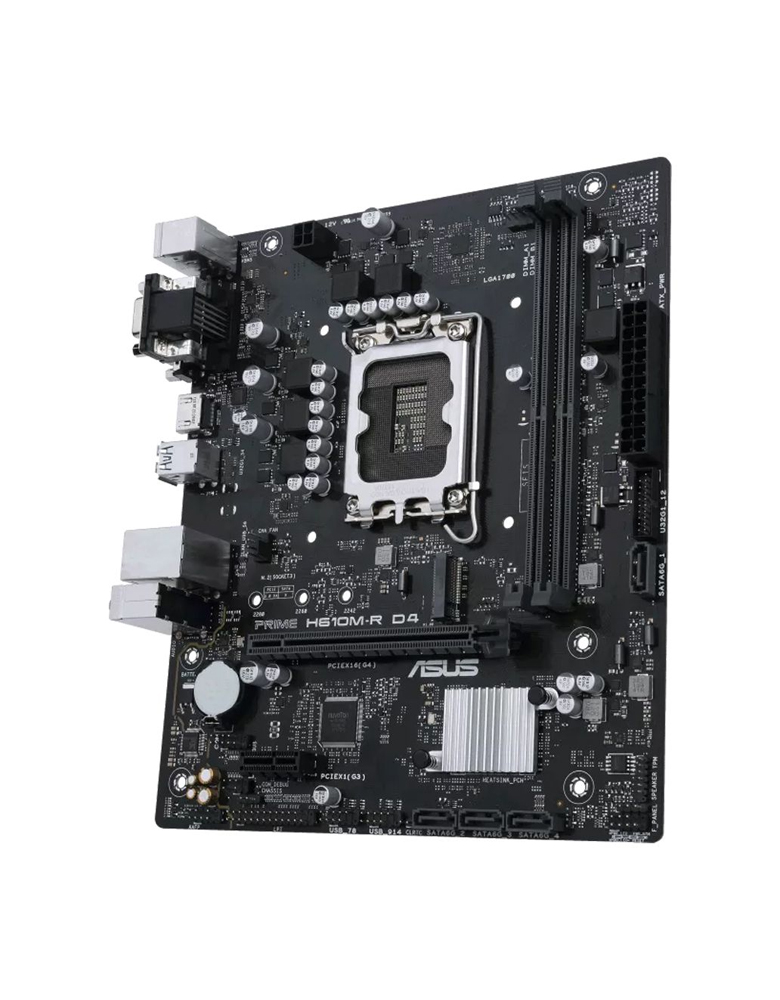

Asus Prime H610M-R DDR4 LGA 1700 Micro ATX Motherboard

Intel® H610 (LGA 1700) mic-ATX motherboard with DDR4, PCIe 4.0, M.2 slot, Realtek 1 Gb Ethernet, HDMI®,D-Sub, DVI, USB 3.2 Gen 1 ports, SATA 6 Gbps , COM header, LPT header, TPM header

• Intel® LGA 1700 socket: Ready for 12th Gen Intel® processors
• Comprehensive cooling: PCH heatsink
• Ultrafast connectivity: 32Gbps M.2 slot, Realtek 1 Gb Ethernet and USB 3.2 Gen 1
• 5X Protection III: Multiple hardware safeguards for all-round protection

Specification

Model:   PRIME H610M-R D4-CSM
CPU:   Intel® LGA1700 for 12th/13th/14th Gen Core™, Pentium®, Celeron®<br>Supports up to 65W CPUs, Turbo Boost 2.0 & Max 3.0 (varies by CPU)
Chipset:   Intel® H610
Memory:   2 x DIMM, Max. 64GB, DDR4 3200/3000/2933/2800/2666/2400/2133 MHz<br>Dual Channel, XMP support
Graphics:   1 x D-Sub, 1 x DVI-D, 1 x HDMI™ (4K@60Hz)
Expansion Slots:   1 x PCIe 4.0 x16 (14th/13th Gen)<br>1 x PCIe 3.0 x1 (H610)
Storage:   1 x M.2 (PCIe 3.0 x4), 4 x SATA 6Gb/s<br>M.2 slot shares bandwidth with SATA
Ethernet:   1 x Realtek 1Gb Ethernet
USB Ports: Rear:   2 x USB 3.2 Gen 1, 2 x USB 2.0<br>Front: 1 x USB 3.2 Gen 1 header (2 ports), 2 x USB 2.0 headers (4 ports)
Audio:   Realtek 7.1 Surround Sound CODEC<br>24-Bit/192 kHz playback, HD audio chassis required for 7.1 output

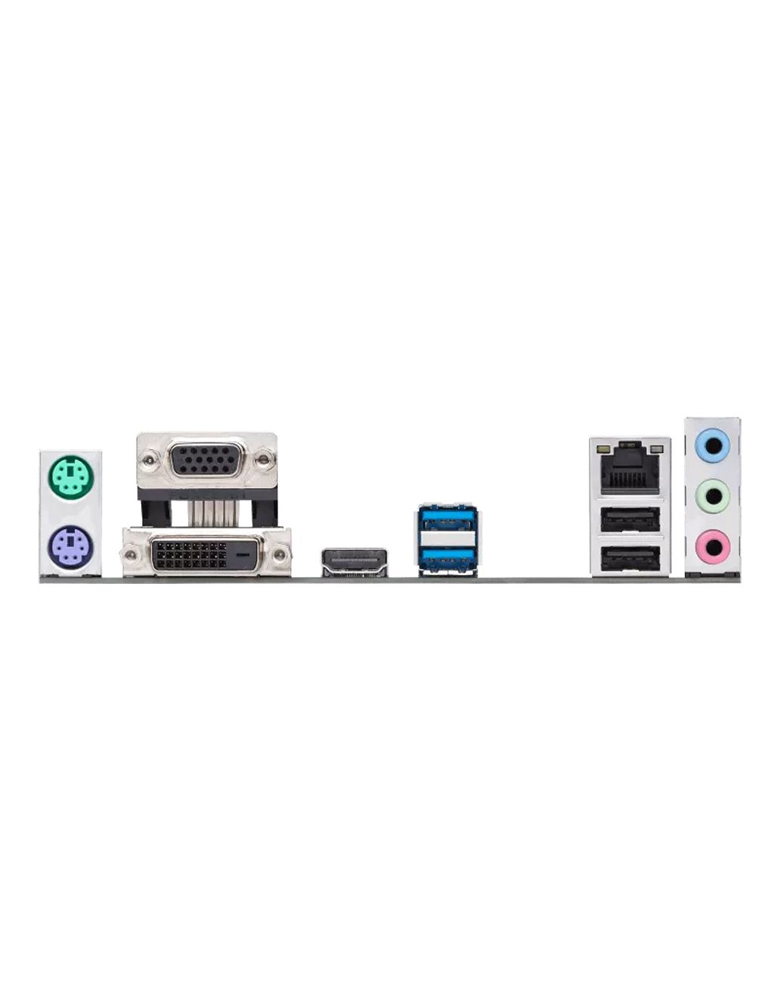

Back I/O:   2 x USB 3.2 Gen 1, 2 x USB 2.0, 1 x D-Sub, 1 x DVI-D, 1 x HDMI™, 1 x Realtek 1Gb Ethernet, 3 x Audio jacks, 1 x PS/2 Keyboard, 1 x PS/2 Mouse
Internal I/O:   1 x 4-pin CPU Fan, 1 x 4-pin Chassis Fan, 1 x 24-pin Power, 1 x 4-pin +12V Power, 1 x M.2, 4 x SATA, USB headers, Clear CMOS, Chassis Intrusion, COM Port, Front Panel Audio, LPT, Speaker, SPI TPM, System Panel
Special Features:   5X PROTECTION III (DIGI+ VRM, LANGuard, Overvoltage Protection, SafeSlot Core, Stainless-Steel Back I/O)<br>Q-Design (Q-DIMM, Q-Slot)<br>Aluminum heatsink
Software:   Armoury Crate, AI Suite 3 (EPU, DIGI+ VRM), ASUS CPU-Z, Norton Anti-virus (Trial), WinRAR
BIOS:   128 Mb Flash ROM, UEFI AMI BIOS
Manageability:   WOL by PME, PXE
Accessories:   2 x SATA 6Gb/s cables, I/O Shield, M.2 ANCHOR, Support DVD, ACC Express Activation Key Card, User guide
OS: Windows® 11 64-bit, Windows® 10 64-bit
Form Factor:   mATX (22.6 cm x 19.3 cm)
