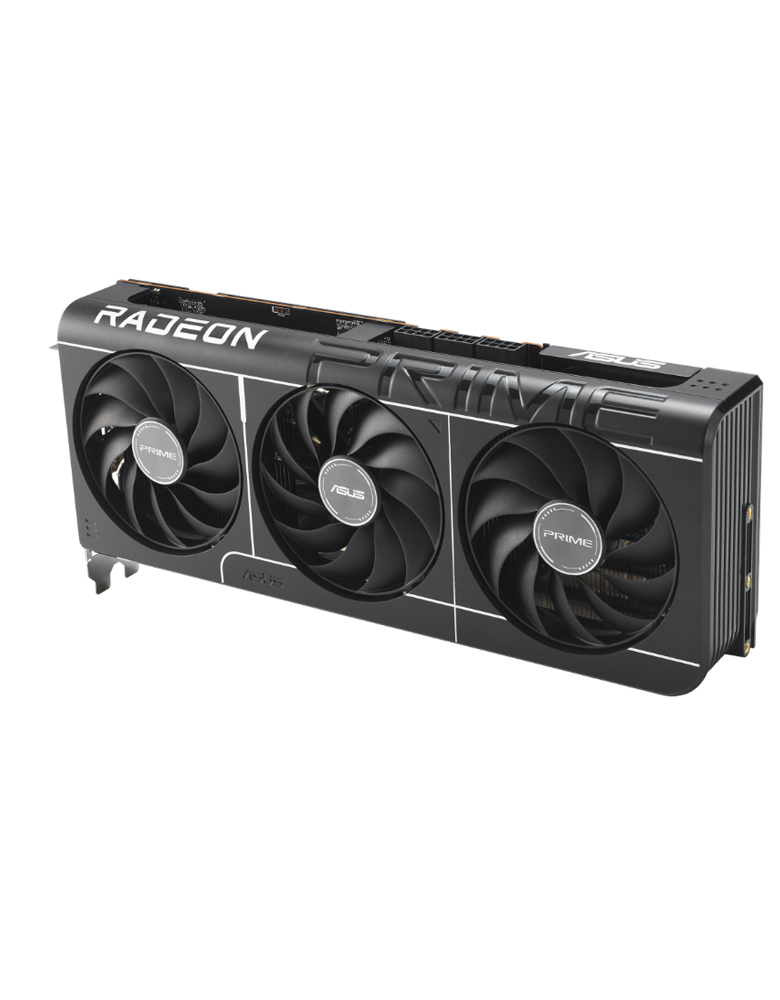

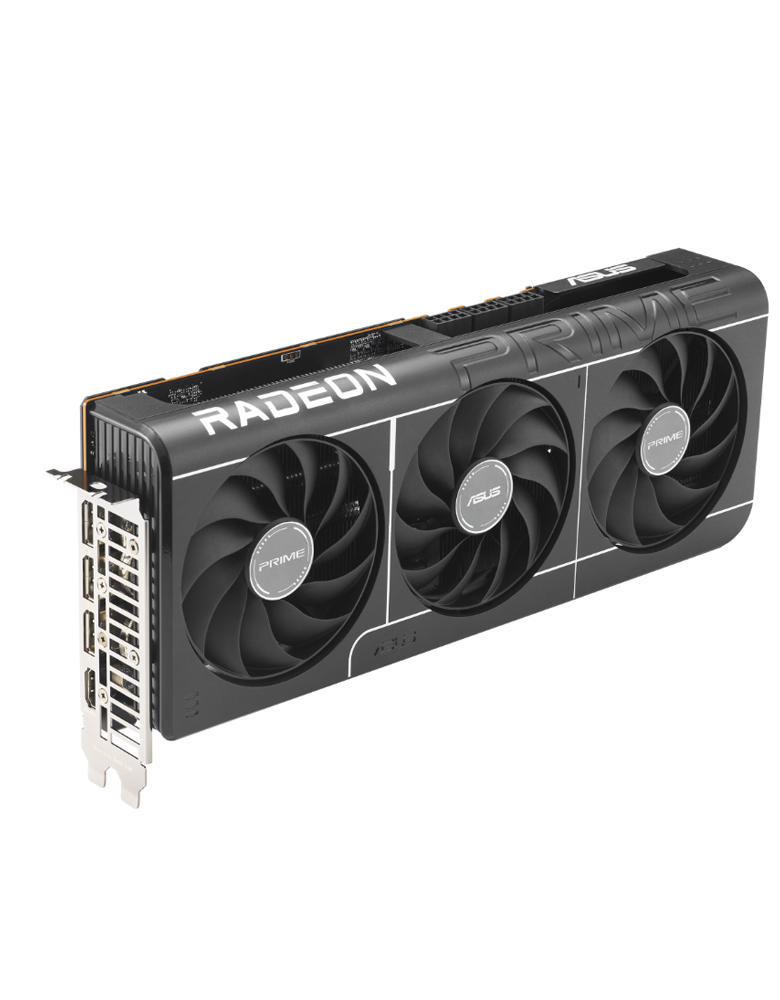

ASUS Prime Radeon RX 9070 XT OC Edition 16GB GDDR6

Cooling
2.5-slot Design
The Prime Radeon™ RX 9070 XT features a 2.5 slot design with a carefully arranged layout for the shroud, heatsink and heat pipes to let the three Axial-tech fans leverage chassis side-panel ventilation and deliver optimal thermal performance.

Axial-tech Upgrades
Three tried-and-true Axial-tech fans feature a smaller hub that facilitates longer blades and a barrier ring to increase downward air pressure for lower temperatures, less noise and higher performance.

0dB Technology
All three fans come to a standstill when GPU temperatures are below 55°C, letting you play less demanding games or perform light tasks in relative silence. Fans start up again when temperatures are over 60°C, establishing a speed curve that balances performance and acoustics for work or play.

Dual Ball Fan Bearings
Different bearing types have unique pros and cons. Dual-ball bearings excel at durability and can last up to twice as long as sleeve bearing designs.

Model – PRIME-RX9070XT-O16G
Graphic Engine – AMD Radeon™ RX 9070 XT
Bus Standard – PCI Express 5.0
OpenGL – OpenGL®4.6
Video Memory – 16GB GDDR6
Engine Clock – OC mode(GPU Tweak III): up to 3030 MHz (Boost Clock)/up to 2480 MHz (Game Clock)
Default mode: up to 3010 MHz (Boost Clock)/up to 2460 MHz (Game Clock)
Stream Processors – 4096
Memory Speed – 20 Gbps​
Memory Interface – 256-bit
Resolution – Digital Max Resolution 7680 x 4320
Interface
Yes x 1 (Native HDMI 2.1b)
Yes x 3 (Native DisplayPort 2.1a)
HDCP Support Yes (2.3)
Maximum Display Support – 4
NVlink/ Crossfire Support – No
Accessories
1 x Thank you card
1 x Speedsetup Manual
Software – ASUS GPU Tweak III & Drivers: please download all software from the support site.
Dimensions
312 x 130 x 50 mm
12.3 x 5.1 x 2.0 inch
Recommended PSU – 750W

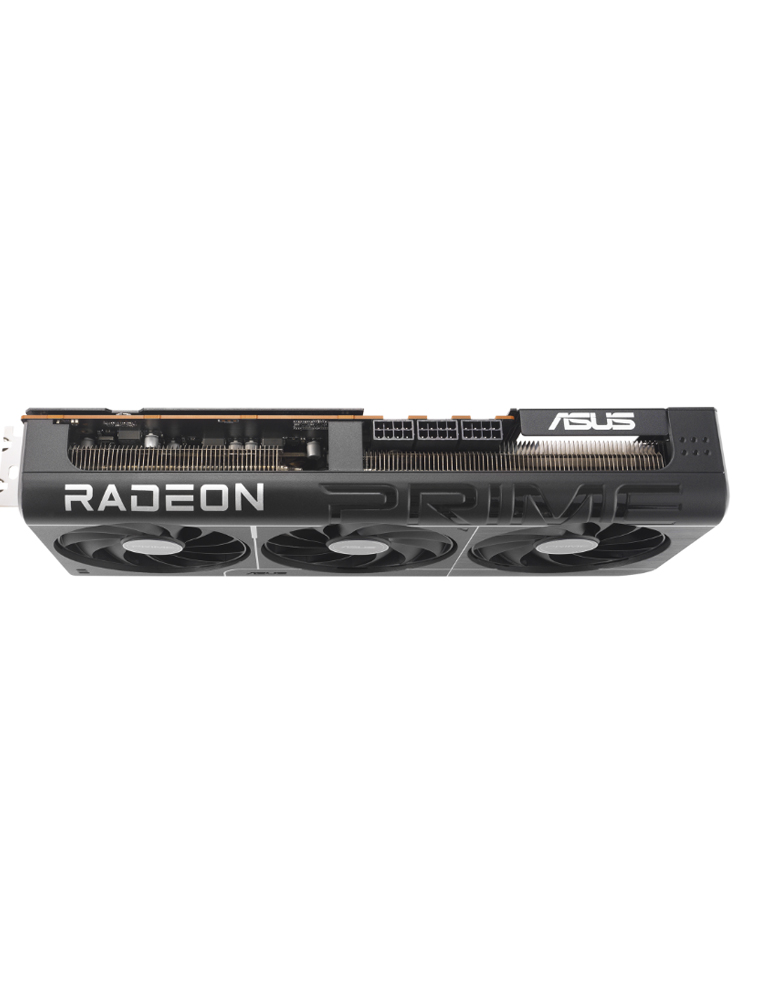

Power Connectors – 3 x 8-pin
Slot – 2.5 Slot
