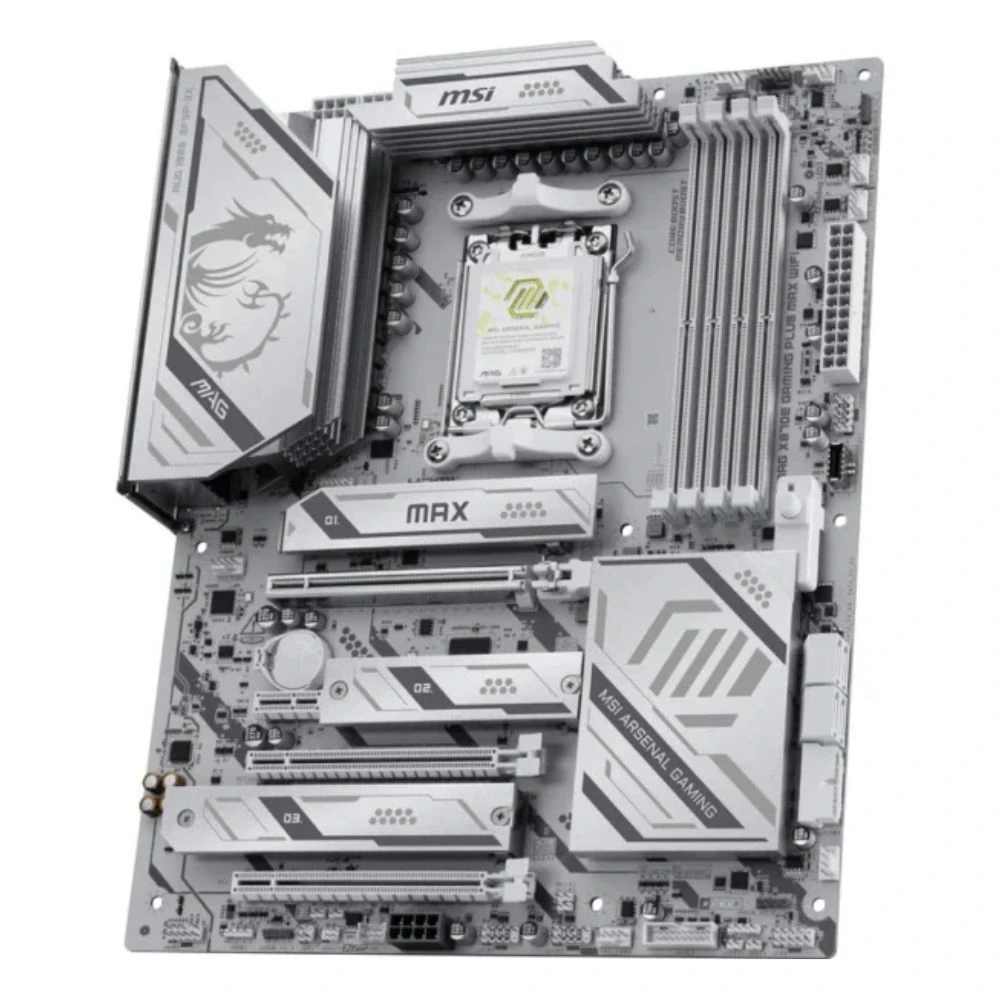

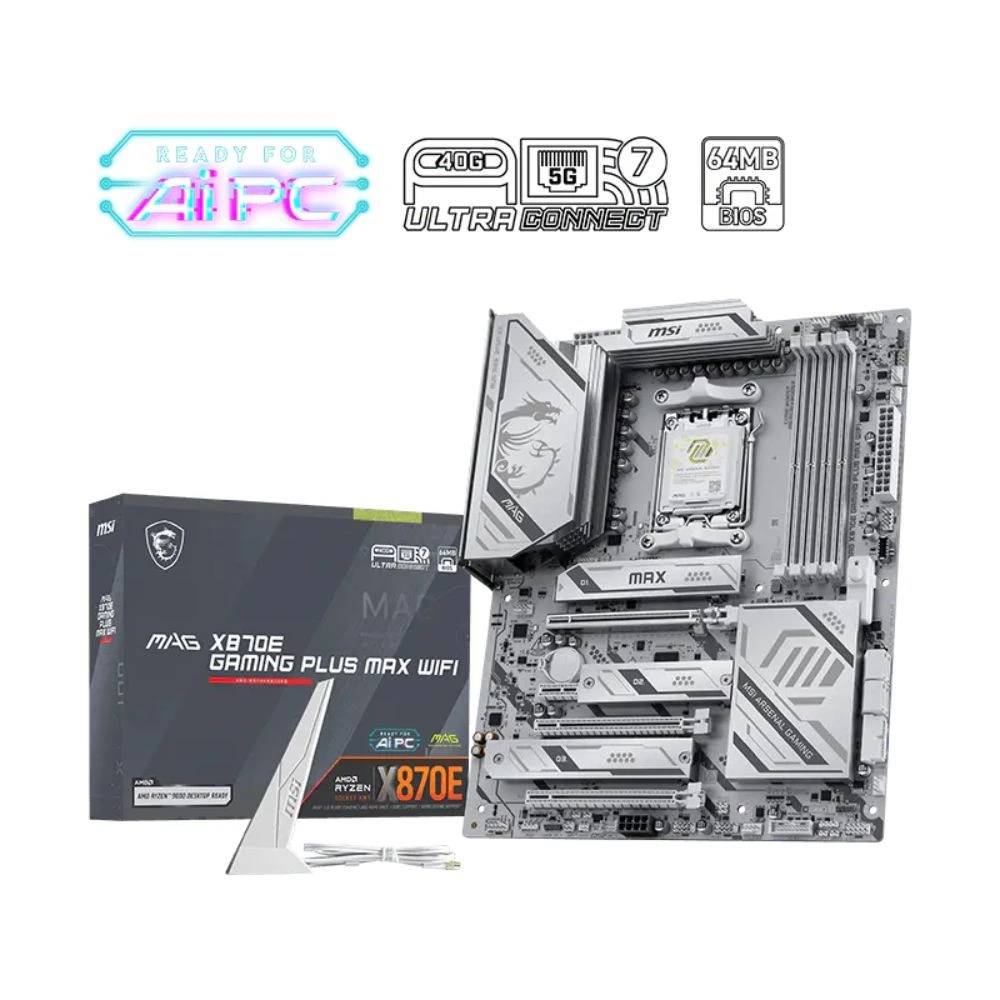

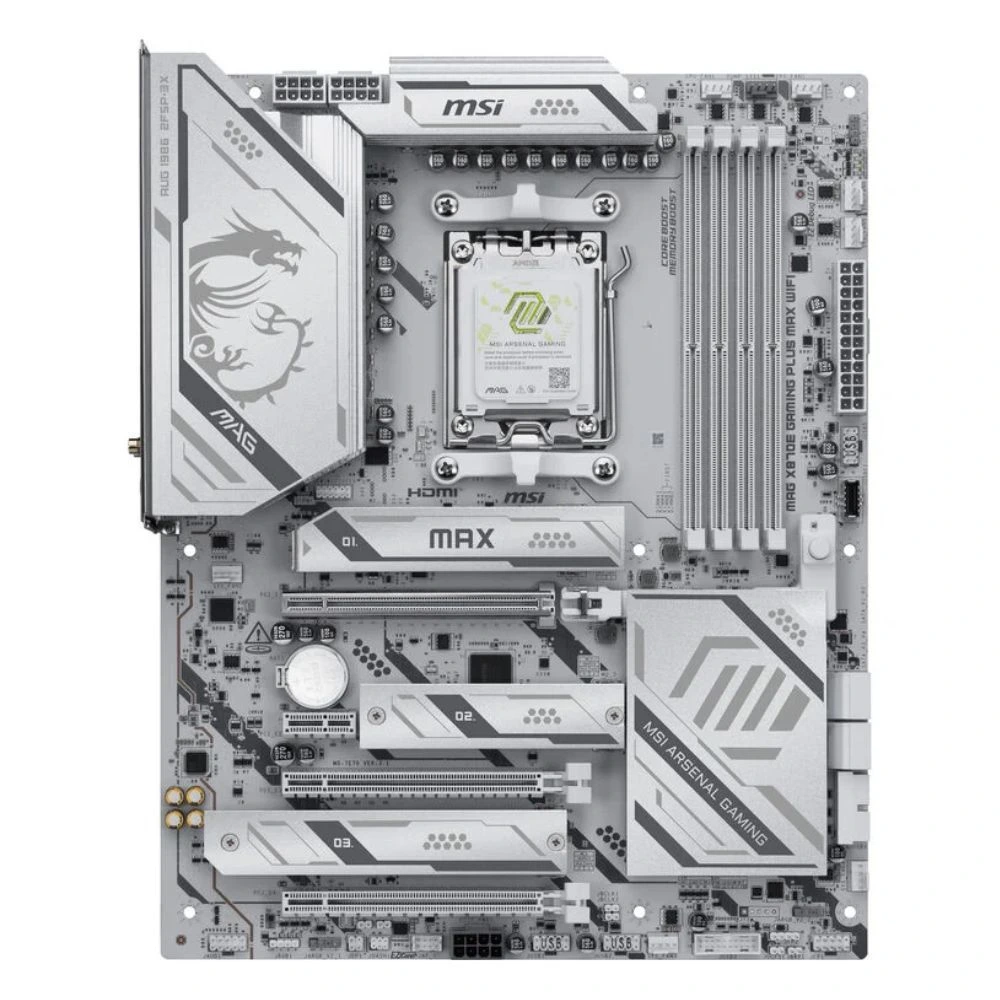

MAG X870E GAMING PLUS MAX
– Supports AMD Ryzen™ 9000 / 8000 / 7000 Series Desktop Processors
– Supports DDR5 Memory, Dual Channel DDR5 8200+ MT/s (OC)
– Ultra Performance: 14+2+1 Duet Rail Power System 60A SPS, dual 8-pin CPU power connectors, Core Boost, Memory Boost, 8-layer PCB made by 2oz thickened copper and server-grade level material
– Frozr Guard: Extended Heatsink, MOSFET thermal pads rated for 7W/mK, additional choke thermal pads and EZ M.2 Shield Frozr II are built for high performance system and non-stop experience
– EZ DIY: EZ M.2 Shield Frozr II, EZ M.2 Clip II, EZ PCIe Release and EZ Antenna
– Lightning Fast Game experience: PCIe 5.0 slot, Lightning Gen 5 x4 M.2
– Ultra Connect: USB4 and 5G LAN with Wi-Fi 7 Solution – the latest solution for professional and multimedia use, delivering secure, stable, and high-speed networking and data transmission
– Audio Boost: Reward your ears with studio-grade sound quality for the most immersive gaming experience
Key Features
1. EZ DIY (Effortless Assembly)
EZ M.2 Installation: Screwless installation and removal using the EZ M.2 Clip II and EZ M.2 Shield Frozr II, accompanied by an EZ M.2 Clip II Remover tool.
EZ GPU Installation: An easy-to-access physical button release mechanism to remove PCIe cards with a single tap.
Flash BIOS Button & Clear CMOS Button: Update or restore the BIOS easily—CPU and memory are not required for flashing.
Pre-Installed I/O Shield: Ensures proper alignment, protection, and a secure fit out-of-the-box.
EZ Antenna: Magnetic stand antenna that attaches via simple push-on fasteners without rotation.
Direct OC Jumper: Onboard dual 2-pin jumper for precise BCLK adjustments directly from the OS or BIOS.
EZ Conn Design & Front Panel Cable: Streamlined cabling via the JAF_1 header for compatible ARGB/fan components and simplified front-panel connections.
Driver Utility Installer: Automatically detects and installs required drivers upon internet connection.
All-White Aesthetic: Clean visual harmony covering heatsinks, PCB, slots, and connectors.
EZ Debug LED & EZ Digi-Debug LED: Onboard indicators and error-code display that double as a temperature monitor.
Color-Differentiation Headers: Easily distinguishable pin headers for pumps, ARGB, and system components.
2. Ultra Performance & Thermal Solution
Power System: 14+2+1 Duet Rail Power System with 60A Smart Power Stage (SPS), dual power connectors, and Core Boost technology.
OC Engine: Dedicated overclocking chip for independent Base Clock (BCLK) control.
PCB Design: 8-Layer Server-Grade PCB with 2oz thickened copper and PCB Fabric Technology.
BIOS Enhancements: Features like Performance Preset, Performance Switch, PBO Thermal Profiles (limiting max temps to 85°C, 75°C, or 65°C), Config TDP, Game Boost, and AI Boost (for NPU overclocking).
DDR5 Boost & Latency Killer: Advanced memory support with SMT welding, EXPO/A-XMP profiles, High-Efficiency Mode, and up to a 12% reduction in memory latency.
Frozr Design & Cooling: Extended Heatsink design, 7W/mK thermal pads, enlarged chipset heatsink, Combo Fan Headers (auto-detecting PWM/DC or pumps), Cooling Wizard, and Frozr AI Cooling.
Hardware Protections: Transient Voltage Suppressors (TVS), solid pin power connectors, stainless steel I/O, Overcurrent Protection (OCP), and exclusive grounding structures to suppress EMI.
3. Trilink Connectivity & Storage
Networking: 5G LAN, Wi-Fi 7, and AI LAN Manager for prioritized low-latency gaming.
Storage: 1x Lightning Gen 5 M.2 slot (128 Gbps) and 2x PCIe 4.0 M.2 slots (64 Gbps) with Shield Frozr cooling.
Expansion & I/O: Lightning PCIe Gen 5 slots, USB 40Gbps (USB4), front USB Type-C, and PCIe Supplemental Power.
BIOS Capacity: 64MB BIOS ROM capacity for full future compatibility.
Technical Specifications
CHIPSET: AMD X870ECPU SUPPORTSupports AMD Ryzen™ 9000 / 8000 / 7000 Series Desktop Processors (Socket AM5)MEMORY• 4x DDR5 UDIMM, Maximum Capacity 256GB
Speed Support: 8200 – 5600 (OC) MT/s / 5600 – 4800 (JEDEC) MT/s
Supports AMD EXPO™, Dual-Channel mode, Non-ECC, Un-buffered memory, and CUDIMM (Clock Driver bypass mode)
ONBOARD GRAPHICS
-1x HDMI™ (Supports HDMI™ 2.1 TMDS, max resolution 4K 60Hz)
-1x Type-C DisplayPort (USB4® port, supporting DisplayPort 1.4 with HBR3, max resolution 4K 120Hz)
EXPANSION SLOTS
3x PCI-E x16 slots (PCI_E1 Gen PCIe 5.0 up to x16 from CPU; PCI_E3 Gen PCIe 4.0 up to x4 from Chipset)
1x PCI-E x1 slot (Gen PCIe 3.0 up to x1 from Chipset)
AUDIO Realtek® ALC897 7.1
-Channel High Definition AudioSTORAGE 3x M.2 Slots:
– M.2_1 (From CPU): Up to PCIe 5.0 x4, supports 2280/2260 devices
– M.2_2 & M.2_3 (From Chipset/CPU): Up to PCIe 4.0 x4
4x SATA 6Gb/s ports
RAID
RAID 0, 1, 10 for SATA storage devices
RAID 0, 1, 5 for M.2 NVMe storage devices (RAID 5 supported by Ryzen™ 9000 series only)
USB PORTS

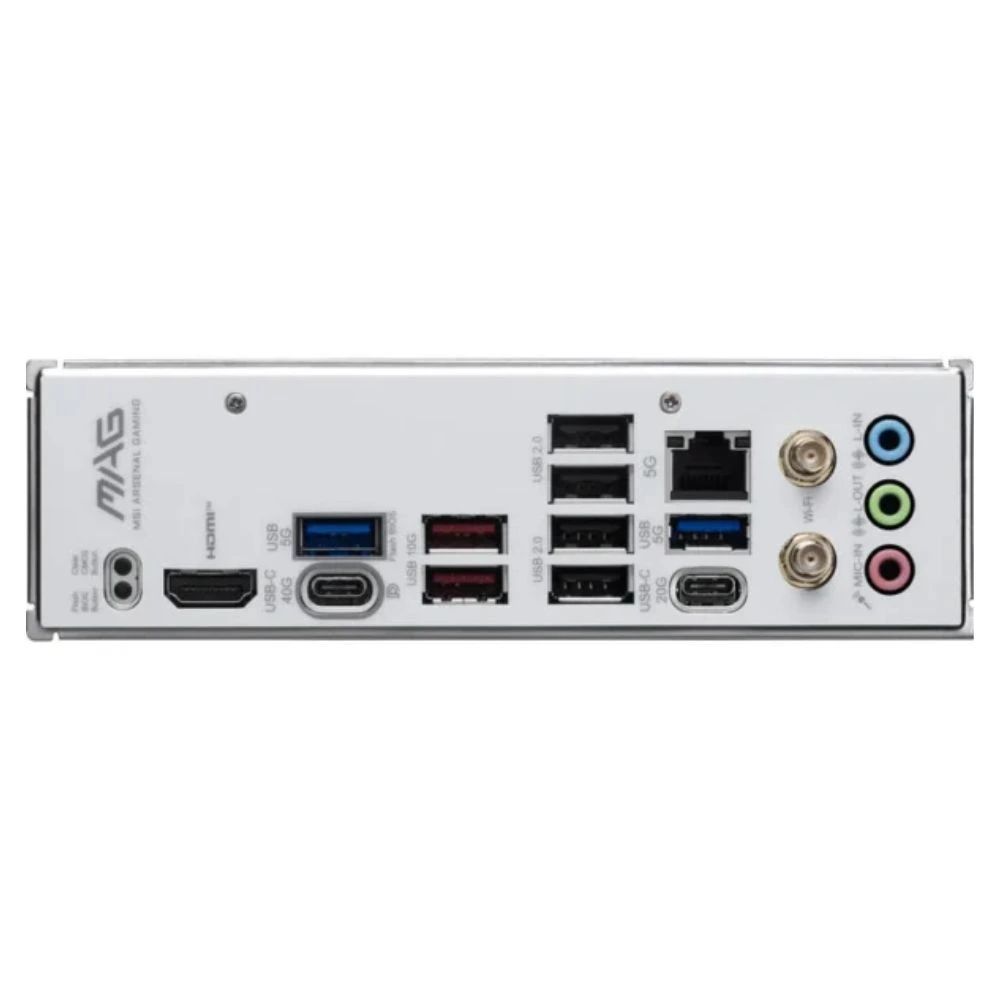

Rear: 1x USB 40Gbps Type-C, 1x USB 20Gbps Type-C, 2x USB 10Gbps Type-A, 2x USB 5Gbps Type-A, 4x USB 2.0
Front: 1x USB 10Gbps Type-C, 4x USB 5Gbps Type-A, 6x USB 2.0
LAN1x Realtek® 8126 5G LANWIRELESS LAN & BLUETOOTH• Wi-Fi 7 (Pre-installed M.2 Key-E module)
Supports MU-MIMO TX/RX, 2.4GHz/5GHz/6GHz (320MHz) up to 5.8Gbps
Supports 802.11 a/b/g/n/ac/ax/be
Supports Bluetooth® 5.4, MLO, 4KQAM
LED FEATURES• 4x EZ Debug LED
1x EZ Memory Detection LED
OPERATING SYSTEM: Support for Windows® 11 64-bit
PCB INFOATX Form Factor (243.84mm x 304.8mm)
