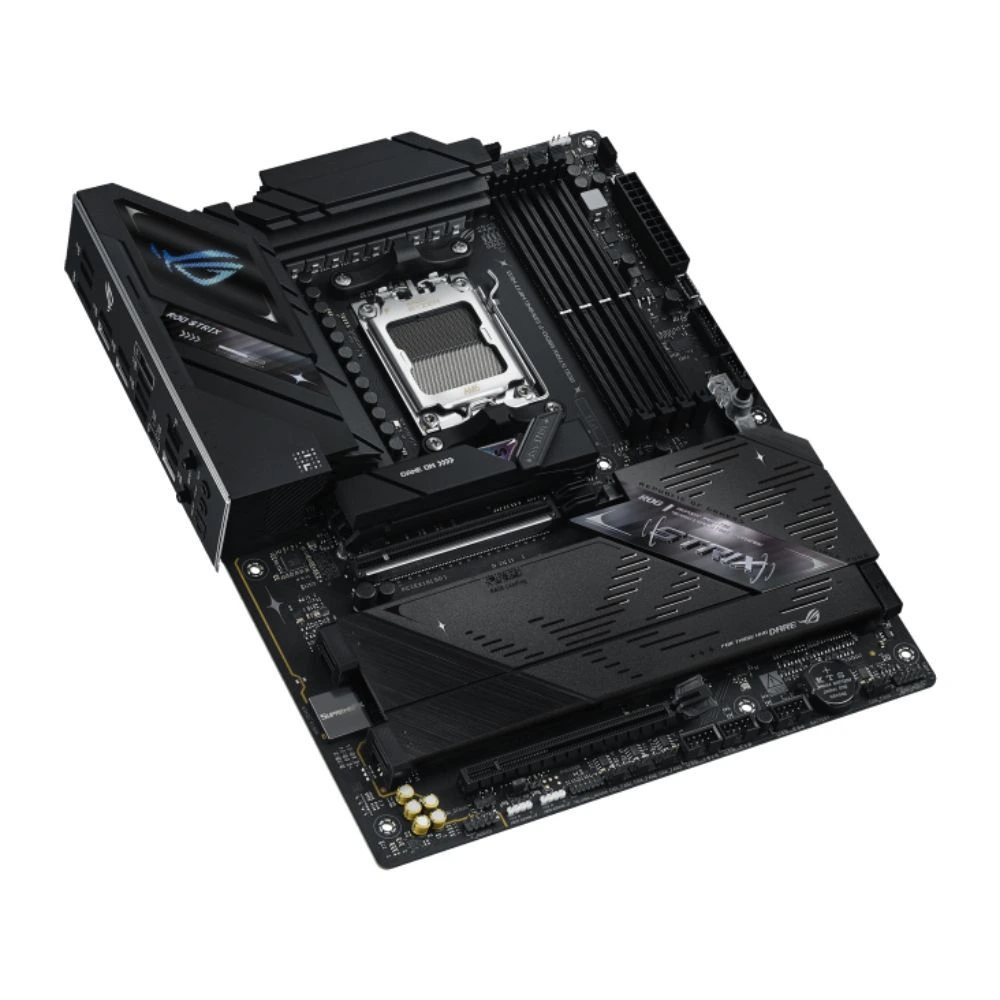

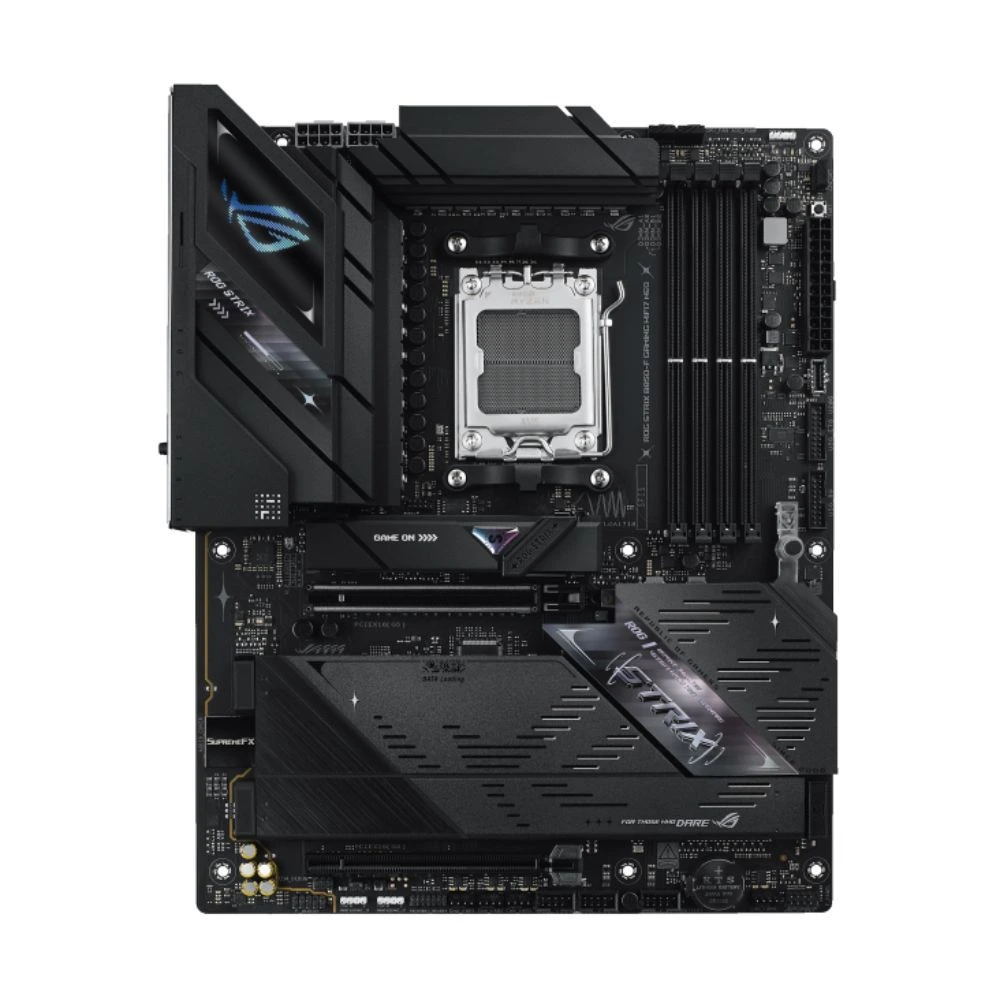

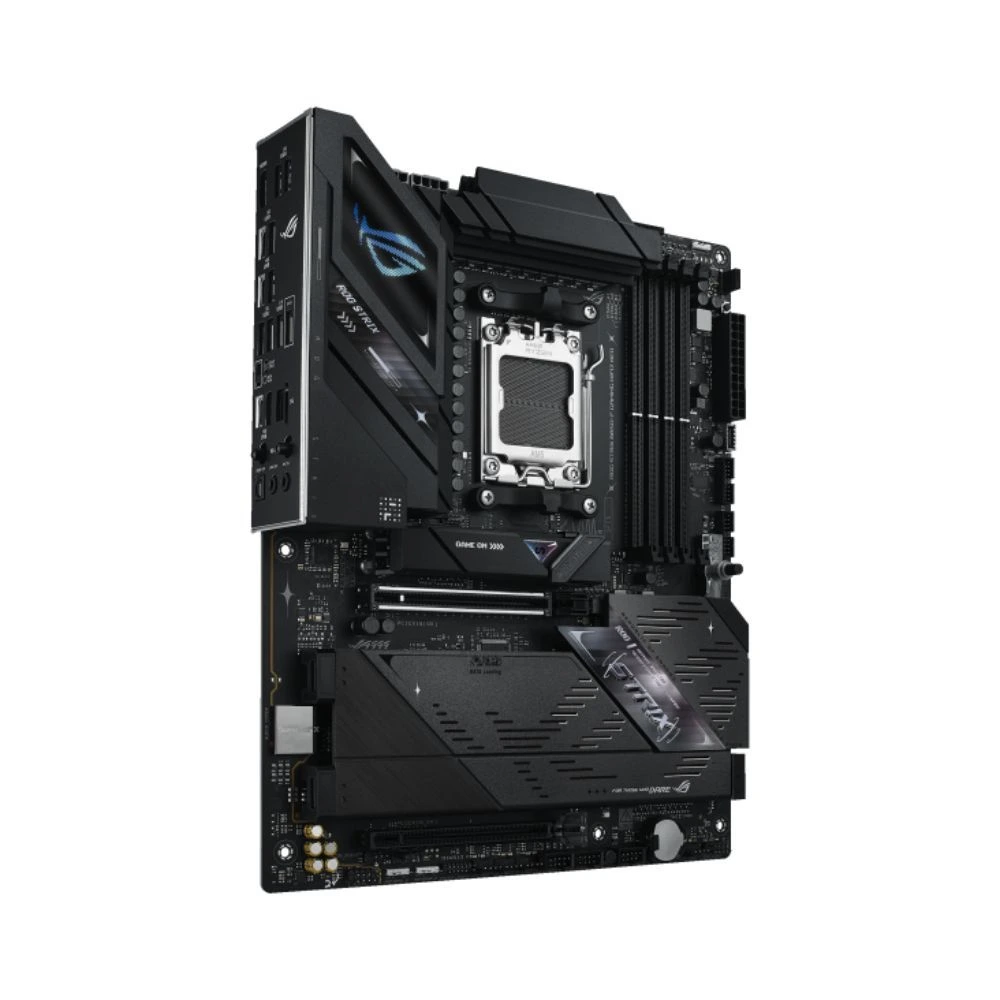

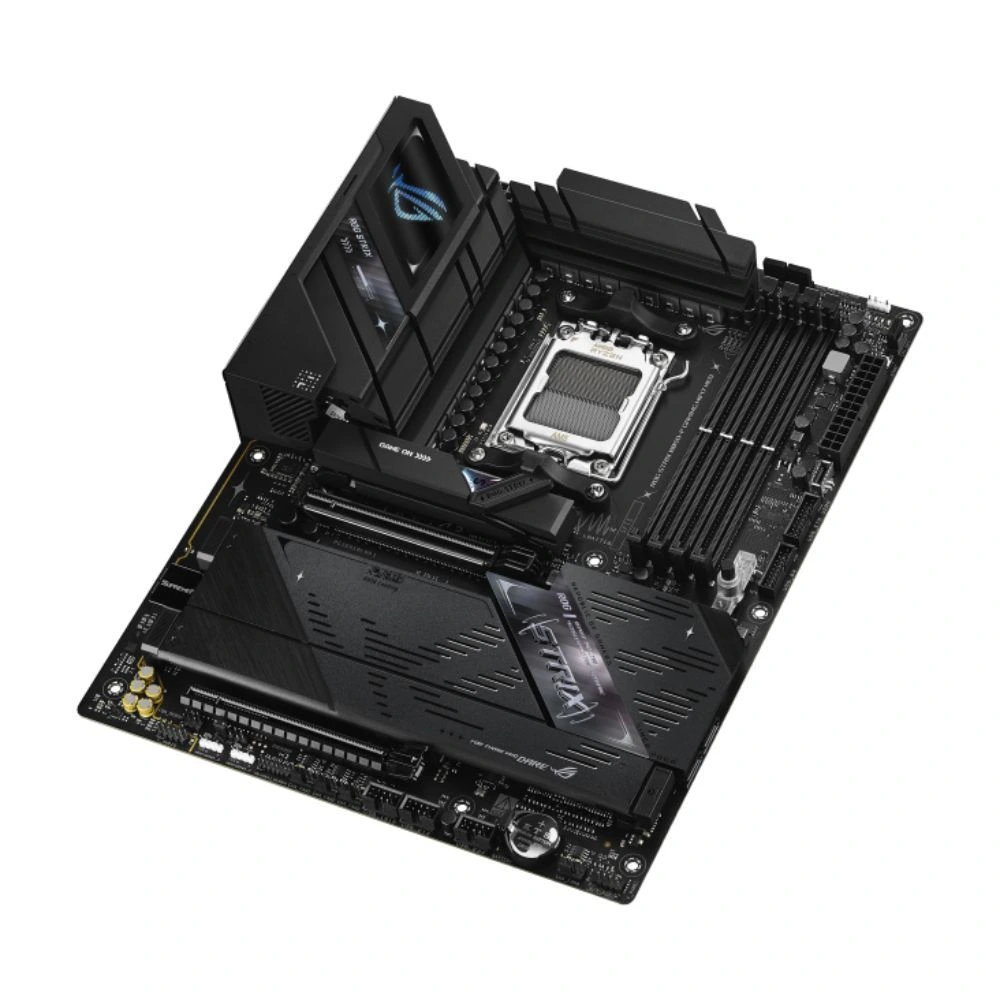

The ROG Strix B850-F Gaming WiFi7 Neo is an advanced AM5 gaming motherboard built to handle AMD Ryzen™ 9000, 8000, and 7000 Series desktop processors. Designed for elite gaming and modern AI PC demands, it combines robust power delivery, high-speed memory overclocking, comprehensive PCIe 5.0 and PCIe 4.0 storage options, and next-gen connectivity like Wi-Fi 7 and 5Gb Ethernet. It also features ASUS Q-Design innovations (such as M.2 Q-Latch, Q-Release Slim, and Q-LED) for simplified, tool-friendly PC building.
Specifications
Model: ROG STRIX B850-F GAMING WIFI7 NEO
News & Updates: Socket AM5
CPU: AMD Socket AM5 for AMD Ryzen™ 9000 & 8000 & 7000 Series Desktop Processors
Chipset: AMD B850 Chipset
Memory:
4 x DIMM slots, max. 256GB, DDR5
Supports up to 9000+MT/s (OC), ECC and Non-ECC, Un-buffered DIMM
Dual channel memory architecture supporting AMD Extended Profiles for Overclocking (EXPO™) and ASUS Enhanced Memory Profile (AEMP)
Graphics: 1 x HDMI™ port (supports 4K@60Hz as specified in HDMI 2.1)
Expansion Slots:
AMD Ryzen™ 9000 & 7000 Series Processors: 1 x PCIe 5.0 x16 slot (supports x16 mode)
AMD Ryzen™ 8700 & 8600 & 8400 Series Processors: 1 x PCIe 4.0 x16 slot (supports x8 mode)
AMD Ryzen™ 8500 & 8300 Series Processors: 1 x PCIe 4.0 x16 slot (supports x4 mode)
AMD B850 Chipset: 1 x PCIe 4.0 x16 slot (supports x4 mode)
Storage:
Total supports 4 x M.2 slots and 2 x SATA 6Gb/s ports
M.2_1 (Key M): type 2242/2260/2280 (supports PCIe 5.0 x4 mode with Ryzen™ 9000/7000; PCIe 4.0 x4 with Ryzen™ 8000)
M.2_2 (Key M): type 2280 (supports PCIe 5.0 x4 mode with Ryzen™ 9000/7000; PCIe 4.0 x4 with Ryzen™ 8000)
M.2_3 (Key M): type 2280 (supports PCIe 4.0 x4 via B850 Chipset; shares bandwidth with PCIEX16(G4))
M.2_4 (Key M): type 2242/2260/2280 (supports PCIe 4.0 x4)
2 x SATA 6Gb/s ports
RAID Support: AMD RAIDXpert2 Technology (RAID 0/1/5/10 for Ryzen™ 9000 & 8000 & 7000 Series Processors)
Ethernet: 1 x Realtek ® 5Gb Ethernet with ASUS LANGuard
Wireless & Bluetooth:
Wi-Fi 7 (MediaTek MT7925) 2×2 Wi-Fi 7 (802.11be)
Supports 2.4/5/6GHz frequency bands and 160MHz bandwidth
Bluetooth ® v5.4 (supports LE Audio)
USB:
Rear USB (Total 12 ports): 4 x USB 10Gbps (2 x Type-A + 2 x USB Type-C ®), 6 x USB 5Gbps (5 x Type-A + 1 x USB Type-C ®), 2 x USB 2.0 (Type-A)
Front USB (Total 7 ports): 1 x USB 20Gbps (supports USB Type-C ®), 2 x USB 5Gbps headers (support 4 additional ports), 3 x USB 2.0 headers (support 6 additional ports)
Audio:
ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080
Impedance sense, Jack-detection, Multi-streaming, Front Panel MIC Jack-retasking
120 dB SNR stereo playback output and 110 dB SNR recording input, up to 32-Bit/384 kHz playback
SupremeFX Shielding Technology, Savitech SV3H712 AMP, optical S/PDIF out port, and premium audio capacitors

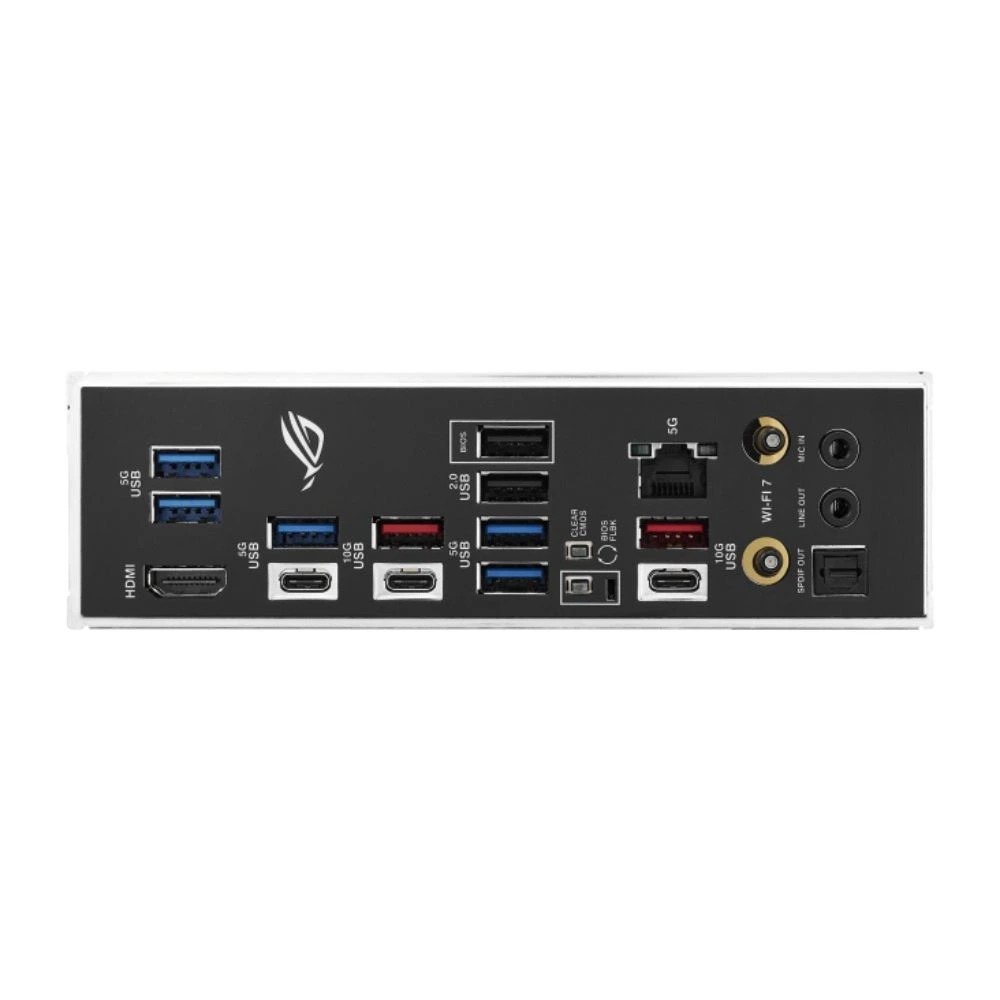

Back Panel I/O Ports:
4 x USB 10Gbps ports (2 x Type-A + 2 x USB Type-C ®)
6 x USB 5Gbps ports (5 x Type-A + 1 x USB Type-C ®)
2 x USB 2.0 ports (2 x Type-A)
1 x HDMI™ port
1 x Wi-Fi module
1 x Realtek ® 5Gb Ethernet port
2 x Audio jacks
1 x Optical S/PDIF out port
1 x BIOS FlashBack™ button
1 x Clear CMOS button
Internal I/O Connectors:
Fan & Cooling: 1 x 4-pin CPU Fan, 1 x 4-pin CPU OPT Fan, 1 x 4-pin AIO Pump, 4 x 4-pin Chassis Fan headers
Power: 1 x 24-pin Main Power, 2 x 8-pin +12V CPU Power connectors
Storage: 4 x M.2 slots (Key M), 2 x SATA 6Gb/s ports
USB: 1 x USB 20Gbps connector (USB Type-C ®), 2 x USB 5Gbps headers, 3 x USB 2.0 headers
Miscellaneous: 3 x Addressable Gen 2 headers, 1 x CPU Over voltage jumper, 1 x Front Panel Audio header, 1 x Power button, 1 x 10-1 pin Front System Panel header, 1 x Thermal Sensor header, 1 x Thunderbolt™ (USB4 ®) header
Special Features:
– Extreme Engine Digi+ (5K Black metallic capacitors)
– ASUS Q-Design (M.2 Q-Latch, M.2 Q-Release, M.2 Q-Slide, PCIe Slot Q-Release Slim with PCIe SafeSlot, Q-Antenna, Q-Dashboard, Q-DIMM, Q-LED, Q-Slot)
– ASUS Thermal Solution (M.2 heatsink backplate, M.2 heatsink)
– ASUS EZ DIY (BIOS FlashBack™ button/LED, Clear CMOS button, ProCool, Pre-mounted I/O shield, SafeSlot, SafeDIMM)
– Aura Sync (Addressable Gen 2 headers)
Software Features:
– ROG Exclusive Software (ROG CPU-Z, Dolby Atmos)
– ASUS Exclusive Software (Armoury Crate, AI Cooling II, GameFirst, WiFi Q-Antenna, MLO Wizard, ASUS DriverHub, AI Advisor, GlideX, TurboV Core, etc.)
– UEFI BIOS (Integrated WiFi Driver Support, AI Cache Boost, EZ Mode)
BIOS: 64 MB (512Mb) Flash ROM, UEFI AMI BIOS
Manageability: WOL by PME, PXE

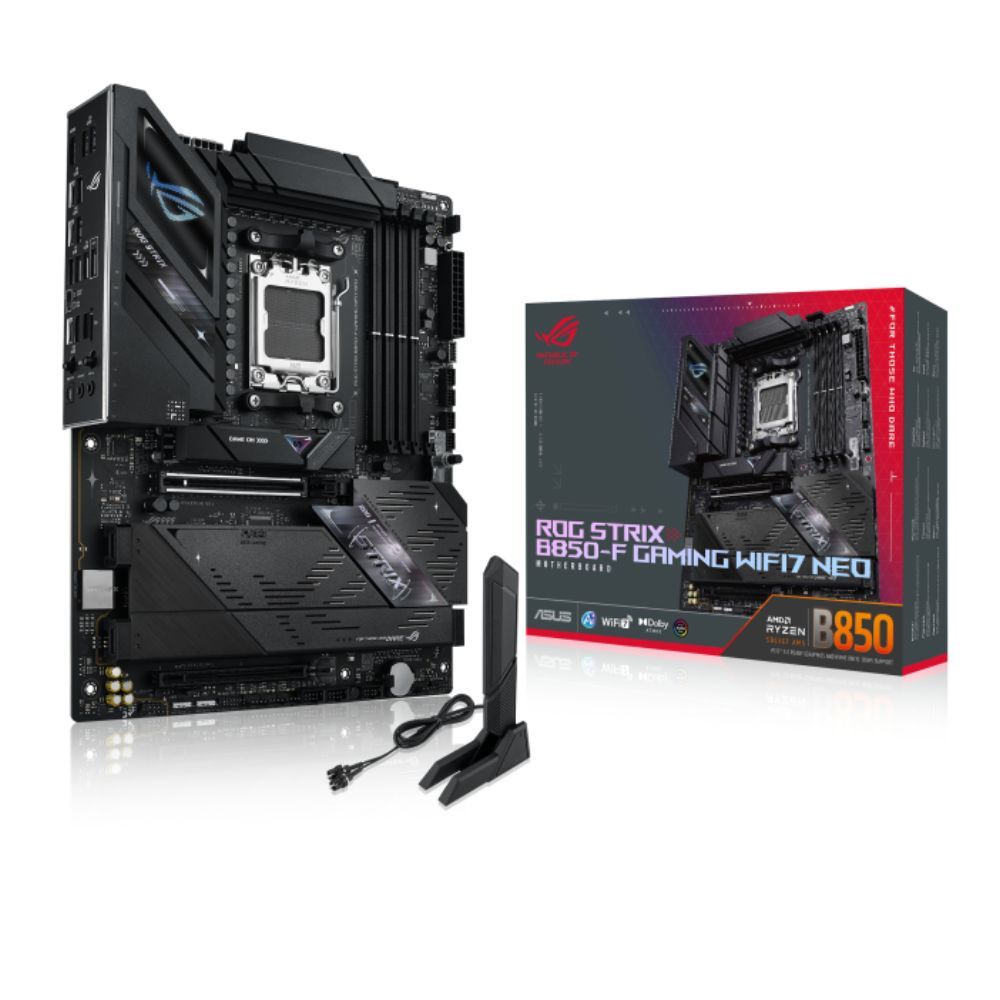

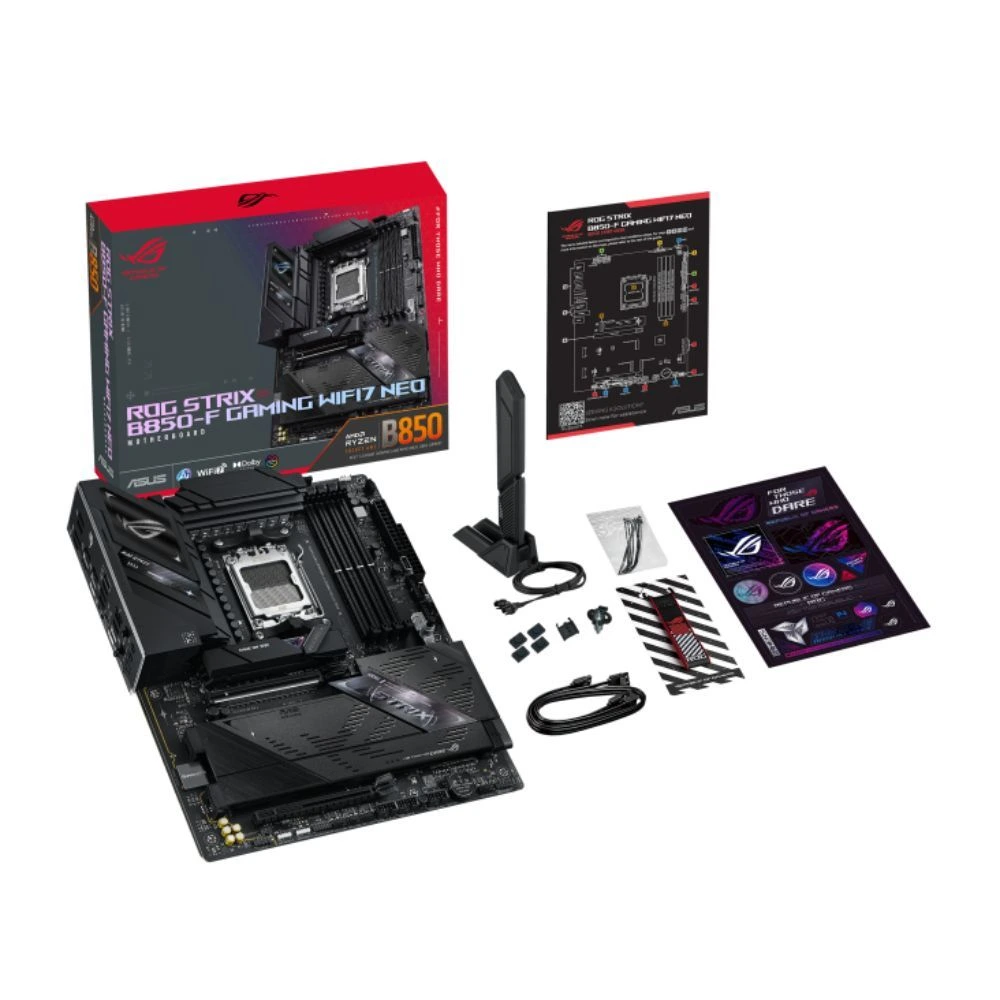

Accessories: 2 x SATA 6Gb/s cables, 1 x ASUS WiFi Q-Antenna, cable ties, M.2 Q-Latch/Q-Slide packages, ROG key chain, stickers, M.2 rubbers/backplate rubber packages, Quick start guide
Operating System: Windows 11
Form Factor: ATX Form Factor (12 inch x 9.6 inch / 30.5 cm x 24.4 cm)
