Reversed Airflow

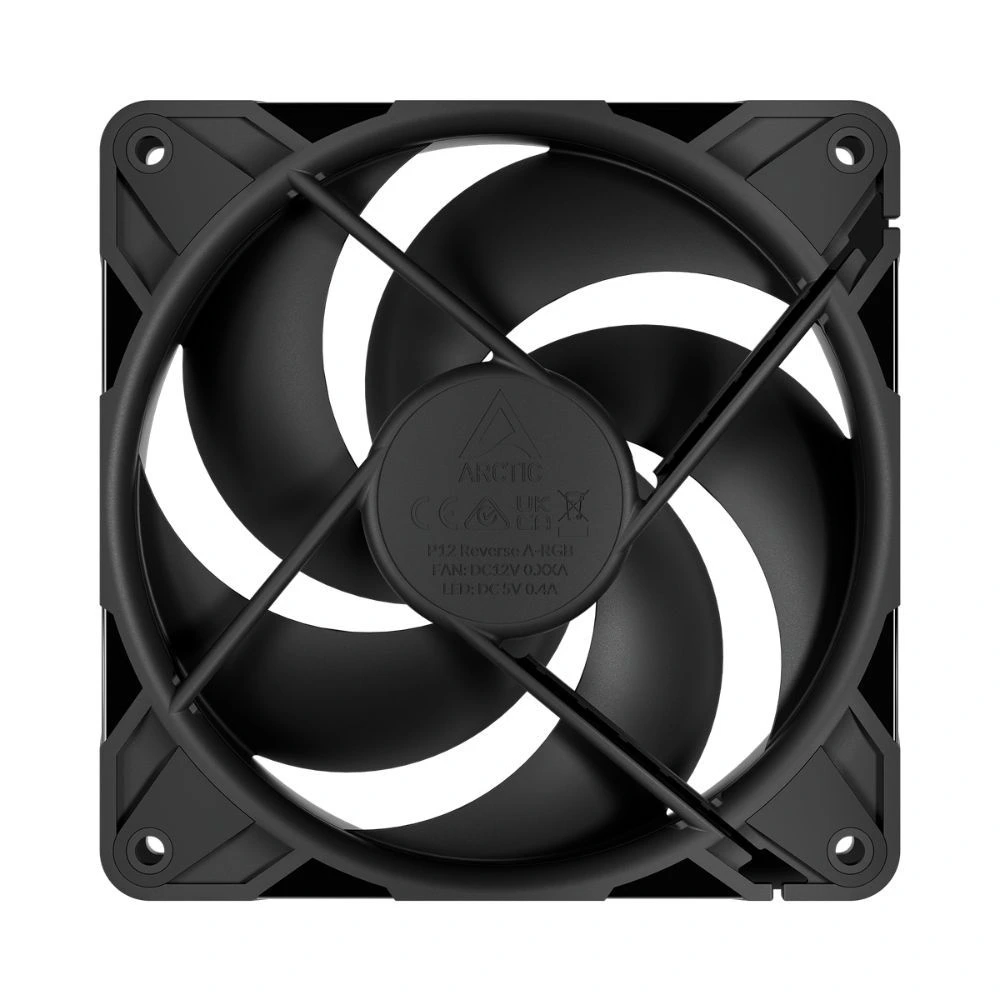

The P12 Pro Reverse is specifically designed for air intake from the back side. It’s particularly suitable when conventional fans would compromise the aesthetics.
Fan Speed: 500–3000 rpm
Bearing: Fluid Dynamic Bearing
Static Pressure: 4.50 mm H2O
Airflow: 73 cfm | 124.03 m³/h
General Specifications
Operating Ambient Temperature: 0–40 °C
Dimensions: 120 (L) x 120 (W) x 27 (H) mm
Net Weight: 172 g
Fan Specifications
Fan Speed: 500–3000 rpm, PWM controlled 0 rpm below 5 % PWM
Airflow: 73 cfm | 124 m³/h
Static Pressure: 4.5 mmH2O
Fan Bearing: Fluid Dynamic Bearing
Typical Voltage: 12 V DC
Start Up Voltage: 3.5 V DC
Current: 0.4 A
Cable Length: 400 mm + 80 mm Daisy-Chain Cable
Connector: 4-Pin Fan Plug + 4-Pin Socket
Packaging
Width: 125 mm
Height: 32 mm
Length: 127 mm
Weight: 0.215 kg
