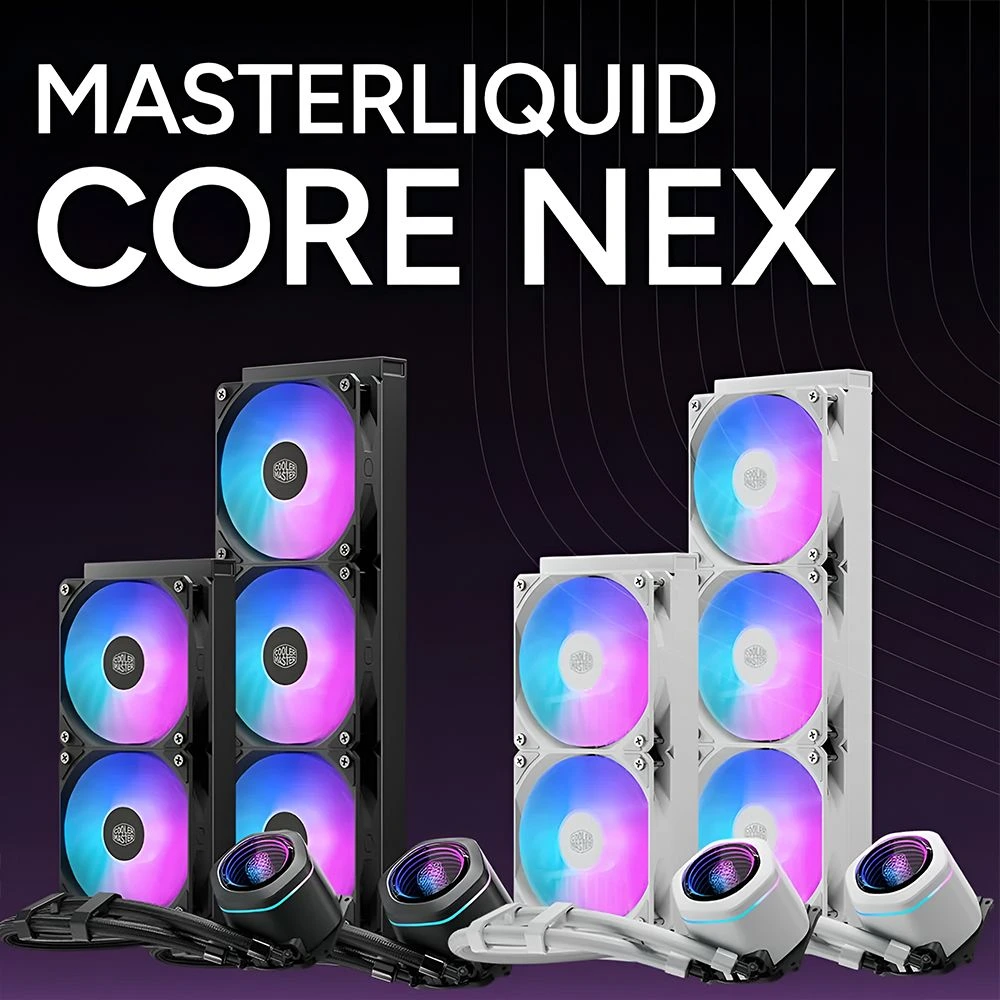

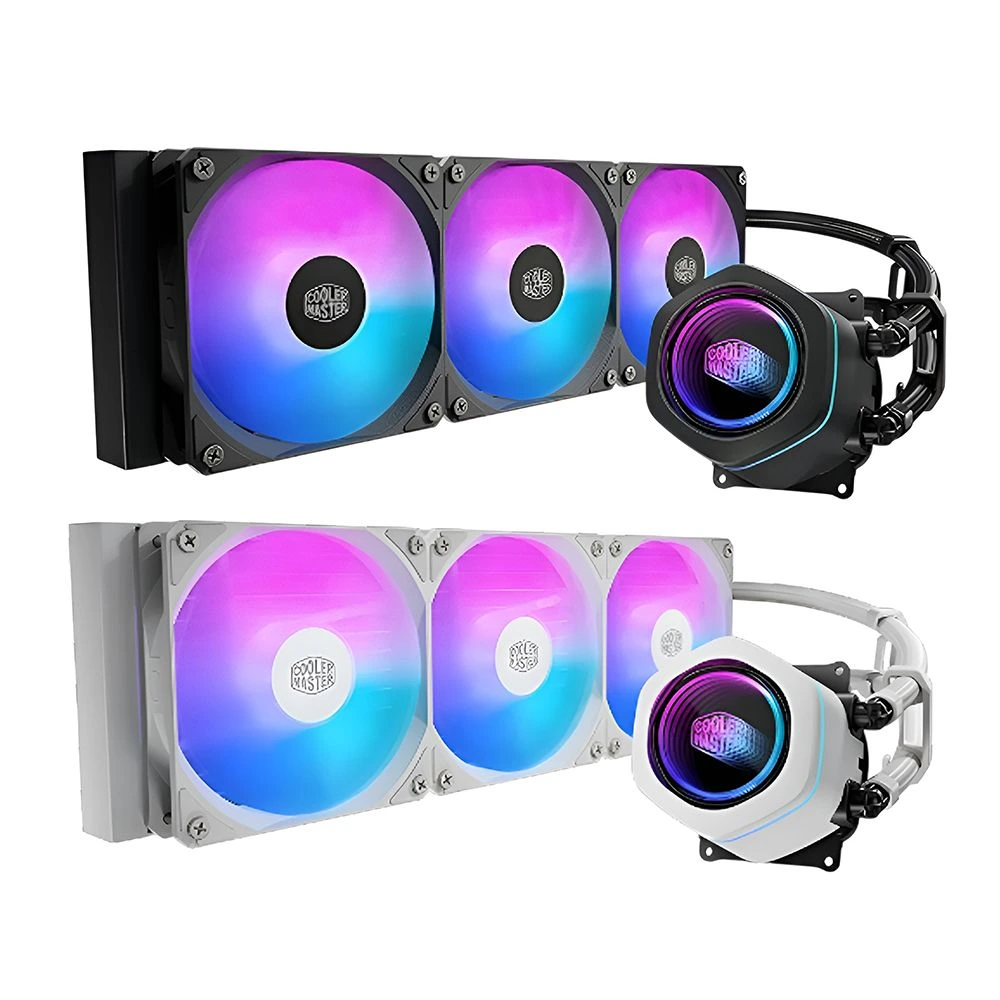

MasterLiquid Core Nex Series

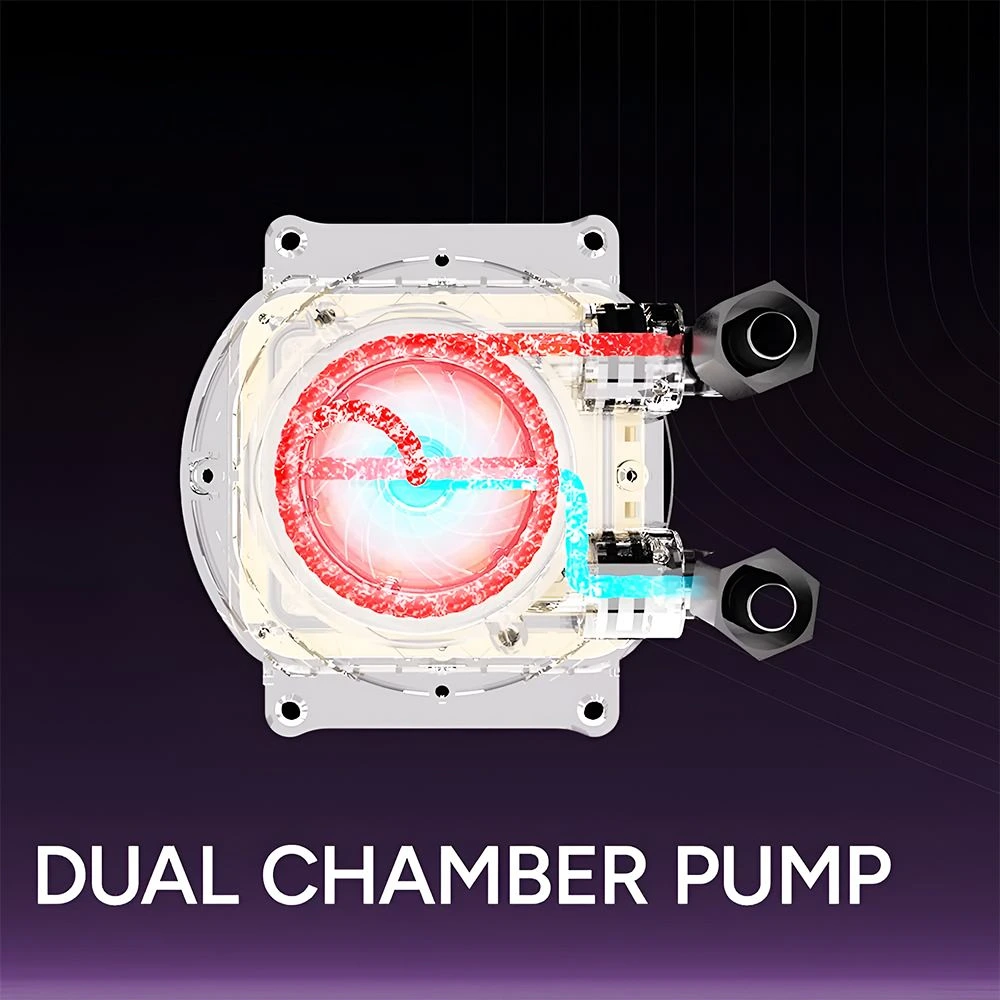

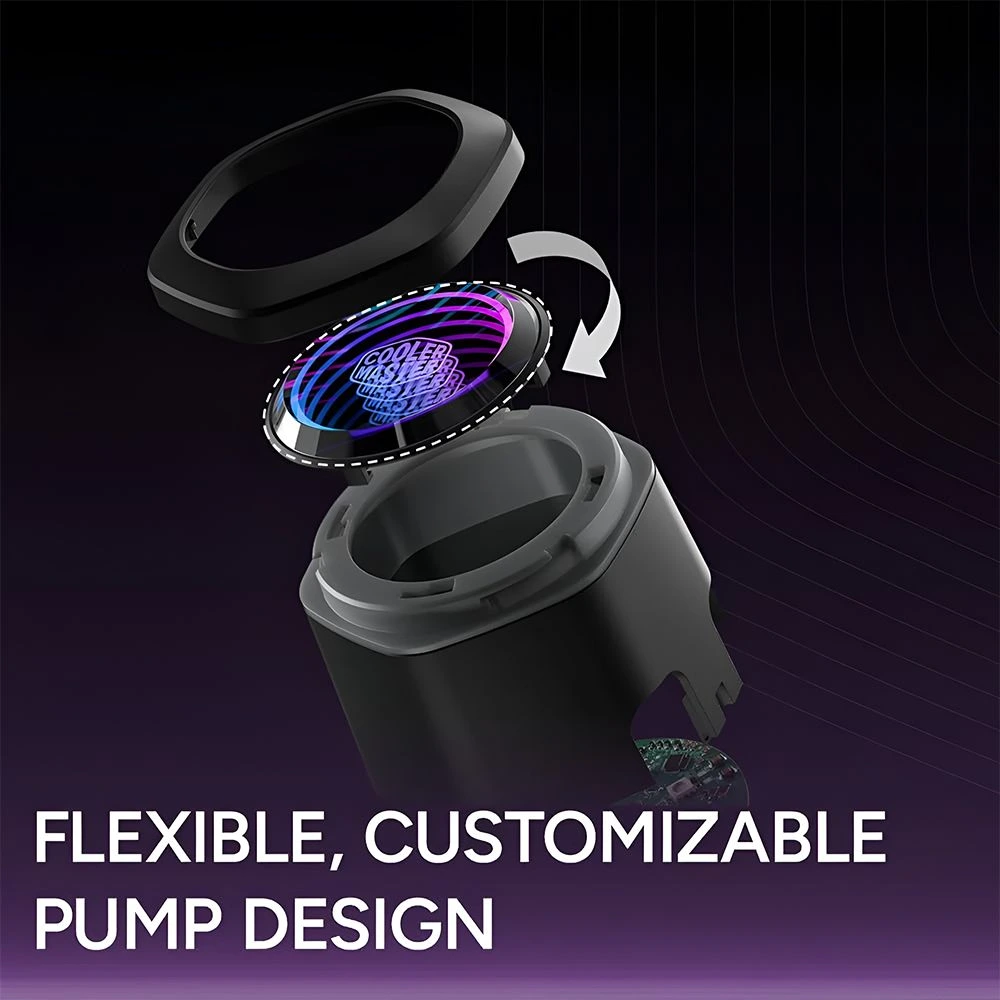

Introducing the redesigned MasterLiquid Core Nex Series from Cooler Master. Built on the trusted foundation of the MasterLiquid series, the Core Nex brings improved cooling performance with its upgraded dual chamber pump and wider CPU compatibility for flexible PC builds. With the infinity mirror pump cover design, upgraded fans, and optimized tubing for easy installation, the MasterLiquid Core Nex Series is a smart and stylish cooling solution for mainstream users looking to step up their setup.
General Specifications
Product Name: MasterLiquid Core Nex Series
Product Number: 360 Black: MLX-D36M-A18PA-R1 / 360 White: MLX-D36M-A18PA-RW

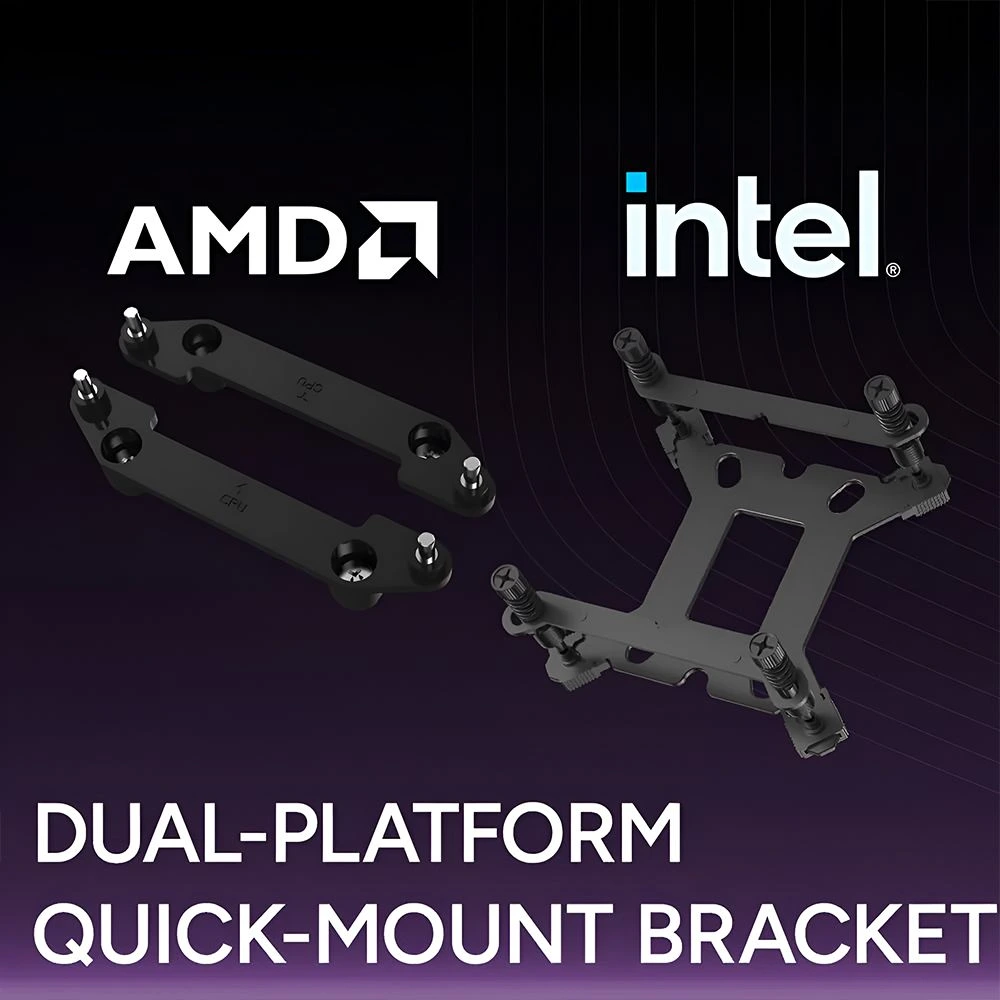

CPU Socket: Intel® LGA 1851 / 1700 / 1200 / 1150 / 1151 / 1155 / 1156
AMD® AM5 / AM4: Radiator & Pump
Radiator Material: Aluminum
Radiator Dimensions: 394 x 119.6 x 27.2 mm (15.5 x 4.7 x 1.1 inch)
Pump Dimensions: 83.6 x 78.5 x 62.9 mm (3.3 x 3.1 x 2.5 inch)
Pump Profiles: Addressable RGB
Pump Speed: 2800 ±10% RPM
Pump Noise Level: 25 dBA (Max)
Pump Connector: 3-Pin ARGB + 4-Pin PWM

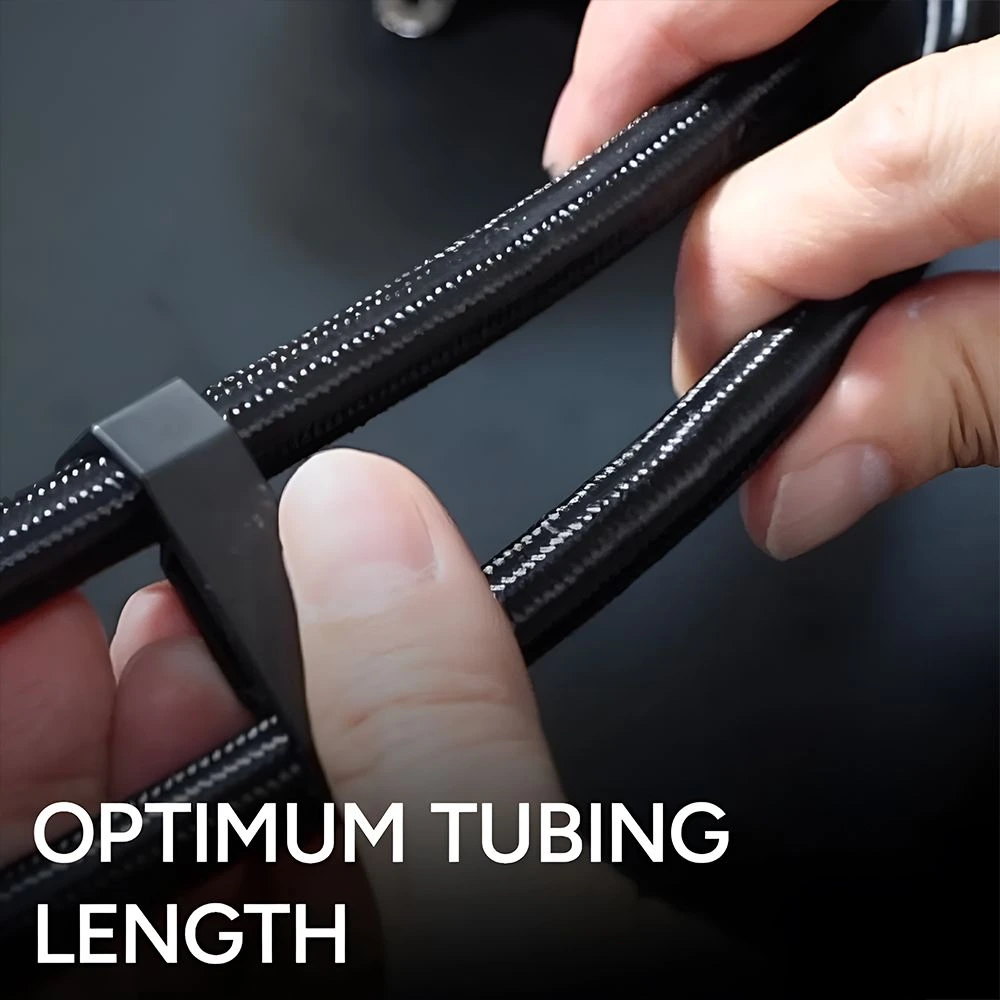

Tube Length: 400 mm
Fan Specifications
Fan Quantity: 3 PCS
Fan Dimensions (L x W x H): 120 x 120 x 25 mm (4.7 x 4.7 x 1 inch)
Fan Speed: 650 ~ 1750 RPM ±10%
Fan Airflow: 122.4 m³/h (71.9 CFM) (Max)
Fan Air Pressure: 1.86 mmH₂O (Max)
Fan Noise Level: 27.2 dBA (Max)
Fan Bearing: TypeRifle Bearing
Fan Connector: 7-Pin PWM + ARGB
Fan LED: Addressable RGB
