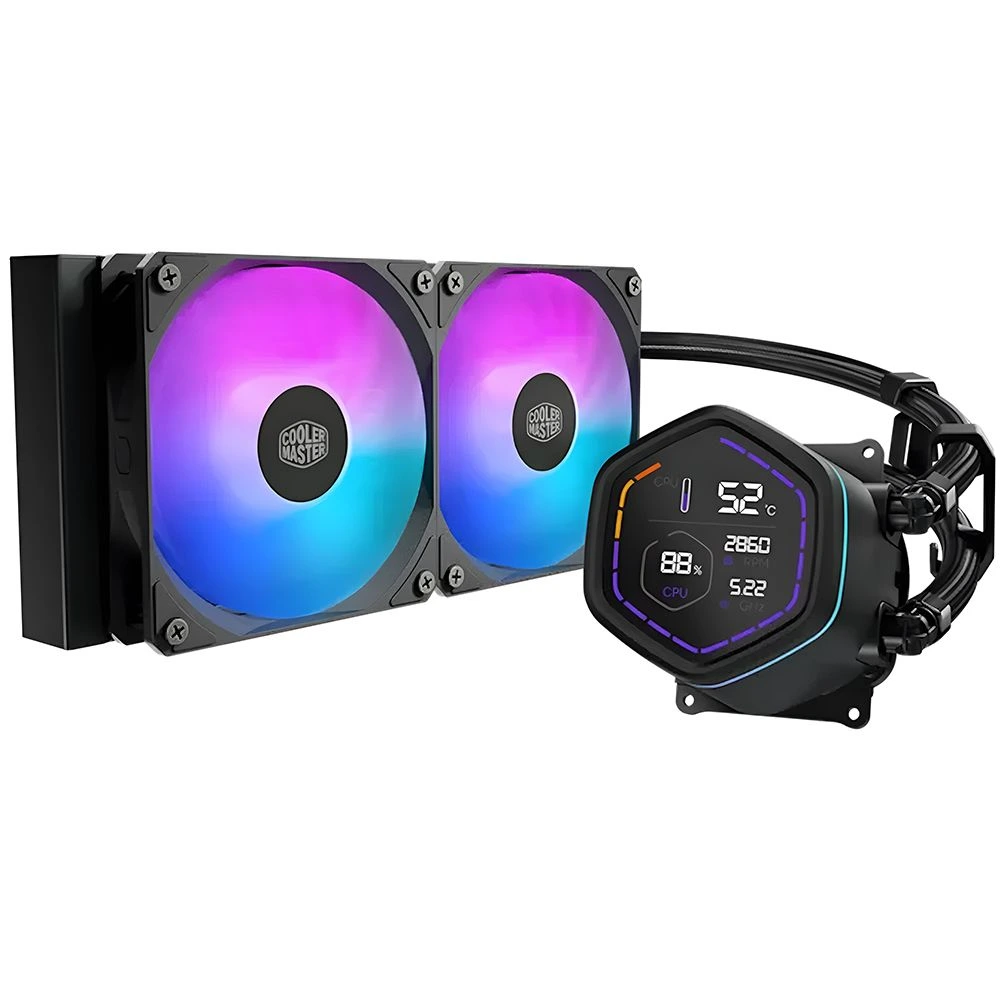

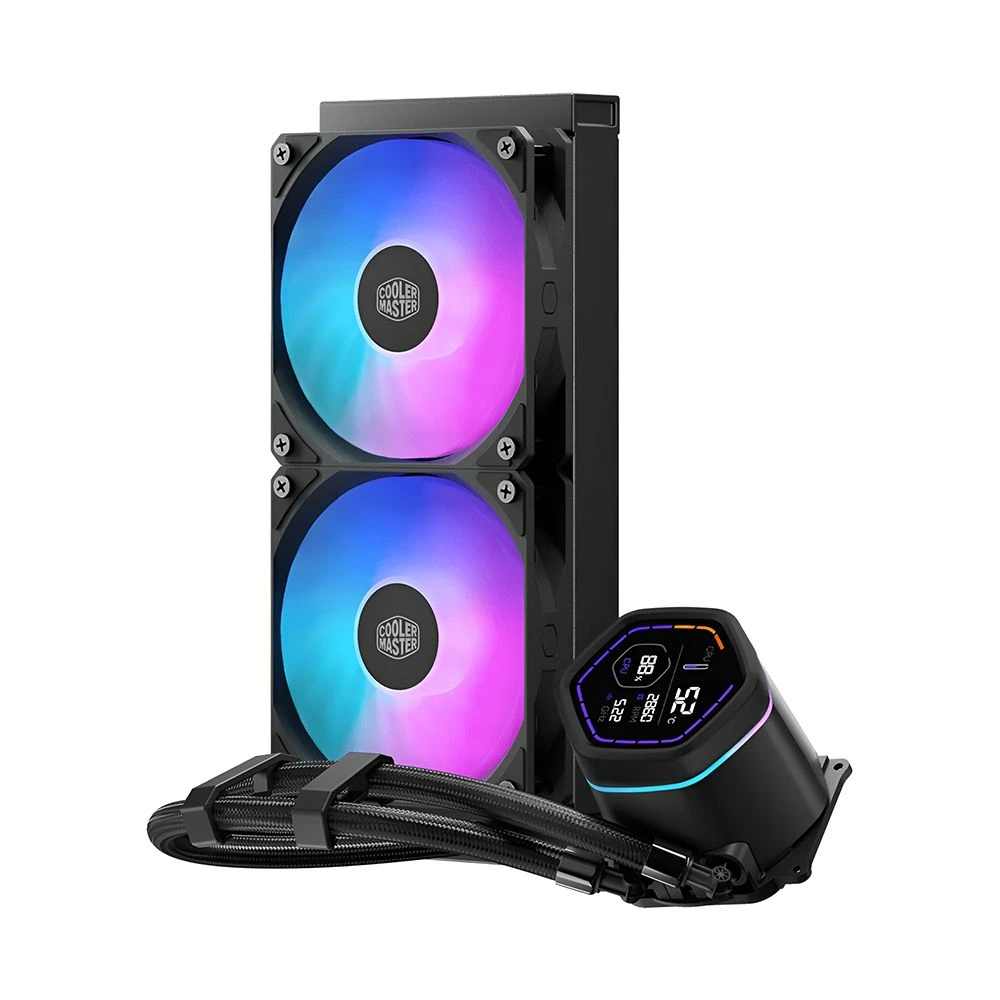

Cooler Master MasterLiquid Core Nex Digital 240 ARGB CPU Liquid Cooler

MASTERLIQUID CORE NEX DIGITAL SERIES
Experience next-level cooling with the MasterLiquid Core Nex Digital Series. Built for PC builders, gamers, and professionals, it delivers reliable cooling performance with quiet efficiency and a bold hexagonal digital display that merges form and function. The integrated digital panel provides real-time system insights, allowing you to monitor CPU usage, temperatures, fan and pump speeds through a clean, modern interface. With MasterCTRL software, you can easily customize and control your display setting. Combining dependable technology with sleek aesthetics, the MasterLiquid Core Nex Digital Series offers cooling that’s smart, stylish, and made for everyone.

• Dual Chamber Pump
• Innovative, Smart Design
• Easy Installation​
• Universal Socket Support​
• Optimum Tubing Length

Specifications:

-Product Number: 240 Black: MLX-D24M-A18PA-RD
-CPU Socket: Intel® LGA 1851 / 1700 / 1200 / 1156 / 1155 / 1151 / 1150 Socket, AMD® AM5 / AM4 Socket
-Radiator Material: Aluminum
-Radiator Dimensions: 240: 277 x 119.6 x 27.2 mm (10.9 x 4.71 x 1.1 inch)
-Pump Dimensions: 83.6 x 78.5 x 68.6 mm (3.3 x 3.1 x 2.7 inch)
-Pump Profiles: Addressable RGB
-Pump Speed: 3200 ±10% RPM
-Pump MTTF: >35,000 Hours
-Pump Noise Level: 25 dBA (Max)
-Pump Rated Voltage: 12 VDC
-Fan Power Consumption: 7.2 W
-Pump Connector: 3-Pin ARGB + 4-Pin PWM
-Digital Panel Type: LED Digital Display
-Digital Panel Display Area: 50.1 x 54.4 mm (2 x 2.1 inch)
-Digital Panel Luminance: 120 cd/m²
-Digital Panel Rated Voltage:  5 VDC
-Digital Panel Rated Current: 0.12 A±10%
-Digital Panel Safety Current: 0.3 A±20%
-Digital Panel Power Consumption: 0.6 W
-Digital Panel Connector: USB 2.0 9PIN
-Digital Panel Orientation: Software-MasterCtrl adjustable

-Fan Dimensions (L x W x H): 120 x 120 x 25 mm (4.7 x 4.7 x 1 inch)
-Fan Quantity: 240 : 2 PCS
-Fan LED Profiles: Addressable RGB
-Fan Speed: 650-1750 RPM ± 10%
-Fan Airflow: 122.4 m³/h (71.9 CFM) (Max)
-Fan Air Pressure: 1.86 mmH₂O (Max)
-Fan MTTF: >40,000 Hours
-Fan Noise Level: 27.2 dBA (Max)
-Fan Bearing Type: Rifle Bearing
-Fan Connector: 7-Pin PWM + ARGB
-Fan Rated Voltage: 12 VDC
-Fan Rated Current: 0.26 A
-Fan Safety Current: 0.37 A
-Fan Power Consumption: 3.12W
-Tube Length: 400 mm

Radiator Size: 240
Cooler Type: Liquid Cooler
Series: MasterLiquid
