PROVEN AK DESIGN

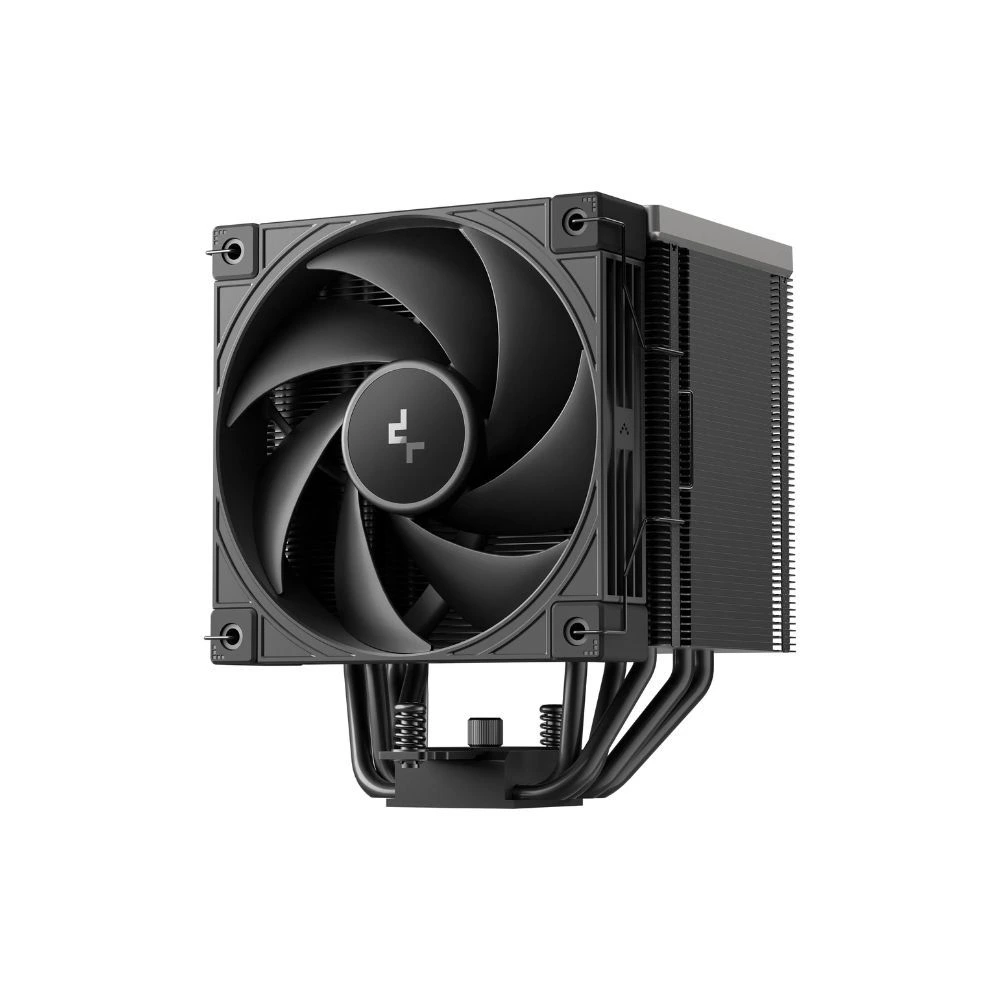

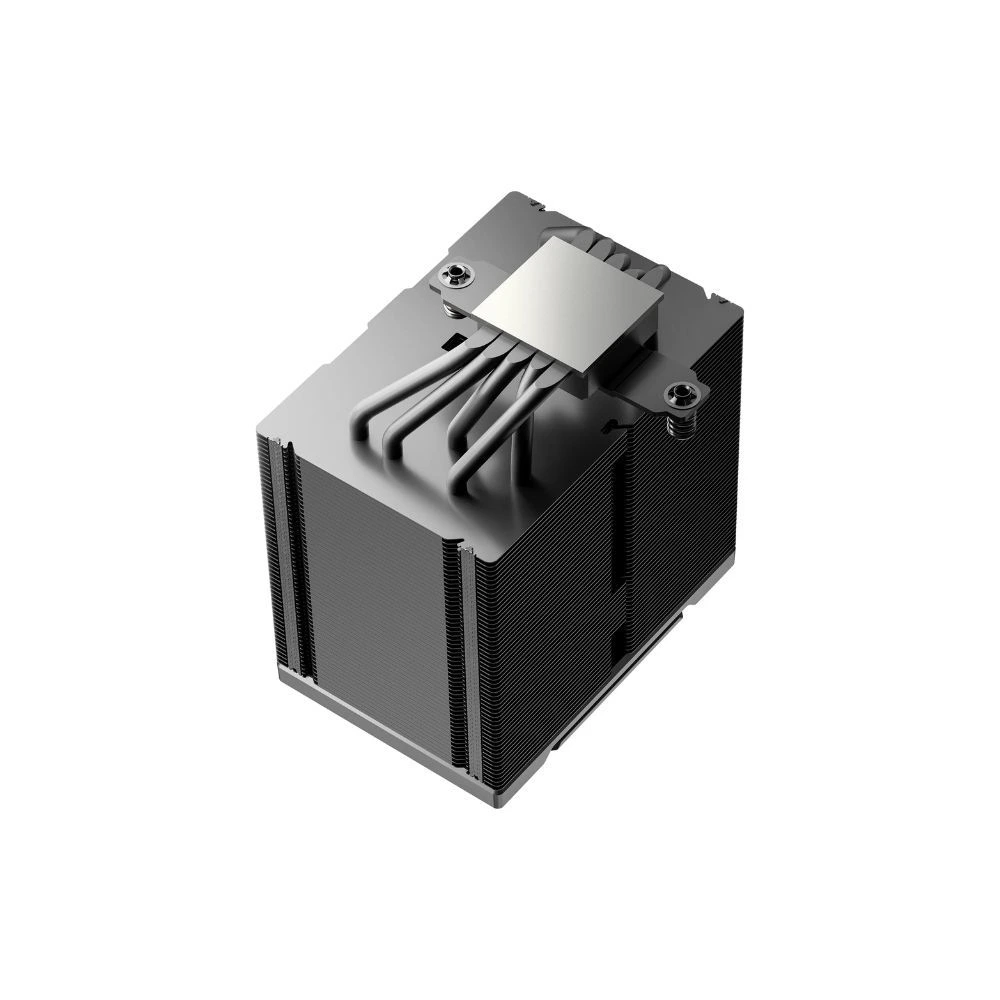

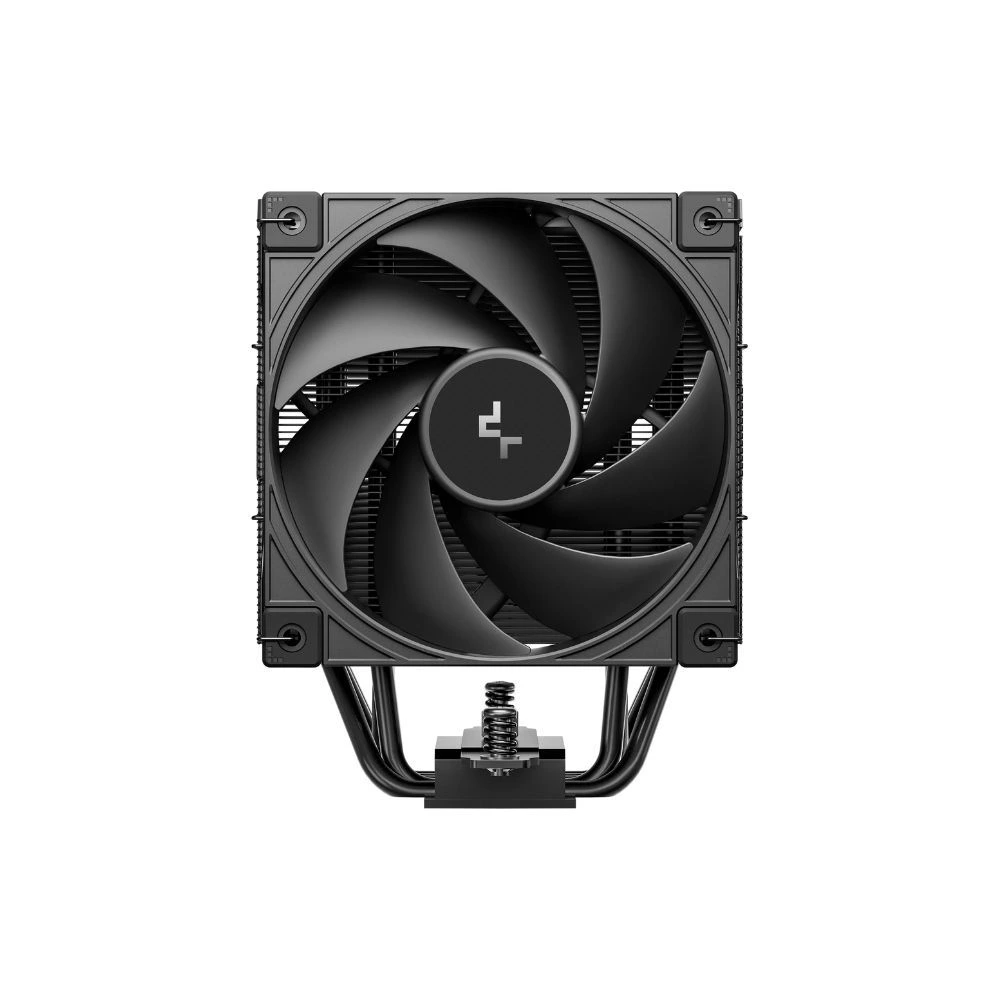

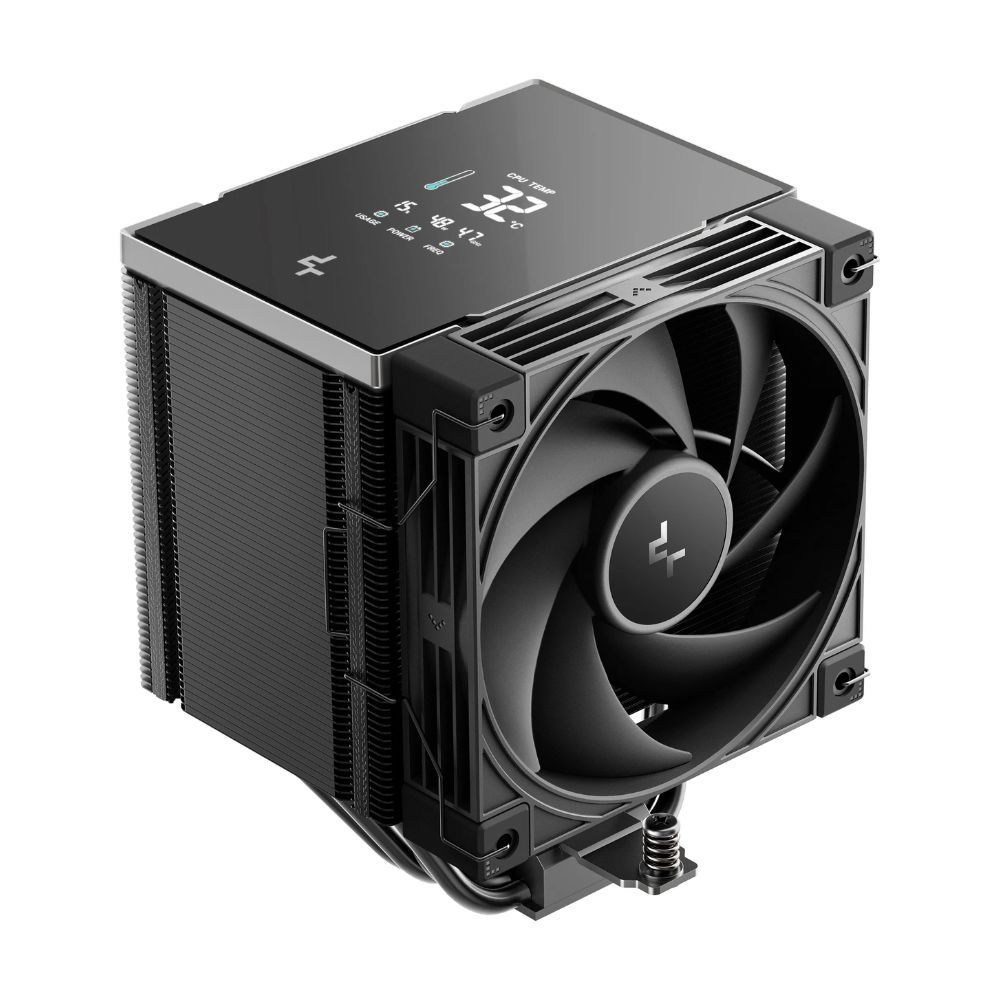

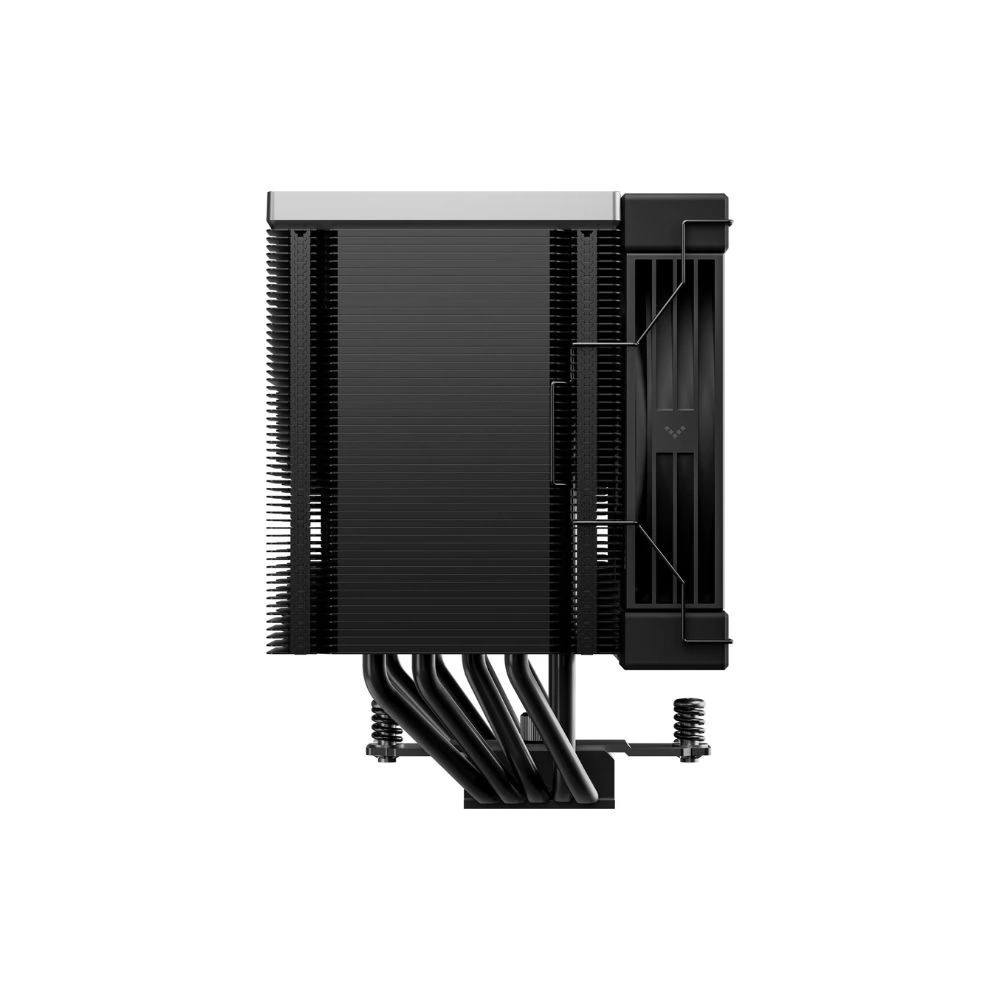

The AK500 G2 DIGITAL NYX continues its legacy by featuring a precision-machined copper base and five copper heat pipes that deliver improved heat transfer capabilities. The signature matrix fin array in a single tower heat sink layout offers better efficiency for high performance systems.
Technical Specification
Product Dimensions: 129×117×159 mm(L×W×H)
Heatsink Dimensions: 127×89×153 mm(L×W×H)
Net Weight: 1362 g
Heatpipe: Ø6 mm×5 pcs

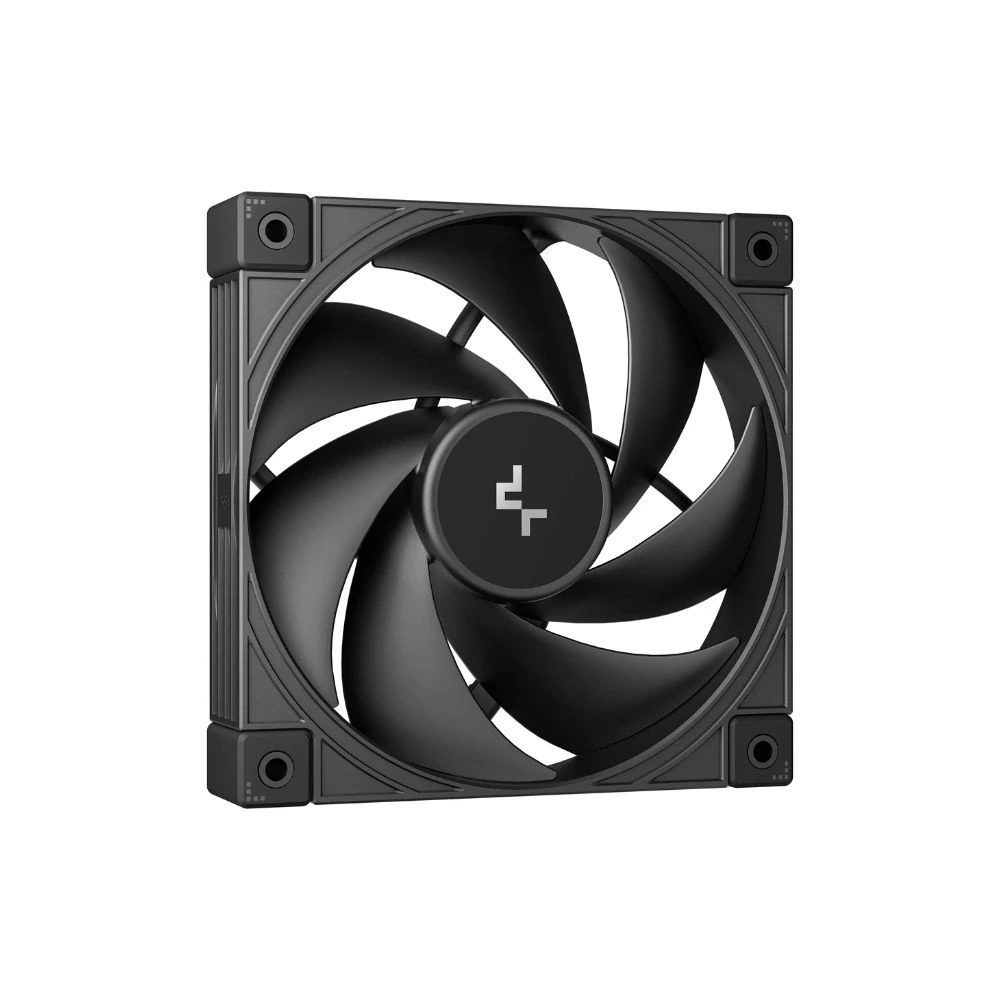

Fan Dimensions: 120×120×25 mm(L×W×H)
Fan Speed: 2200±10% RPM(max)
Fan Airflow: 63.4 CFM
Fan Air Pressure: 3.33 mmAq
Fan Noise: ≤31.45 dB(A)
Fan Connector: 4-pin PWM
Bearing Type: Hydro Bearing
Fan Rated Voltage: 12 VDC
Fan Rated Current: 0.25 A
Fan Power Consumption: 3 W
Display Module Rated Current: 0.13 A±10%
Display Module Rated Voltage: 5 VDC
Display Module Power Consumption: 0.65 W
Display Area: 29×39 mm
