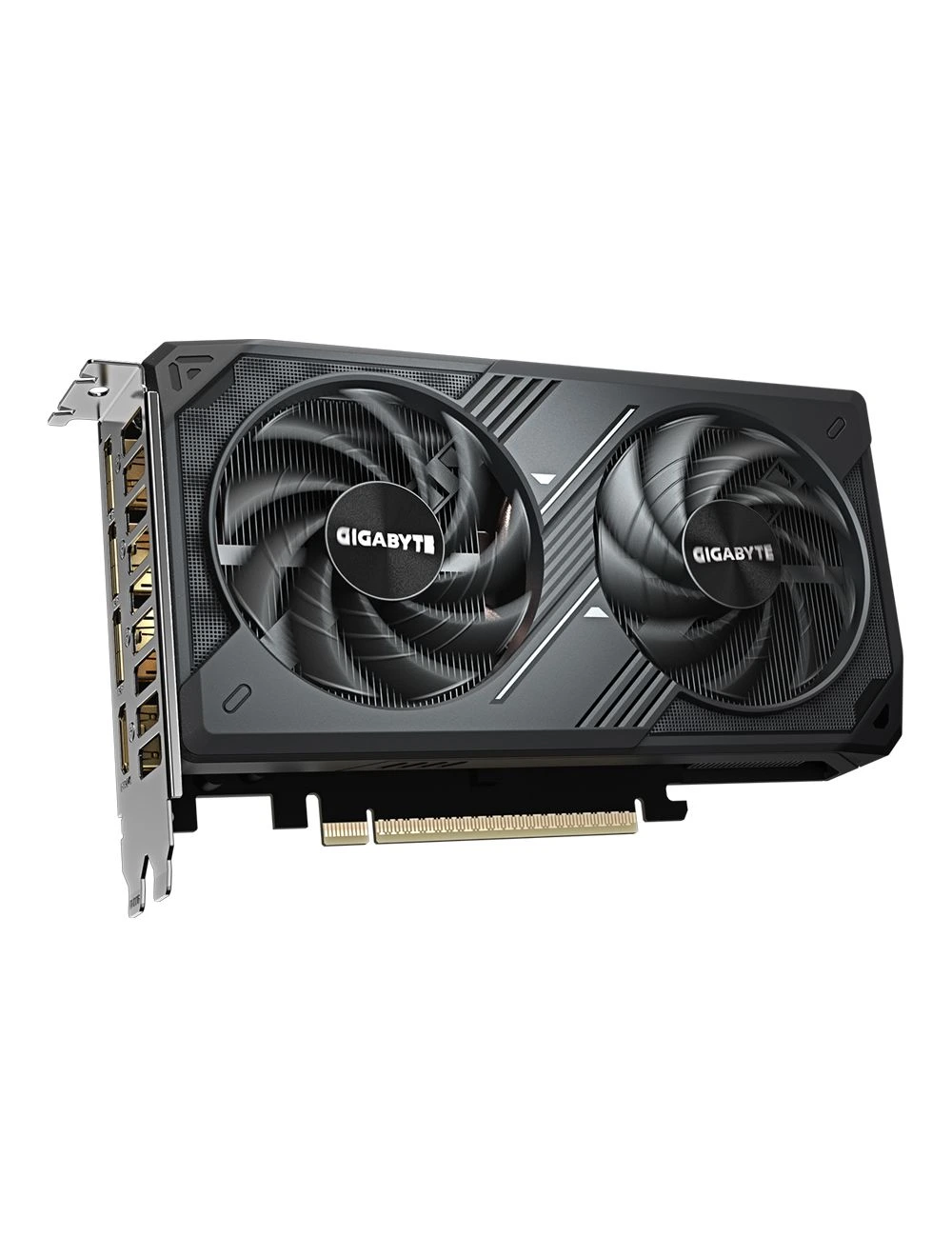

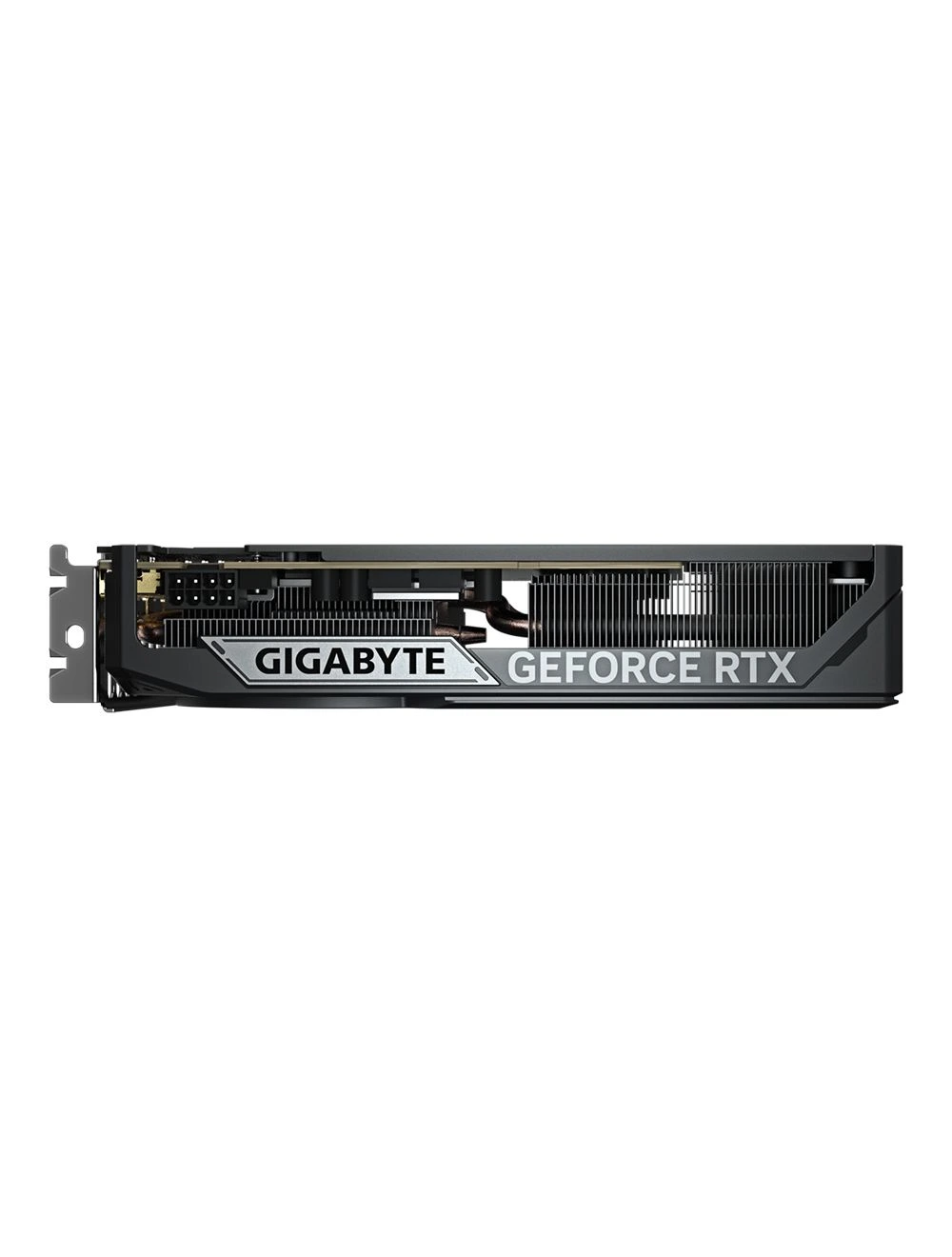

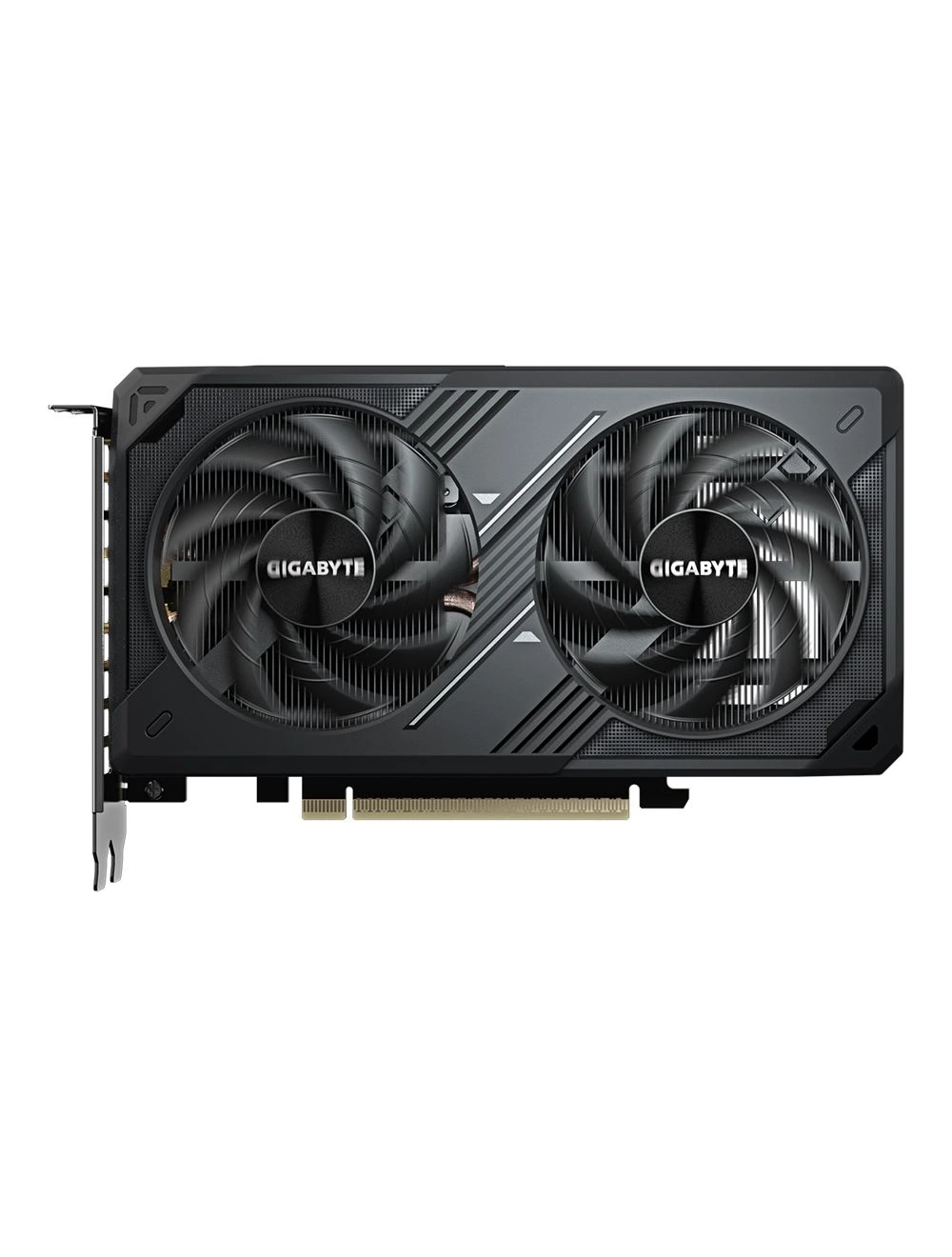

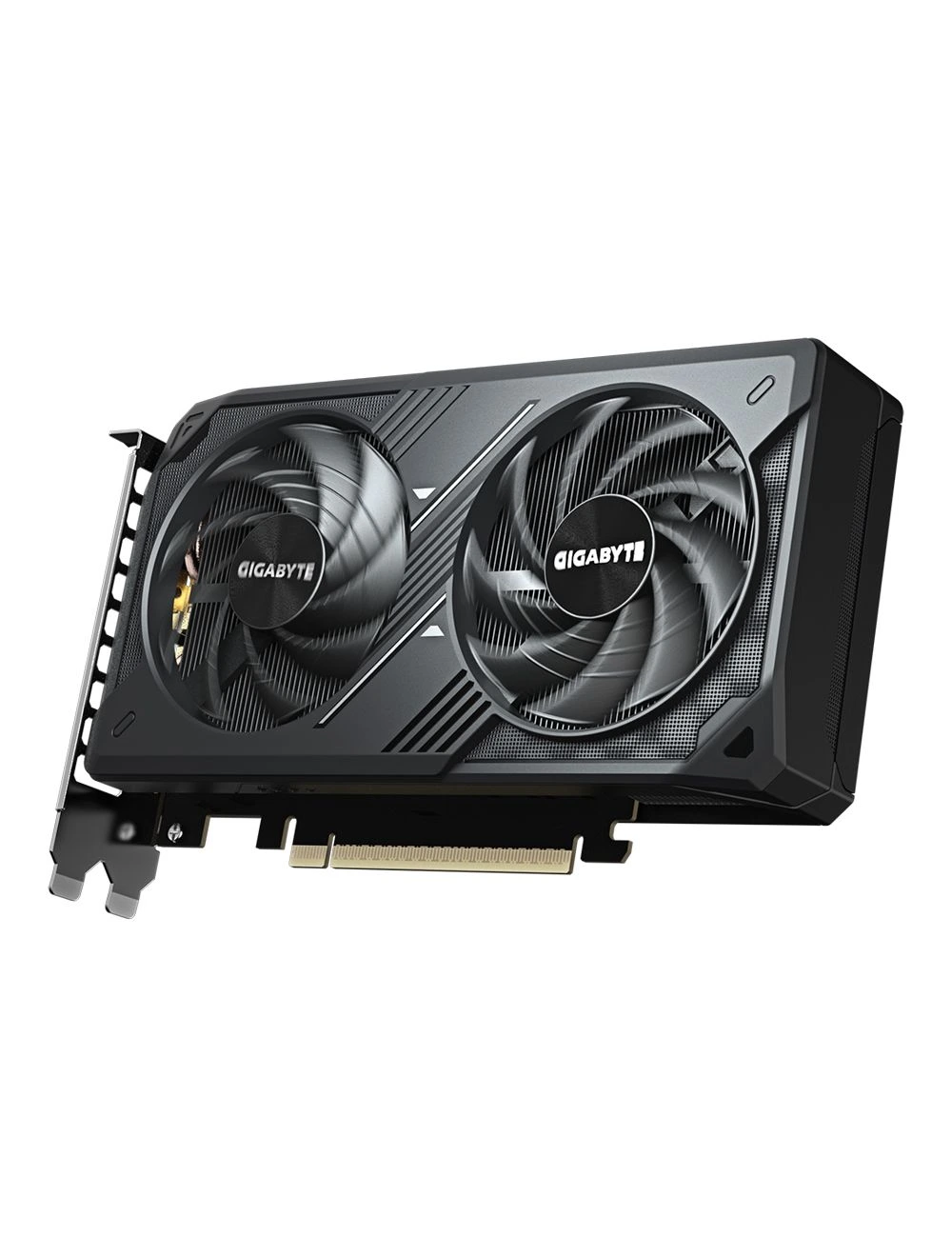

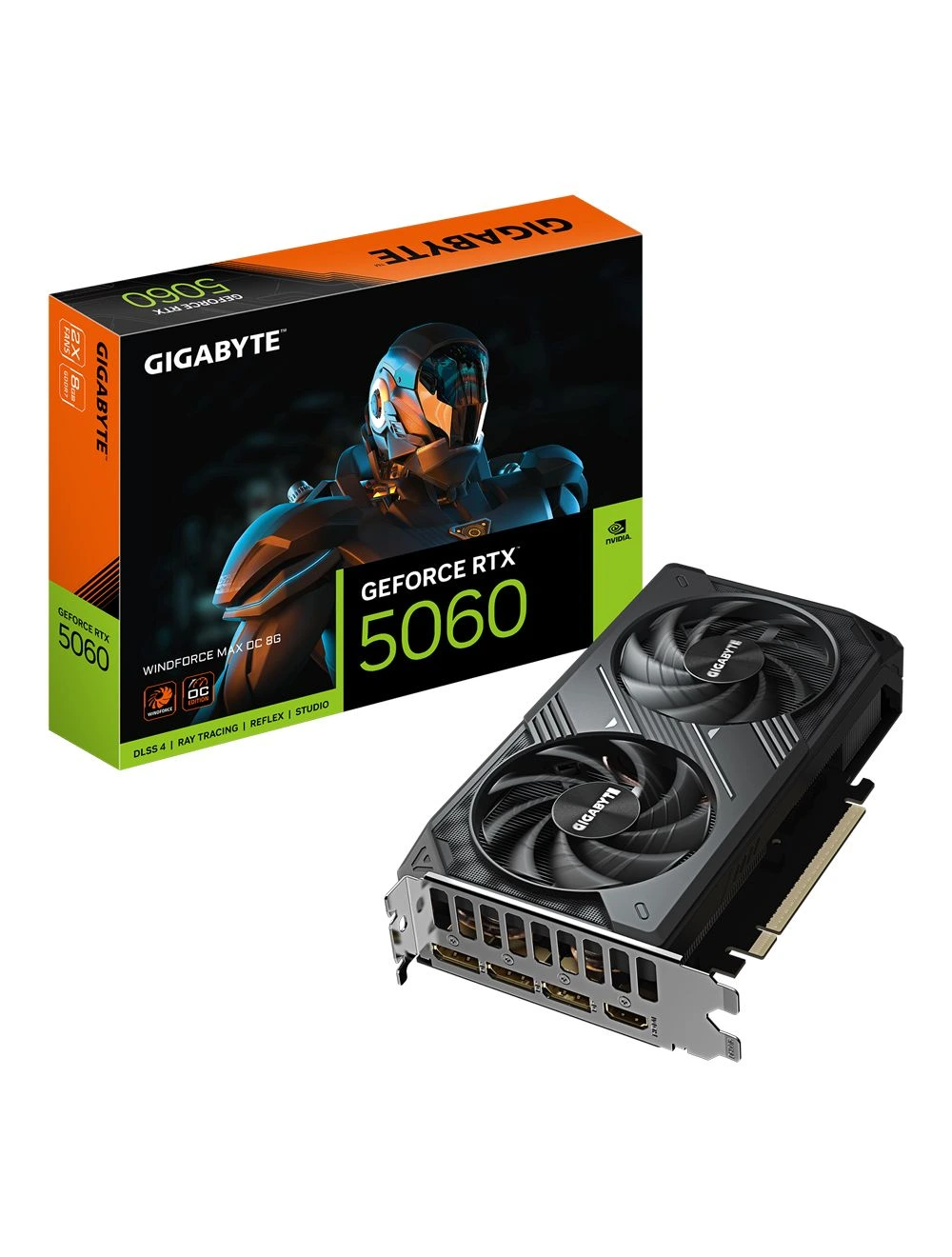

Gigabyte GeForce RTX 5060 Windforce Max OC 8GB GDDR7 Graphics Card

Features

• GeForce RTX™ 5060 with NVIDIA Blackwell architecture and 3840 CUDA cores
• 8GB GDDR7 memory at 28 Gbps on 128-bit bus for high performance
• WINDFORCE cooling with Hawk fans, server-grade thermal gel, and 3D active fans
• DLSS 4 Multi Frame Generation and Reflex 2 for AI-enhanced gaming
• Full ray tracing with neural rendering and 4K multi-view support
• Reinforced structure with ultra-durable MOSFETs and capacitors
• PCI-E 5.0 interface, 2512 MHz core clock, and 550W PSU recommendation

Specification

GV-N5060WF2MAX-OC-8GD

Graphics Processing:  GeForce RTX™ 5060
Core Clock:  2512 MHz (Reference card: 2497 MHz)
CUDA® Cores:  3840
Memory Clock:  28 Gbps
Memory Size:  8 GB
Memory Type:  GDDR7
Memory Bus:  128 bit
Card Bus:  PCI-E 5.0
Digital Max Resolution:  7680×4320
Multi-View:  4
Card Size:  L=199 W=116 H=40 mm
PCB Form:  ATX
DirectX:  DirectX 12 API
OpenGL:  4.6
Recommended PSU:  550W
Power Connectors:  8 Pin*1

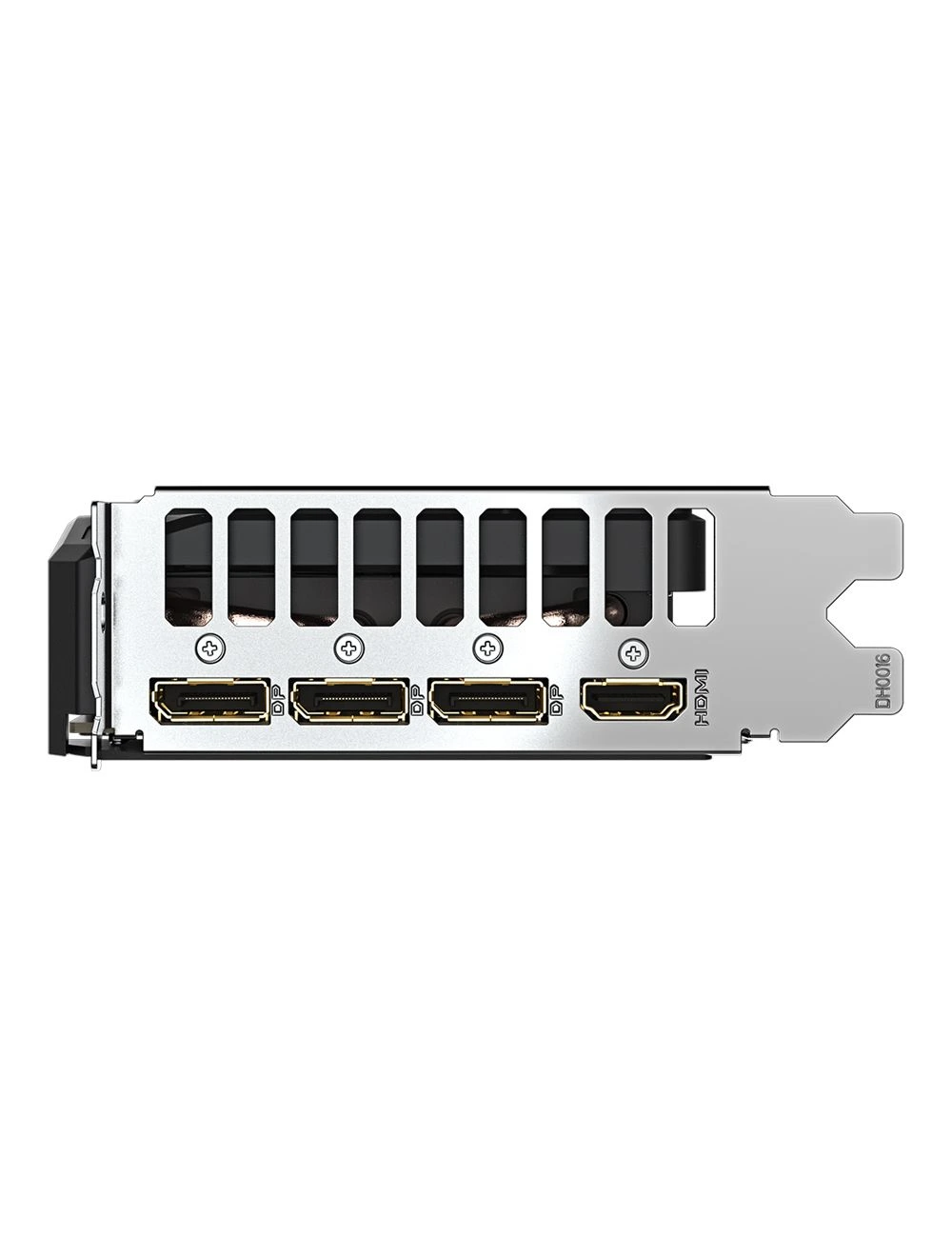

Output:  DisplayPort 2.1b *3
HDMI 2.1b *1
Accessories:  Quick guide
