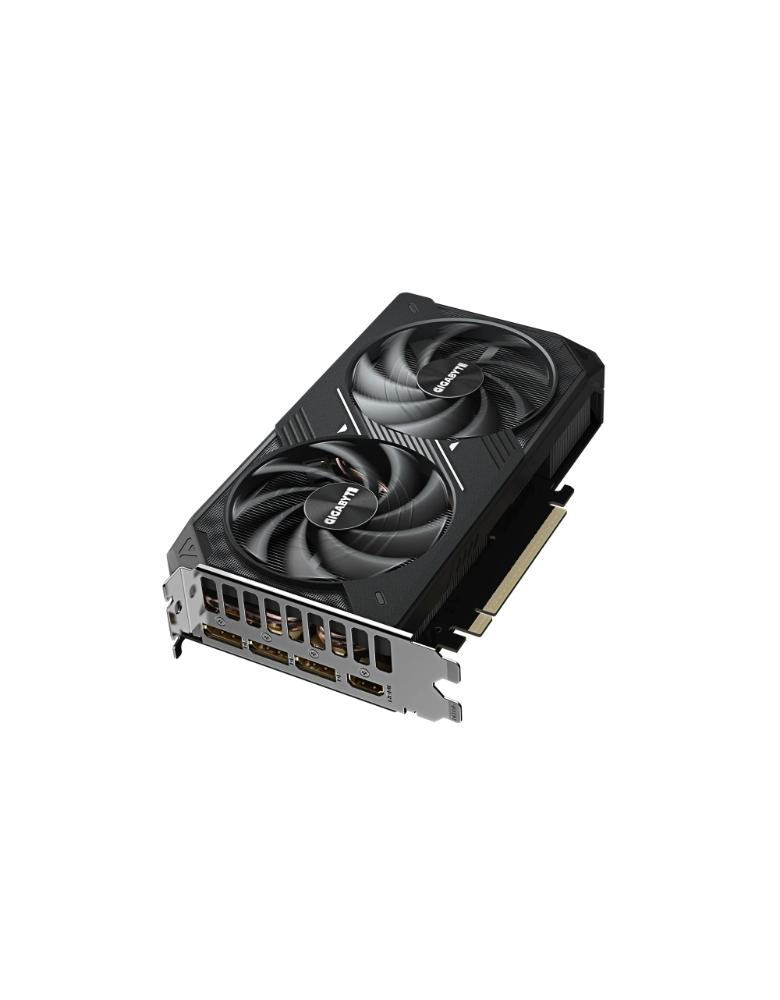

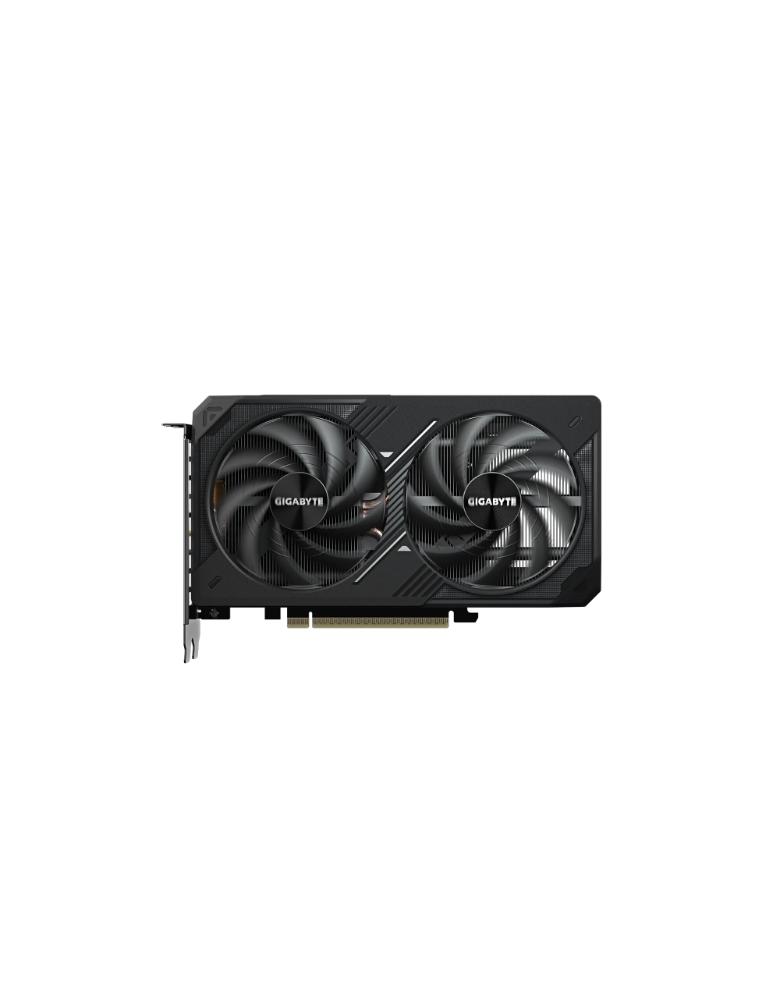

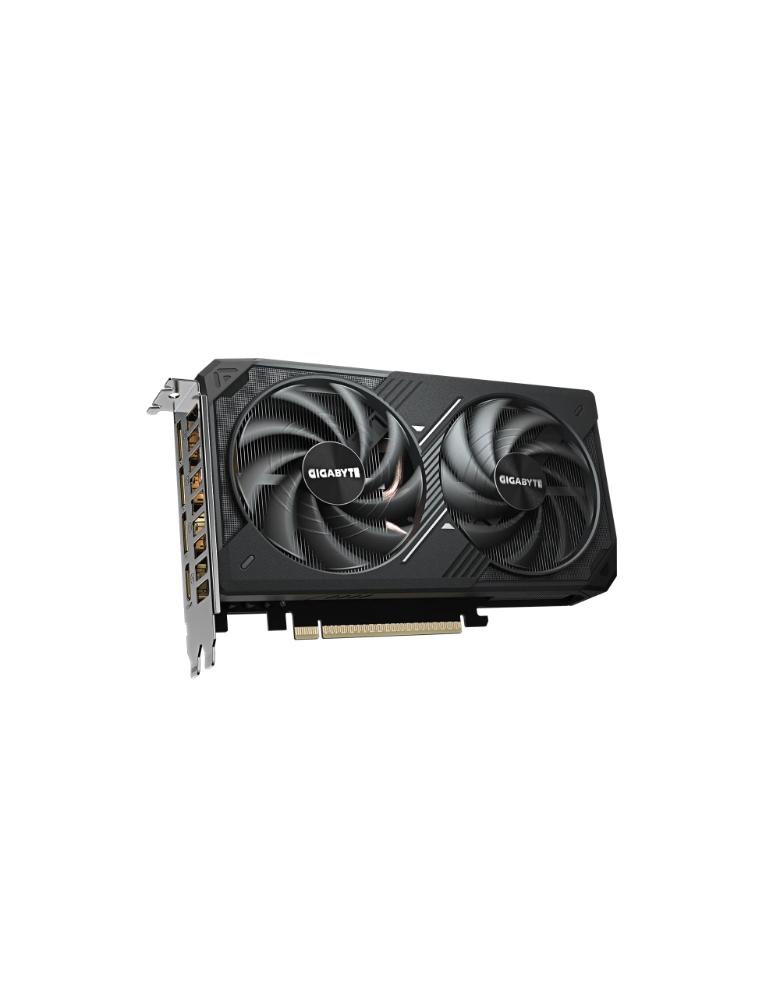

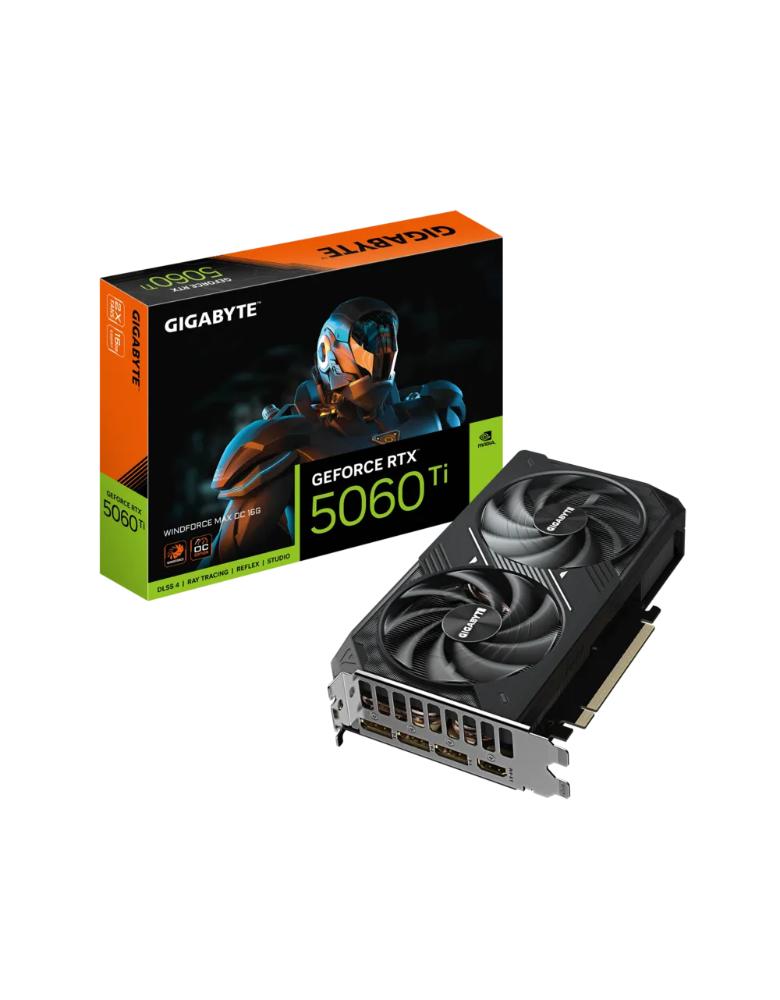

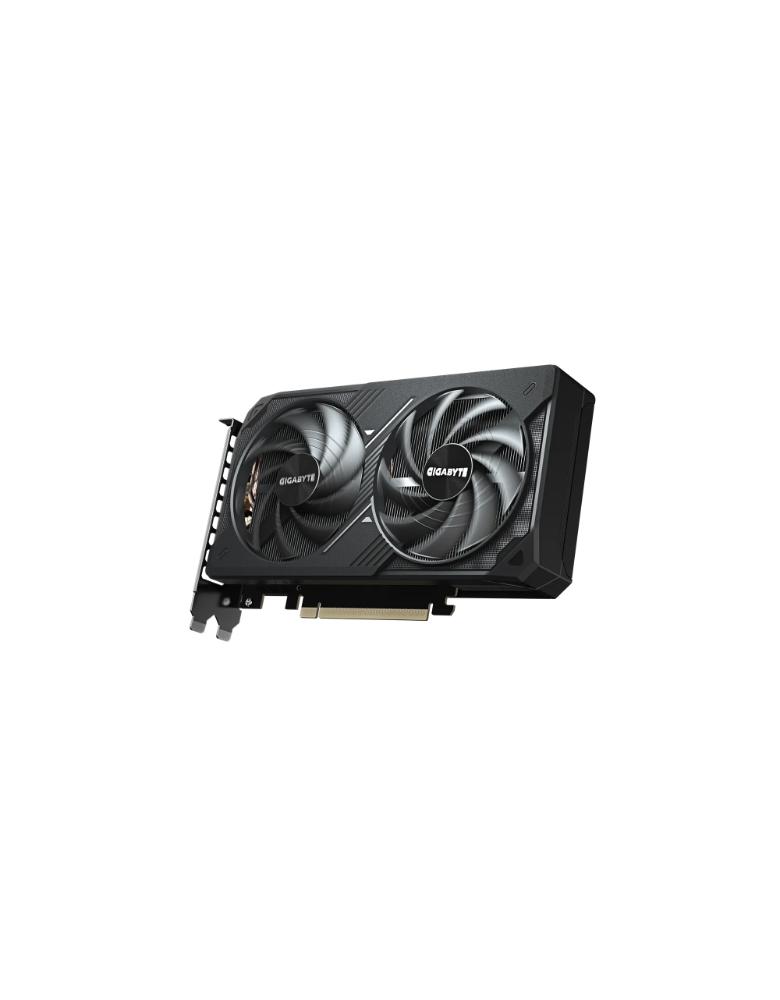

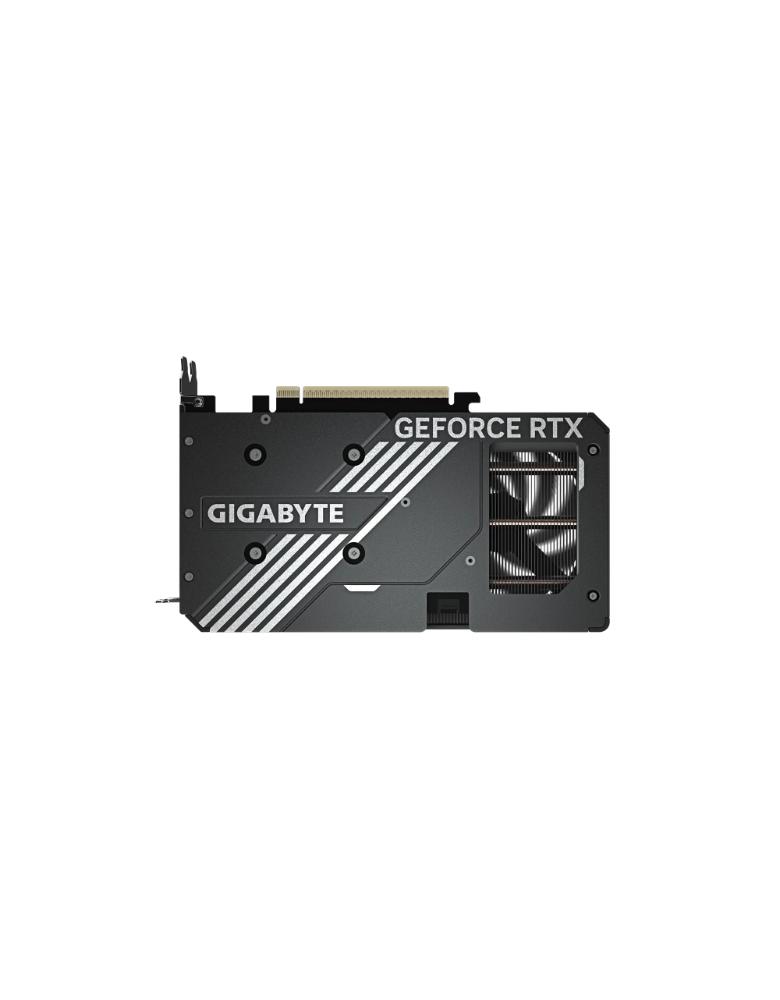

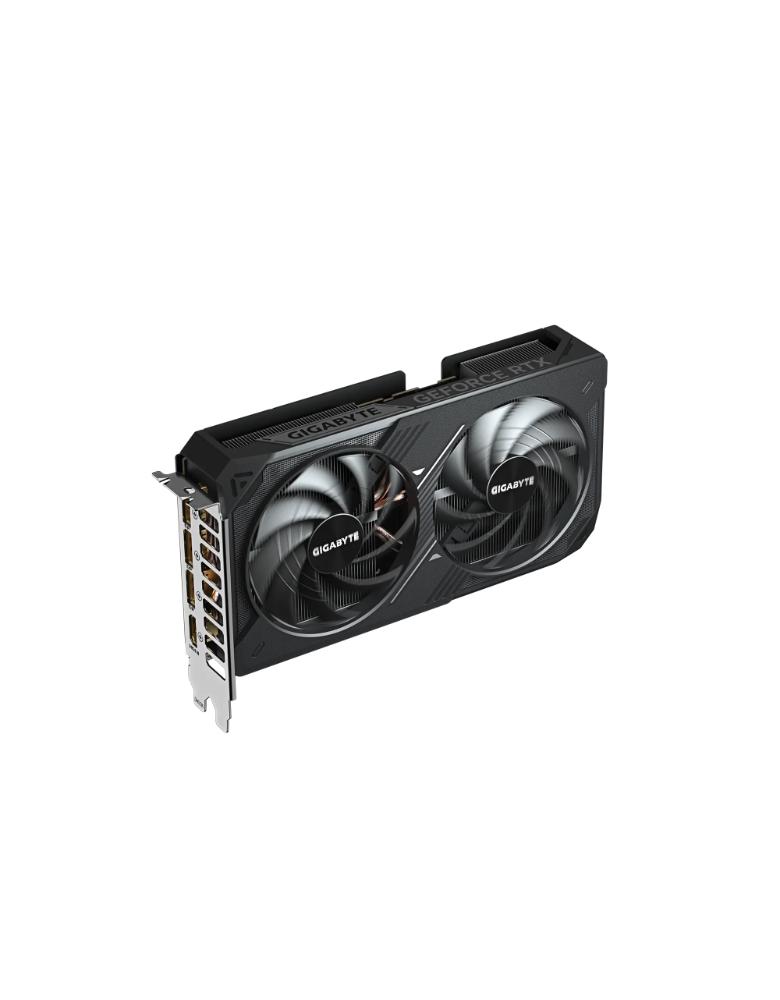

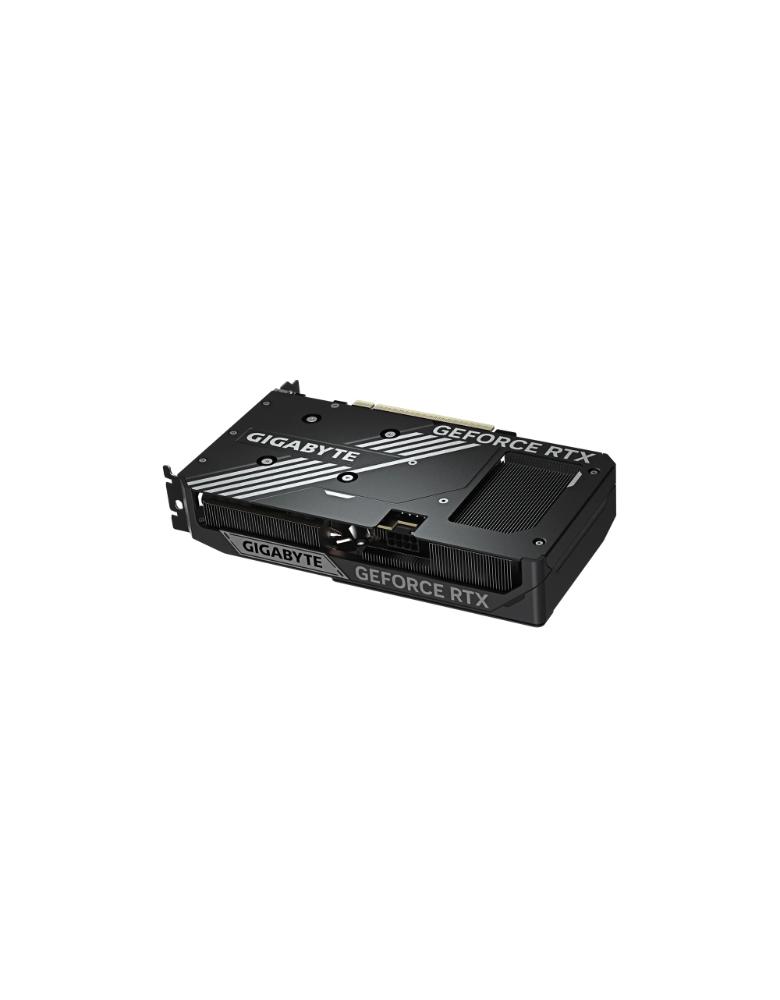

GIGABYTE RTX 5060TI 16GB OC Windforce Max

WINDFORCE
COOLING SYSTEM
The WINDFORCE cooling system delivers exceptional thermal performance through a combination of cutting-edge technologies. It features server-grade thermal conductive gel, innovative Hawk fans with alternate spinning, composite copper heat pipes, copper plate, 3D active fans, and screen cooling.

HAWK FAN
The Hawk Fan features a unique blade design inspired by the aerodynamics of an eagle’s wing. This design reduces air resistance and noise levels, resulting in up to a 53.6% increase in air pressure and a 12.5% increase in air volume without compromising acoustics.

Specification:

• Graphics Processing Unit (GPU): NVIDIA® GeForce RTX™ 5060Ti

• Architecture: NVIDIA Blackwell

• CUDA® Cores: 4608

• Core Clock: 2587 MHz (Reference card: 2572 MHz)

• Memory Size: 16 GB

• Memory Type: GDDR7

• Memory Clock (Effective): 28 Gbps

• Memory Bus: 128 bit

• Card Bus: PCI Express 5.0 (uses x8)

• Digital Max Resolution: 7680 x 4320

• Multi-View Support: 4

• Output Ports:

  • DisplayPort 2.1b x 3

  • HDMI 2.1b x 1

• DirectX Support: DirectX 12 API

• OpenGL Support: 4.6

• Card Dimensions (mm): L=208 W=120 H=40 mm

• PCB Form: ATX

• Power Connectors: 8 Pin x 1

• Recommended PSU: 650W
