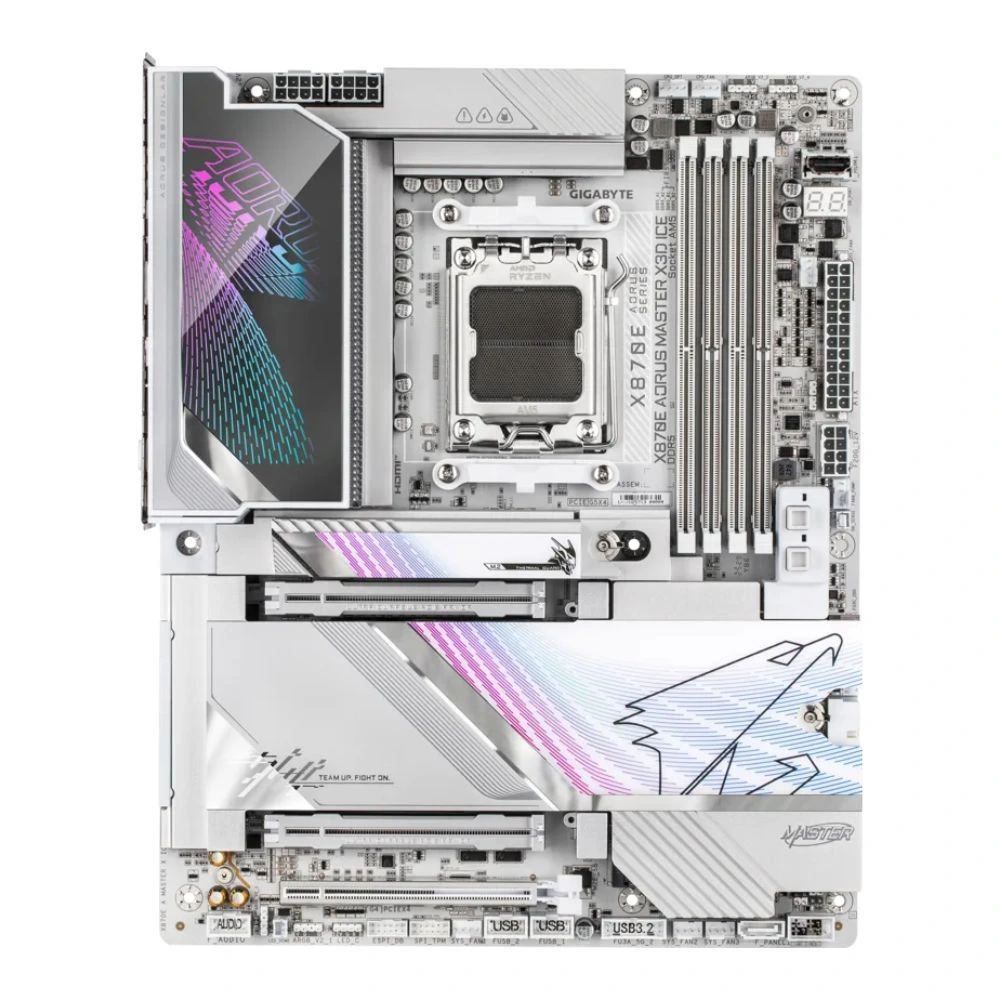

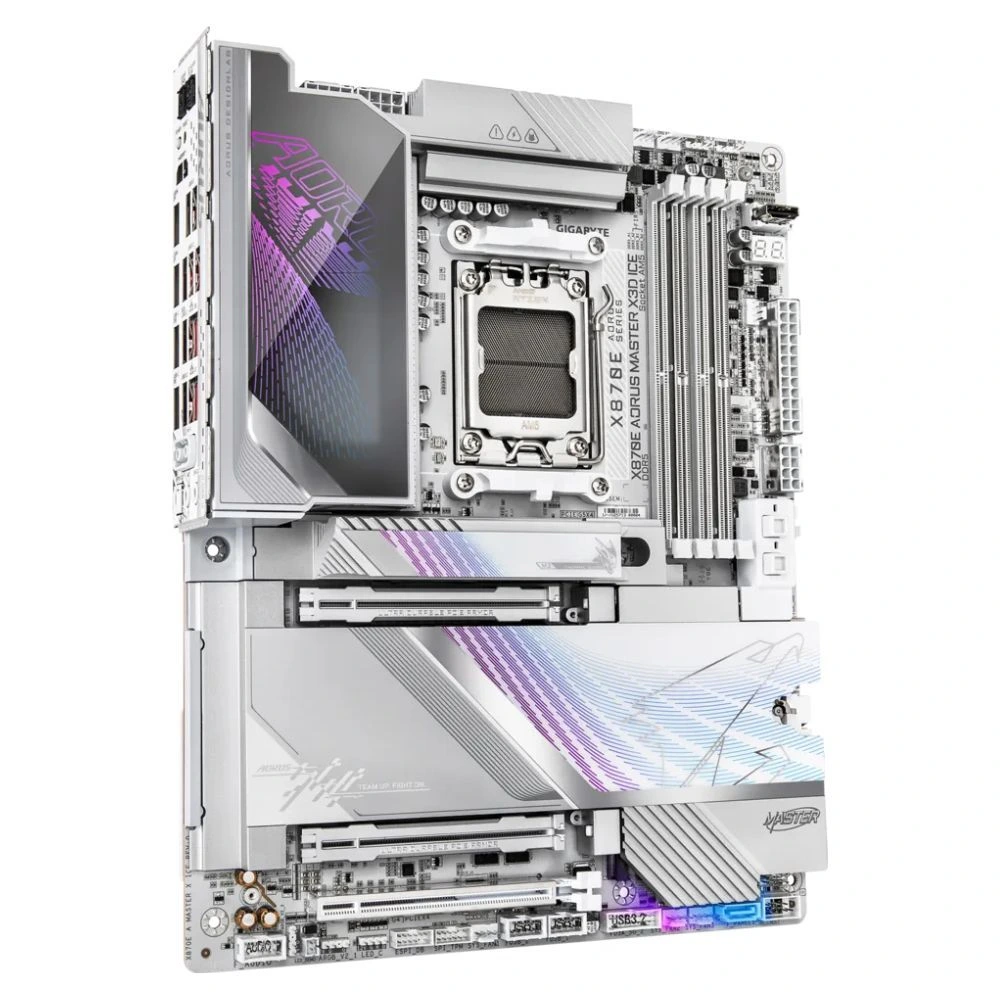

X870E AORUS MASTER X3D ICE
Technical Specification
CPU
– AMD Socket AM5, support for:
– AMD Ryzen™ 9000 Series Processors
– AMD Ryzen™ 8000 Series Processors
– AMD Ryzen™ 7000 Series Processors
Chipset
– AMD X870E
Memory
– Support for DDR5 9000(O.C) / 8800(O.C) / 8600(O.C) / 8400(O.C) / 8200(O.C.) / 8000(O.C) / 7800(O.C) / 7600(O.C) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400(O.C) / 6200(O.C) / 6000(O.C) / 5600(O.C) / 5200 / 4800 MT/s memory modules
– 4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) of system memory
– Dual channel memory architecture
– Support for non-ECC Un-buffered DIMM memory modules
– Support for AMD EXtended Profiles for Overclocking (AMD EXPO™) and Extreme Memory Profile (XMP) memory modules
Onboard Graphics
– Integrated Graphics Processor with AMD Radeon™ Graphics support + ASMedia USB4® Controller:
– 2 x USB4® USB Type-C® ports, supporting USB4 and DisplayPort video outputs and a maximum resolution of 3840×2160@240 Hz (DisplayPort 1.4 version and HDR)
– Integrated Graphics Processor with AMD Radeon™ Graphics support:
– 1 x HDMI port, supporting a maximum resolution of 4096×2160@60 Hz (HDMI 2.1 version, HDCP 2.3, and HDR)
– 1 x front HDMI port, supporting a maximum resolution of 1920×1080@30 Hz (HDMI 1.4 version)
Audio
– Realtek® ALC1220 CODEC (front panel line out jack supports DSD audio)
– ESS ES9118 DAC chip
– Support for DTS:X® Ultra High Definition Audio 2/4/5.1-channel
– Support for S/PDIF Out
LAN
– Realtek® 5GbE LAN chip (5 Gbps/2.5 Gbps/1 Gbps/100 Mbps) (LAN1)
– Realtek® 10GbE LAN chip (10 Gbps/5 Gbps/2.5 Gbps/1 Gbps/100 Mbps) (LAN2)
Wireless Communication Module
– MediaTek Wi-Fi 7 MT7927, RZ738
– 802.11a, b, g, n, ac, ax, be, supporting 2.4/5/6 GHz carrier frequency bands
– Support for 11be 320MHz wireless standard
– Bluetooth 5.4
Expansion Slots
– Integrated in CPU:
– 1 x PCI Express x16 slot (PCIEX16):
– AMD Ryzen™ 9000/7000 Series Processors support PCIe 5.0 x16 mode
– AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode
– AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode
– 1 x PCI Express x16 slot (PCIEX8):
– AMD Ryzen™ 9000/7000 Series Processors support PCIe 5.0 x8 mode
– (Shares bandwidth with PCIEX16; when occupied, PCIEX16 operates up to x8 mode)
– Integrated in Chipset:
– 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4)
– (Shares bandwidth with M2D_SB connector)
Storage Interface
– Integrated in CPU:
– 1 x M.2 connector (M2A_CPU), Socket 3, M key, type 2580/2280 SSDs (PCIe 5.0 x4/x2 for 9000/7000; PCIe 4.0 x4/x2 for 8000)
– 1 x M.2 connector (M2B_CPU), Socket 3, M key, type 2280 SSDs (PCIe 5.0 x4/x2 for 9000/7000; shares bandwidth with ASMedia USB4 controller)
– Integrated in Chipset:
– 2 x M.2 connectors (M2C_SB, M2D_SB), Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSDs
– 1 x M.2 connector (M2E_SB), Socket 3, M key, type 2280 PCIe 4.0 x2 SSDs
– 2 x SATA 6Gb/s connectors
– RAID Support:
– RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices (RAID 5 only on Ryzen™ 9000)
– RAID 0 and RAID 1 support for SATA storage devices
USB
– CPU + ASMedia USB4® Controller:
– 2 x USB4® USB Type-C® ports on back panel
– CPU:
– 1 x USB 3.2 Gen 2 Type-A port (red) on back panel
– Chipset + USB 3.2 Gen 1 Hub:
– 4 x USB 3.2 Gen 1 ports available through internal USB headers
– Chipset:
– 1 x USB Type-C® port on back panel (USB 3.2 Gen 2×2)
– 1 x USB Type-C® port on back panel (USB 3.2 Gen 2)
– 1 x USB Type-C® port header (USB 3.2 Gen 2×2 with 65W PD 3.0/QC 4+ fast charging support)
– 6 x USB 3.2 Gen 2 Type-A ports (red) on back panel
– 4 x USB 2.0/1.1 ports available through internal USB headers
Internal I/O Connectors
– 1 x 24-pin ATX main power connector
– 2 x 8-pin ATX 12V power connectors
– 1 x PCIe power connector
– 1 x CPU fan header
– 1 x CPU fan/water cooling pump header
– 4 x system fan headers
– 1 x system fan extension cable header
– 1 x system fan/water cooling pump header
– 4 x addressable RGB Gen2 LED strip headers
– 1 x RGB LED strip header
– 5 x M.2 Socket 3 connectors
– 2 x SATA 6Gb/s connectors
– 1 x front panel header
– 1 x front panel audio header
– 1 x speaker header
– 1 x USB Type-C® header (USB 3.2 Gen 2×2)
– 2 x USB 3.2 Gen 1 headers
– 2 x USB 2.0/1.1 headers
– 1 x noise detection header
– 1 x Trusted Platform Module header (For GC-TPM2.0 SPI V2 module only)
– 1 x HDMI port
– 1 x chassis intrusion header
– 1 x reset jumper
– 1 x Clear CMOS jumper
– 2 x temperature sensor headers

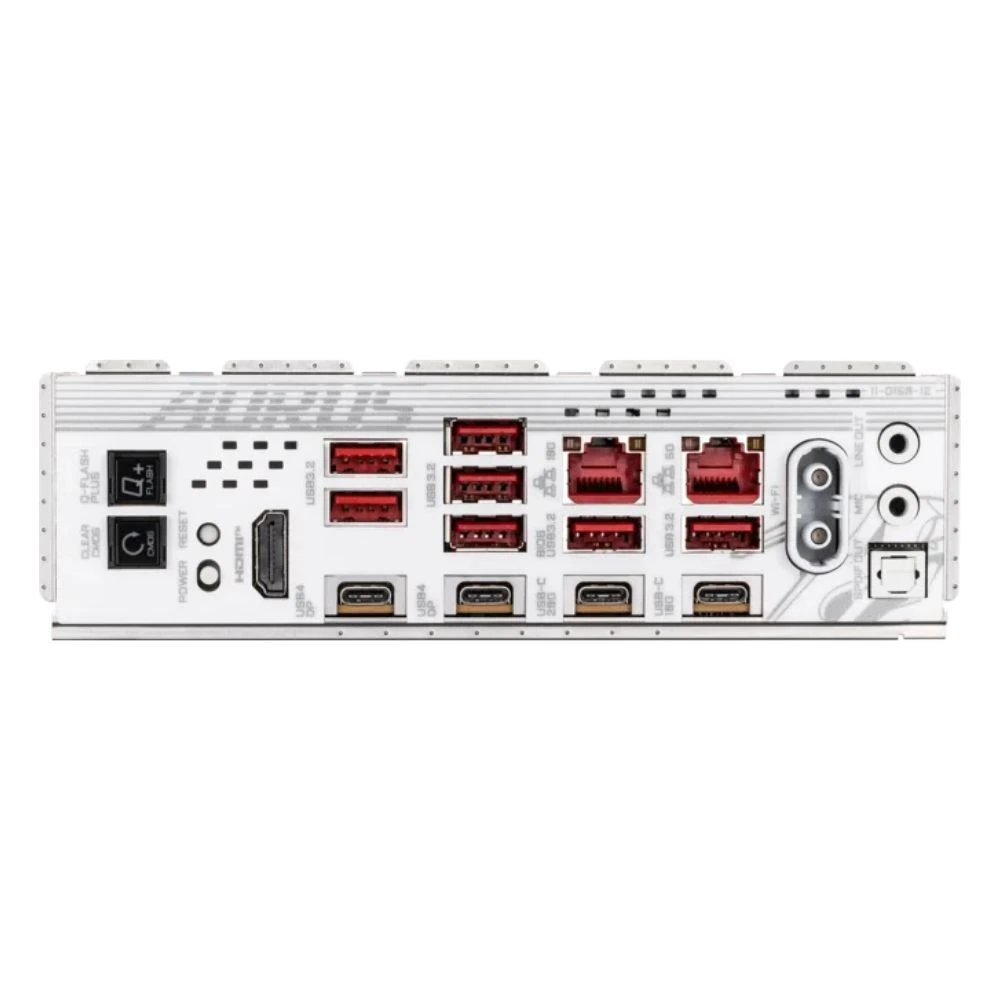

Back Panel Connectors
– 1 x Q-Flash Plus button
– 1 x Clear CMOS button
– 1 x reset button
– 1 x power button
– 1 x HDMI port
– 2 x USB4® USB Type-C® ports (DisplayPorts)
– 1 x USB Type-C® port (USB 3.2 Gen 2)
– 1 x USB Type-C® port (USB 3.2 Gen 2×2)
– 7 x USB 3.2 Gen 2 Type-A ports (red)
– 2 x RJ-45 ports
– 2 x antenna connectors (2T2R)
– 2 x audio jacks
– 1 x optical S/PDIF Out connector
I/O Controller
– iTE® I/O Controller Chip
H/W Monitoring
– Voltage detection
– Temperature detection
– Fan speed detection
– Water cooling flow rate detection
– Fan fail warning
– Fan speed control
– Noise detection
BIOS
– 1 x 512 Mbit flash
– Use of licensed AMI UEFI BIOS
– PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Unique Features
– Support for GIGABYTE Control Center (GCC)
– Support for Q-Flash
– Support for Q-Flash Plus
– Support for Smart Backup
Bundled Software
– Norton® Internet Security (OEM version)
Operating System
– Support for Windows 11 64-bit
Form Factor
– ATX Form Factor (30.5 cm x 24.4 cm)
