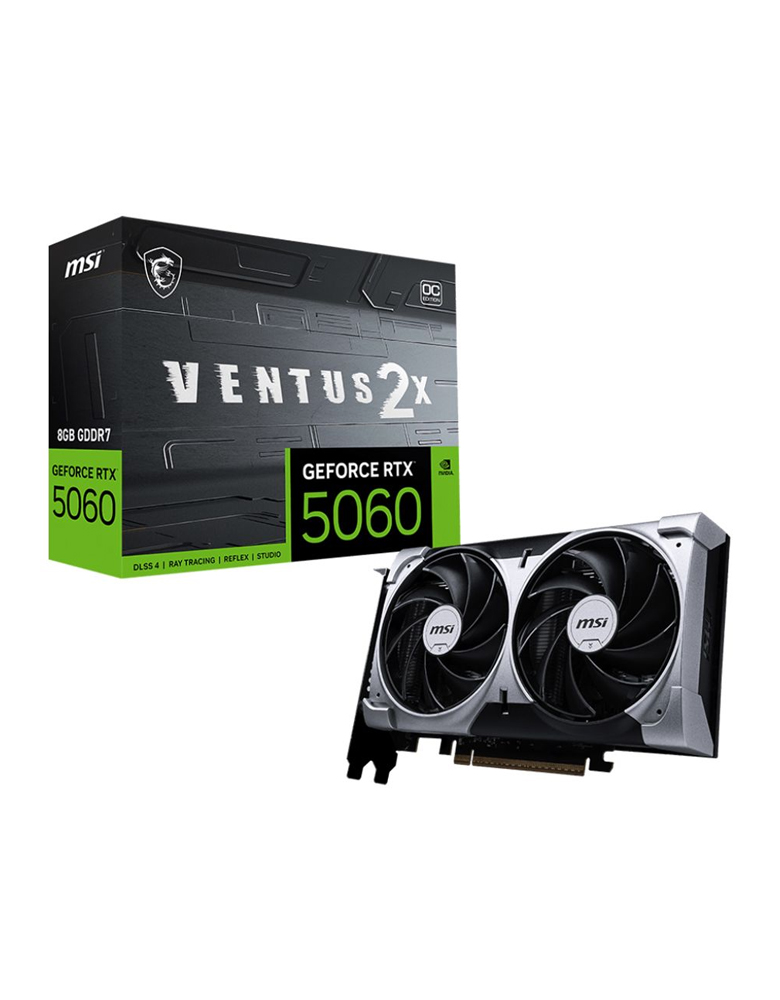

MSI Geforce RTX 5060 8GB Ventus 2X OC Plus GDDR7 Graphics Card

GeForce RTX™ 5060 8G VENTUS 2X OC

• Powered by the NVIDIA Blackwell architecture and DLSS 4
• Core Clocks:
  Extreme Performance: 2535 MHz (MSI Center)
  Boost: 2527 MHz
• TORX Fan 5.0: Fan blades linked by ring arcs work to stabilize and maintain high-pressure airflow.
• Heat Pipes designed for efficient heat transfer, the heat pipes effectively draw thermal energy away from the GPU, improving overall cooling performance.
• Reinforcing Backplate: The reinforcing backplate features an airflow vent that allows exhaust air to directly pass through.
• MSI Center: The exclusive MSI Center software lets you monitor, tweak and optimize MSI products in real-time.
• Afterburner software takes full control with the most recognized and widely used graphics card overclocking software in the world.

Specification

Marketing Name:  GeForce RTX™ 5060 8G VENTUS 2X OC
Model Name:  G5060-8V2C
Graphics Processing Unit:  NVIDIA® GeForce RTX™ 5060
Interface:  PCI Express® Gen 5 x16 (uses x8)
Core Clocks:

• Extreme Performance: 2535 MHz (MSI Center)
• Boost: 2527 MHz

CUDA® CORES:  3840 Units
Memory Speed:  28 Gbps
Memory: 8GB GDDR7
Memory Bus: 128-bit
Output: DisplayPort x 3 (v2.1b)
HDMI™ x 1 (As specified in HDMI™ 2.1b: up to 4K 480Hz or 8K 120Hz with DSC, Gaming VRR, HDR)
HDCP Support: Y
Power consumption:  145 W
Power connectors:  8-pin x1
Recommended PSU:  550 W
Card Dimension (mm):  197 x 120 x 41 mm
Weight (Card / Package):  511 g / 829 g
DirectX Version Support:  12 Ultimate
OpenGL Version Support:  4.6
Maximum Displays:  4
G-SYNC® technology:  Y
Digital Maximum Resolution:  7680 x 4320
