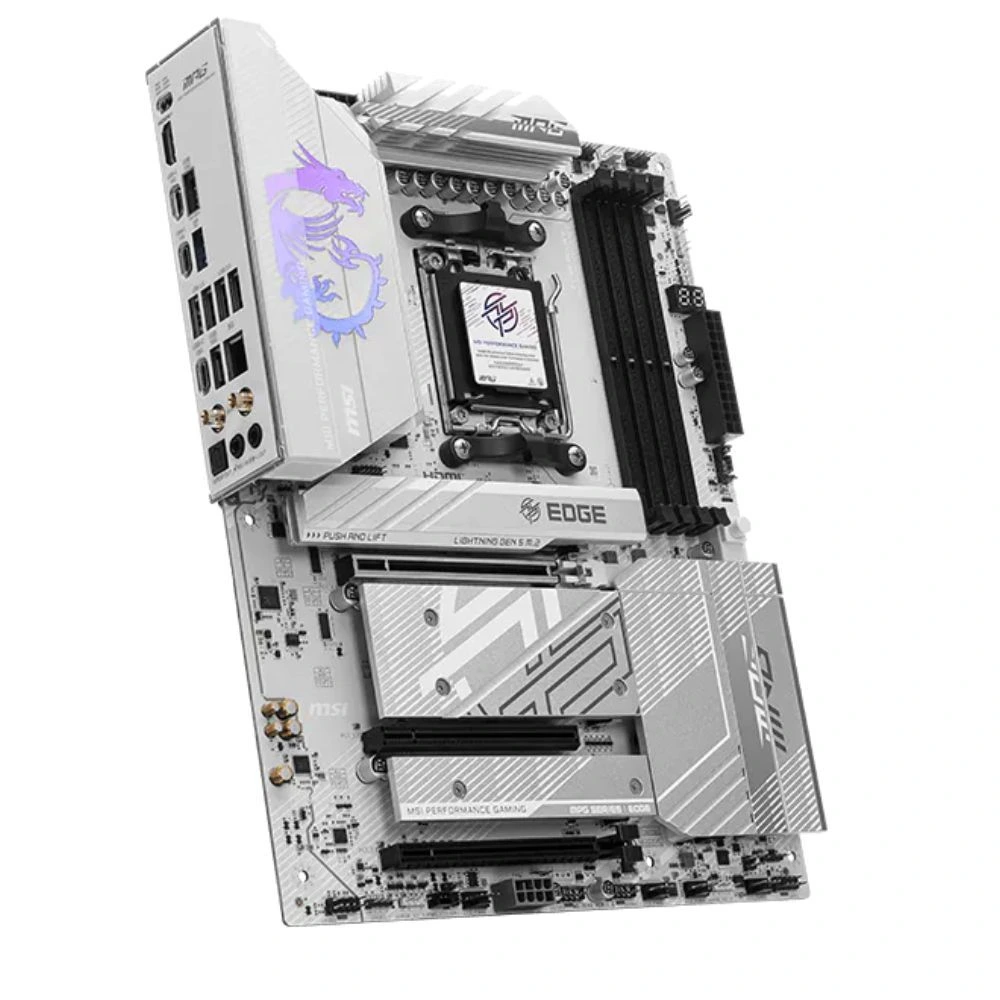

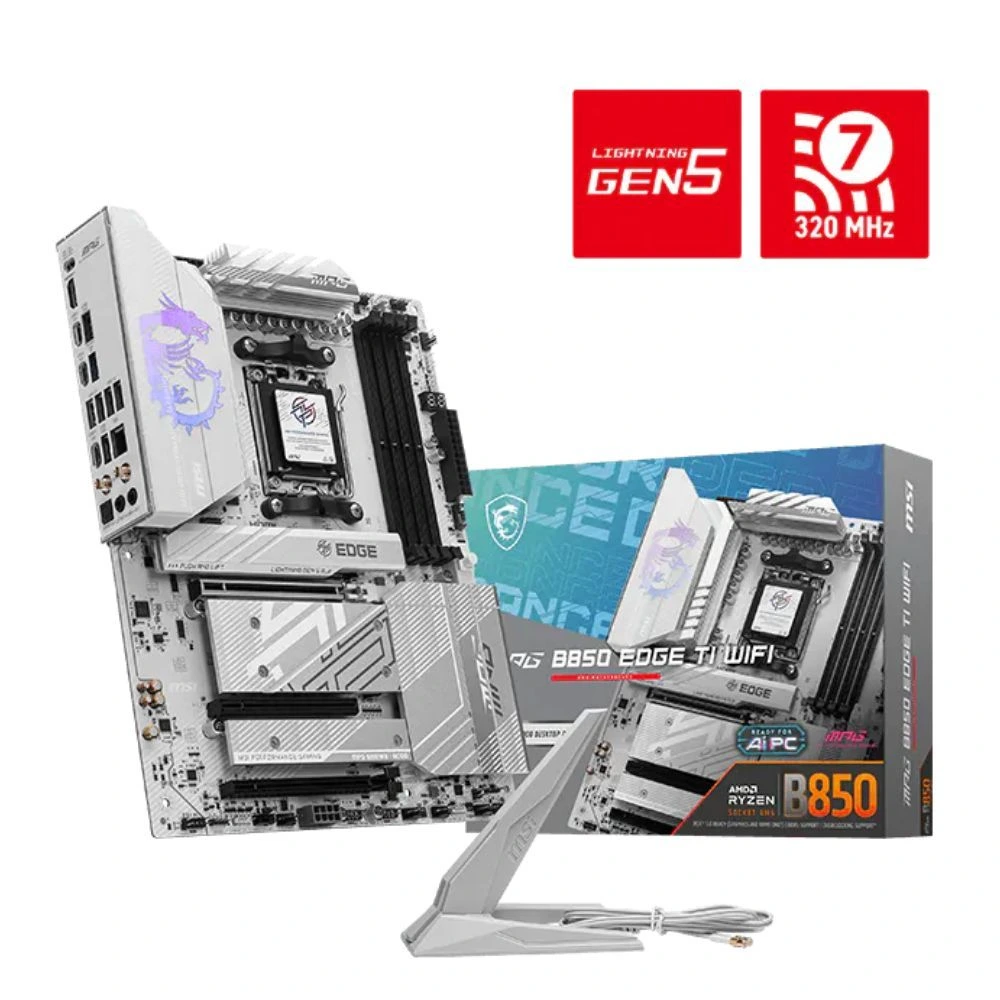

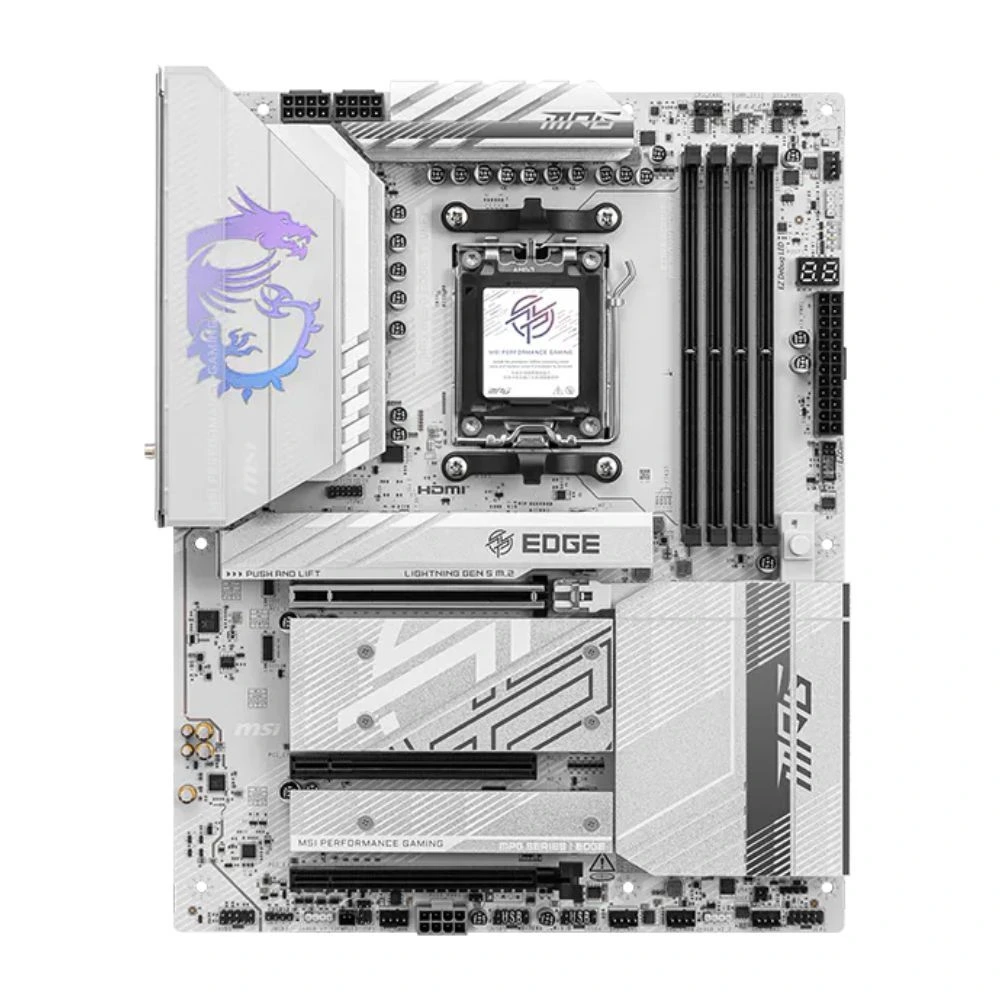

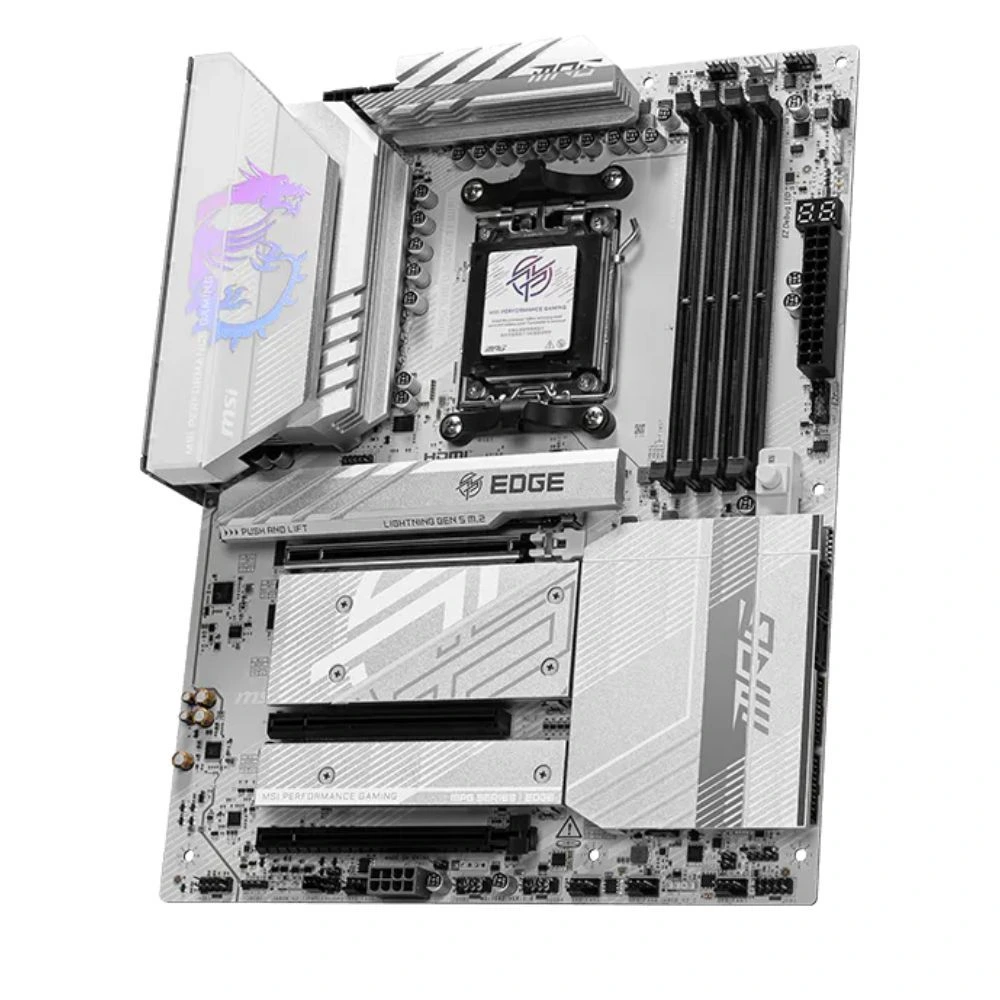

MPG B850 EDGE TI WIFI
– Supports AMD Ryzen™ 9000 / 8000 / 7000 Series Desktop Processors
– Supports DDR5 Memory, Dual Channel DDR5 8400+ MT/s (OC)
– Ultra Performance: 14+2+1 Duet Rail Power System, dual 8-pin CPU power connectors, Core Boost, Memory Boost, 8-layer PCB made by 2oz thickened copper and server-grade level material
– Frozr Guard: Enlarged heatsink, MOSFET thermal pads rated for 7W/mk, additional choke thermal pads and M.2 Shield Frozr are built for high performance system and non-stop gaming experience
– EZ DIY: EZ PCIe Release, EZ M.2 Shield Frozr II, EZ M.2 Clip II and EZ Antenna
– Lightning Fast Game experience: PCIe 5.0 slot, Lightning Gen 5 M.2
– High-speed Connectivity: 5G LAN with Wi-Fi 7 Solution and USB 20Gbps- The latest solution for professional and multimedia use, delivering secure, stable, and high-speed networking and data transmission
– Audio Boost 5: Reward your ears with studio grade sound quality for the most immersive gaming experience
The MPG B850 EDGE TI WIFI features a distinctive silver-white color scheme tailored for white PC builds. Engineered for gamers and content creators, it combines robust power delivery, advanced thermal management, and cutting-edge connectivity—including Wi-Fi 7, 5G LAN, and PCIe 5.0 compatibility—making it an ideal platform for AMD Ryzen™ 9000 series processors and modern AI PC setups.
Key Features
Processor & Memory Support: Supports AMD Ryzen™ 9000, 8000, and 7000 Series Desktop Processors alongside high-speed DDR5 memory (dual-channel up to 8400+ MT/s OC).
Robust Power System: Built with a 14+2+1 Duet Rail Power System (DRPS) featuring 80A Smart Power Stages (SPS), dual 8-pin CPU power connectors, and Core Boost technology.
Frozr Guard Thermal Design: Includes an extended heatsink, 7W/mK MOSFET thermal pads, additional choke thermal pads, and M.2 Shield Frozr to ensure stable performance under heavy workloads.
EZ DIY Innovations: Features tool-friendly designs such as EZ PCIe Release, EZ M.2 Shield Frozr II, EZ M.2 Clip II, EZ M.2 CLIP II Remover, and a pre-installed I/O shield.
High-Speed Connectivity: Equipped with onboard 5G LAN, a Wi-Fi 7 Solution, and ultra-fast USB 20Gbps ports.
Next-Gen Storage & Expansion: Includes support for Lightning Gen 5 PCIe slots and multiple M.2 slots (Gen 5 and Gen 4) coupled with Steel Armor II.
Immersive Audio: Powered by Audio Boost 5 with a high-performance audio processor, high-quality audio capacitors, and an isolated analog structure.
AI-Powered Enhancements: Utilizes MSI’s AI Engine, AI LAN Manager, Frozr AI Cooling, and AI Boost (for NPU optimization) to streamline performance automatically.
Technical Specification
Chipset: AMD B850
CPU: Supports AMD Ryzen™ 9000 / 8000 / 7000 Series Desktop Processors (Socket AM5)
Memory: 4x DDR5 UDIMM, Maximum Memory Capacity 256GB, supports DDR5 8400 – 5600 (OC) MT/s, AMD EXPO™, Dual-Channel mode, CUDIMM, and Non-ECC Un-buffered memory
Onboard Graphics: 1x HDMI™ port supporting HDMI 2.1 with FRL (max resolution up to 8K at 60Hz)
Expansion Slots: 3x PCI-E x16 slots (PCI_E1: PCIe 5.0 up to x16 from CPU; PCI_E2: PCIe 3.0 up to x1 from Chipset; PCI_E3: PCIe 4.0 up to x4 from Chipset)
Storage: 4x M.2 slots (M.2_1 and M.2_2 up to PCIe 5.0 x4 from CPU; M.2_3 up to PCIe 4.0 x2 from Chipset; M.2_4 up to PCIe 4.0 x4 from Chipset) and 4x SATA 6G ports
RAID: Supports RAID 0, RAID 1, and RAID 10 for M.2 NVMe storage devices

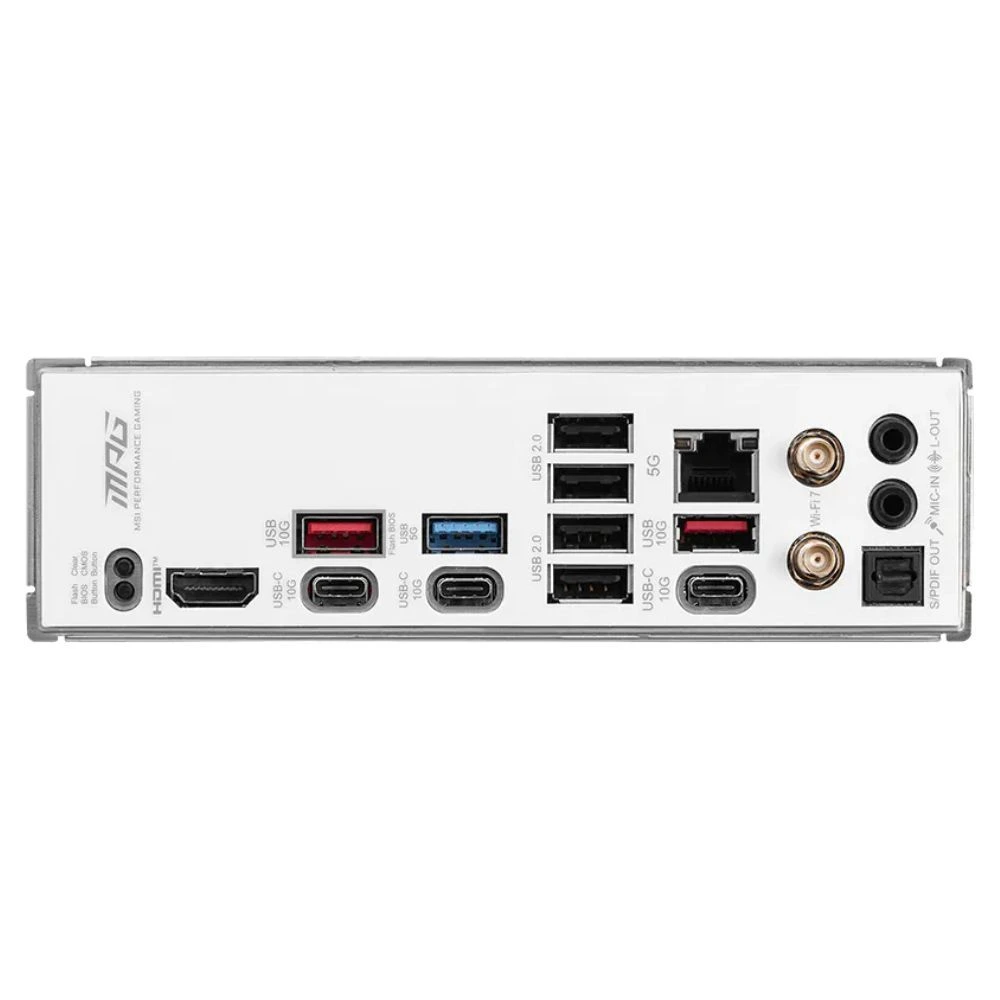

USB Ports (Rear): 4x USB 2.0, 1x USB 5Gbps Type-A, 2x USB 10Gbps Type-A, 3x USB 10Gbps Type-C
USB Ports (Front): 4x USB 2.0, 4x USB 5Gbps Type-A, 1x USB 20Gbps Type-C
LAN: 1x Realtek® 8126 5G LAN
Wireless LAN & Bluetooth: Wi-Fi 7 pre-installed in M.2 (Key-E) slot, supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz (320MHz) up to 5.8Gbps, Bluetooth® 5.4, MLO, and 4KQAM
Audio: Realtek® ALC4080 Codec 7.1-Channel USB High-Performance Audio with S/PDIF output
Internal I/O: ATX power connectors, CPU power connectors, PCIE power connector, Fan and Pump headers, EZ Conn-header (JAF_2), Front Panel headers, Chassis Intrusion, Front Audio, Addressable RGB V2 and standard RGB LED connectors, TPM pin header, and USB headers
LED Features: 4x EZ Debug LED, 1x EZ Digit Debug LED, 1x EZ Memory Detection LED
Back Panel Buttons: Clear CMOS Button, Flash BIOS Button
Operating System: Support for Windows® 11 64-bit
PCB Form Factor: ATX (304.8mm x 243.84mm)
