PRO A620AM-B EVO is designed with tons of flexible tools with a DDR5 memory version. The PRO Series is tailored to professionals from all walks of life. The lineup features impressive performance and high quality, while aiming to provide users an incredible experience. Users who care about productivity and efficiency can definitely count on the MSI PRO Series to assist you with multitasking and increasing efficiency.
PRO A620AM-B EVO
– Supports AMD Ryzen™ 9000 / 8000 / 7000 Series Desktop Processors
– Supports DDR5 Memory, Dual Channel DDR5 6800+ MT/s (OC)
– Core Boost : With premium layout and digital power design to support more cores and provide better performance
– Memory Boost: Advanced technology to deliver pure data signals for the best performance, stability and compatibility
– Lightning Fast Game experience: PCIe 4.0 slot, Lightning Gen 4 x4 M.2
– AUDIO BOOST: Reward your ears with studio grade sound quality for the most immersive gaming experience
– Steel Armor: Protecting VGA cards against bending and EMI for better performance, stability and strength
Technical Specifications
CHIPSET: AMD A620A
CPU: Supports AMD Ryzen™ 9000/ 8000/ 7000 Series Desktop Processors Socket AM5
MEMORY:
– 2x DDR5, Maximum Memory Capacity 128GB
– Memory Support DDR5 6800 – 5600 (OC) MT/s / 5600 – 4800 (JEDEC) MT/s
– Max overclocking frequency: 1DPC 1R up to 6800+ MT/s; 1DPC 2R up to 6000+ MT/s
– Supports AMD POR Speed and JEDEC Speed, Memory Overclocking, AMD EXPO™, Dual-Channel mode, non-ECC un-buffered memory, and CUDIMM (Clock Driver bypass mode only)
ONBOARD GRAPHICS:
– 1x HDMI™ (Supports HDMI 2.1, max resolution of 4K 60Hz)
– 1x VGA (Supports max resolution of 2048×1536 50Hz, 2048×1280 60Hz, 1920×1200 60Hz)
(Available only on processors featuring integrated graphics)
SLOT:
– 1x PCI-E x16 slot (Supports x16 for Ryzen™ 9000/7000; x8 for 8700/8600/8400; x4 for 8500/8300)
– 1x PCI-E x1 slot (Gen PCIe 4.0 x16 from CPU, Gen PCIe 3.0 x1 from Chipset)
AUDIO: Realtek ® ALC897 Codec 7.1-Channel High Definition Audio
STORAGE:
– 1x M.2 slot (M2_1 from CPU, supports up to PCIe 4.0 x4, 2280/2260 devices)
– 2x SATA 6G ports
– M.2 slot supports up to PCIe 4.0 x4 (Ryzen™ 9000/8700/8600/8400/7000) or PCIe 4.0 x2 (Ryzen™ 8500/8300)
RAID: Supports RAID 0 and RAID 1 for SATA storage devices
USB:
– Rear: 2x USB 2.0, 4x USB 5Gbps Type A
– Front: 4x USB 2.0, 2x USB 5Gbps Type A, 1x USB 5Gbps Type C
LAN: Realtek ® RTL8125 2.5G LAN
INTERNAL IO:
– 1x Power Connector (ATX_PWR)
– 1x Power Connector (CPU_PWR)
– 1x CPU Fan, 2x System Fan
– 2x Front Panel (JFP), 1x Chassis Intrusion (JCI)
– 1x Front Audio (JAUD), 1x Com Port (JCOM)
– 1x Addressable V2 RGB LED connector (JARGB_V2), 1x RGB LED connector (JRGB)
– 1x TPM pin header (Support TPM 2.0)
– 4x USB 2.0 ports, 2x USB 5Gbps Type A ports, 1x USB 5Gbps Type C ports
LED FEATURE: 4x EZ Debug LED, 1x EZ Memory Detection LED

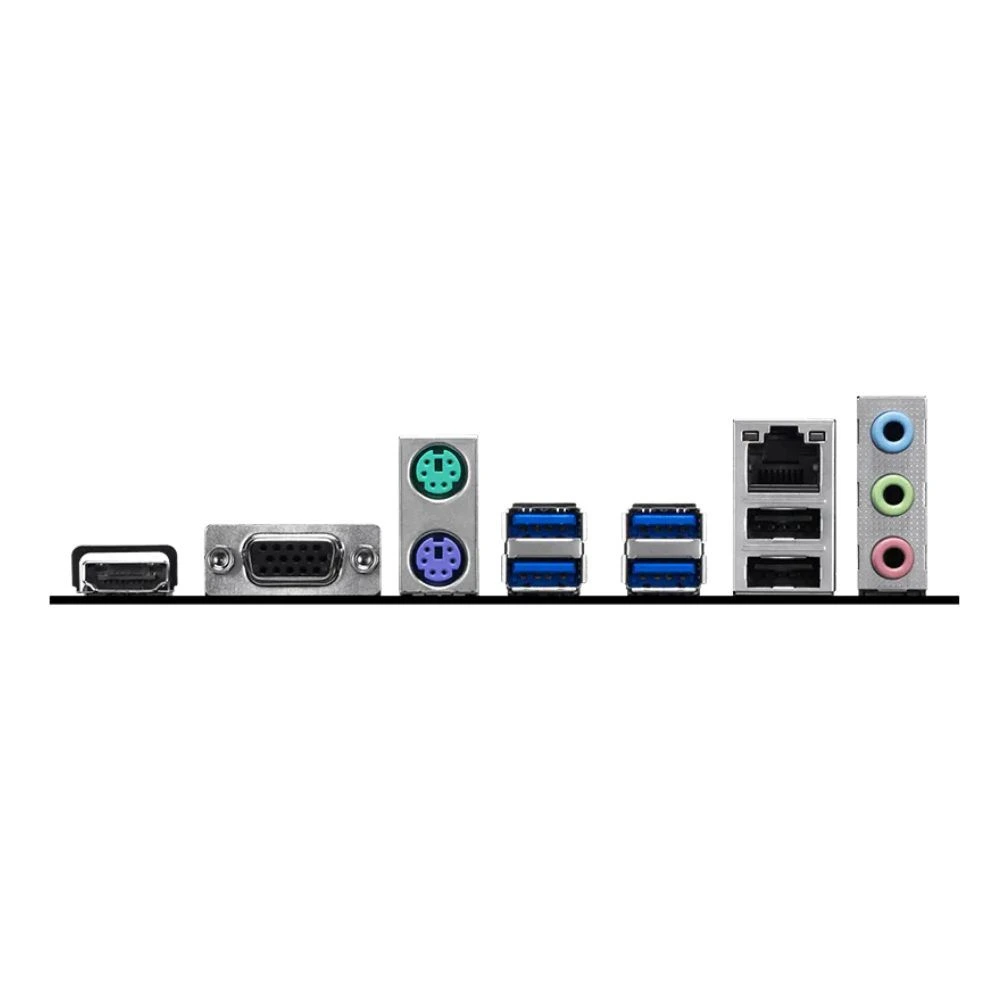

BACK PANEL PORTS:
– 1x HDMI™
– 1x VGA
– 1x Keyboard/Mouse
– 4x USB 5Gbps Type-A
– 1x LAN port
– 3x Audio connectors
– 2x USB 2.0
OPERATING SYSTEM: Support for Windows ® 11 64-bit, Windows ® 10 64-bit
PCB INFO: mATX 218mm x 243.84mm
