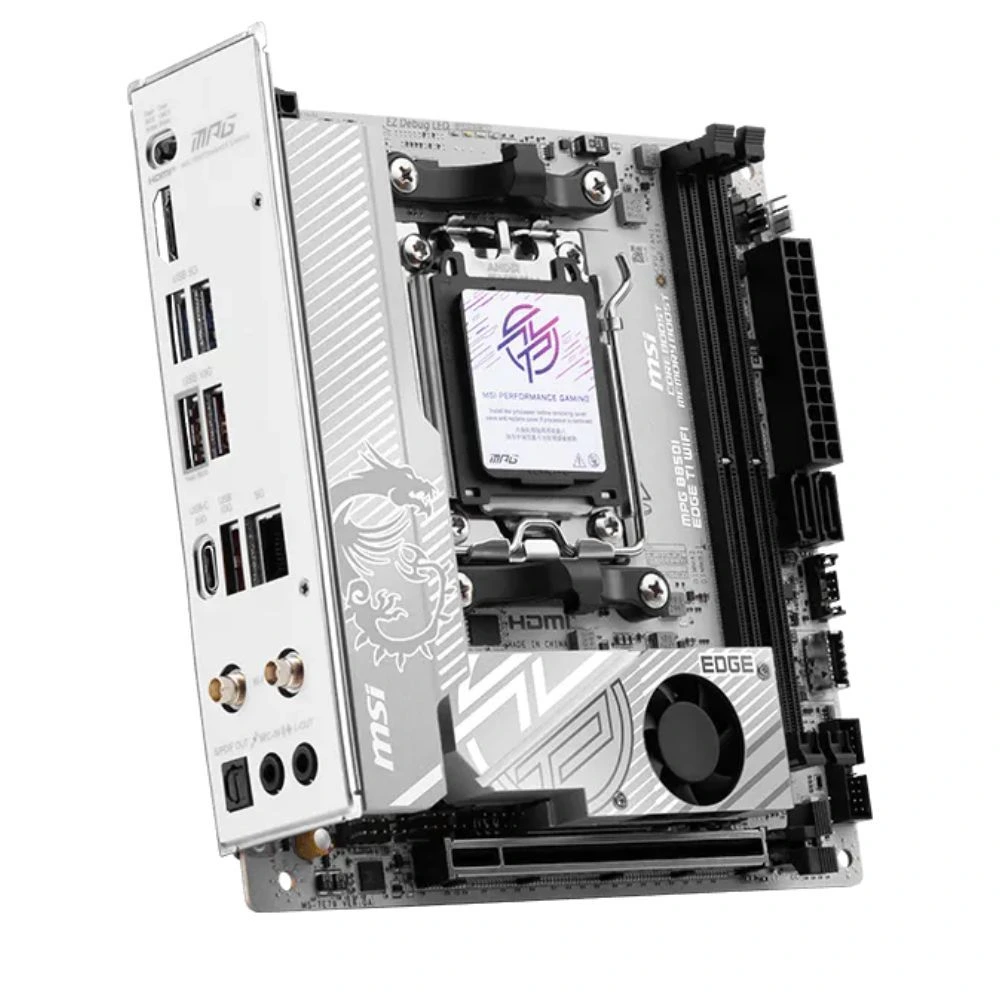

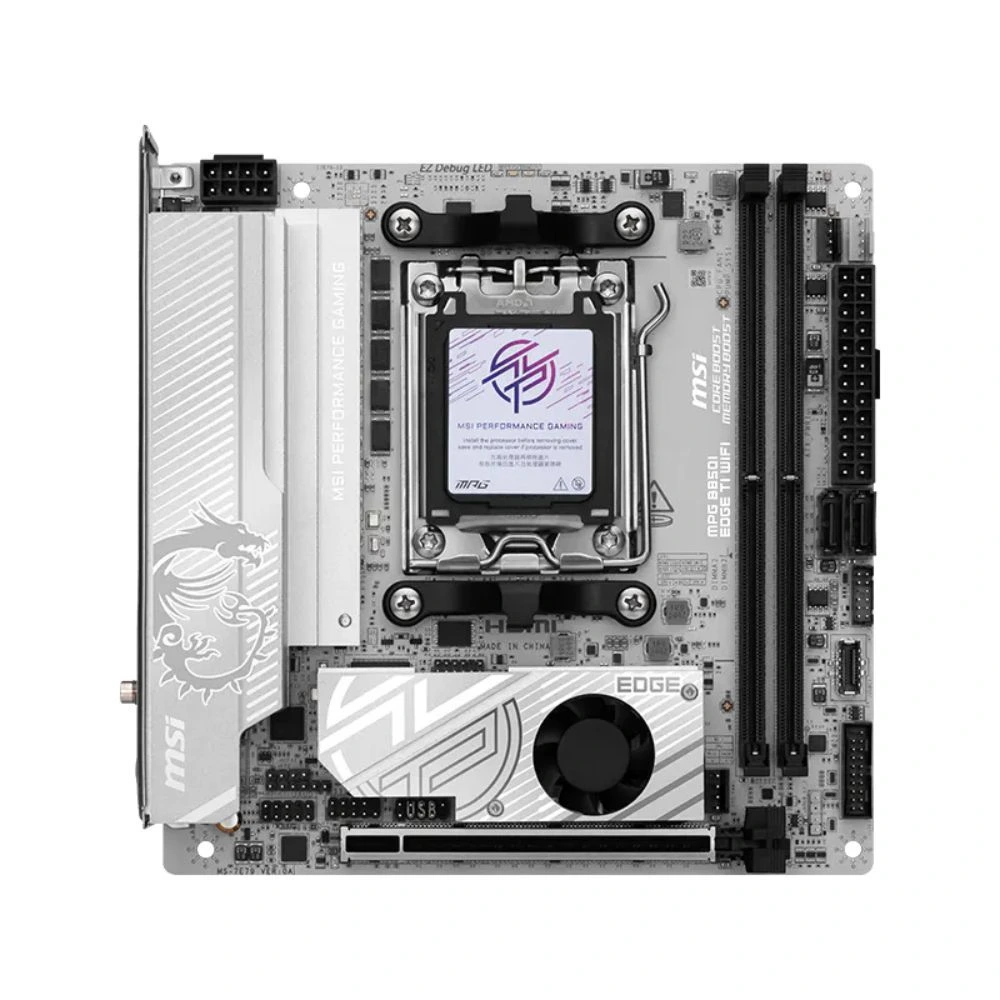

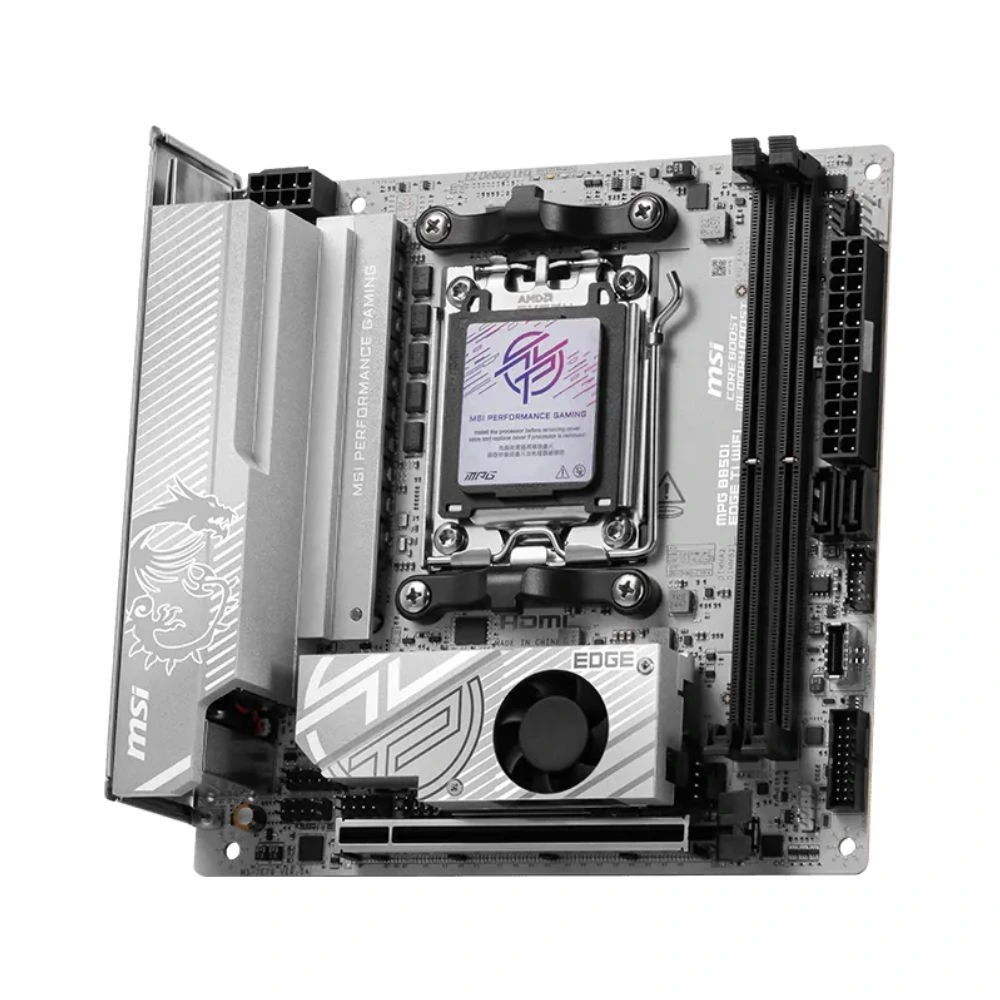

MPG B850I EDGE TI WIFI
– Supports AMD Ryzen™ 9000 / 8000 / 7000 Series Desktop Processors
– Supports DDR5 Memory, Dual Channel DDR5 8200+ MT/s (OC)
– Ultra Performance: Direct 8+2+1 Phases Design, Core Boost, Memory Boost, 10-layer PCB made by 2oz thickened copper and server-grade level material
– Frozr Guard: Enlarged heatsink, MOSFET thermal pads rated for 7W/mk and M.2 Shield Frozr are built for high performance system and non-stop gaming experience
– EZ DIY: EZ Antenna, EZ Conn-Design and EZ Front Panel Cable
– Lightning Fast Game experience: PCIe 5.0 slot, Lightning Gen 5 M.2
– High-speed Connectivity: 5G LAN with Wi-Fi 7 Solution and USB 20Gbps- The latest solution for professional and multimedia use, delivering secure, stable, and high-speed networking and data transmission
– Audio Boost 5: Reward your ears with studio grade sound quality for the most immersive gaming experience
MPG B850I EDGE TI WIFI is covered with a silver-white color scheme for white PC build lovers to show off different identity. It is also powerful because of its true Wi-Fi 7 solution, 5G LAN, and the latest PCIe 5.0 compatibility, Supplemental PCIe Power, and this is the best white theme B850 ITX motherboard for AMD Ryzen™ 9000 series processors.
Key Features
Processor Support: Supports AMD Ryzen™ 9000 / 8000 / 7000 Series Desktop Processors.
Memory Architecture: Supports DDR5 Memory, Dual Channel, up to 8200+ MT/s (OC), Memory Boost, and CUDIMM support.
Power Design: Direct 8+2+1 Phases VRM Power Design with 90A Smart Power Stage (SPS) and Digital Power.
Cooling Solution: Extended Heatsink, 7W/mK MOSFET Thermal Pads, M.2 Shield Frozr, and Frozr Heatsink with double ball bearings.
Networking & Connectivity:
Realtek 8126 5G LAN
True Wi-Fi 7 Solution (802.11be) with Bluetooth 5.4
Storage Options:
1x M.2 Gen5 x4 slot (up to PCIe 5.0)
1x M.2 Gen4 x4 slot (up to PCIe 4.0)
2x SATA 6G ports
Expansion Slot: 1x PCI-E x16 slot with PCIe 5.0 support (from CPU).
Audio: Realtek ALC4080 Codec 7.1-Channel USB High-Performance Audio.
Technical Specification
CHIPSET: AMD B850
CPU: Supports AMD Ryzen™ 9000/ 8000/ 7000 Series Desktop Processors Socket AM5
MEMORY: 2x DDR5 UDIMM, Maximum Memory Capacity 128GB, Memory Support DDR5 10000 – 5600 (OC) MT/s / 5600 – 4800 (JEDEC) MT/s, 1DPC 1R Max speed up to 8200+ MT/s, 1DPC 2R Max speed up to 8000+ MT/s, Supports CUDIMM
ONBOARD GRAPHICS: 1x HDMI™ Support HDMI™ 2.1 with FRL port, supporting a maximum resolution of 8K 60Hz
SLOT: 1x PCI-E x16 slot PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU)
AUDIO: Realtek® ALC4080 Codec 7.1-Channel USB High-Performance Audio, Supports up to 32-Bit/384 kHz playback on front panel, Supports S/PDIF output
STORAGE: 2x M.2 (M.2_1 supports up to PCIe 5.0 x4; M.2_2 supports up to PCIe 4.0 x4), 2x SATA 6G
RAID: Supports RAID 0, and RAID 1 for SATA and M.2 NVMe storage devices
USB: 2x USB 2.0 (Front), 2x USB 5Gbps Type A (Rear), 2x USB 5Gbps Type A (Front), 3x USB 10Gbps Type A (Rear), 1x USB 10Gbps Type C (Front), 1x USB 20Gbps Type C (Rear)
LAN: 1x Realtek® 8126 5G LAN
INTERNAL IO: 1x Power Connector (ATX_PWR), 1x Power Connector (CPU_PWR), 1x CPU Fan, 1x Combo Fan (Pump_Sys Fan), 1x System Fan, 1x EZ Conn-header (JAF_2), 2x Front Panel (JFP), 1x Chassis Intrusion (JCI), 1x Front Audio (JAUD), 1x Addressable V2 RGB LED connector (JARGB_V2), 1x TPM pin header, 2x USB 2.0 ports, 2x USB 5Gbps Type A ports, 1x USB 10Gbps Type C ports
WIRELESS LAN & BLUETOOTH: Wi-Fi 7 pre-installed in M.2 (Key-E) slot, Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz up to 5.8Gbps, Supports 802.11 a/b/g/n/ac/ax/be, Supports Bluetooth® 5.4, MLO, 4KQAM
LED FEATURE: 4x EZ Debug LED, 1x EZ Memory Detection LED

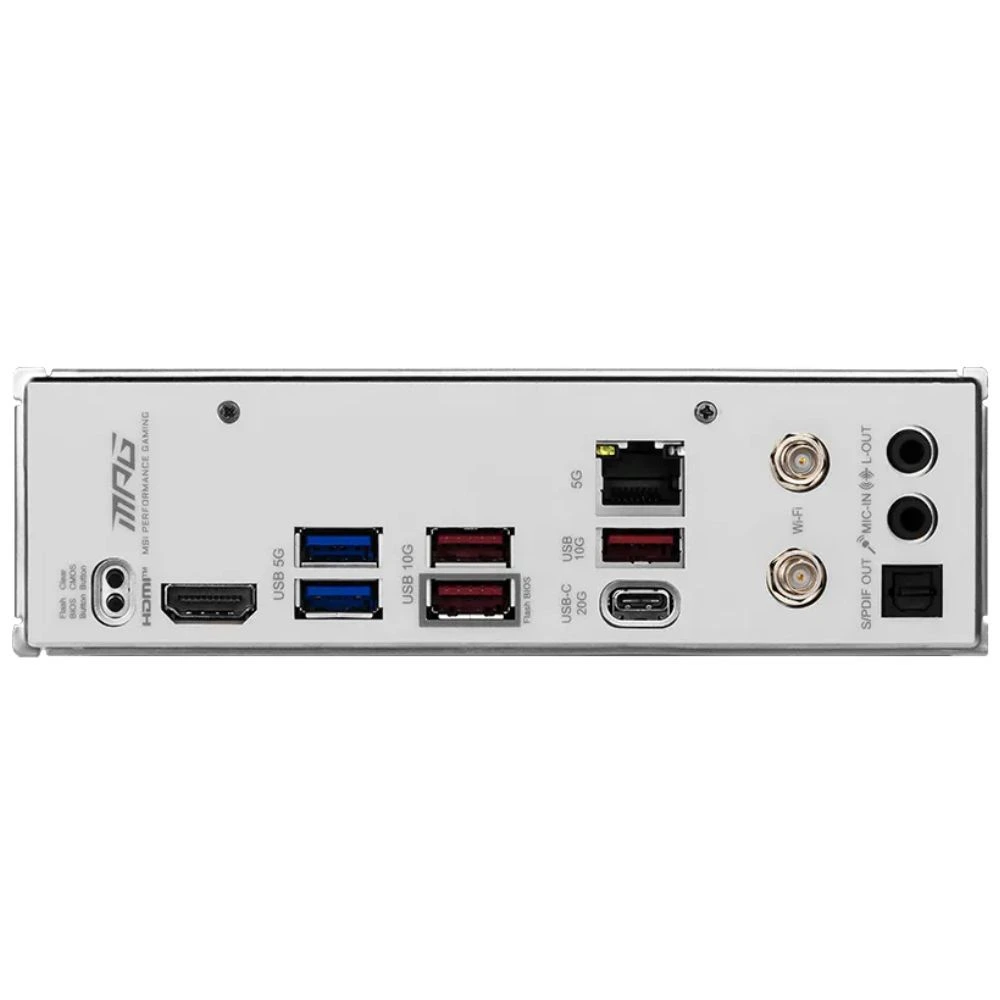

BACK PANEL PORTS: Clear CMOS Button, 5G LAN, Wi-Fi / Bluetooth, Audio Connectors, Flash BIOS Button, HDMI™, USB 5Gbps Type-A, USB 10Gbps Type-A, USB 20Gbps Type-C, Optical S/PDIF Out
OPERATING SYSTEM: Support for Windows® 11 64-bit
PCB INFO: Mini-ITX 170mm x 170mm
