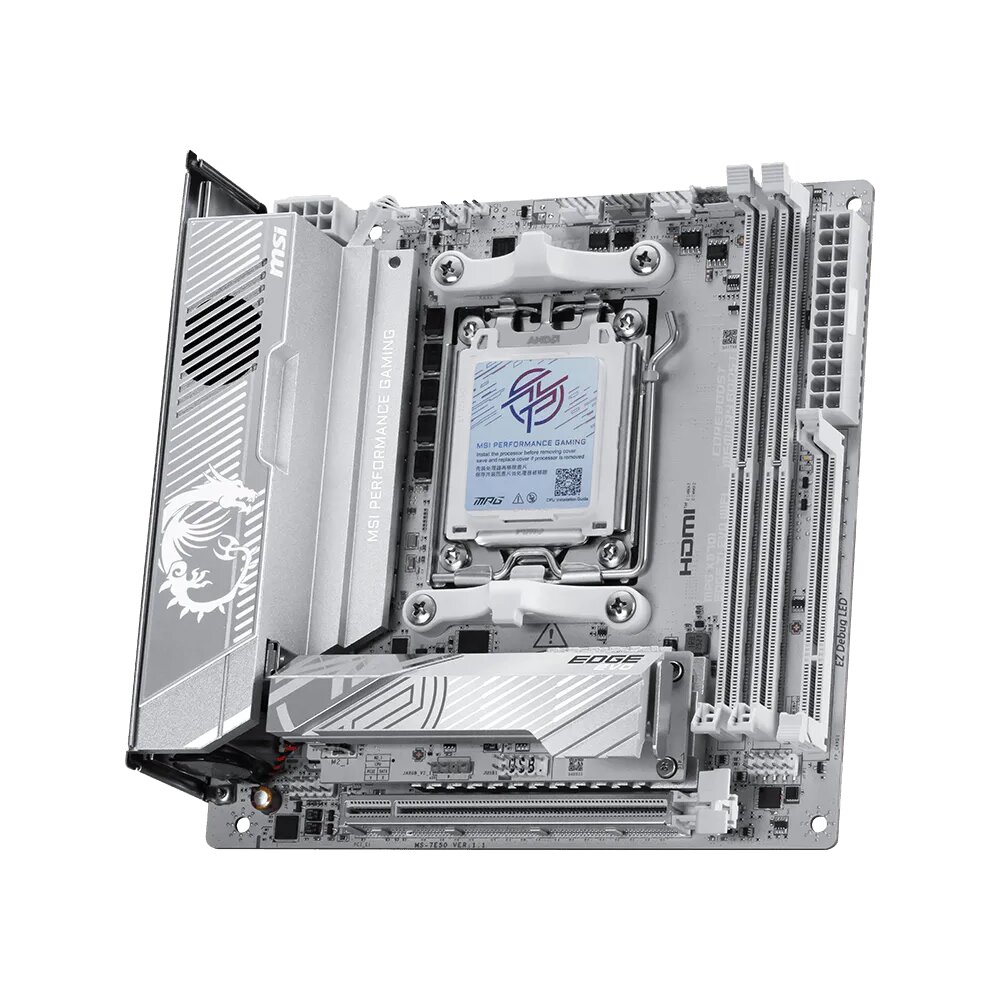

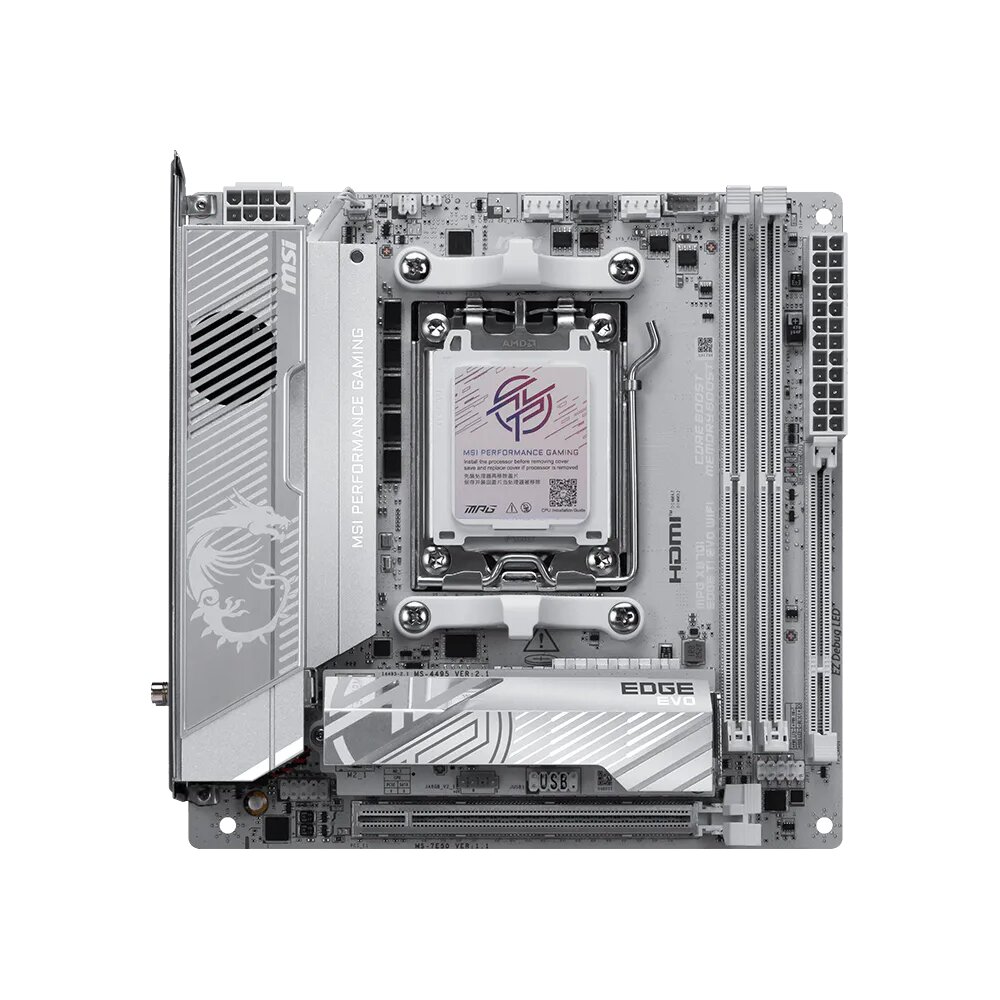

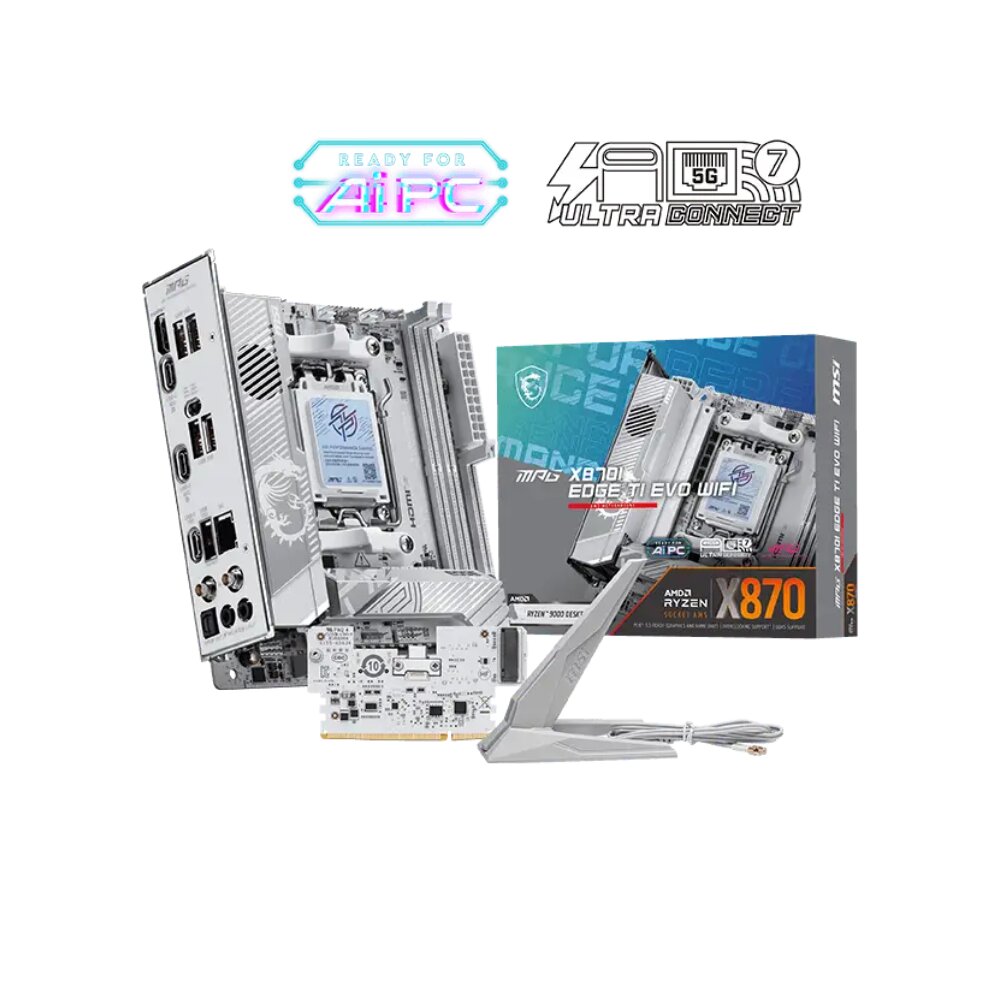

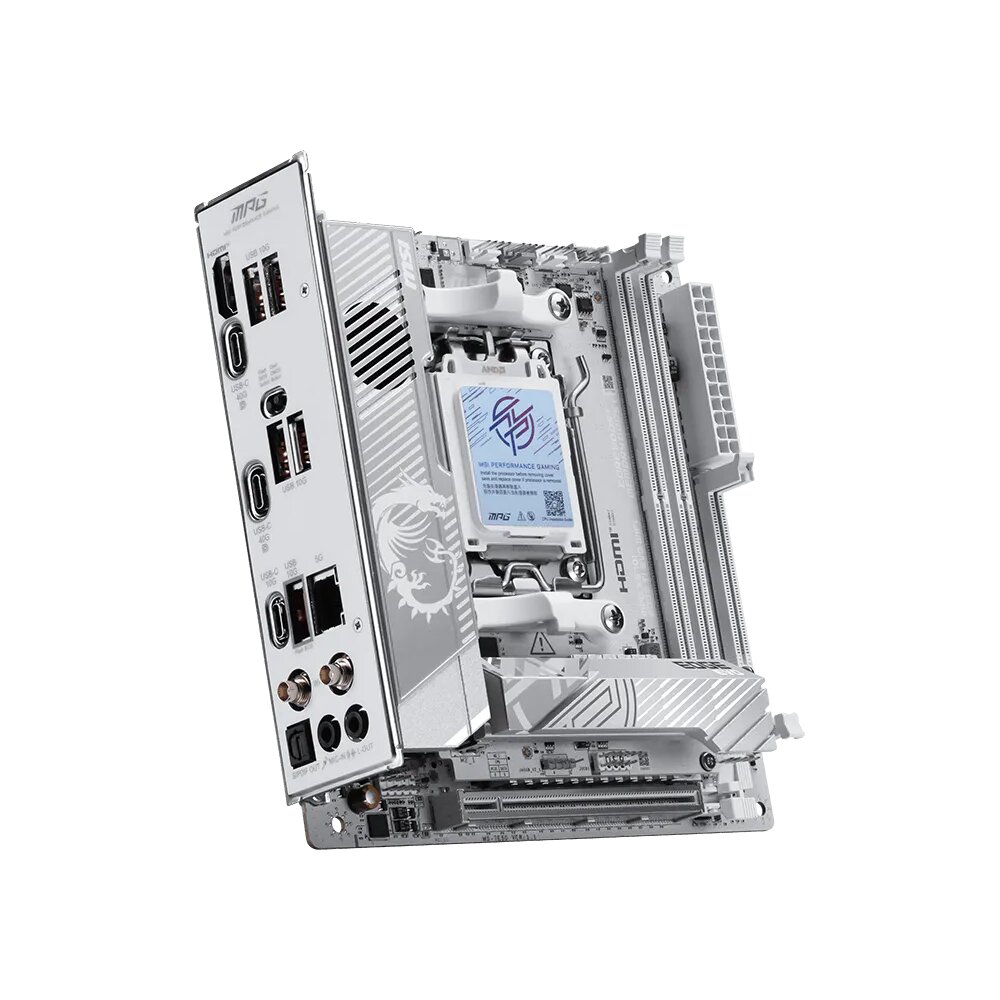

MSI MPG X870I EDGE TI EVO WIFI Mini-ITX AM5 DDR5 PCIe 5.0 WiFi 7 Gaming Motherboard

SPECIFICATIONS:

CHIPSET: AMD X870
CPU: Supports AMD Ryzen™ 9000/ 8000/ 7000 Series Desktop Processors
Socket AM5

• MEMORY: 2x DDR5, Maximum Memory Capacity 128GB
  Memory Support DDR5 10000 – 5600 (OC) MT/s / 5600 – 4800 (JEDEC) MT/s
  Ryzen™ 9000 Series Processors max. overclocking:
  • 1DPC 1R Max speed up to 8400+ MT/s
  • 1DPC 2R Max speed up to 8000+ MT/s
  Supports AMD POR Speed and JEDEC Speed
  Supports Memory Overclocking and AMD EXPO™
  Supports Dual-Channel mode
  Supports Non-ECC, Un-buffered memory
  Supports CUDIMM, Clock Driver bypass mode only*
  *Note: DIMM slots have single-sided latches; CUDIMM support and POR boot frequency may vary by CPU series.ONBOARD GRAPHICS
  1x HDMI™ (Supports HDMI™ 2.1 with TMDS port, max. resolution 4K 60Hz)
  2x Type-C DisplayPort
  *(Available only on processors featuring integrated graphics)*

  SLOT
  1x PCI-E x16 slot (PCI_E1 Gen PCIe 5.0 supports up to x16 from CPU)
  • Supports PCIe 5.0 x16 (For Ryzen™ 9000/ 7000 Series processors)
  • Supports PCIe 4.0 x8 (For Ryzen™ 8700/ 8600/ 8400 Series processors)
  • Supports PCIe 4.0 x4 (For Ryzen™ 8500/ 8300 Series processors)
  1x FP card slot (Supports installation of MSI 5-in-1 XPANDER card only)

  AUDIO
  Realtek® ALC4080 Codec
  7.1-Channel USB High-Performance Audio
  Supports up to 32-Bit/384 kHz playback on front panel
  Supports S/PDIF output

  STORAGE
  1x M.2_1 (From CPU): Supports up to PCIe 5.0 x4, supports 2280 devices (Ryzen 9000/7000 series; Ryzen 8000 supports up to PCIe 4.0 x4)
  1x M.2_2 (From Chipset): Supports up to PCIe 4.0 x4, supports 2280 devices (single-sided M.2 SSD only)
  1x M.2_3 (From Chipset via 5-in-1 XPANDER Card): Supports up to PCIe 4.0 x4, supports 2280 devices (single-sided M.2 SSD only)
  2x SATA 6G

  RAID
  • Supports RAID 0, and RAID 1 for SATA storage devices
  • Supports RAID 0, RAID 1 and RAID 5* for M.2 NVMe storage devices
  *(RAID 5 configuration is only supported by Ryzen™ 9000 series processors)*

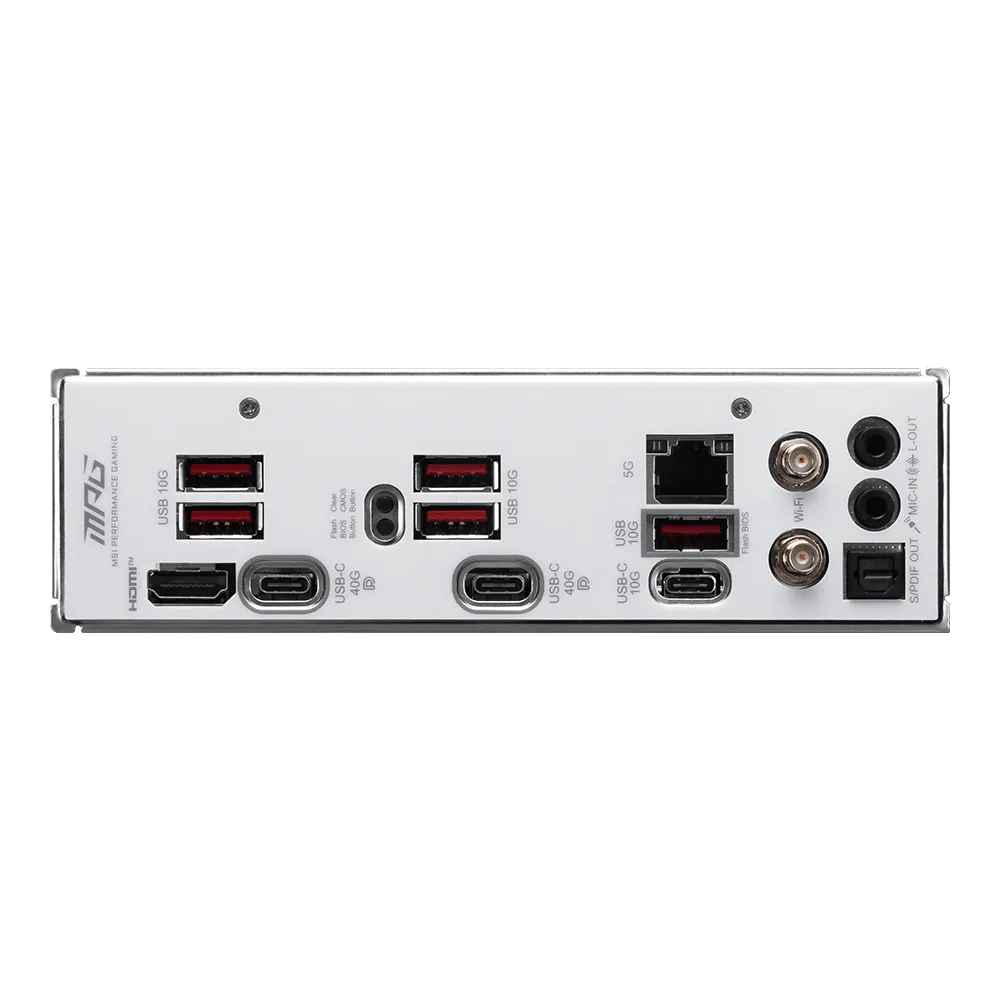

  USB
  2x USB 2.0 (Front)
  2x USB 5Gbps Type-A (Front)
  5x USB 10Gbps Type-A (Rear)
  1x USB 10Gbps Type-C (Rear)
  1x USB 20Gbps Type-C (Front)
  2x USB 40Gbps Type-C (Rear)

  LAN
  1x Realtek® 8126 5G LAN

  INTERNAL IO
  1x Power Connector (ATX_PWR)
  1x Power Connector (CPU_PWR)
  1x CPU Fan
  1x Combo Fan (Pump_Sys Fan)
  1x System Fan
  1x EZ Conn-header (JAF_2)
  2x Front Panel (JFP)
  1x Chassis Intrusion (JCI)
  1x Front Audio (JAUD)
  1x Addressable V2 RGB LED connector (JARGB_V2)
  2x USB 2.0 ports
  2x USB 5Gbps Type-A ports
  1x USB 20Gbps Type-C ports

• WIRELESS LAN & BLUETOOTH: Wi-Fi 7 (Pre-installed in M.2 Key-E slot)
  Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz* (320MHz) up to 5.8Gbps
  Supports 802.11 a/ b/ g/ n/ ac/ ax/ be
  Supports Bluetooth® 5.4, MLO, 4KQAM
