PRO X870E-S EVO WIFI offers a simple design with a harmonious silver color scheme that perfectly matches both white and black PC builds. It is engineered with many exclusive features of MSI, a Wi-Fi 7 with EZ Antenna, 5G LAN, PCIe 5.0 M.2 with EZ M.2 Shield Frozr II, and Supplemental PCIe Power, ready for the AMD Ryzen™ 9000 series processors. The PRO Series is tailored to professionals from all walks of life, aiming to provide an incredible experience for users who care about productivity and efficiency, multitasking, and high-quality performance.

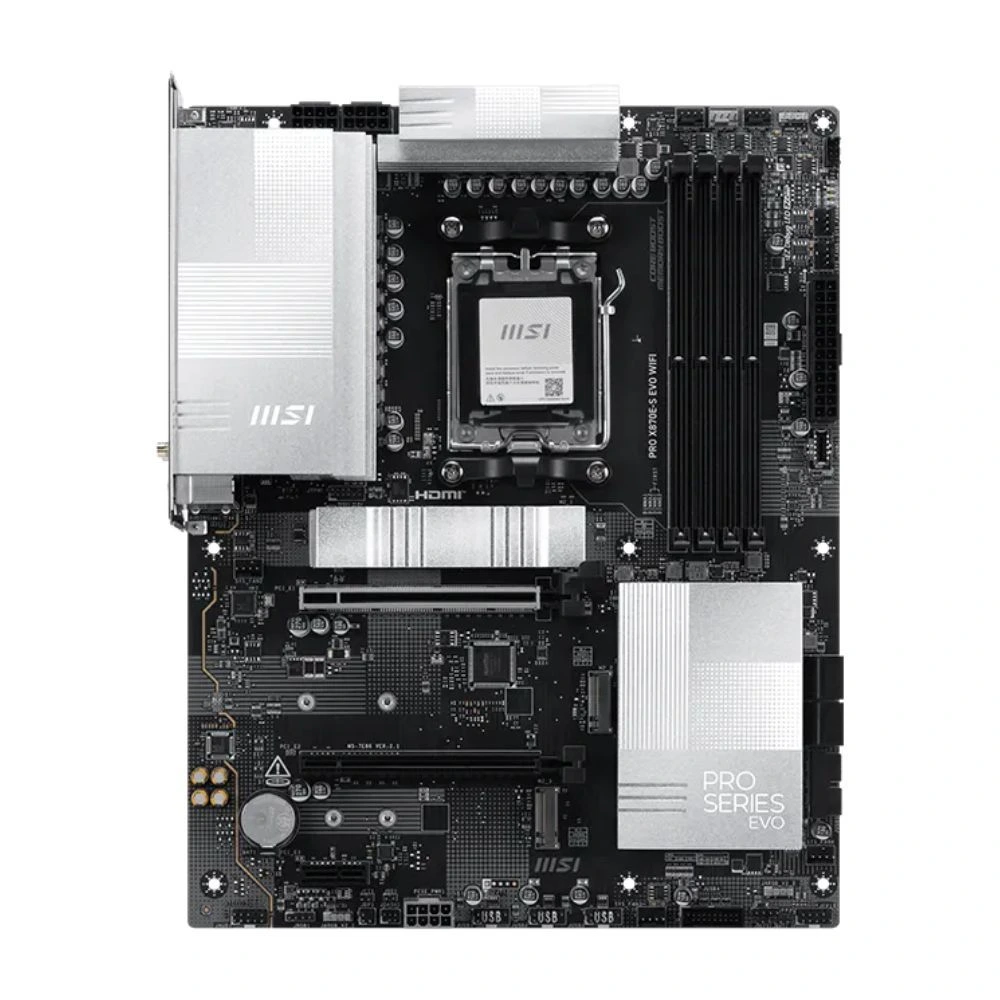

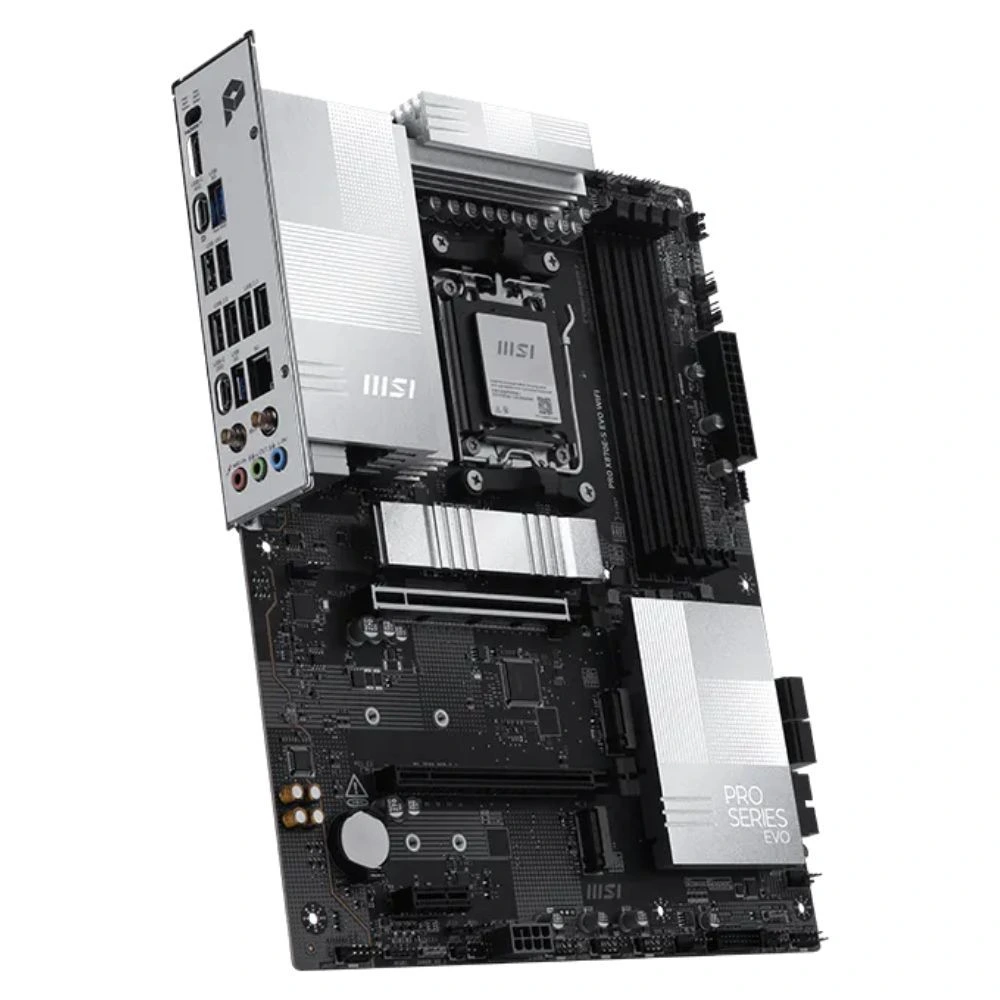

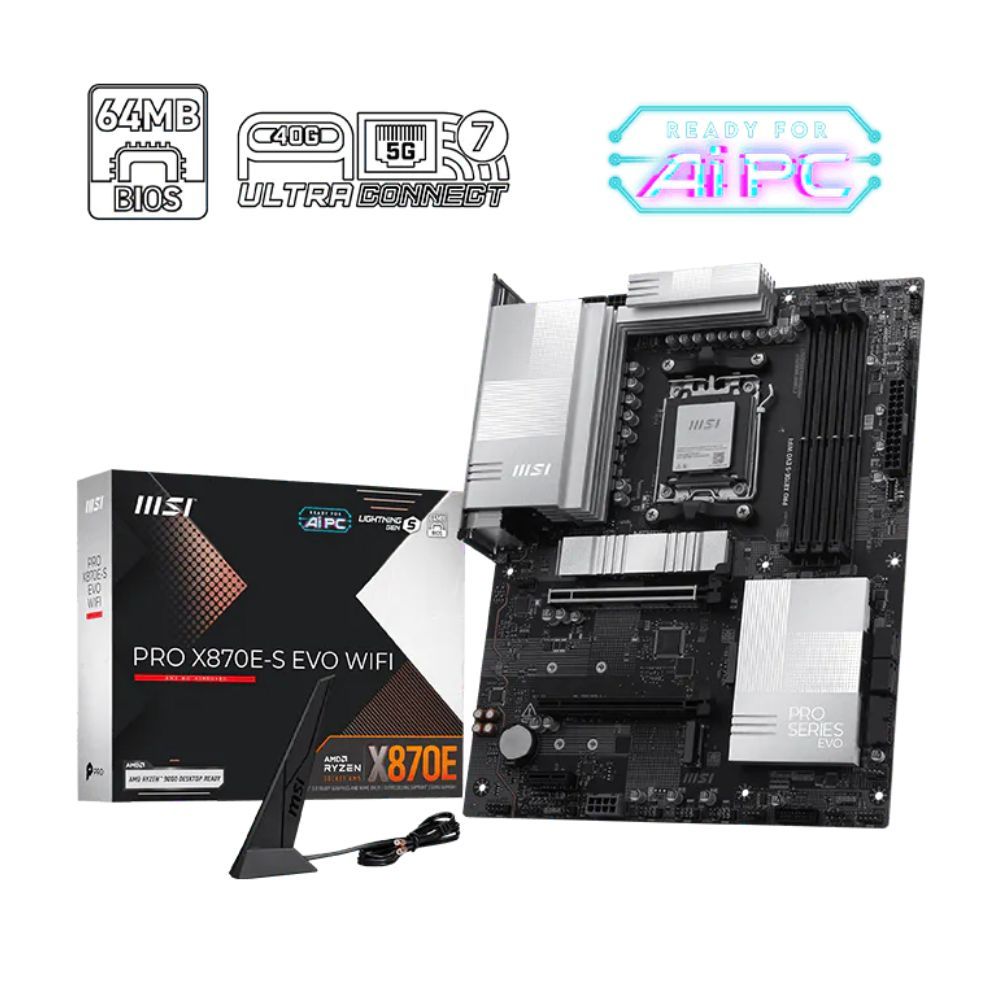

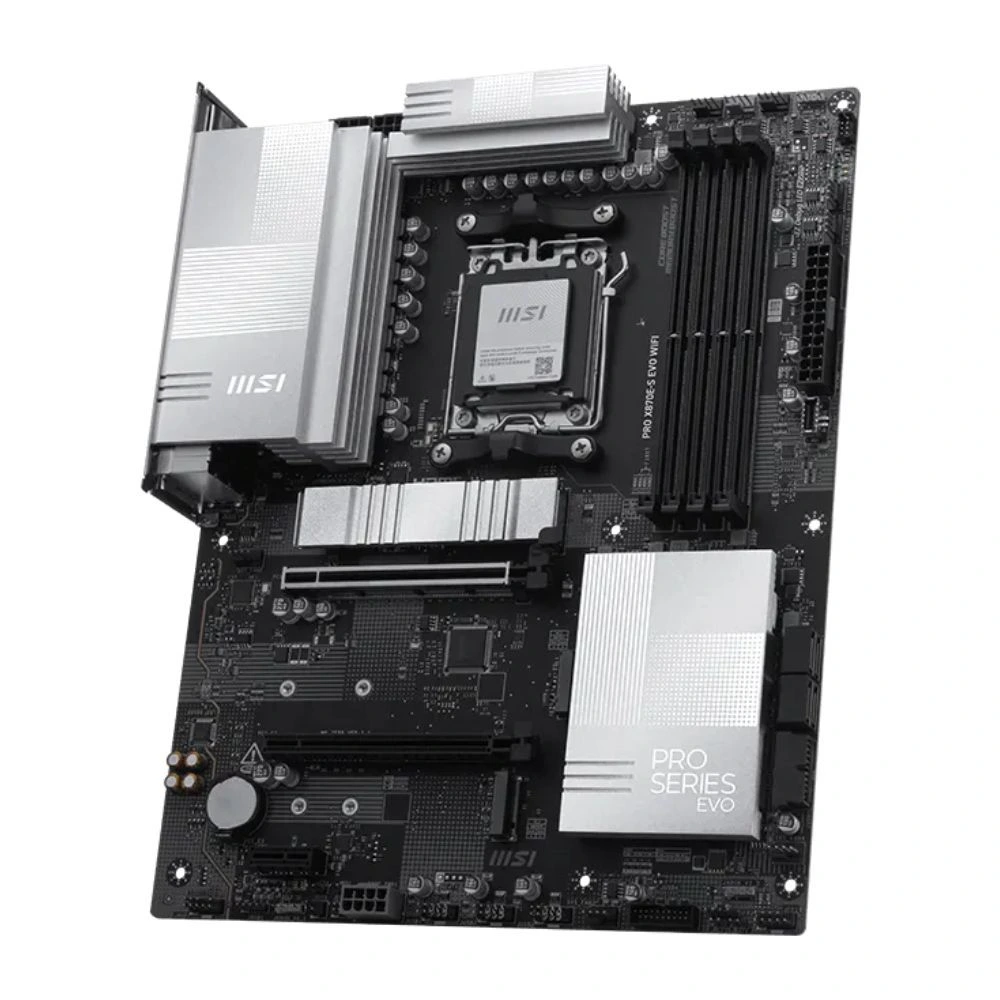

PRO X870E-S EVO WIFI
– Supports AMD Ryzen™ 9000 / 8000 / 7000 Series Desktop Processors
– Supports DDR5 Memory, Dual Channel DDR5 8200+ MT/s (OC)
– Ultra Performance: 12+2+1 Duet Rail Power System, dual 8-pin CPU power connectors, Core Boost, Memory Boost, 6-layer PCB made by 2oz thickened copper and PCB Fabric Peak
– Frozr Guard: Extended Heatsink, MOSFET thermal pads rated for 7W/mK, additional choke thermal pads and EZ M.2 Shield Frozr II are built for high performance system and non-stop experience
– EZ DIY: EZ M.2 Shield Frozr II, EZ M.2 Clip II, EZ PCIe Clip II and EZ Antenna
– Lightning Fast Game experience: PCIe 5.0 slot, Lightning Gen 5 x4 M.2
– Ultra Connect: USB4 and 5G LAN with Wi-Fi 7 Solution – the latest solution for professional and multimedia use, delivering secure, stable, and high-speed networking and data transmission
– Audio Boost: Reward your ears with studio grade sound quality for the most immersive gaming experience
Technical Specification
CHIPSET: AMD X870E
CPU: Supports AMD Ryzen™ 9000/ 8000/ 7000 Series Desktop Processors (Socket AM5)
MEMORY: 4x DDR5 UDIMM, Maximum Memory Capacity 256GB, Support up to 8200+ (OC) MT/s, Supports AMD EXPO™
ONBOARD GRAPHICS: 1x HDMI™ (Supports 4K 60Hz), 1x Type-C DisplayPort USB4® port (Supports 4K 120Hz)
SLOT: 2x PCI-E x16 slots (PCI_E1 Gen 5.0 up to x16, PCI_E2 Gen 4.0 up to x4), 1x PCI-E x1 slot
STORAGE: 3x M.2 slots (M.2_1 up to PCIe 5.0 x4; M.2_2 & M.2_3 up to PCIe 4.0 x4), 4x SATA 6Gb/s ports
AUDIO: Realtek® ALC897 7.1-Channel High Definition Audio
LAN: Realtek® 8126VB 5G LAN
WIRELESS LAN & BLUETOOTH: Wi-Fi 7 (pre-installed in M.2 Key-E slot), Bluetooth® 5.4, MLO, 4KQAM

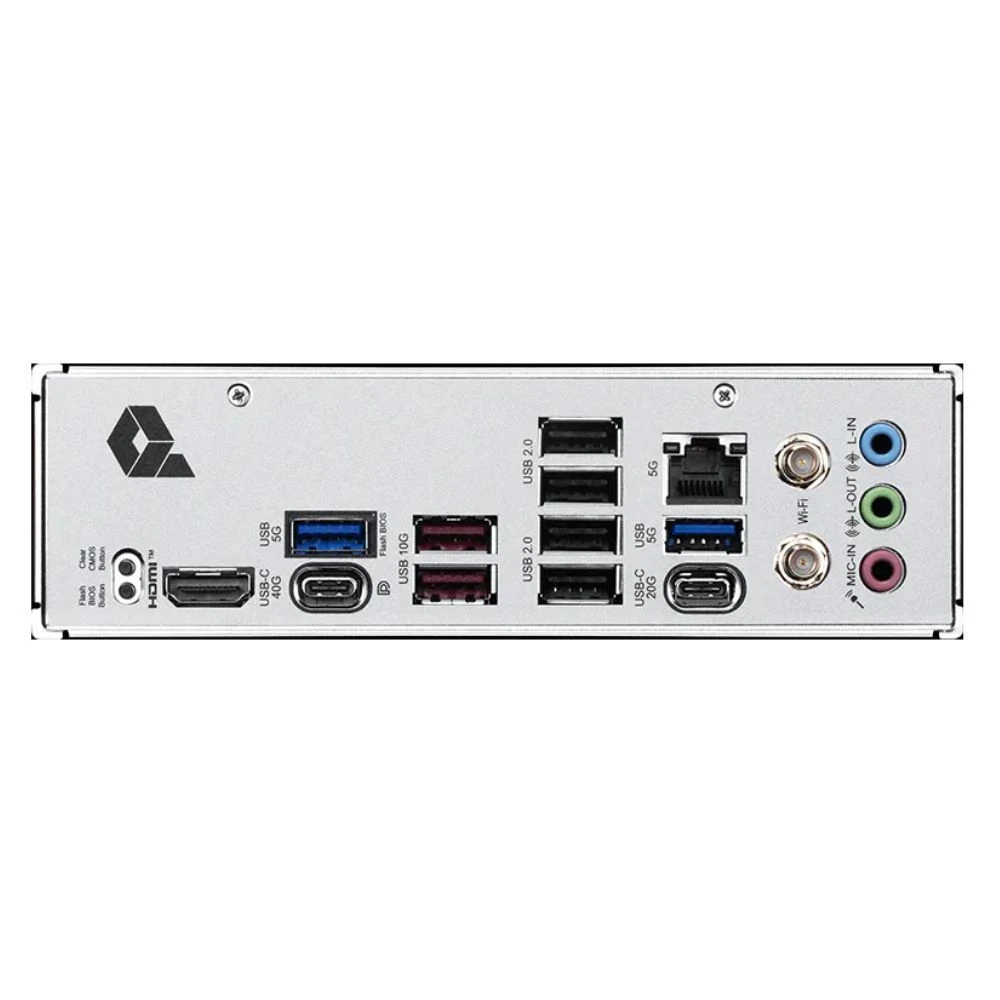

USB PORTS:
1x USB 40Gbps Type-C (Rear),
1x USB 20Gbps Type-C (Rear),
2x USB 10Gbps Type-A (Rear),
2x USB 5Gbps Type-A (Rear),
4x USB 2.0 (Rear), plus extensive front header options
OPERATING SYSTEM: Support for Windows® 11 64-bit
PCB INFO: ATX Form Factor (304.8mm x 243.84mm)
