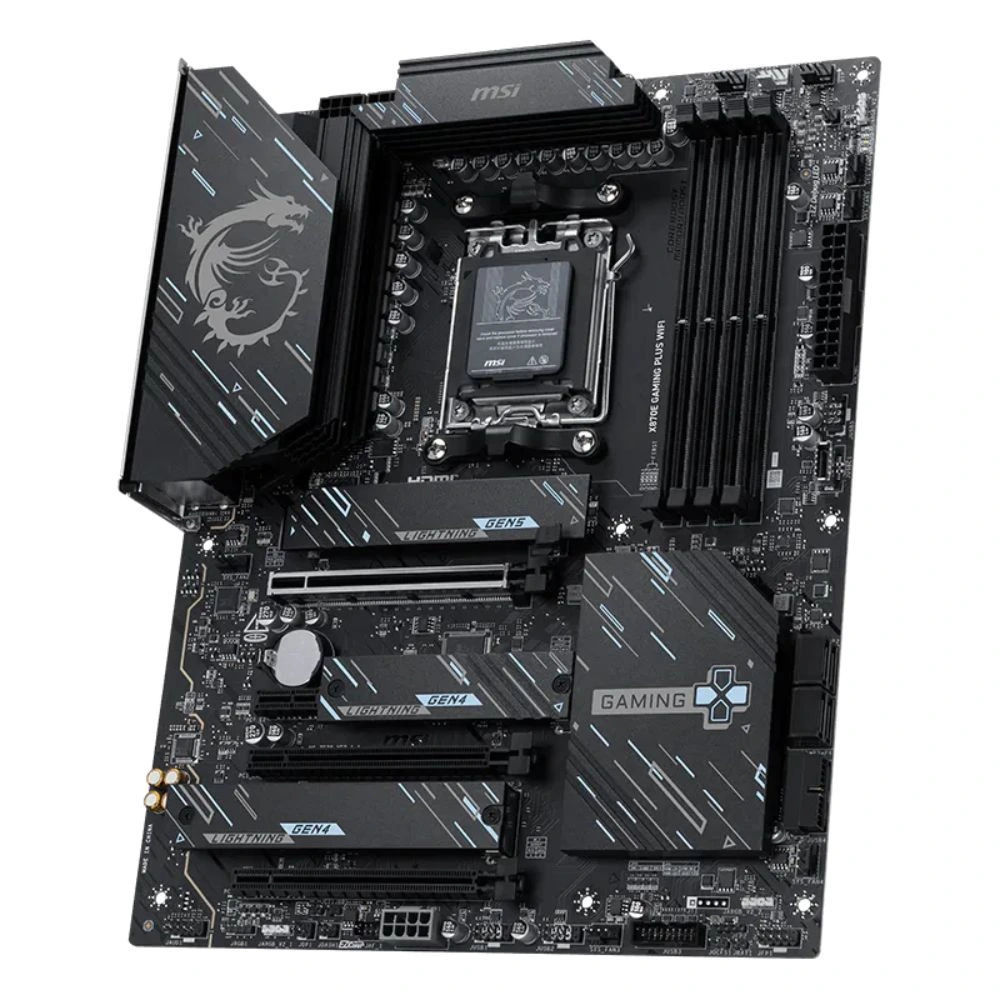

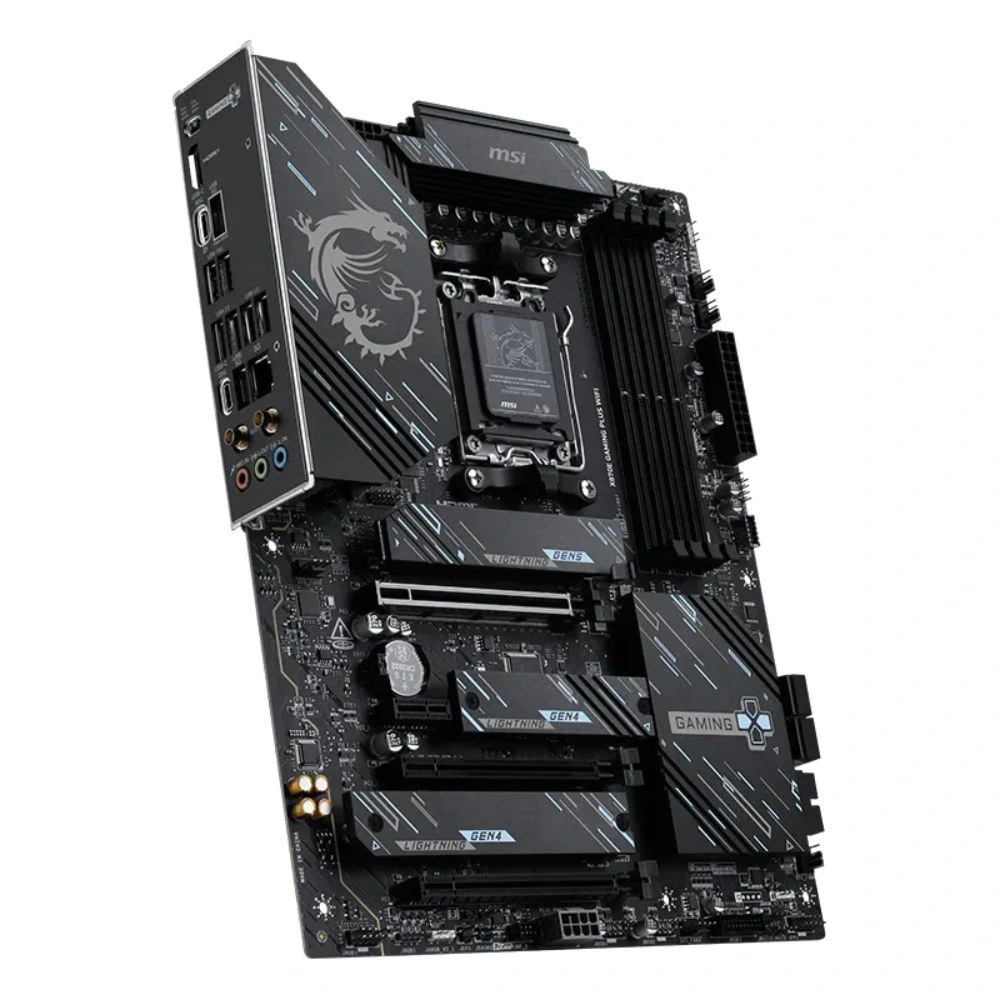

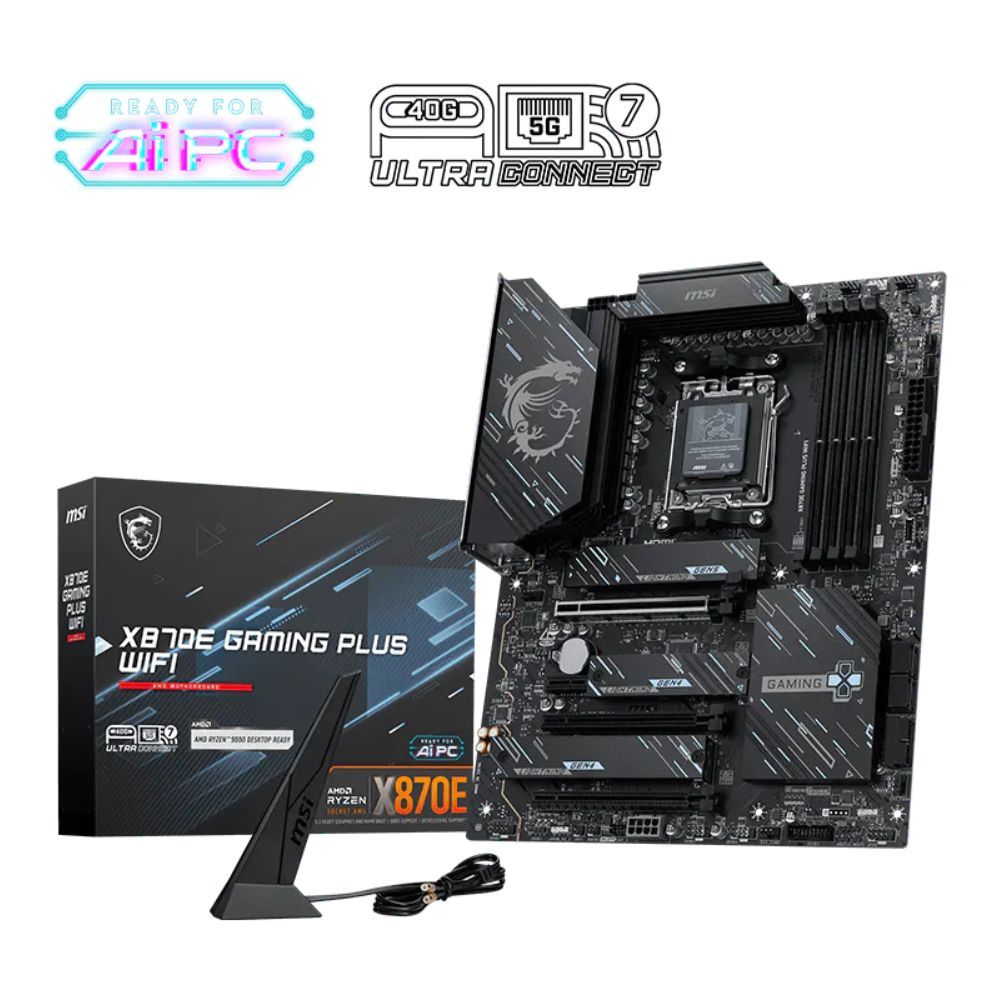

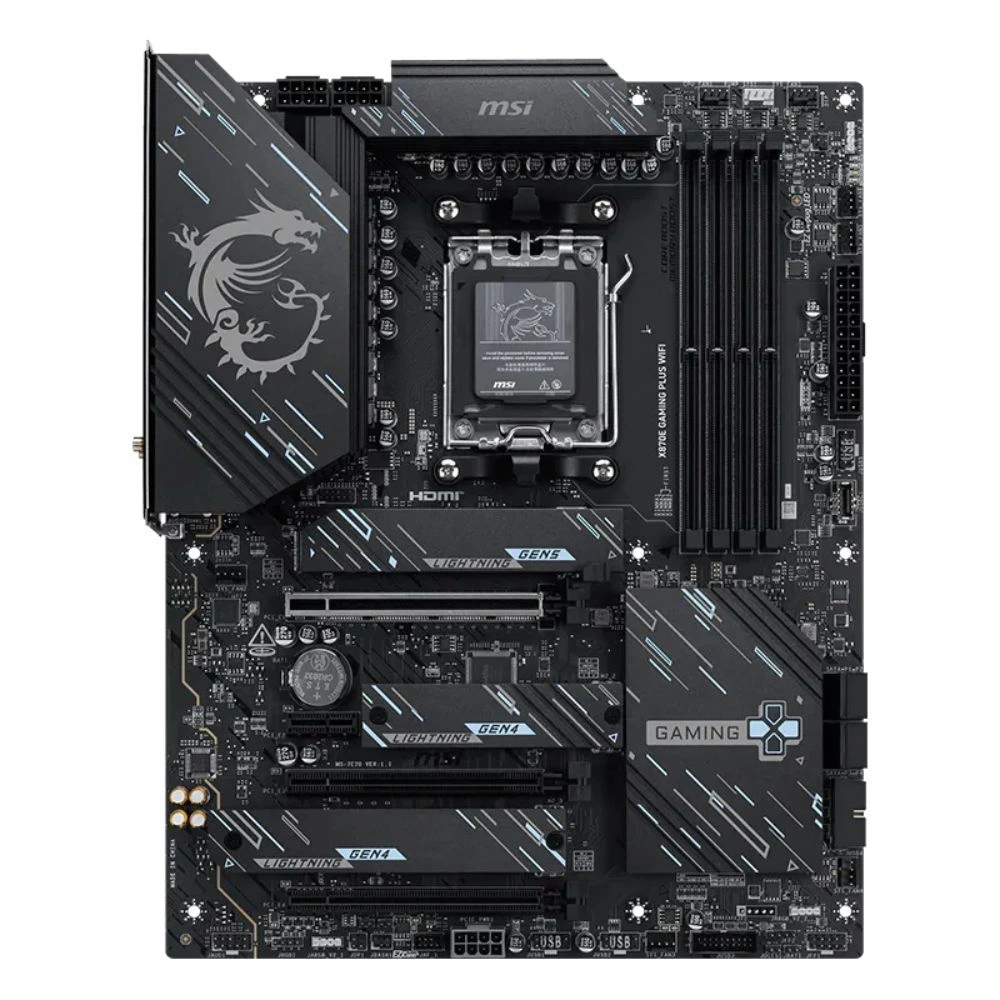

MSI X870E GAMING PLUS WIFI AM5 ATX DDR5 PCIe 5.0 5G LAN Gaming Motherboard

X870E GAMING PLUS WIFI
– Supports AMD Ryzen™ 9000 / 8000 / 7000 Series Desktop Processors
– Supports DDR5 Memory, Dual Channel DDR5 8200+ MT/s (OC)
– Ultra Performance: 14+2+1 Duet Rail Power System, dual 8-pin CPU power connectors, Core Boost, Memory Boost, 8-layer PCB made by 2oz thickened copper and server-grade level material
– Frozr Guard: Extended Heatsink, MOSFET thermal pads rated for 7W/mK, additional choke thermal pads and EZ M.2 Shield Frozr II are built for high performance system and non-stop experience
– EZ DIY: EZ M.2 Shield Frozr II, EZ M.2 Clip II, EZ PCIe Clip II and EZ Antenna
– Lightning Fast Game experience: PCIe 5.0 slot, Lightning Gen 5 x4 M.2
– Ultra Connect: USB4 and 5G LAN with Wi-Fi 7 Solution – the latest solution for professional and multimedia use, delivering secure, stable, and high-speed networking and data transmission
– Audio Boost : Reward your ears with studio-grade sound quality for the most immersive gaming experience

The X870E GAMING PLUS WIFI is designed with durable components to provide a great gaming experience. Equipped with Wi-Fi 7, 5G LAN, high-speed USB4, PCIe 5.0 solutions, supplemental PCIe power, and exclusive EZ DIY features, it is built to support 24/7 non-stop gaming for AMD Ryzen™ 9000 series processors.

Key Features
1. Processor & Memory Support
CPU Support: Supports AMD Ryzen™ 9000 / 8000 / 7000 Series Desktop Processors.
Memory Support: Supports DDR5 Memory, Dual Channel DDR5 8200+ MT/s (OC).
2. Ultra Performance & Power Design
Power System: 14+2+1 Duet Rail Power System with 60A SPS and dual 8-pin CPU power connectors.
PCB Design: 8-layer PCB made by 2oz thickened copper and server-grade level material.
Core Boost & Memory Boost: Advanced layout designs for pure data transmission and memory stability.
3. Thermal Solutions (Frozr Guard)
Extended Heatsink: Enlarges the surface area of heat dissipation.
Thermal Pads: MOSFET thermal pads rated for 7W/mK and additional choke thermal pads.
M.2 Shielding: EZ M.2 Shield Frozr II to keep M.2 SSDs cool and running at peak performance.
4. EZ DIY Innovations
EZ M.2 Features: EZ M.2 Shield Frozr II, EZ M.2 Clip II (toolless installation), and EZ M.2 Clip II Remover.
EZ GPU Installation: EZ PCIe Clip II features a rebounding force mechanism for easy graphics card removal with one finger.
EZ Connect & Antenna: EZ Antenna (quick-attach magnetic stand) and EZ Conn-Design (streamlined JAF_1 headers for ARGB/fans).
Maintenance & Debug: Flash BIOS Button, Clear CMOS Button, EZ Debug LED, and EZ Memory Detection LED.
5. Connectivity & Networking
Networking: 5G LAN and Wi-Fi 7 Solution with EZ Antenna.
USB Connectivity: Lightning Fast USB4 (up to 40Gbps) and Front USB Type-C support.
AI LAN Manager: Automatically classifies and prioritizes latency-sensitive applications for online gaming.
6. Storage & Expansion
PCIe 5.0: Lightning Gen 5 x4 M.2 slots and PCIe 5.0 slot with Steel Armor.
Supplemental PCIe Power: Dedicated power connector for high-power demands of GPUs used in AI computing and gaming.
Additional Storage: 2x PCIe 4.0 M.2 slots.
7. Audio & Experience
Audio Boost: Studio-grade sound quality powered by high-definition audio processors, high-quality audio capacitors, and an Isolated Analogy Structure.
Mystic Light: Customizable RGB lighting with Mystic Light Extension pin headers supporting A-Rainbow V2 and 12V RGB devices.
Click BIOS X: Newly designed, user-friendly BIOS interface with easy-to-use modes (EZ and Advanced) and features like Game Boost and AI Boost.

Specifications
Chipset: AMD X870E
CPU Socket: AMD Socket AM5
Memory: 4x DDR5 UDIMM, Maximum Capacity up to 256GB (Supports speeds from 5600 JEDEC up to 8200+ MT/s OC)
Onboard Graphics: 1x HDMI™ 2.1 (supports 4K 60Hz) and 1x Type-C DisplayPort USB4® port (supports DisplayPort 1.4, 4K 120Hz)

Expansion Slots:
3x PCI-E x16 slots (PCI_E1 supports up to Gen 5.0 x16 from CPU)
1x PCI-E x1 slot (Gen 3.0)
Audio: Realtek® ALC897 7.1-Channel High Definition Audio

Storage:
3x M.2 slots (M.2_1 up to PCIe 5.0 x4 from CPU; M.2_2 and M.2_3 up to PCIe 4.0 x4 from Chipset)
4x SATA 6Gb/s ports
RAID Support: RAID 0, 1, 10 for SATA; RAID 0, 1, 5 for M.2 NVMe storage

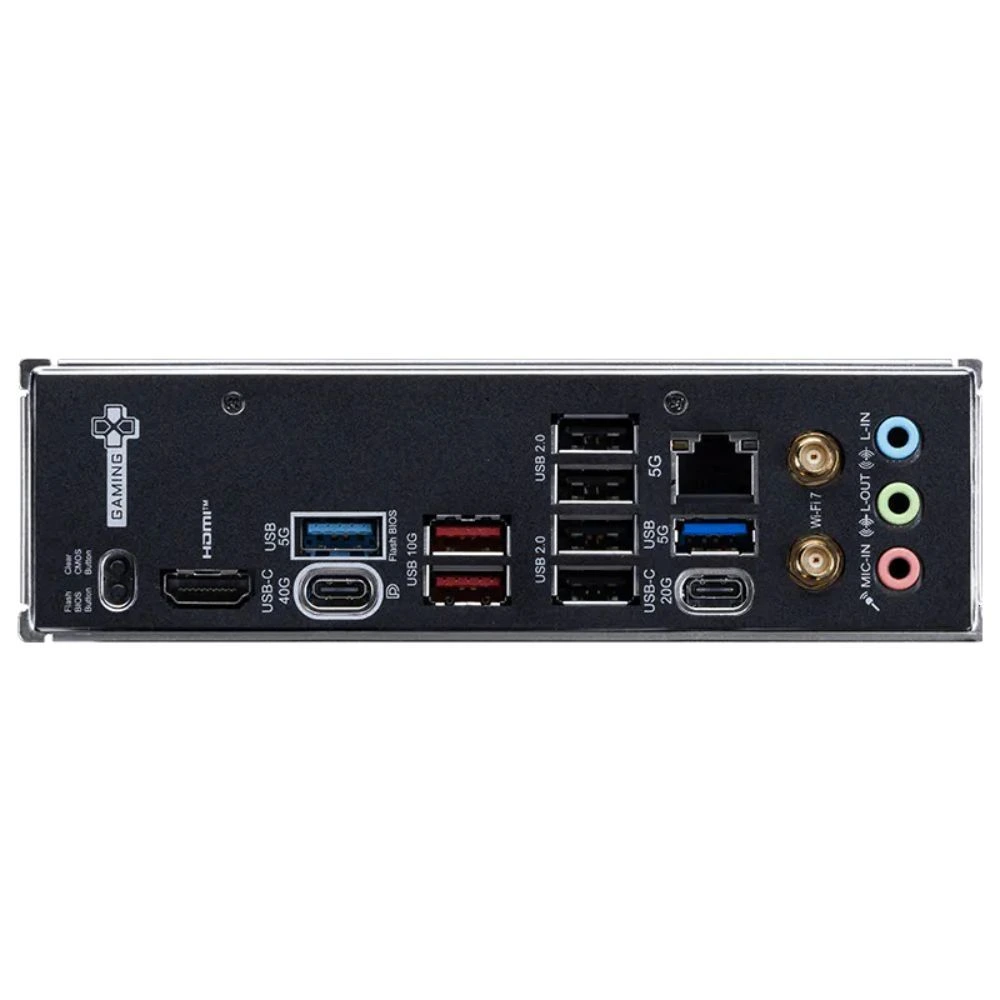

USB Ports:
Rear: 1x USB 40Gbps Type-C, 1x USB 20Gbps Type-C, 2x USB 10Gbps Type-A, 2x USB 5Gbps Type-A, 4x USB 2.0
Front: 1x USB 10Gbps Type-C, 4x USB 5Gbps Type-A, 6x USB 2.0
LAN: Realtek® 8126VB 5G LAN
Wireless LAN & Bluetooth: Wi-Fi 7 (pre-installed M.2 Key-E module, supports 320MHz, MU-MIMO, up to 5.8Gbps) and Bluetooth® 5.4
LED Features: 4x EZ Debug LED, 1x EZ Memory Detection LED
Operating System: Support for Windows® 11 64-bit
PCB Info: ATX Form Factor (243.84mm x 304.8mm)
