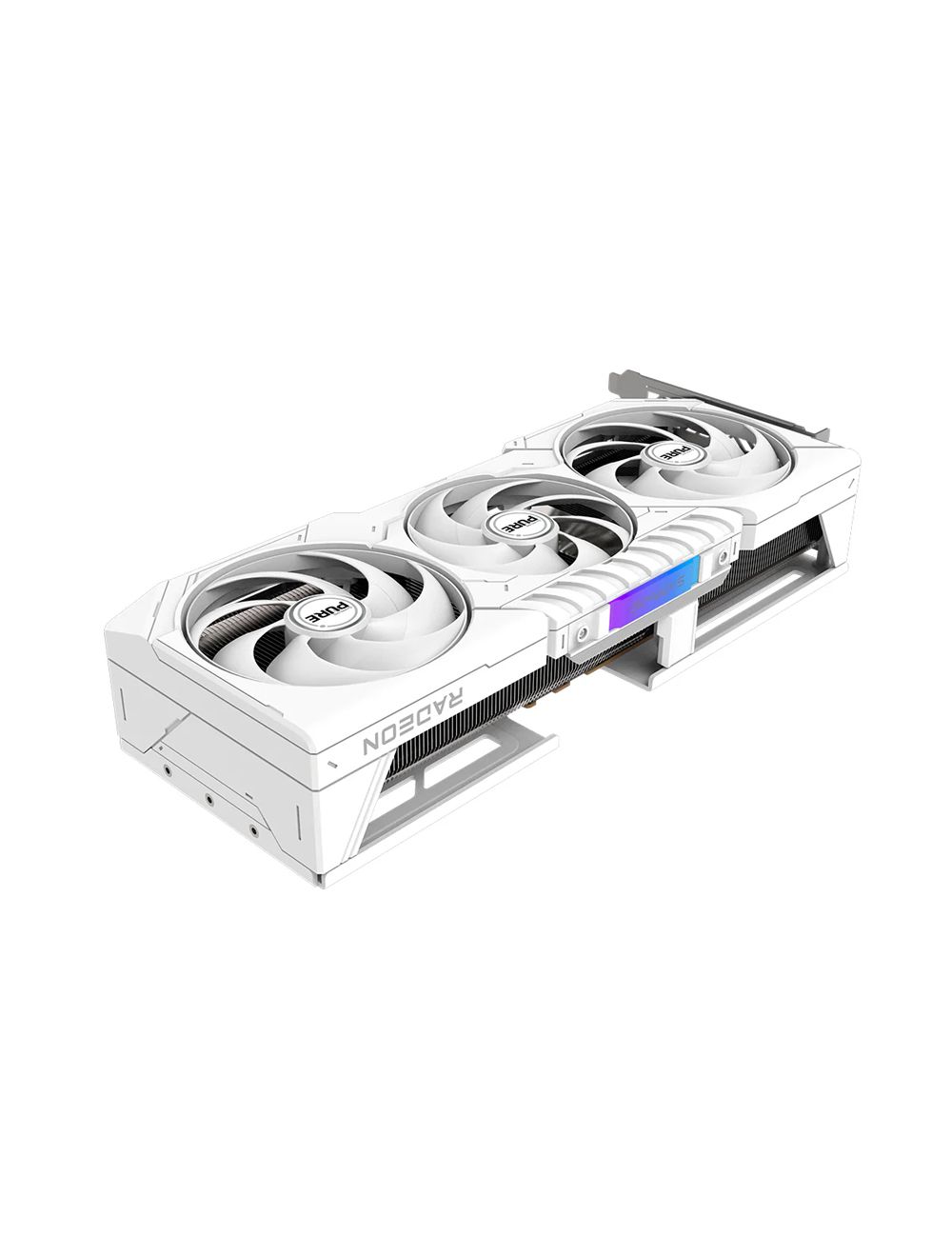

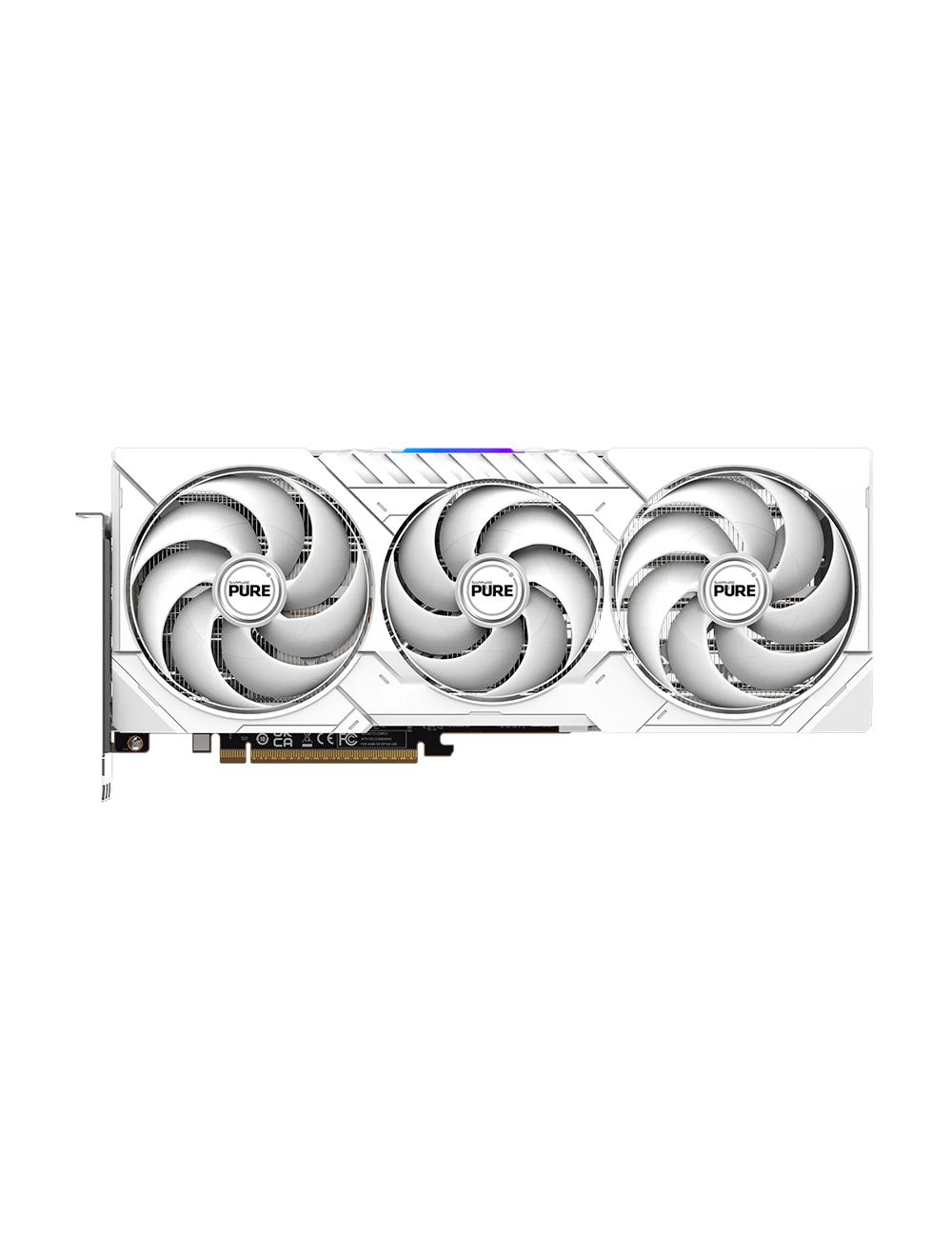

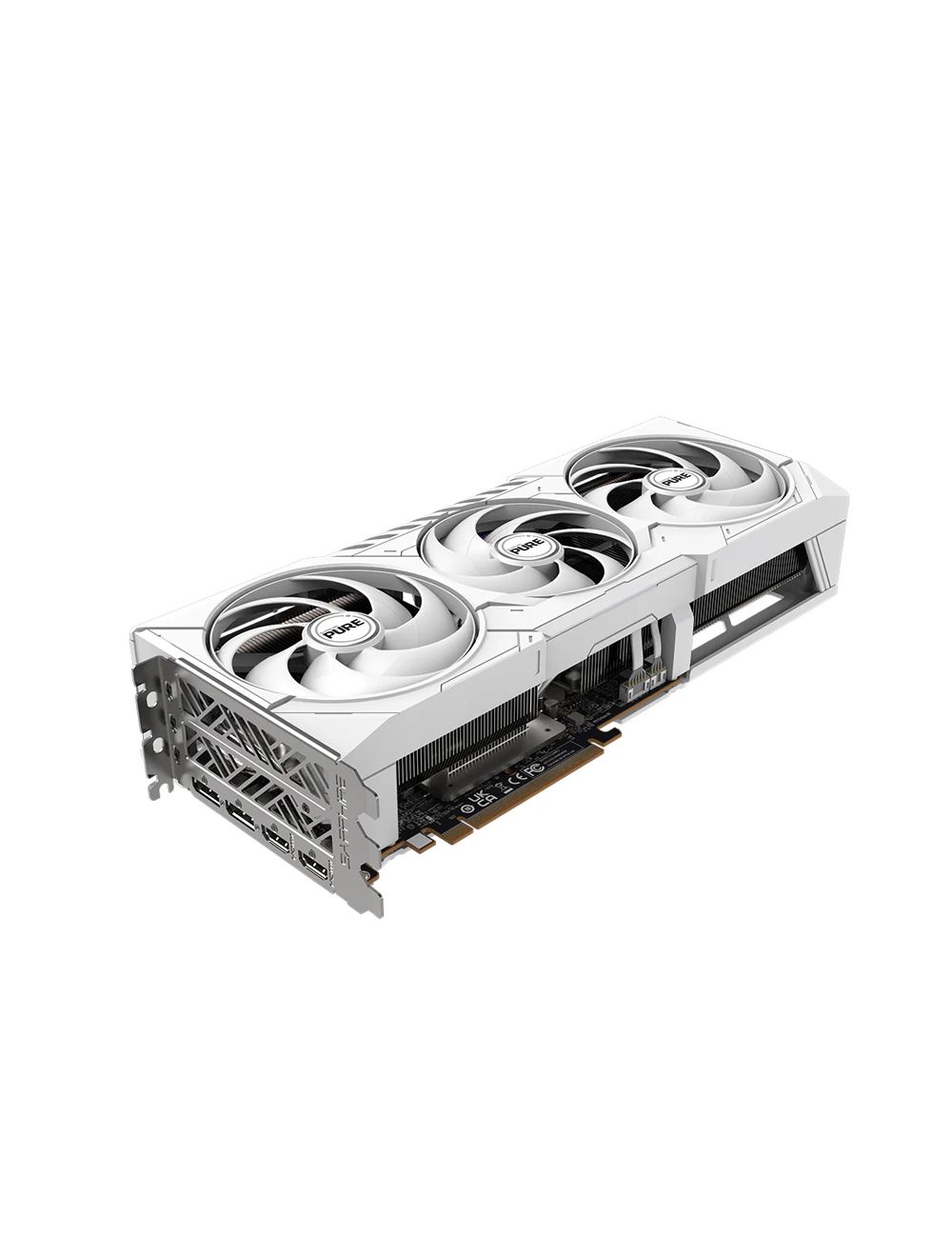

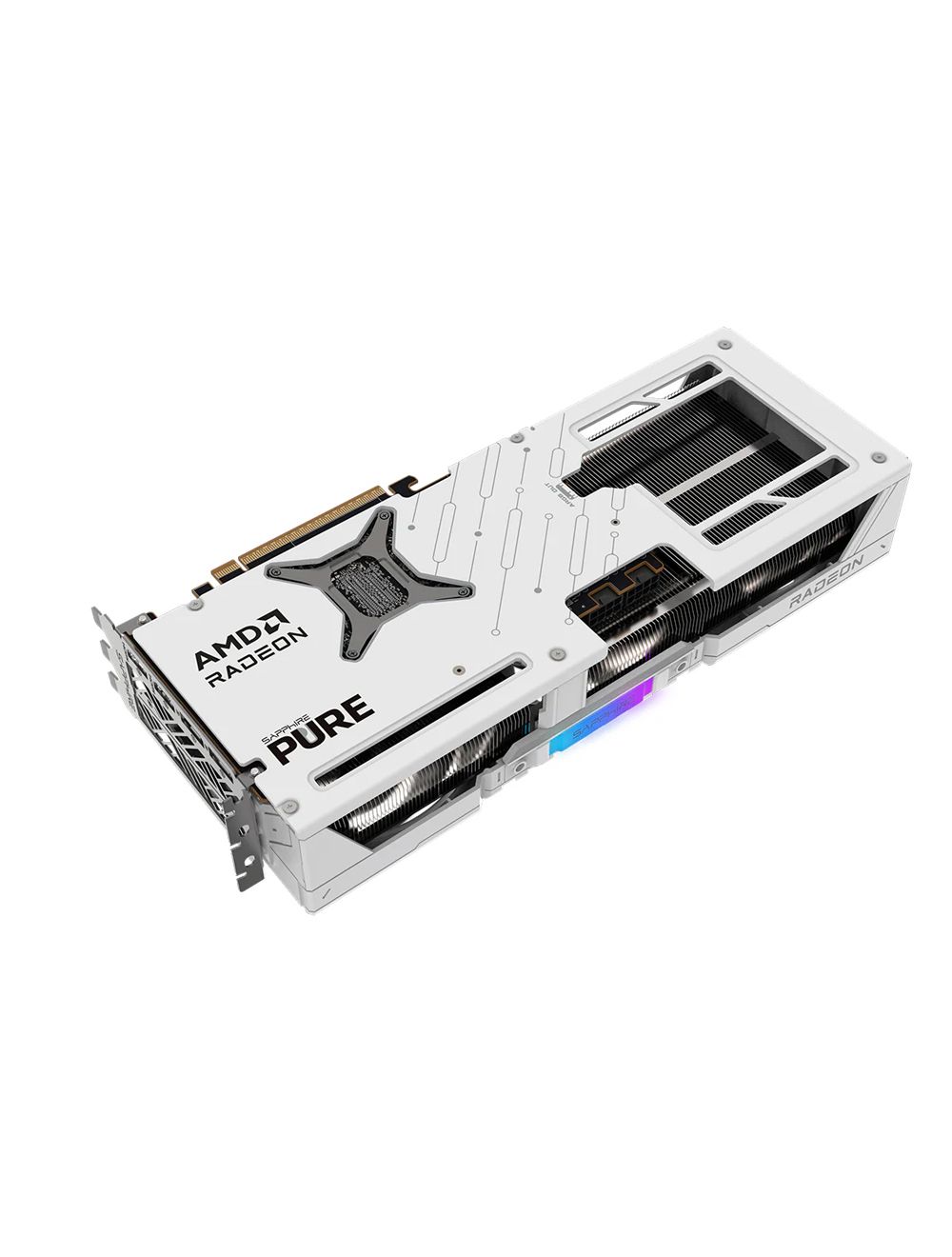

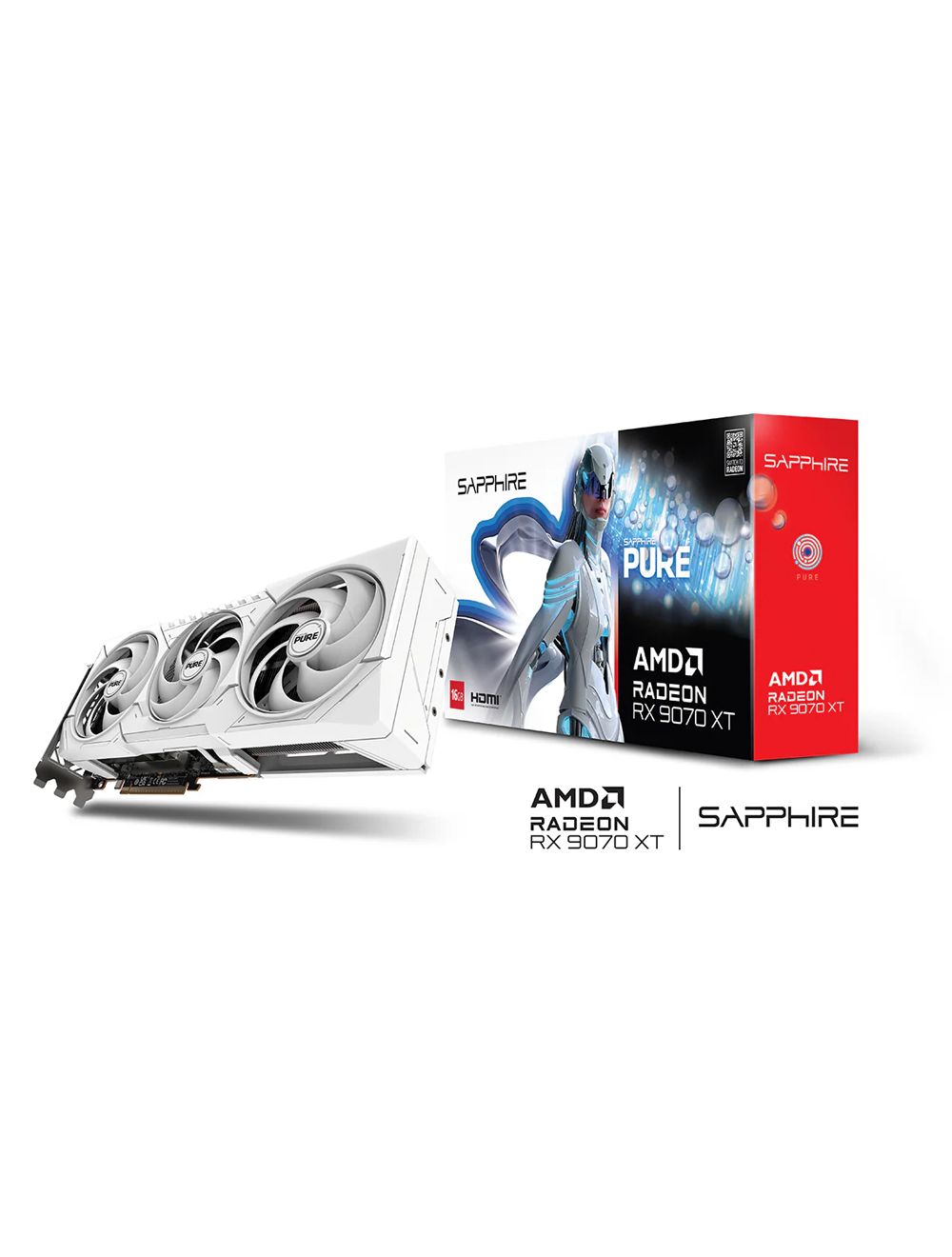

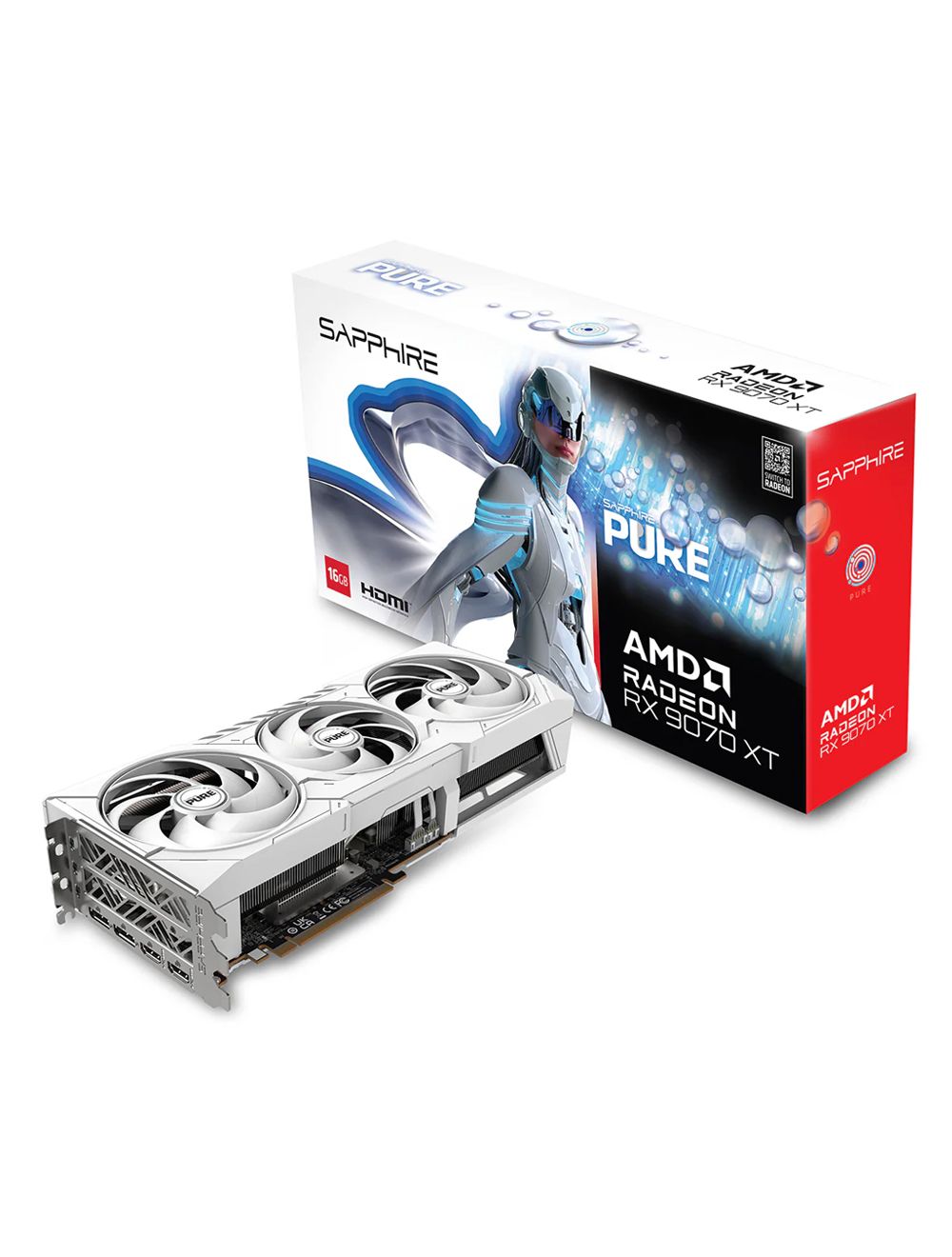

PURE AMD Radeon™ RX 9070 XT GPU
Specification
GPU: AMD Radeon™ RX 9070 XT
Architecture: AMD RDNA™ 4
Engine Clock
– Boost Clock: Up to 3010 MHz
– Game Clock: Up to 2460 MHz
Stream Processors: 4096
Compute Units: 64 CUs (3rd Gen RT + 2nd Gen AI Accelerators)
Infinity Cache: 64MB
Ray Accelerators: 64
AI Accelerator: 128
Memory Size/Bus: 16GB GDDR6 / 256-bit
Memory Clock: 20 Gbps Effective
Displays: Maximum 4 Displays
Resolution: HDMI®: 7680×4320
DisplayPort™ 2.1a: 7680×4320
Interface: PCI-Express 5.0 x16
Output: 2x HDMI®, 2x DisplayPort™ 2.1a
BIOS Support: UEFI
Game Index: 4K
Sapphire Features
– Honeywell PTM7950 TIM, AeroCurve Fan Blade, Free Flow, FrameDefense, Integrated Cooling Module, Tri-X Cooling Technology, High TG Copper PCB, Optimized Composite Heatpipes, Metal Backplate, ARGB SAPPHIRE Logo, Two-Ball Bearing Fans, 14-Phase Digital Power Design, Fuse Protection, Intelligent Fan Control, Precision Fan Control, TriXX Supported, Performance vs. Efficiency Quicksets, Glow!, TriXX Boost, External RGB LED MB Synchronization
Accessories Bundled
– L-Shape Support Bracket, 3-pin 5V ARGB Cable
AMD Features
– RDNA™ 4, AMD HYPR-RX with AFMF 2, FidelityFX™ Super Resolution 4 with AI Upscaling, DisplayPort™ 2.1a, Radiance Display™ Engine, Fluid Motion Frames 2, Radeon™ Anti-Lag 2, AV1 Encode/Decode, FidelityFX™ technologies, DirectX® 12 Ultimate, Noise Suppression, FreeSync™, 16GB GDDR6, Smart Technologies, Adrenalin Edition™
Cooler Type
– Tri-X Cooling, AeroCurve Fan Blade, Free Flow, Integrated Cooling Module, High TG Copper PCB, Optimized Composite Heatpipes, Two-Ball Bearing
Form Factor: 3-slot, ATX (320 x 120.25 x 61.6 mm)
Power Consumption: 317W Typical Board Power
OS Support
– Linux®, Windows® 10, and Windows® 11 (64-bit)
System Requirements
– Minimum 750W Power Supply, 2x 8-pin Power Connectors, PCIe x16 slot, Minimum 8GB system memory (16GB recommended)
