OwLab x Wooting
OwLab, a top tier brand in the custom keyboard world, is known for its premium craftsmanship and bold designs. Now, they’ve brought their expertise to the Wooting 60HE(+), creating an aesthetically stunning case with a unique feature that’s turned on with the flip of a switch.
Case Design

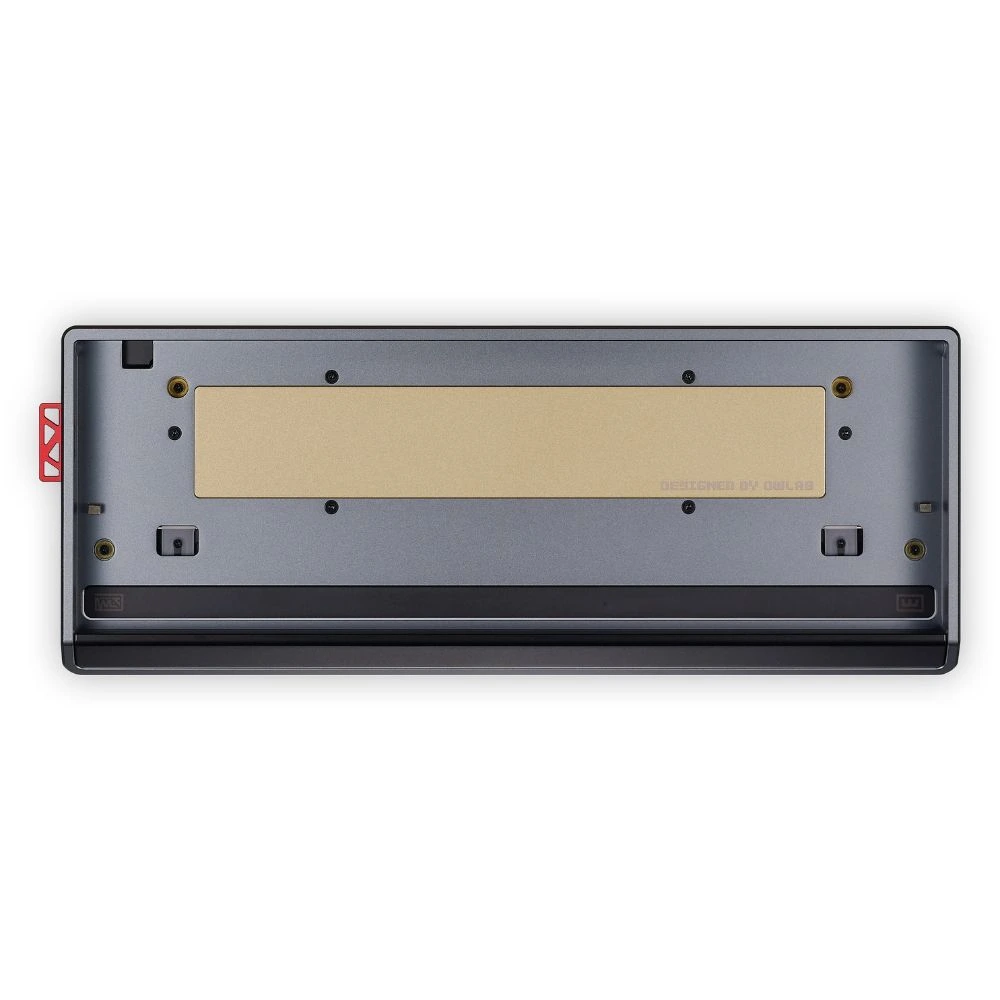

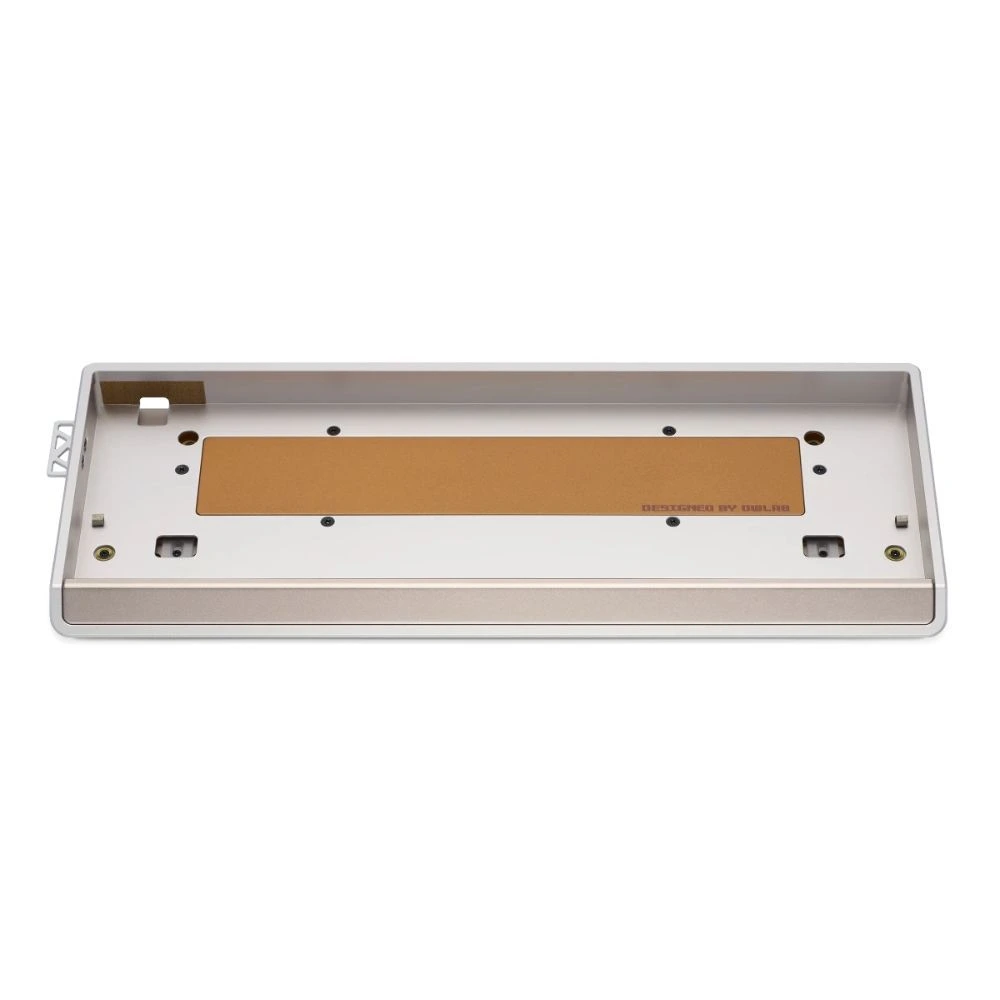

On your desk, the case has a clean, composed aesthetic, with one bold accent piece on the side hinting at what lies beneath. The case bottom features an intriguing composition of separate aluminium pieces with varied anodized finishes and PVD-coated plates. At the center sits a switch that, when flipped, changes the feel of your keyboard.

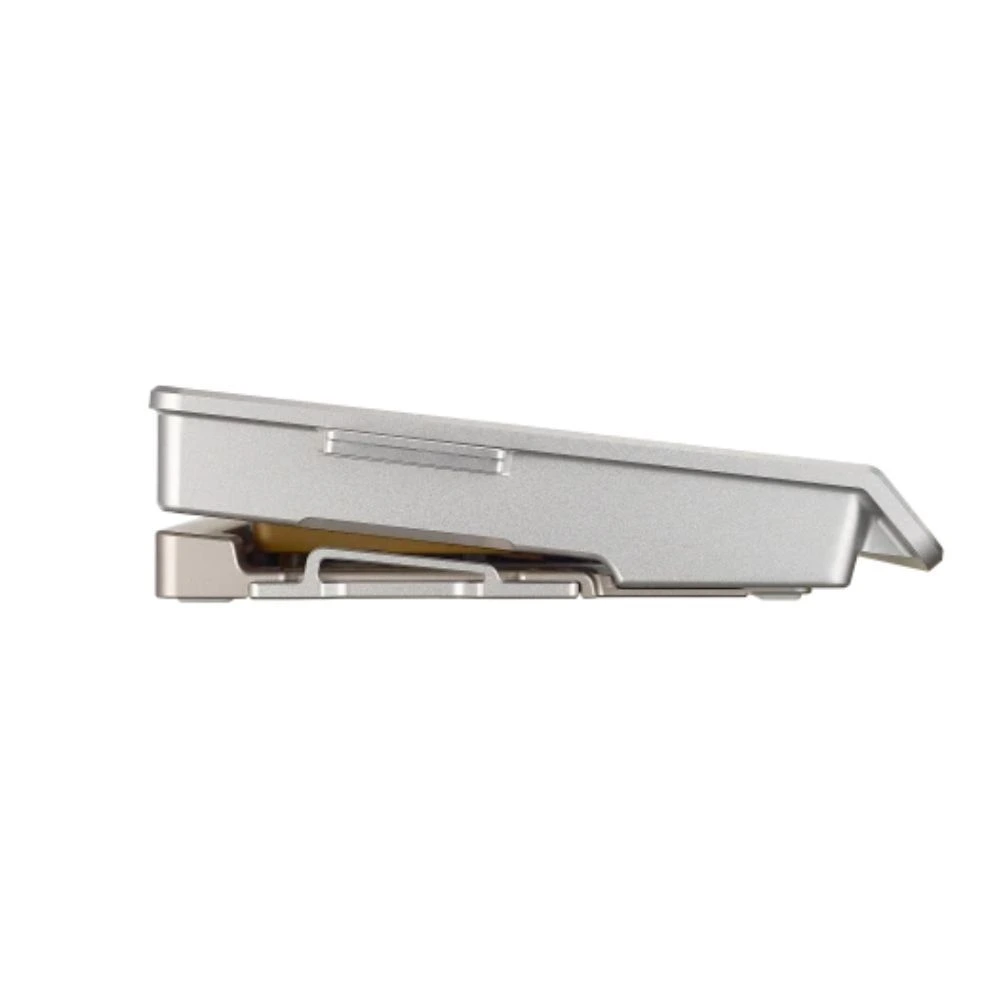

Unique Suspension System

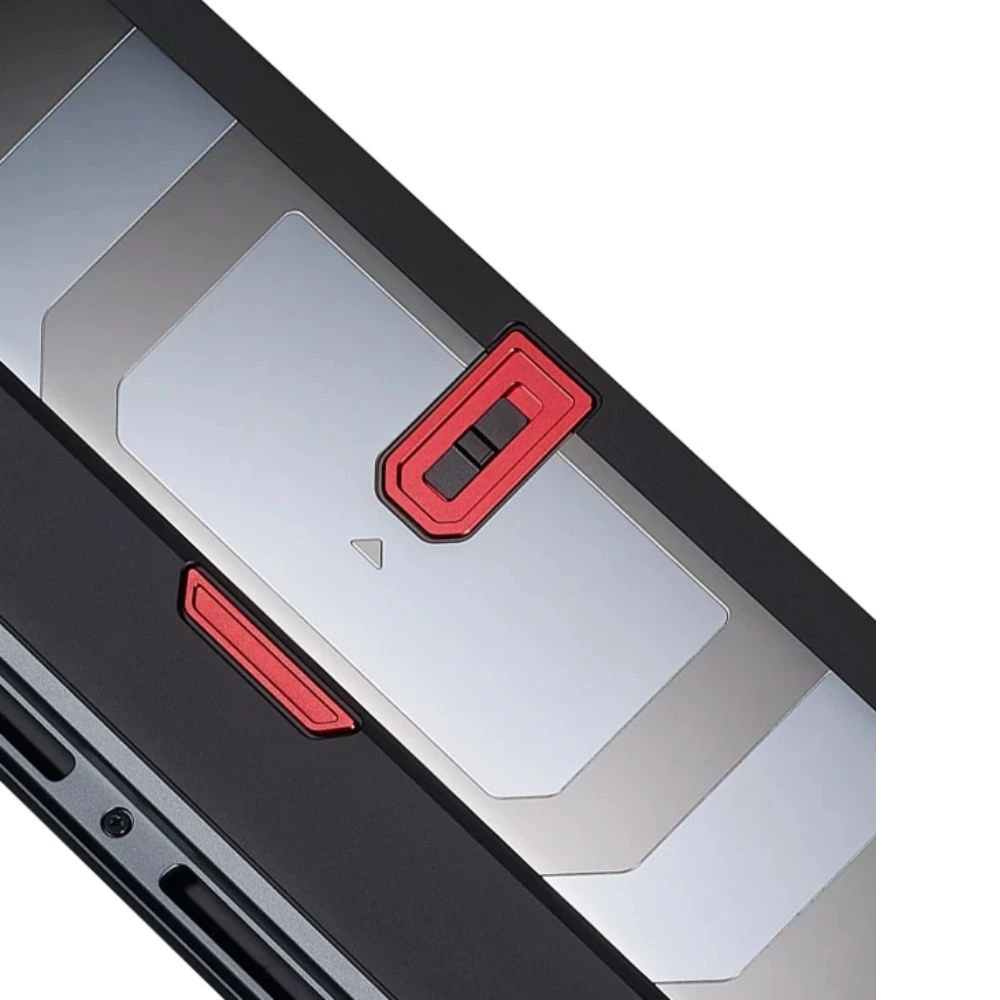

The switch on the bottom of the case is used to activate/deactivate a unique built-in suspension system. Flipping it unlocks the top section from the rest of the case, adding a gentle bounce as you type. If a firmer feel is preferred, flip the switch back to lock the tray mount and casing sections together, disabling the suspension.
Refined Sound Profile
The OW60’s unique sound profile is shaped by a carbon fibre plate with a poron foam sandwich pad, and adhesive poron sheet that absorb sharp, high-frequency tones. A PET film layer adds a marbly sound texture. A gasket O-ring seals the space between the PCBA and switch plate to prevent high-pitched frequencies from leaking out, balancing out the overall sound.

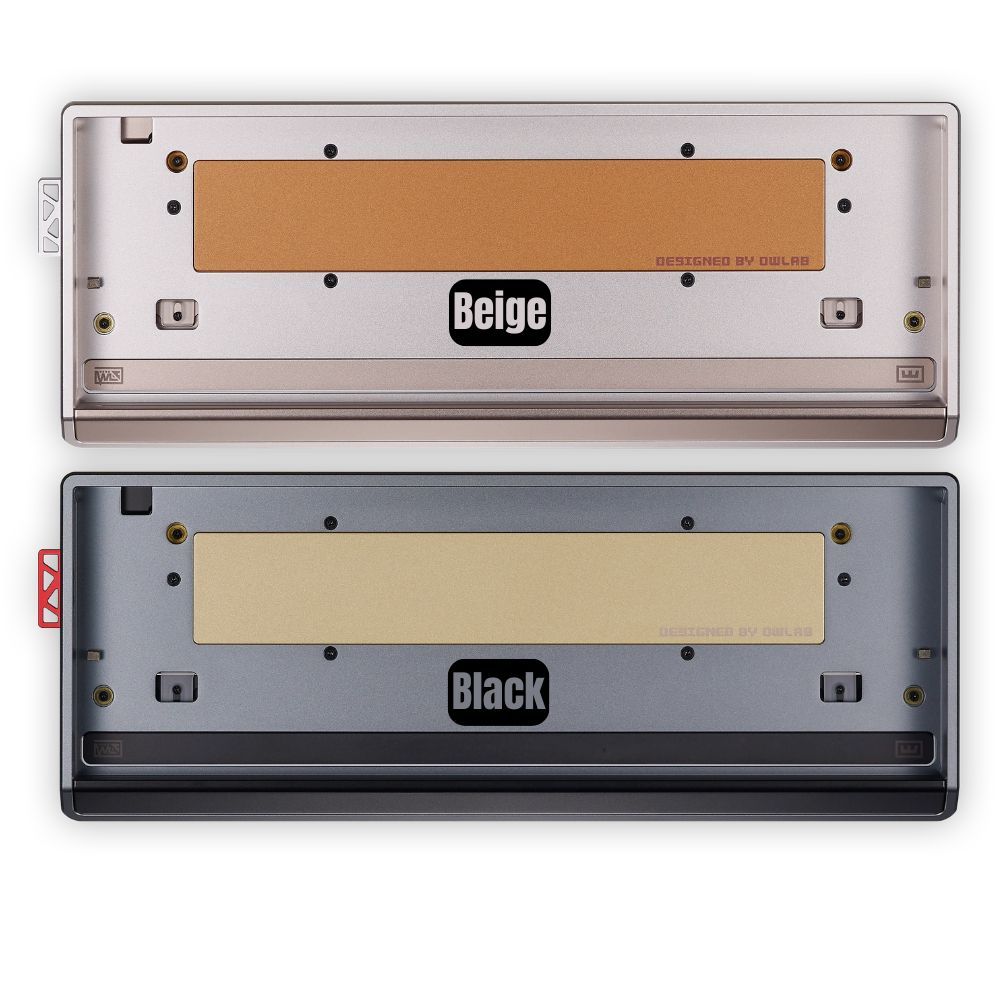

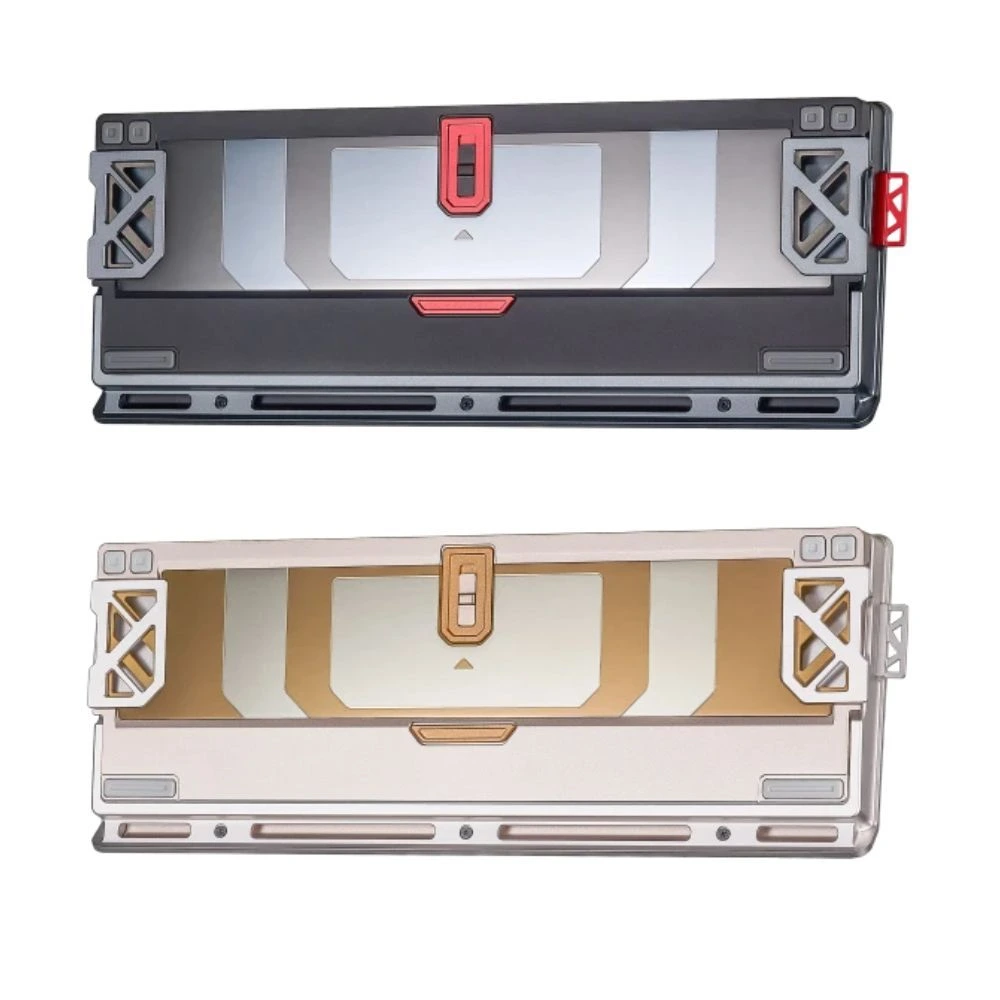

Two Breathtaking Palettes
1. Black Edition

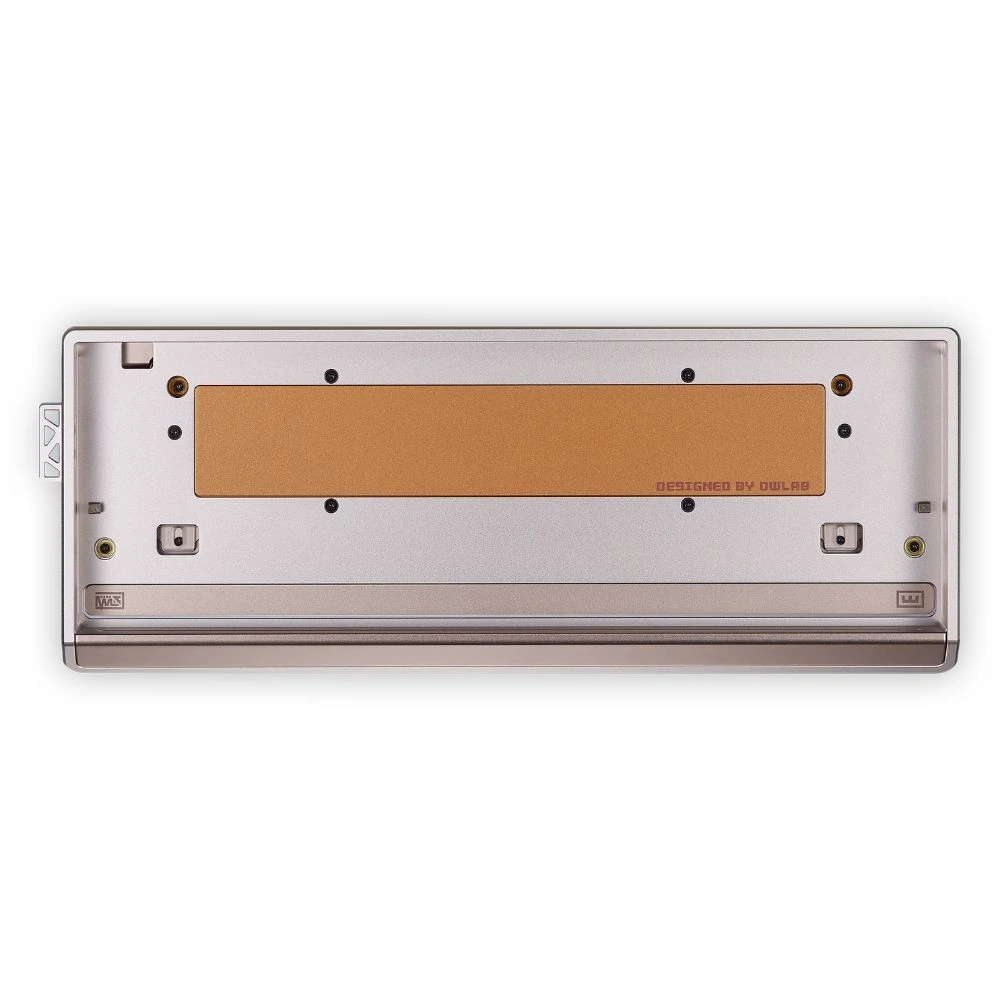

2. Beige Edition
Technical Specifications
Dimensions:
Inner: 287.5mm x 96.25mm x H | 11.32″ x 3.78″ x H
Outer: 296.03mm x 116.46mm x H | 11.65″ x 4.58″ x H
Height:
27.65mm (±0.5mm)
1.09″ (±0.02″)
Case Thickness:
30.31mm | 1.19″ (back)
19.75mm | 0.78″ (front)
Case Weight: 794.5g
Case Angle: 6 degrees
USB Port Opening: Position: Left, 10.34mm (0.41″) x 4.12mm (0.16″), Teflon tape around port to prevent scratches
PCB Compatibility
Wooting 60HE, Wooting 60HE+, and all the other 60% PCB’s that have the same mounting points as the 60HE. Note that your ANSI or ISO keyboard layout needs to match the case layout.
Wooting 60HE v2 PCB compatibility
60HE v2 PCB (standard spacebar) is fully compatible with the OW60.
60HE v2 PCB (split spacebar) fits only with the friction fit pad that is included with the 60HE v2 (Module).
Case Material(s)
Case: All aluminium 6063
Strap: Nylon
Attachment: Synthetic leather + Gold plated Chicago Screws
Feet: Silicone
Screws: Steel (black)
Switch plate: Carbon fibre
Sandwich pad: Roger’s PORON® foam
Sound dampening: Adhesive PORON® foam from INOAC
Colour & Finish
Black version:
Anodized and PVD coated parts: Black, deep gray, metallic silver, and sharp red accents.
Beige version:
Anodized and PVD coated parts: Champagne gold, silver white and bronze accents.
Case Features: Suspension with switch, Many separate pieces with different anodized finishes, PVD layer on the back of the case.
Keyboard Layout: ANSI or ISO
Travel Case: Each OW60 case comes in a black/red travel case.
