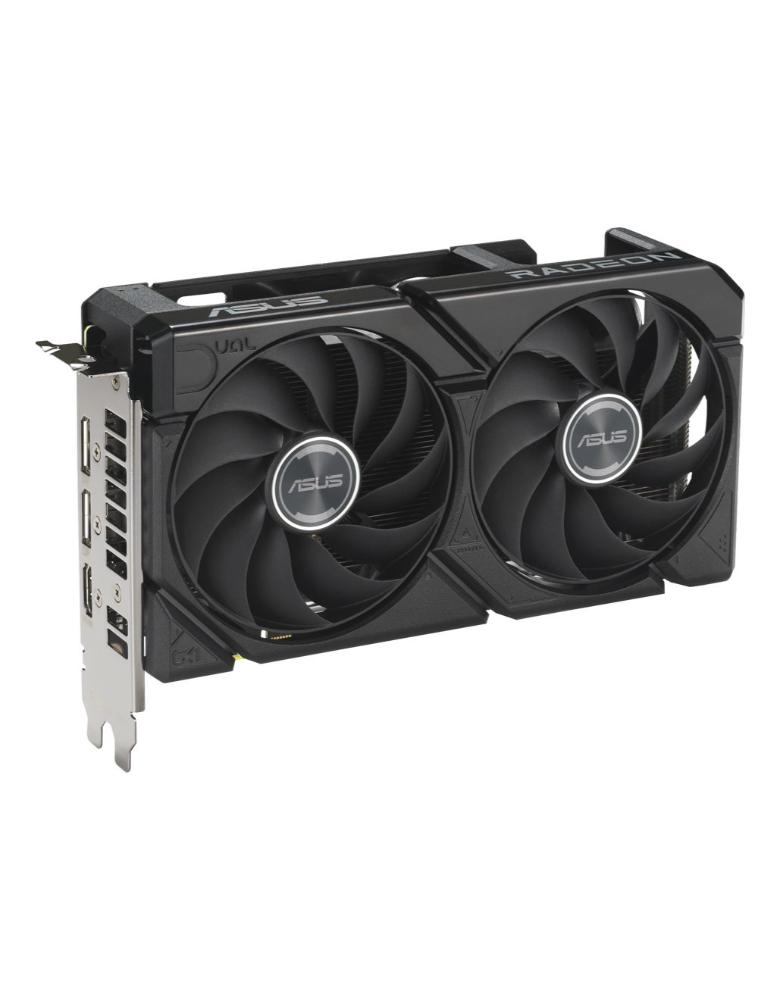

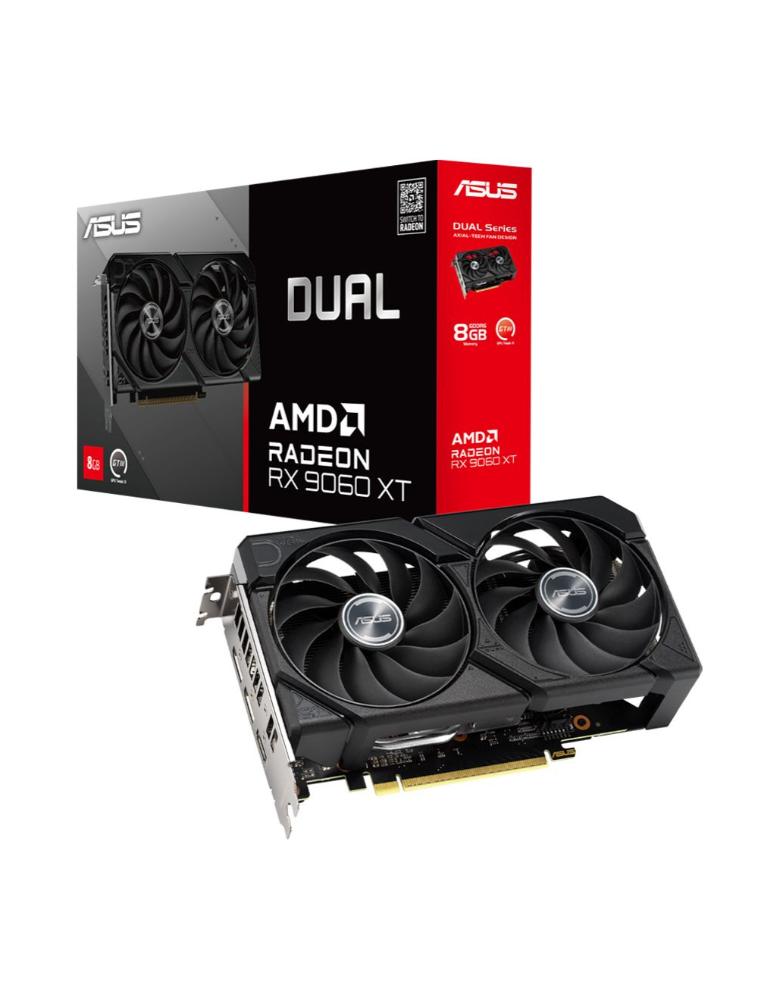

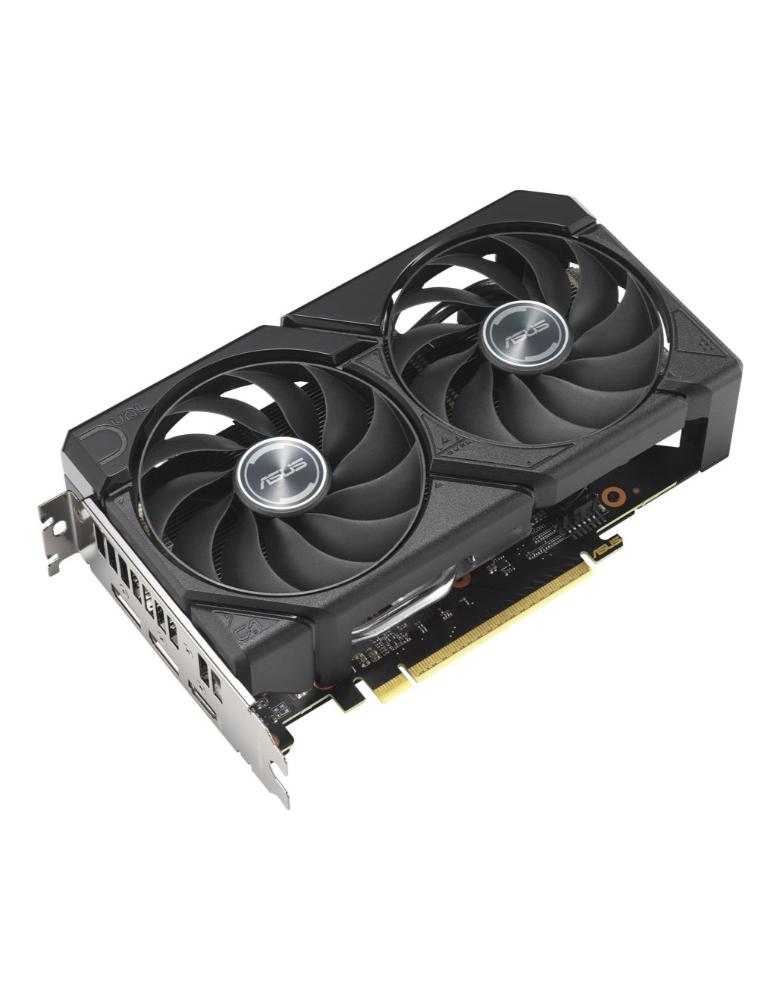

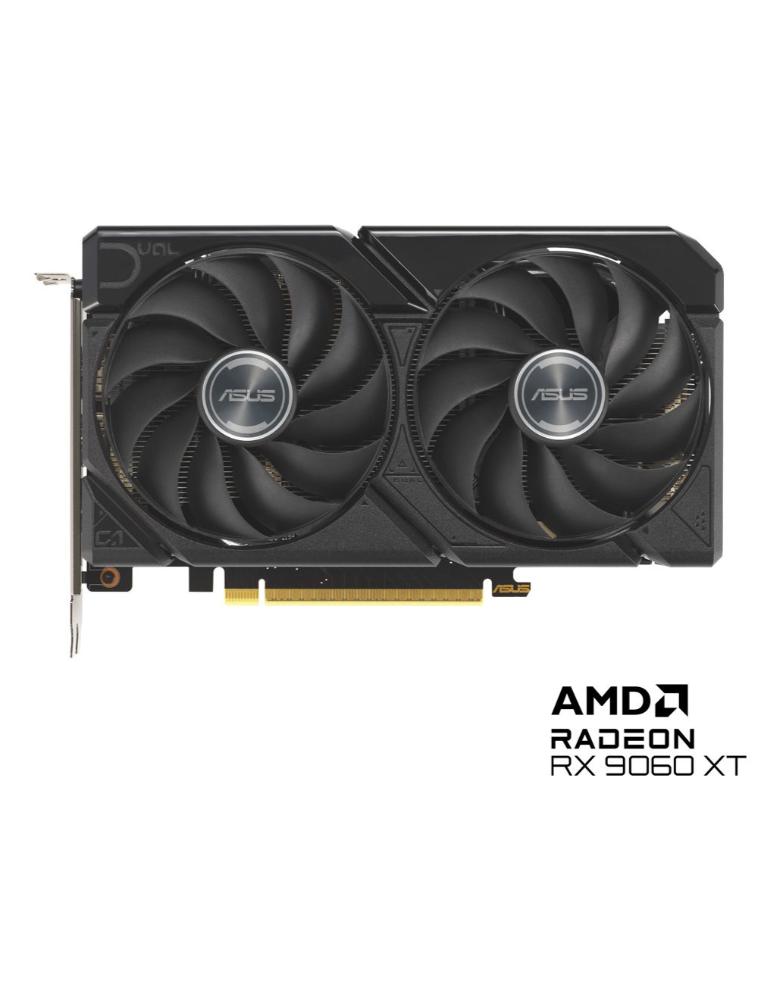

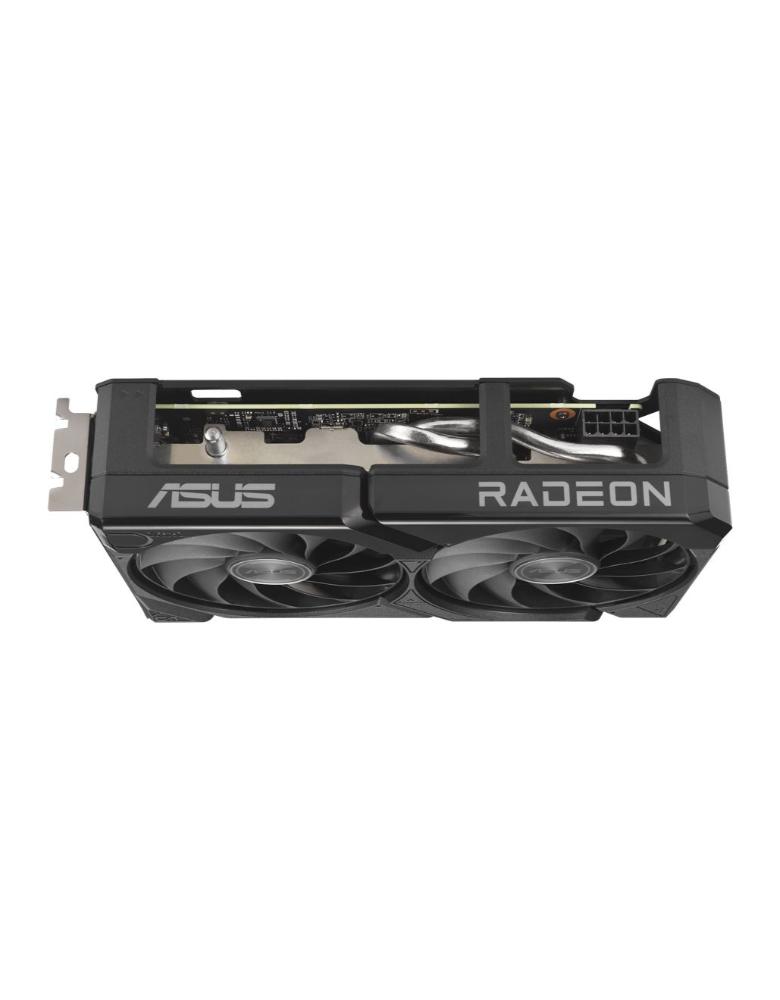

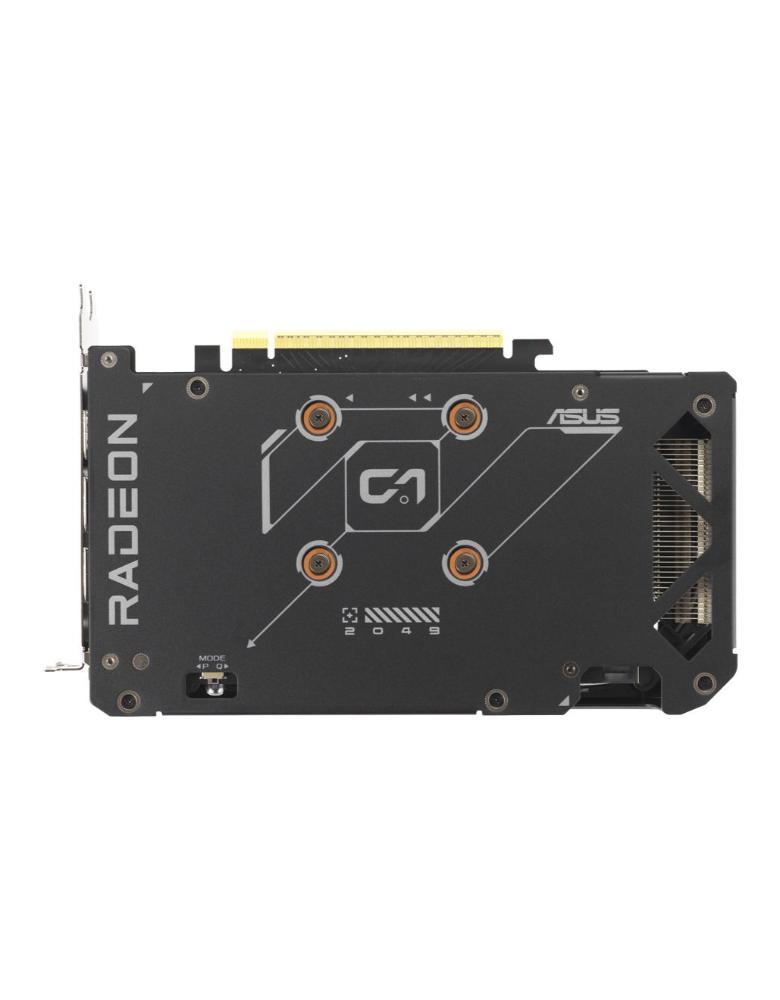

Asus Dual AMD Radeon RX 9060 XT 8GB GDDR6 Graphics Card

ASUS Dual Radeon™ RX 9060 XT combines powerful thermal performance with broad compatibility. Advanced cooling solutions from flagship graphics cards — including two Axial-tech fans for optimizing airflow to the heatsink. Designed in a compact 2.5-slot form factor, delivering more power in less space. These enhancements make ASUS Dual the perfect choice for gamers who want heavyweight graphics performance in a compact build.

• Axial-tech fans now feature a smaller fan hub that facilitates longer blades and a barrier ring that increases downward air pressure
• 2.5-slot design allows for greater build compatibility while maintaining cooling performance
• 0dB technology lets you enjoy light gaming in relative silence
• Dual BIOS switch lets you toggle between Quiet and Performance BIOS profiles
• Dual ball fan bearings last up to twice as long as sleeve bearing designs

Specifications:

Model:  DUAL-RX9060XT-8G
Graphic Engine:  AMD Radeon RX 9060 XT
Bus Standard:  PCI Express 5.0
OpenGL:  OpenGL 4.6
Video Memory:  8GB GDDR6
Engine Clock
– OC mode (GPU Tweak III): up to 3150 MHz (Boost Clock) / up to 2550 MHz (Game Clock)
– Default mode: up to 3130 MHz (Boost Clock) / up to 2530 MHz (Game Clock)
Stream Processors:  2048
Memory Speed:  20 Gbps
Memory Interface:  128-bit
Resolution:  Digital Max Resolution 7680 x 4320
Interface
– 1 x HDMI 2.1b (Native)
– 2 x DisplayPort 2.1a (Native)
HDCP Support:  Yes (2.3)
Maximum Display Support:  3
NVlink/Crossfire Support:  No
Accessories
– 1 x Thank you card
– 1 x Speedsetup Manual
Software: ASUS GPU Tweak III & Drivers (download from support site)
Dimensions:  202 x 120 x 49 mm
Recommended PSU:  550W
Power Connectors:  1 x 8-pin
Slot:  2.5 Slot
Note
* Wattage recommendation is based on a fully overclocked GPU and CPU system.
* Please refer to the ASUS PSU product page for tailored recommendations.
* All specifications are subject to change without notice.
* Game Clock is the expected GPU clock during gaming at typical TGP.
* Boost Clock is the maximum achievable frequency and may vary based on conditions.
