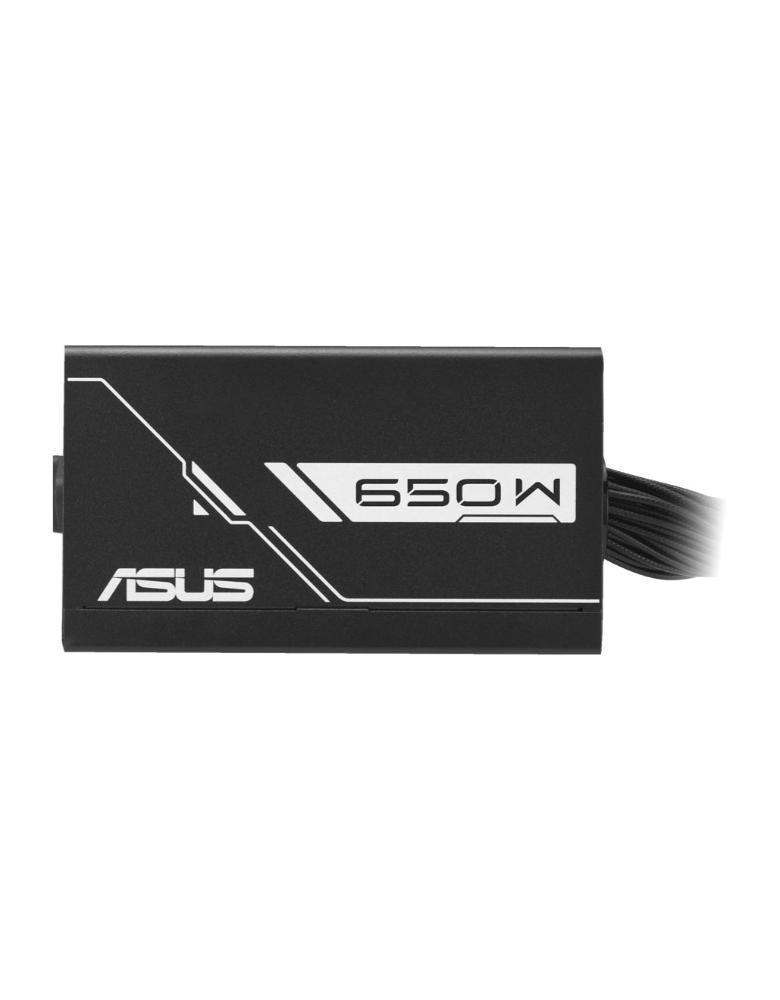

ASUS Prime 650W, 750W 80 Plus Bronze Power Supply

ASUS Prime 650W and 750W Bronze PSU brings efficient and durable power delivery to all-round PCs, and gaming rigs.

• Dual ball fan bearings that can last up to twice as long as sleeve bearing designs.
• An 80 Plus Bronze Certification is the result of low-ESR electrolytic capacitors and other premium components.
• Etched cables can be bent easily during installation.

Specifications:

Model:  PRIME-750B-BLACK, PRIME-650B-BLACK
Intel Specification:  ATX12V
PFC Type:  Active PFC
ATX 3.0:  No
Dimensions:  150 x 150 x 86 mm
Efficiency:  80Plus Bronze
MTBF:  >120,000 hrs @ 25°C
Protection Features:  OPP/OVP/UVP/SCP/OCP/OTP
Hazardous Materials:  ROHS
AC Input Range:  100-240Vac
DC Output Voltage:  +3.3V +5V +12V -12V +5Vsb/  +3.3V +5V +12V -12V +5Vsb
Maximum Load:  20A 20A 62.5A 0.3A 2.5A/  20A 20A 54A 0.3A 2.5A
Combined Load:  120W 120W 750W 3.6W 12.5W/  110W 110W 648W 3.6W 12.5W
Total Output:  750W/ 650W

750W Cable Connectors

• MB 24/20-pin x 1
• CPU 4+4-pin x 2
• PCI-E 8-pin x 3
• SATA x 6
• PERIPHERAL x 3

650W Cable Connectors

• Cable Connectors
• MB 24/20-pin x 1
• CPU 4+4-pin x 1
• PCI-E 8-pin x 2
• SATA x 5
• PERIPHERAL x 3

750W Package Contents

• Power Cord x 1
• Motherboard Power cable x 1 (600mm)
• CPU cable x 2 (800mm)
• PCI-E 1-to-2 x 1 (600mm)
• PCI-E 1-to-1 x 1 (600mm)
• SATA 1-to-3 cable x 2 (400+120+120+mm)
• Peripheral 1-to-3 cable x 1 (400+120+120mm)
• User Manual x 1

650W Package Contents

• Power Cord x 1
• CPU cable x 1 (800mm)
• PCI-E 1-to-2 x 1 (600mm)
• SATA 1-to-2 cable x 1 (400+120mm)
• SATA 1-to-3 cable x 1 (400+120+120mm)
• Peripheral 1-to-3 cable x 1 (400+120+120mm)
• User Manual x 1

Weight:  Single PSU : 2.2KG
Product Weight (with packing) : 3.067KG
0dB Technology”  No
0dB Fan Button:  No, this product is without 0dB technology.
