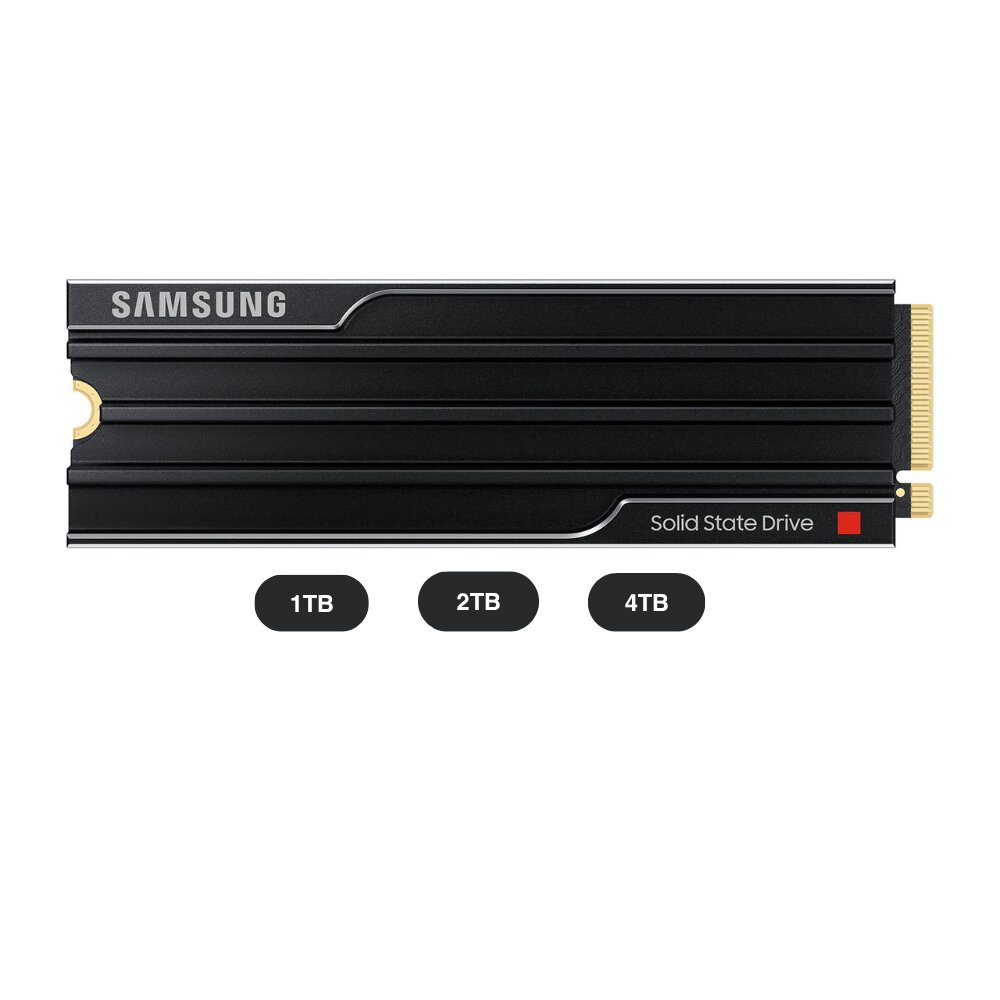

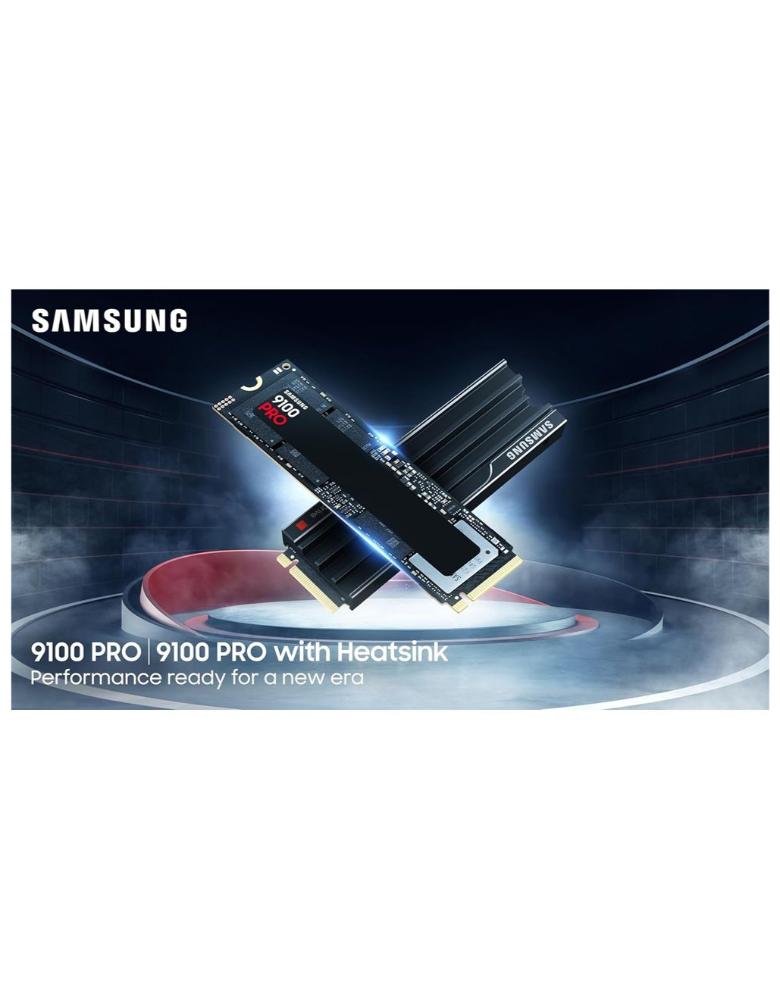

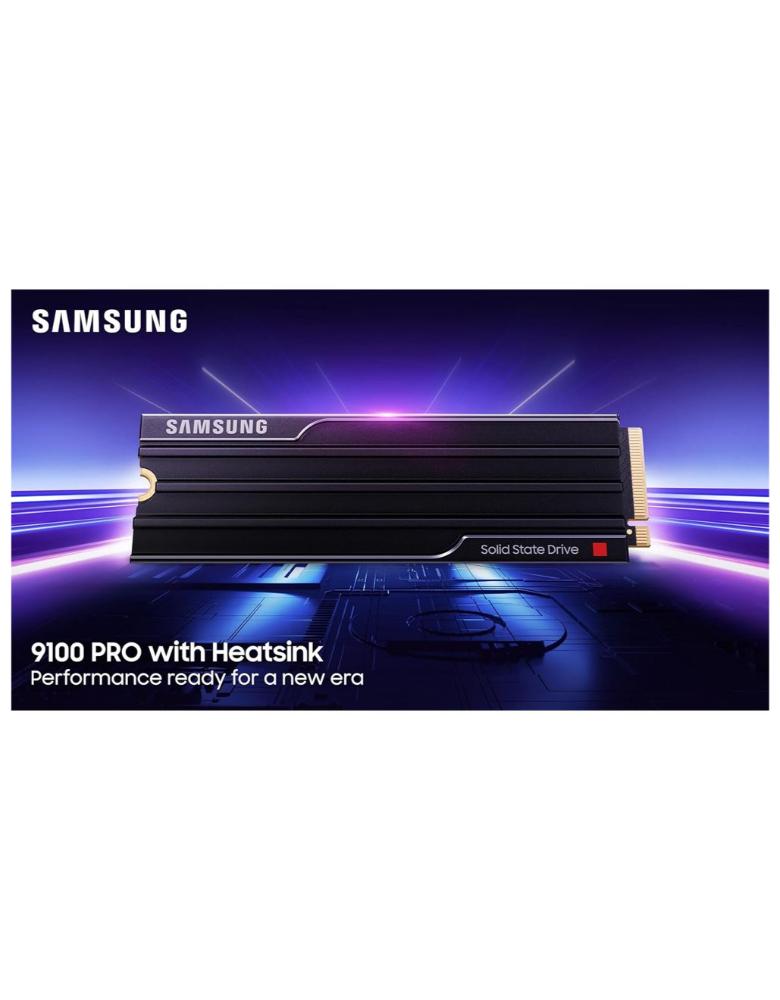

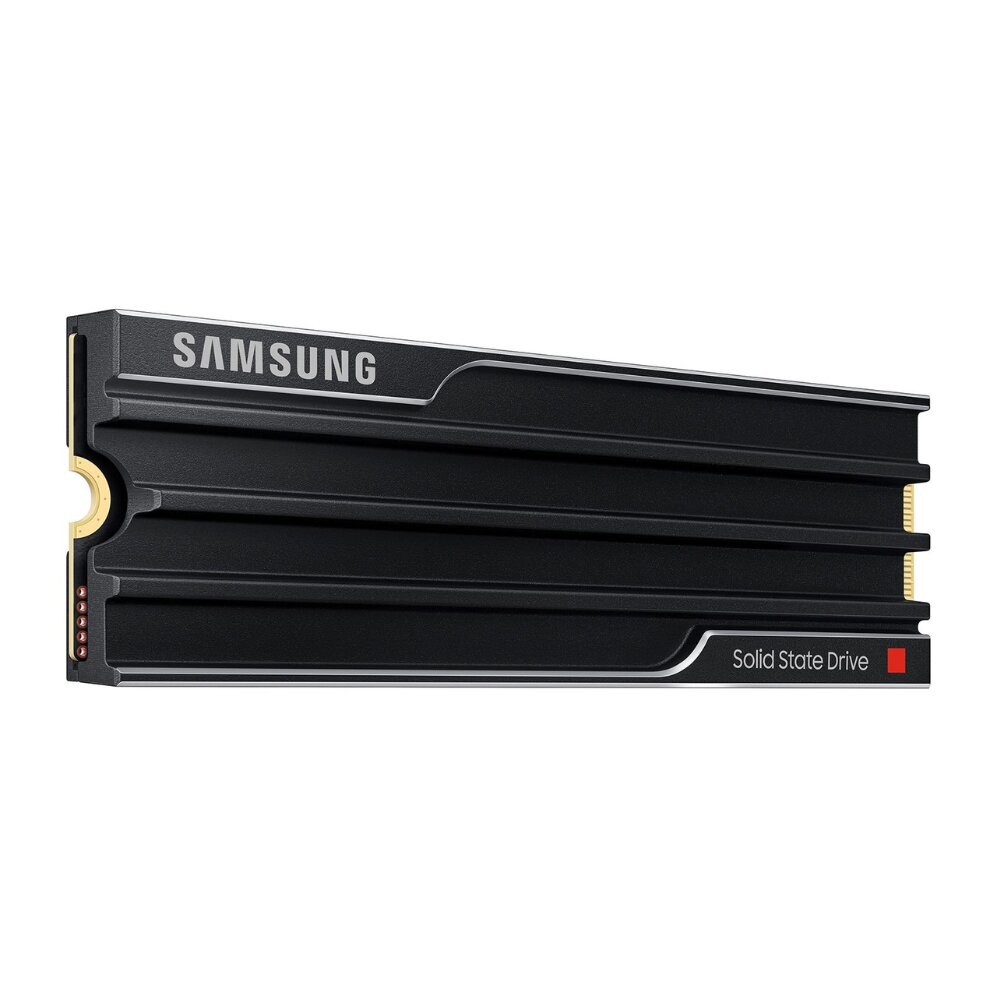

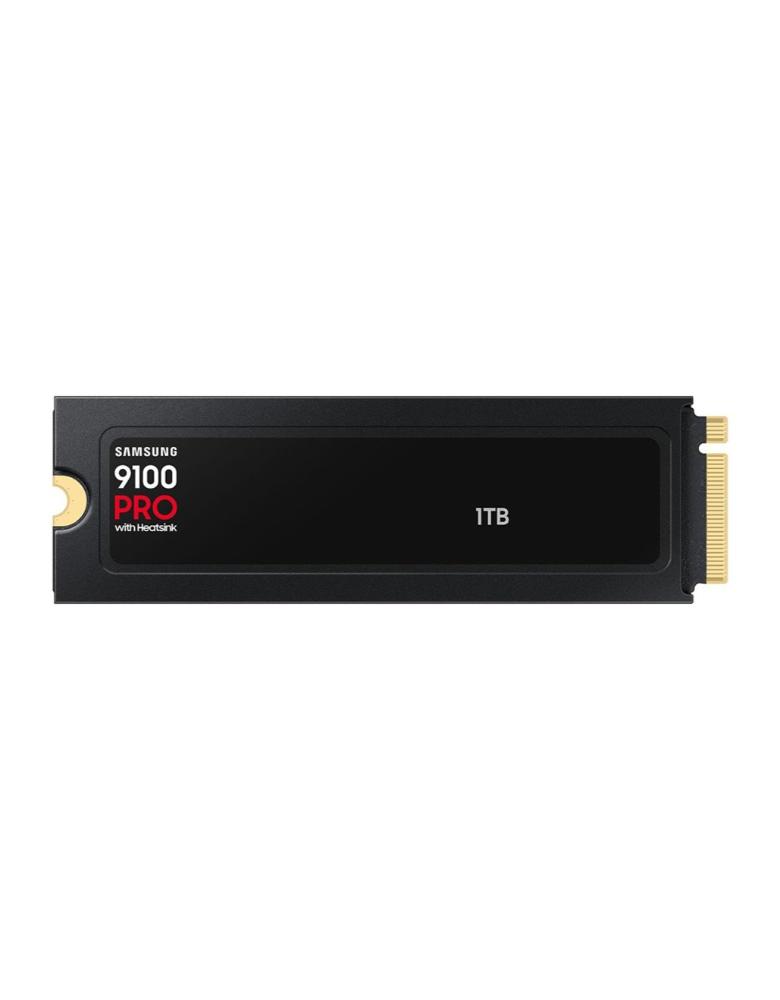

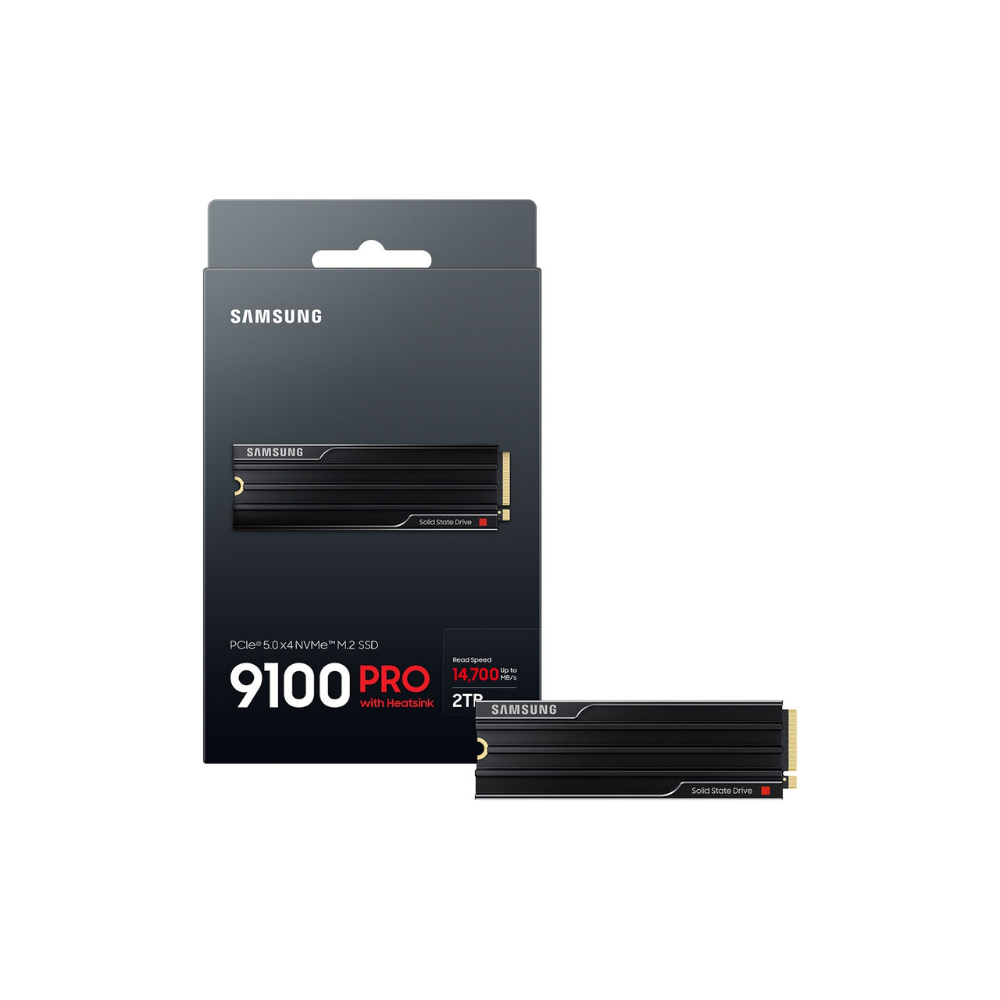

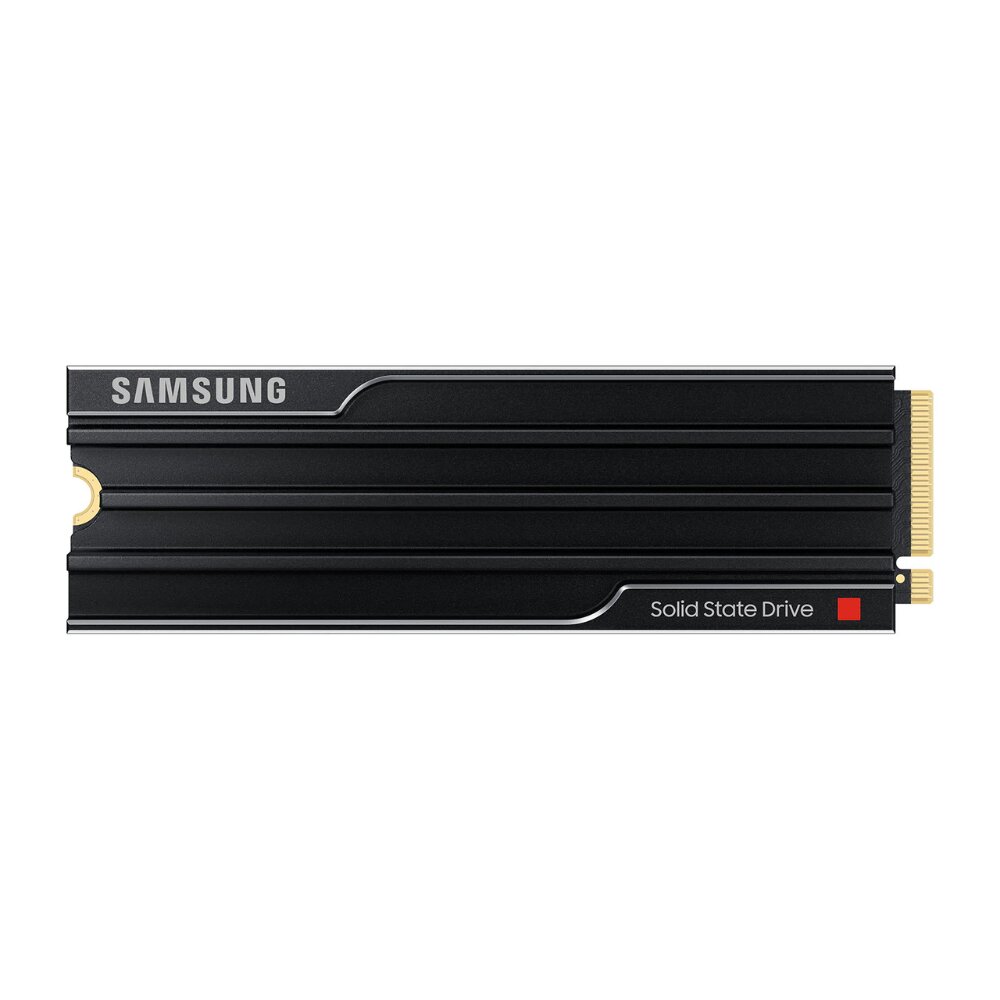

Samsung 9100 Pro PCIe 5.0 x4 NVMe M.2 SSD with Heatsink

Performance ready for a new era
Blazing speed. Massive capacity. Built for AI and beyond. With up to twice the speed of the 990 PRO SSD¹ and up to an 4TB storage option,² the Samsung 9100 PRO with Heatsink SSD supercharges AI workloads, 4K video rendering, and gaming.

Specification:

General Feature

Capacity:  1TB, 2TB,4TB

Interface:  PCIe® 5.0 x4, NVMe™ 2.0

Form Factor:  M.2 (2280) / M.2 (2280 with Heatsink)

Performance

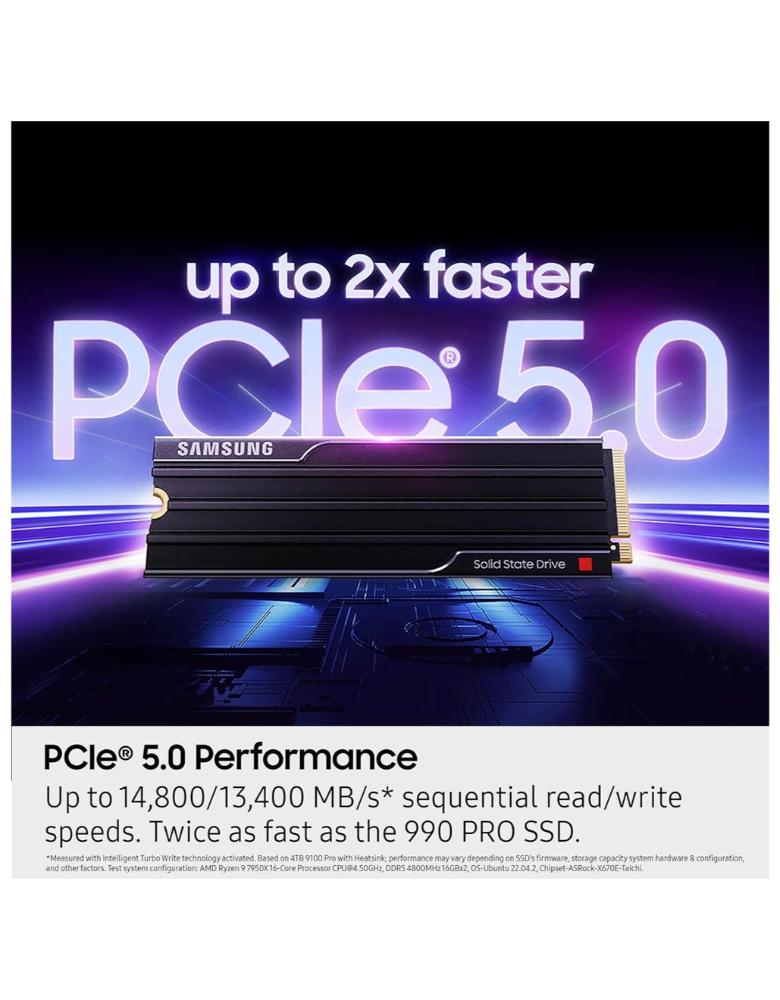

Seq. Read/Write (MB/s)
14,700 / 13,300

Ran. Read/Write (IOPS ,QD32)
1,850K / 2,600K

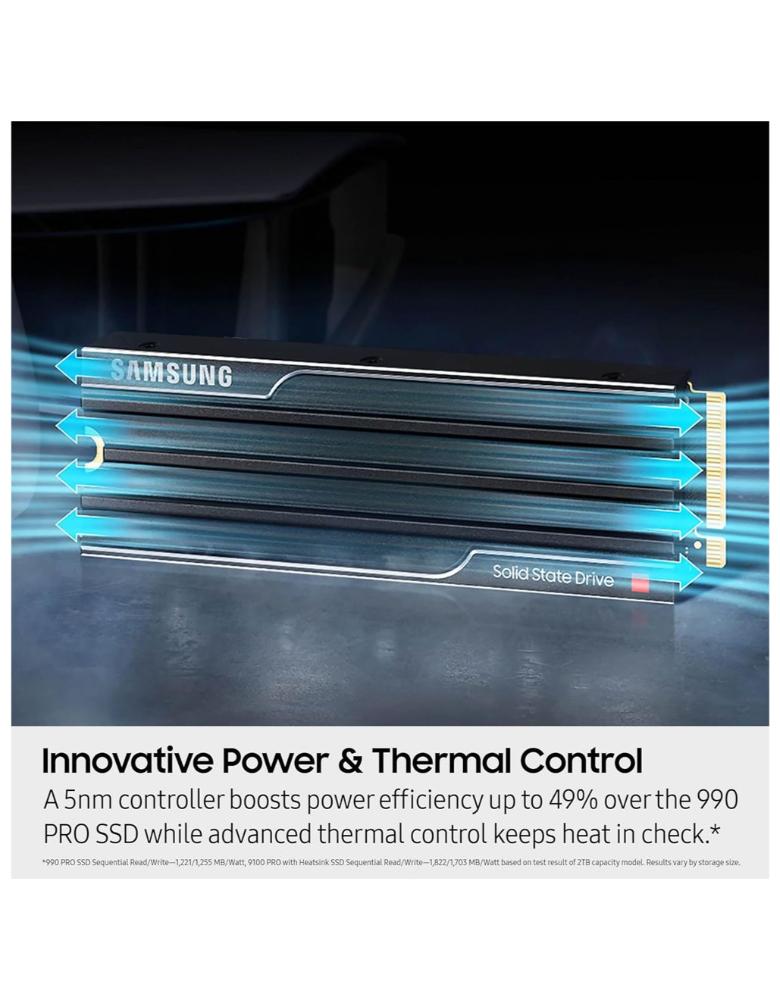

Power
Active (Read/Write):  7.6W / 7.2W

Device Sleep (L1.2):  4.0mW / 3.3mW

Data Encryption:  Class 0 (AES 256), TCG/Opal v2.0, MS eDrive (IEEE1667)

Total Bytes Written (TBW):  600

Hardware
NAND
Samsung V NAND TLC (V8)

Controller:  In-House Controller

Cache Memory:  1GB LPDDR4X

Dimensions (W x H x D)

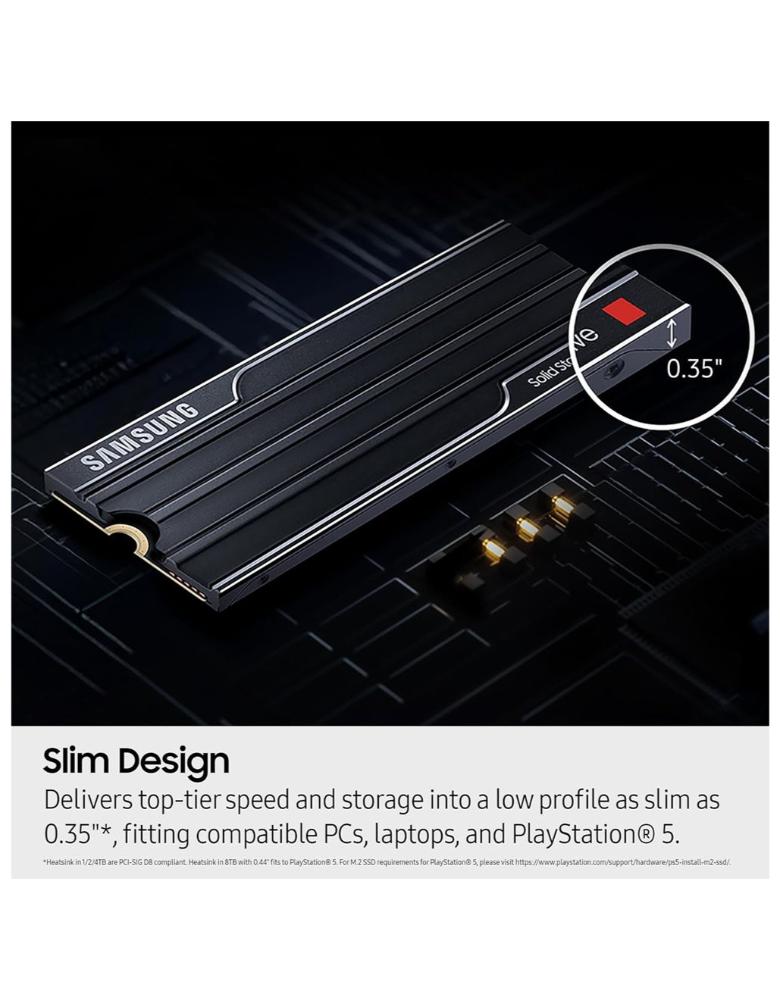

Product:  0.9 x 0.35 x 3.2 (in.)

Package Size:  3.9 x 0.9 x 6.4 (in.)

Inner Box Size:  7.2 x 5.4 x 9.4 (in.)

Weight
Product:  0.07 lb.

Package Weight:  0.16 lb.

Inner Box Weight:  0.36 lb.
