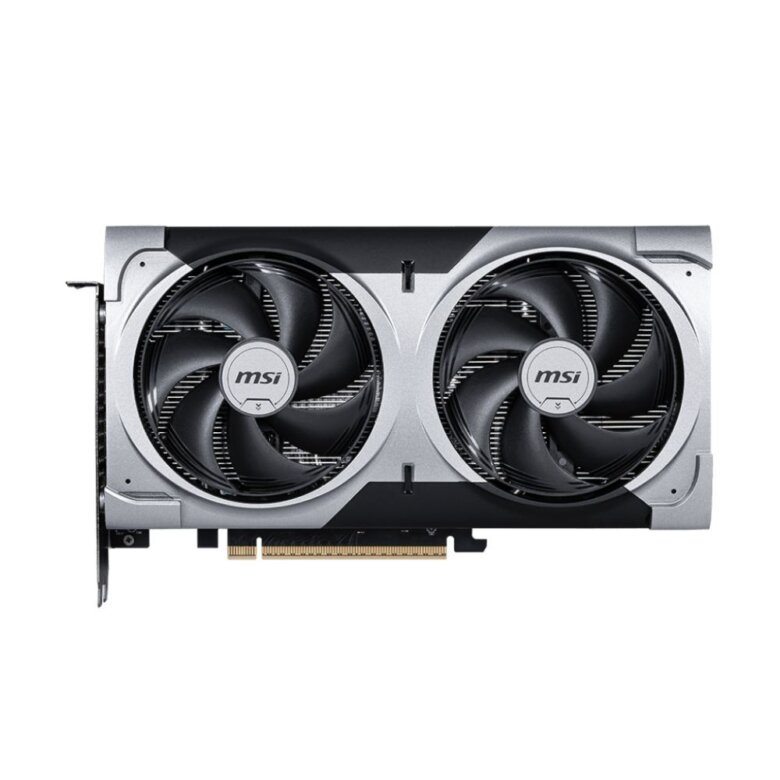

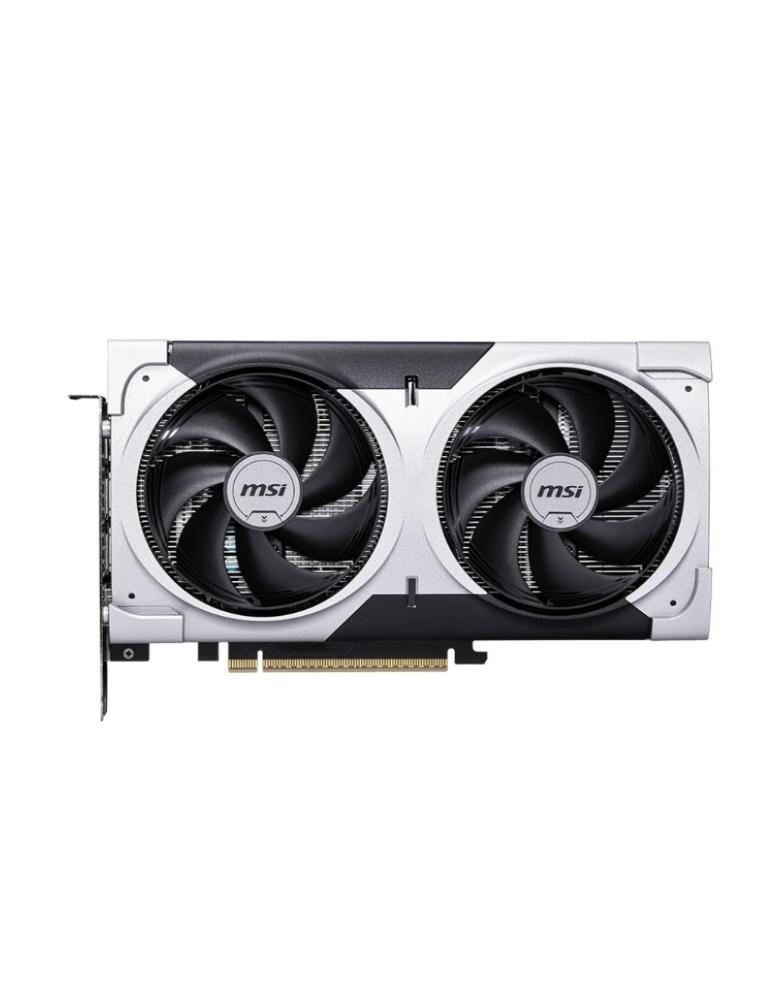

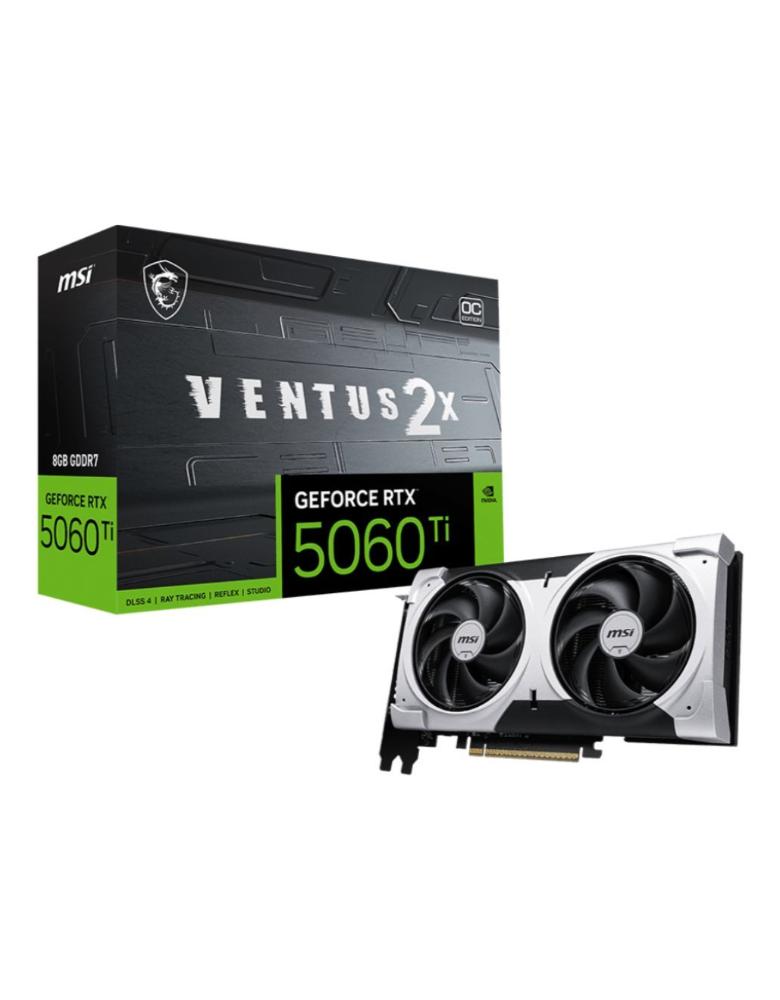

MSI GeForce RTX 5060 Ti 8G VENTUS 2X OC PLUS Graphics Card

GeForce RTX™ 5060 Ti 8G VENTUS 2X OC PLUS

• Powered by the NVIDIA Blackwell architecture and DLSS 4
• Core Clock:
  Extreme Performance: 2617 MHz (MSI Center)
  Boost: 2602 MHz
• STORMFORCE FAN: Seven fan blades, claw texturing, and a circular arc are designed for optimal airflow with minimal noise.
• Heat Pipes designed for efficient heat transfer, the heat pipes effectively draw thermal energy away from the GPU, improving overall cooling performance.

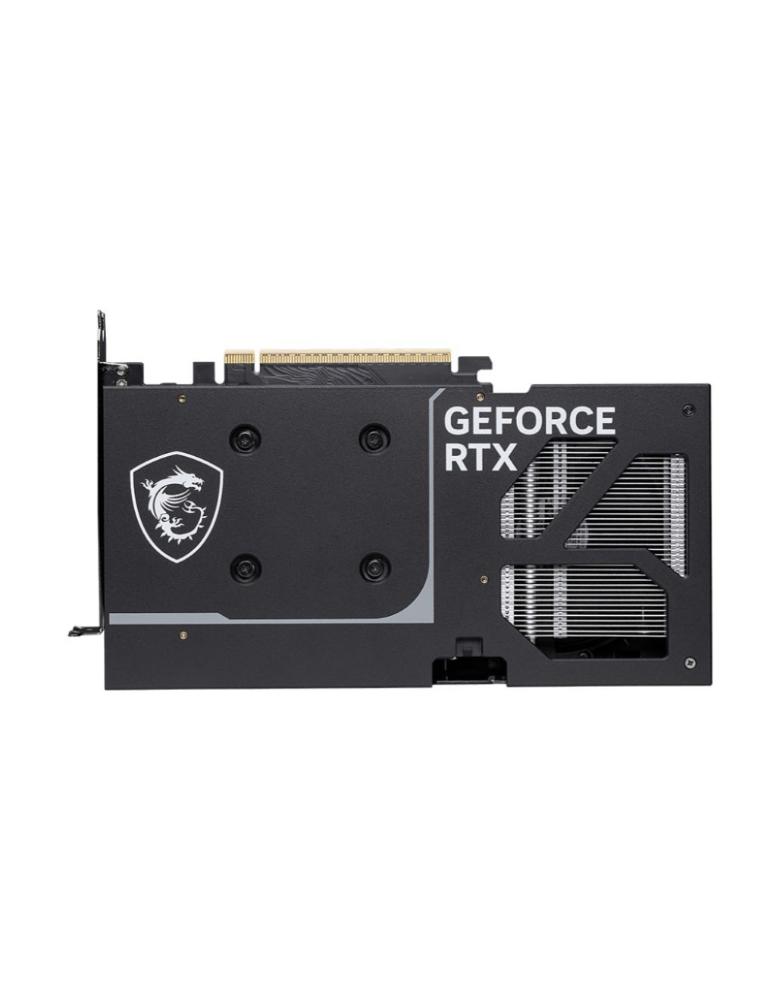

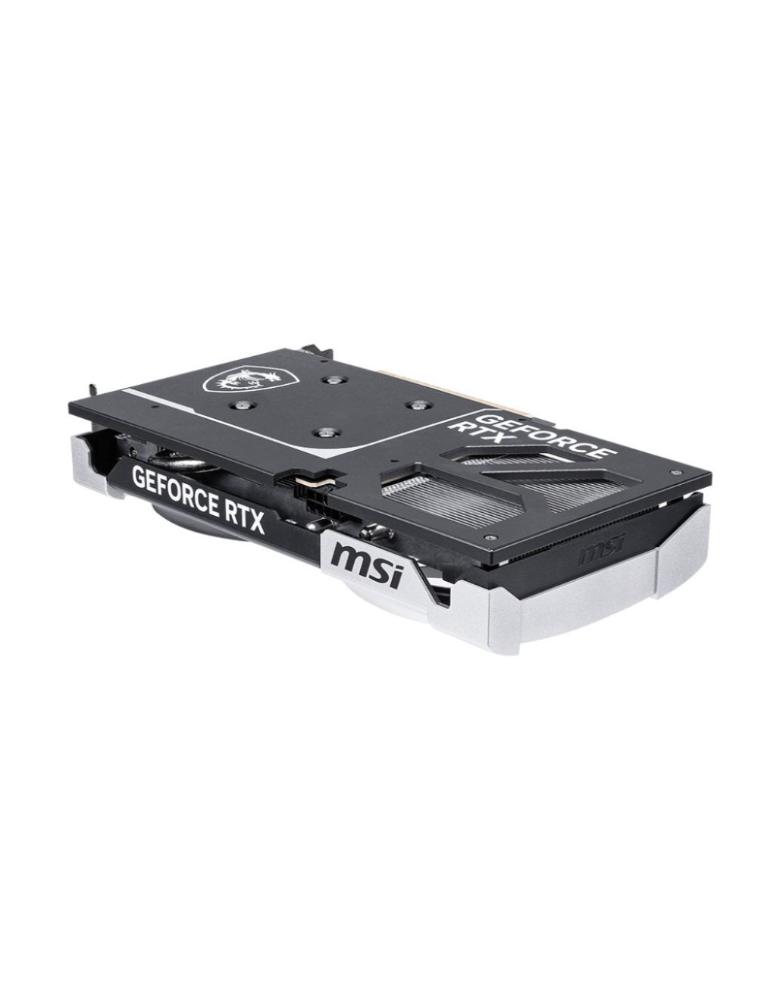

• Reinforcing Backplate: The reinforcing backplate features an airflow vent that allows exhaust air to directly pass through.
• MSI Center: The exclusive MSI Center software lets you monitor, tweak and optimize MSI products in real-time.
• Afterburner software takes full control with the most recognized and widely used graphics card overclocking software in the world.

SPECIFICATIONS

Marketing Name: GeForce RTX™ 5060 Ti 8G VENTUS 2X OC PLUS
Model Name: G506T-8V2CP
Graphics Processing Unit: NVIDIA® GeForce RTX™ 5060 Ti
Interface: PCI Express® Gen 5 x16 (uses x8)
Core Clocks: Extreme Performance: 2617 MHz (MSI Center); Boost: 2602 MHz
CUDA® CORES: 4608 Units
Memory Speed: 28 Gbps
Memory: 8GB GDDR7
Memory Bus: 128-bit

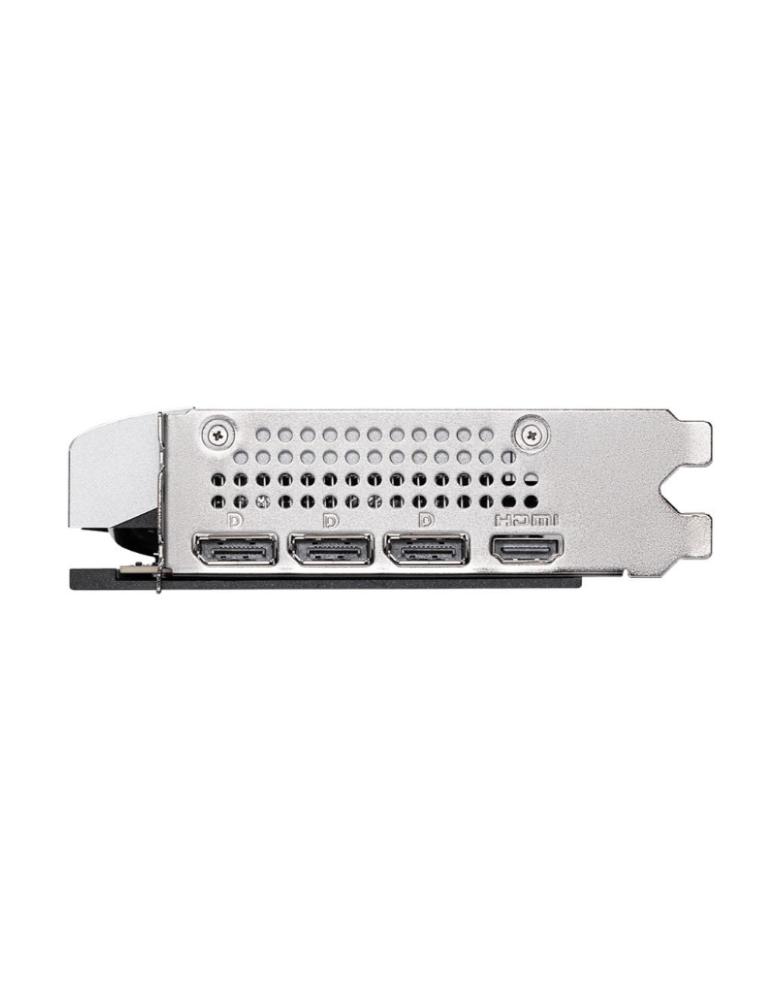

Output:
DisplayPort x 3 (v2.1b)
HDMI™ x 1 (As specified in HDMI™ 2.1b: up to 4K 480Hz or 8K 120Hz with DSC, Gaming VRR, HDR)
HDCP Support: Y
Power consumption: 180 W
Power connectors: 8-pin x1
Recommended PSU: 600 W
Card Dimension (mm): 227 x 126 x 41 mm
Weight (Card / Package): 573 g / 834 g
DirectX Version Support: 12 Ultimate
OpenGL Version Support: 4.6
Maximum Displays: 4
G-SYNC® technology:
Digital Maximum Resolution: 7680 x 4320
